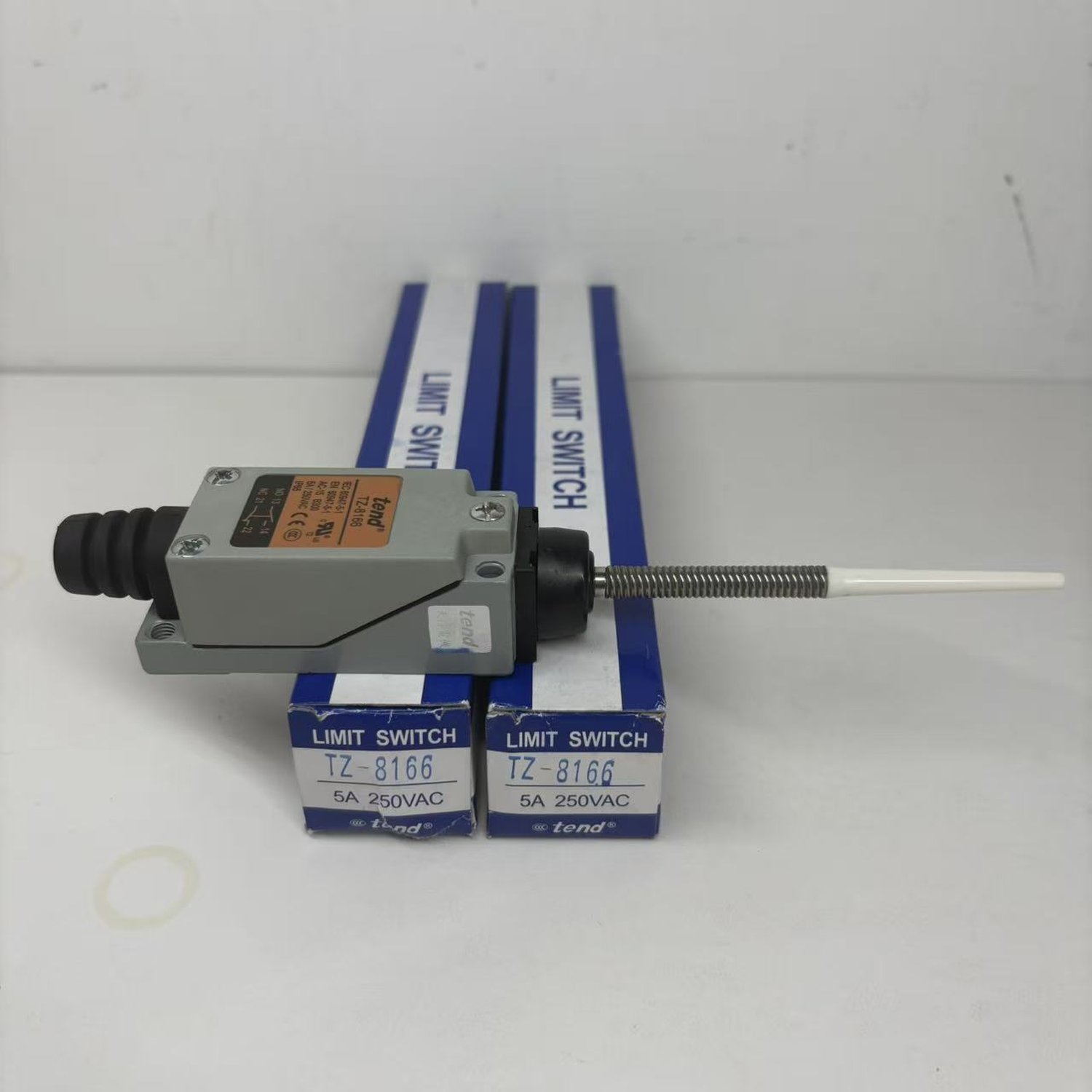

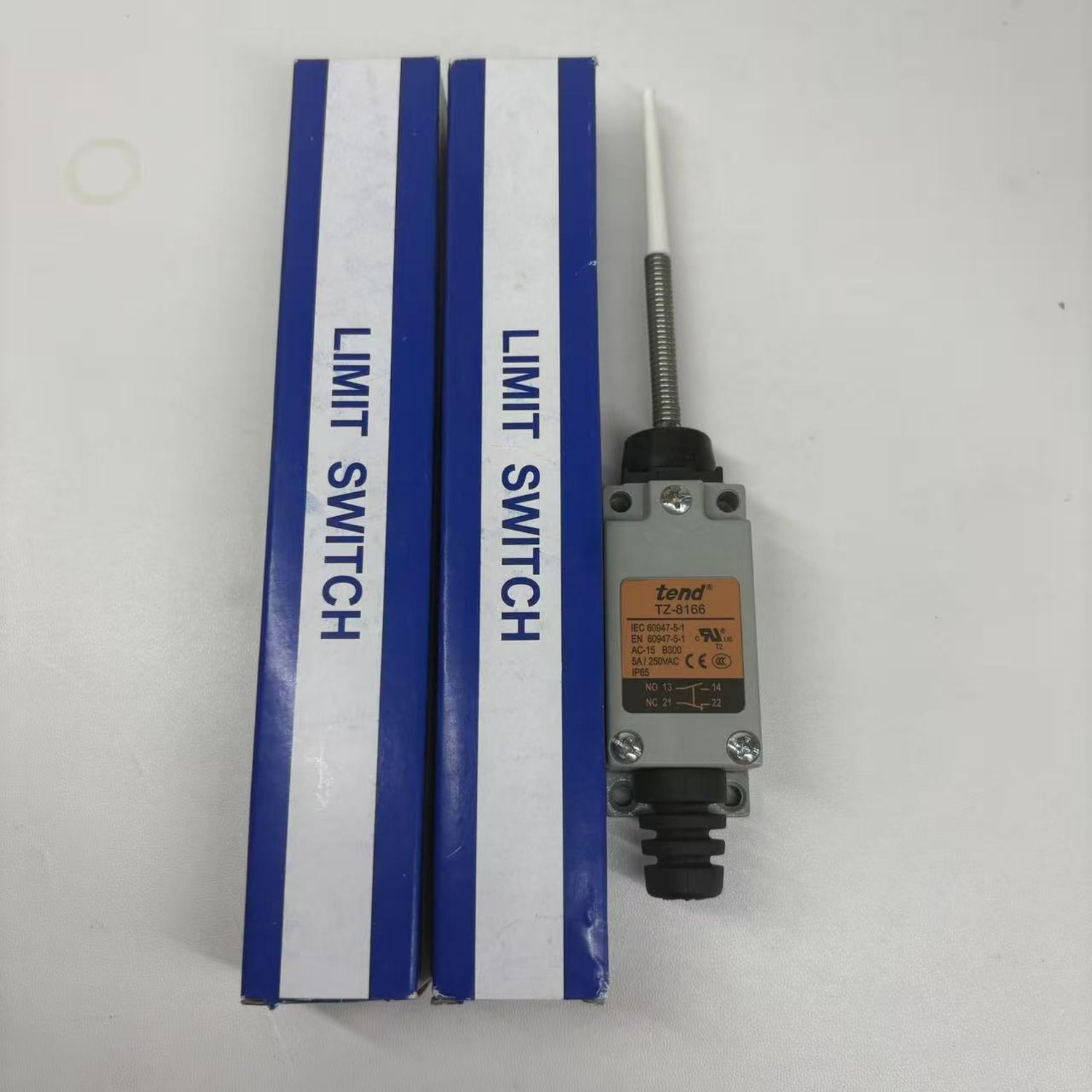

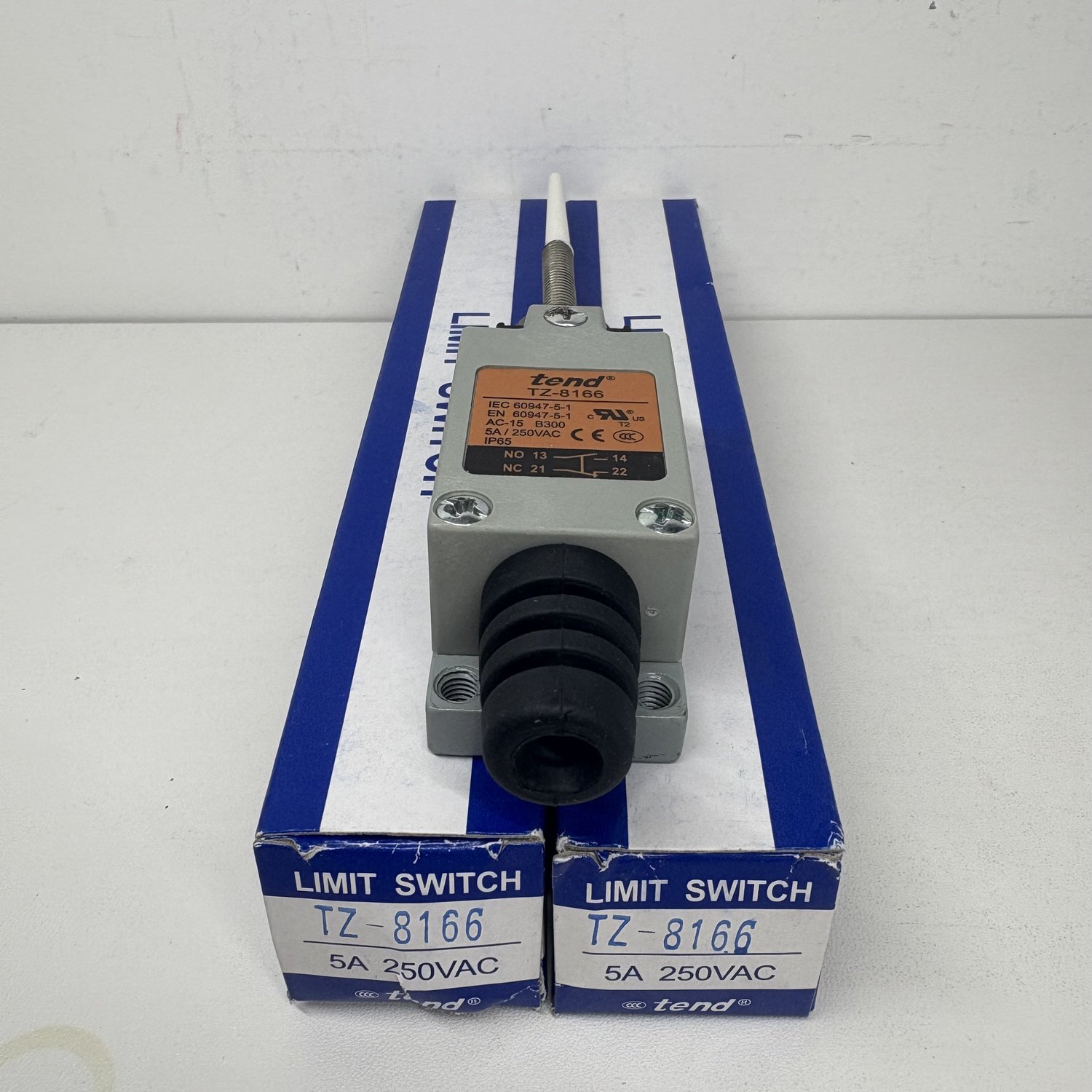

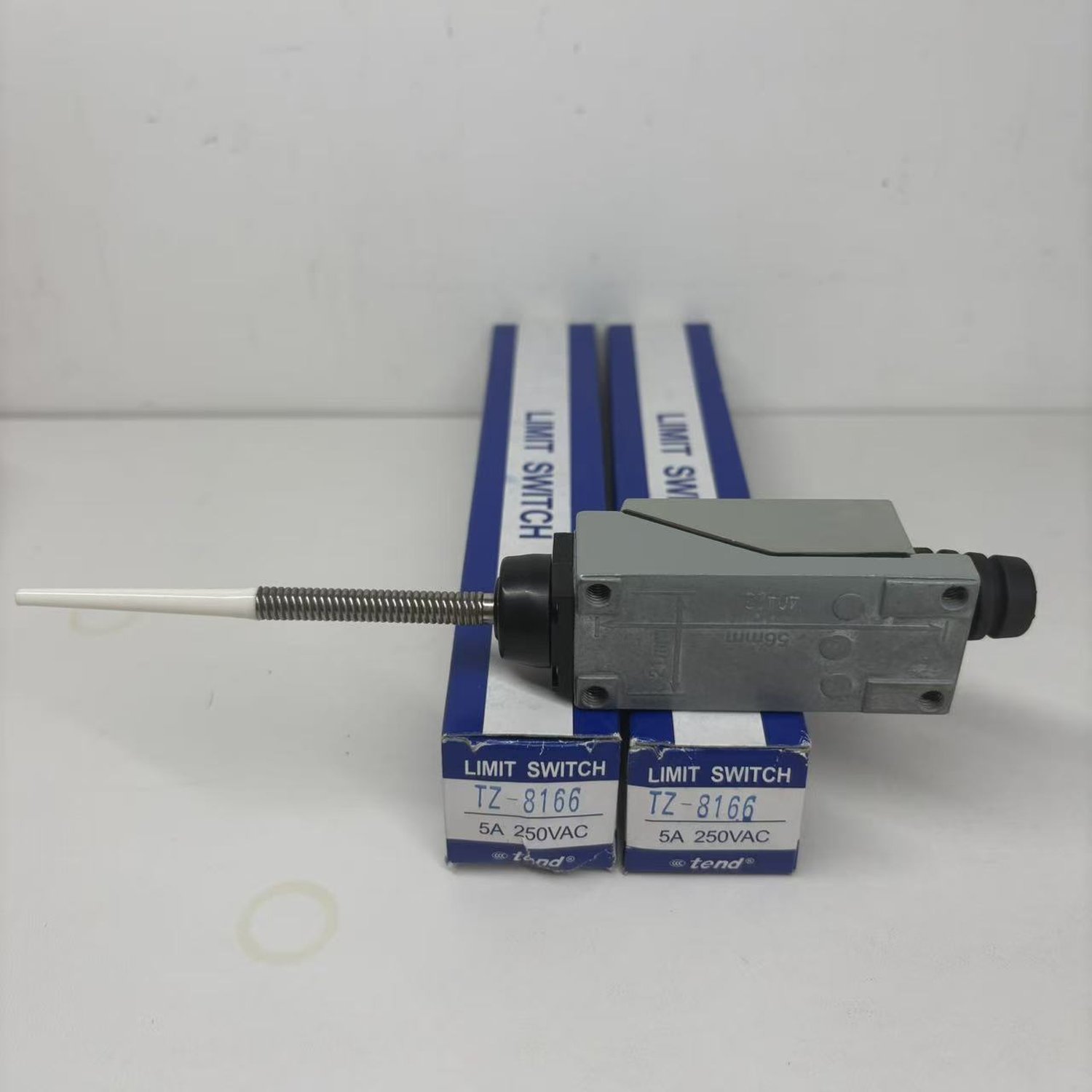

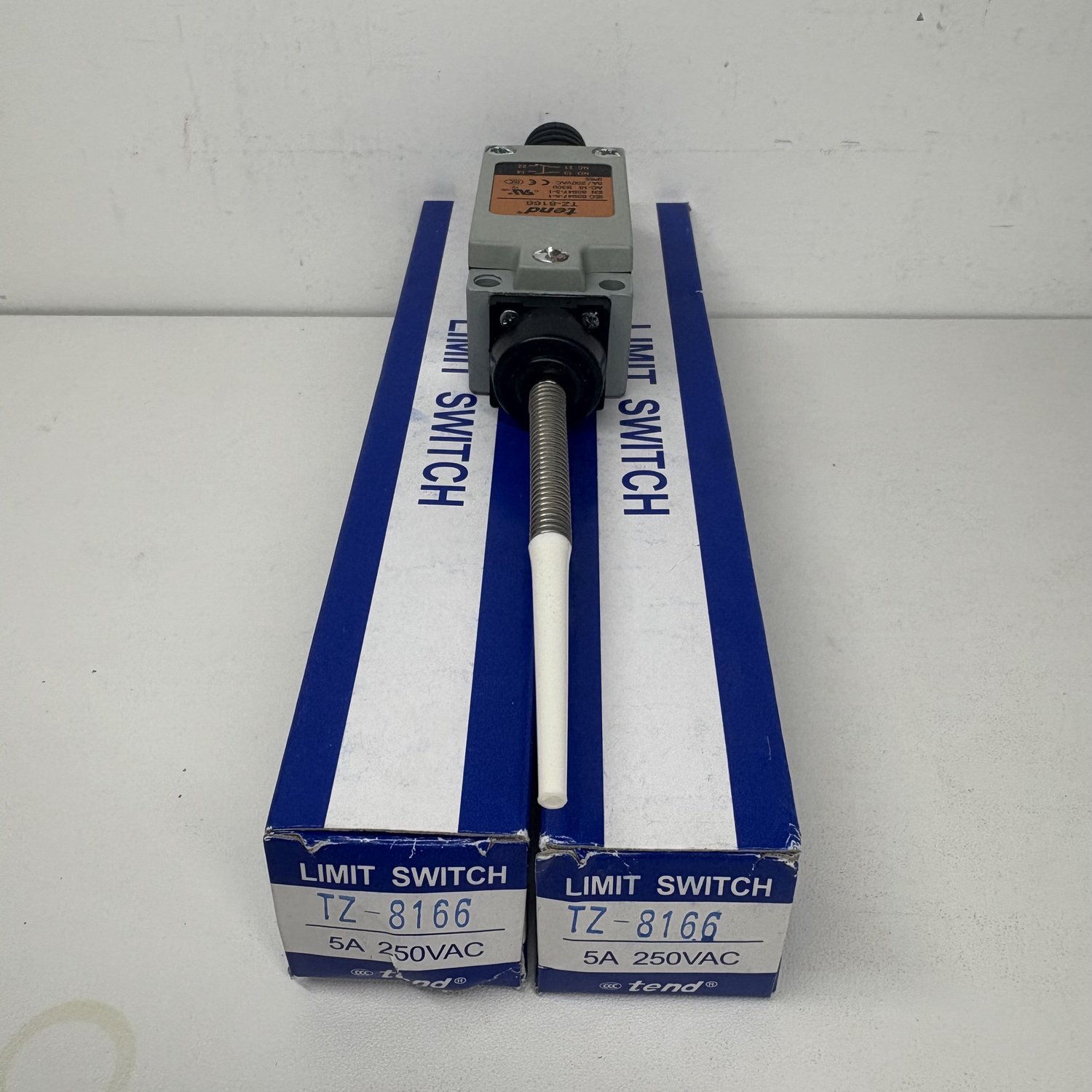

Tend TZ-8166 Double-Circuit Limit Switch (TZ Series)
- Actuator Type: Wobble Stick (Spring Lever with Plastic Rod)
- Contact Configuration: 1 NO + 1 NC (SPDT – Double Circuit)
- Electrical Rating: 5A at 250VAC / 240VAC
- IP Rating: IP65 (Dustproof and drip-proof)
- Operating Speed: 0.5 mm to 50 cm/s
- Mechanical Operating Frequency: 120 operations per minute max
- Electrical Operating Frequency: 30 operations per minute max
- Contact Resistance: 25 mΩ max. (initial value)
- Insulation Resistance: 100 MΩ min. (at 500VDC)
- Ambient Operating Temperature: -5°C to +65°C (with no icing)
- Mechanical Durability: >10,000,000 operations
- Body Dimensions: 88 mm × 28 mm × 25 mm (L × W × T)
- Mounting Hole Centers: 56 mm × 21 mm
- Mounting Hole Diameter: 4.5 mm
- Plastic Rod Length: 41 mm
- Net Weight: Approx. 142g
Brand New Tend TZ-8166 Double-Circuit Limit Switch (TZ Series). In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
- SKU: TZ-8166
- New Original In Stock
- 6 Months Warranty
- shipping by DHL or UPS
