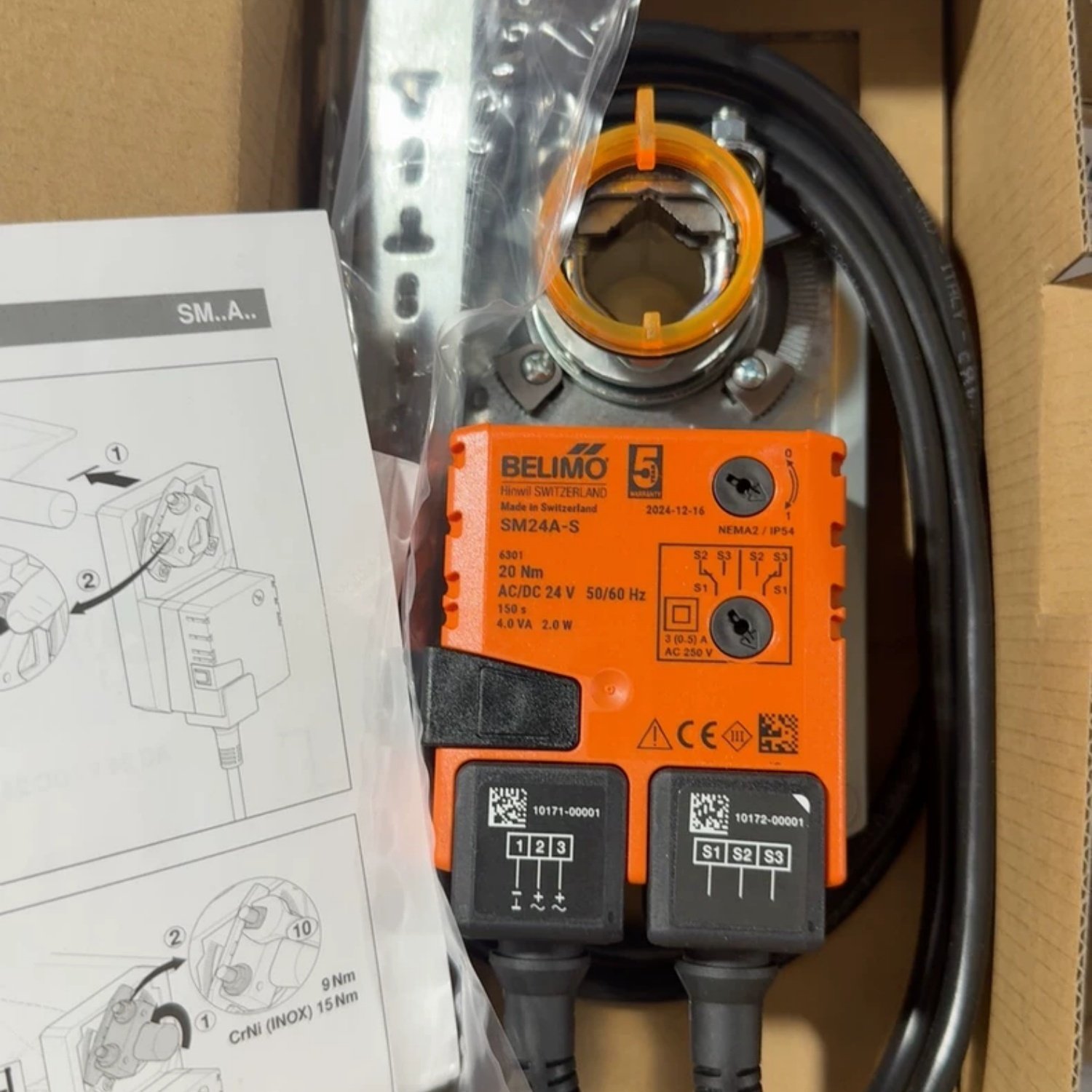

BELIMO SM24A-S Damper Actuator (SM Series)

• Nominal Voltage: AC/DC 24 V, 50/60 Hz
• Torque: 20 Nm
• Control Type: Open/Close (2-point) or 3-point
• Integrated Auxiliary Switch: 1x SPDT (Single Pole Double Throw), adjustable 0…100%
• Running Time: 150 seconds for a 90° rotation
• Angle of Rotation: Max. 95°, adjustable with mechanical end stops
• Power Consumption: 2 W (In Operation) / 0.2 W (At Rest) / 4 VA (Wire Sizing)
• Enclosure Protection Class: IP54 (IEC/EN) / NEMA 2
• Connection Type: Pre-wired 1-meter PVC cable (3x 0.75 mm²)
• Integrated Signaling: The built-in SPDT auxiliary contact provides feedback for defined damper positions or can trigger safety releases.

Brand New BELIMO SM24A-S Actuator. In stock — ships worldwide within 5-10 days.

1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
