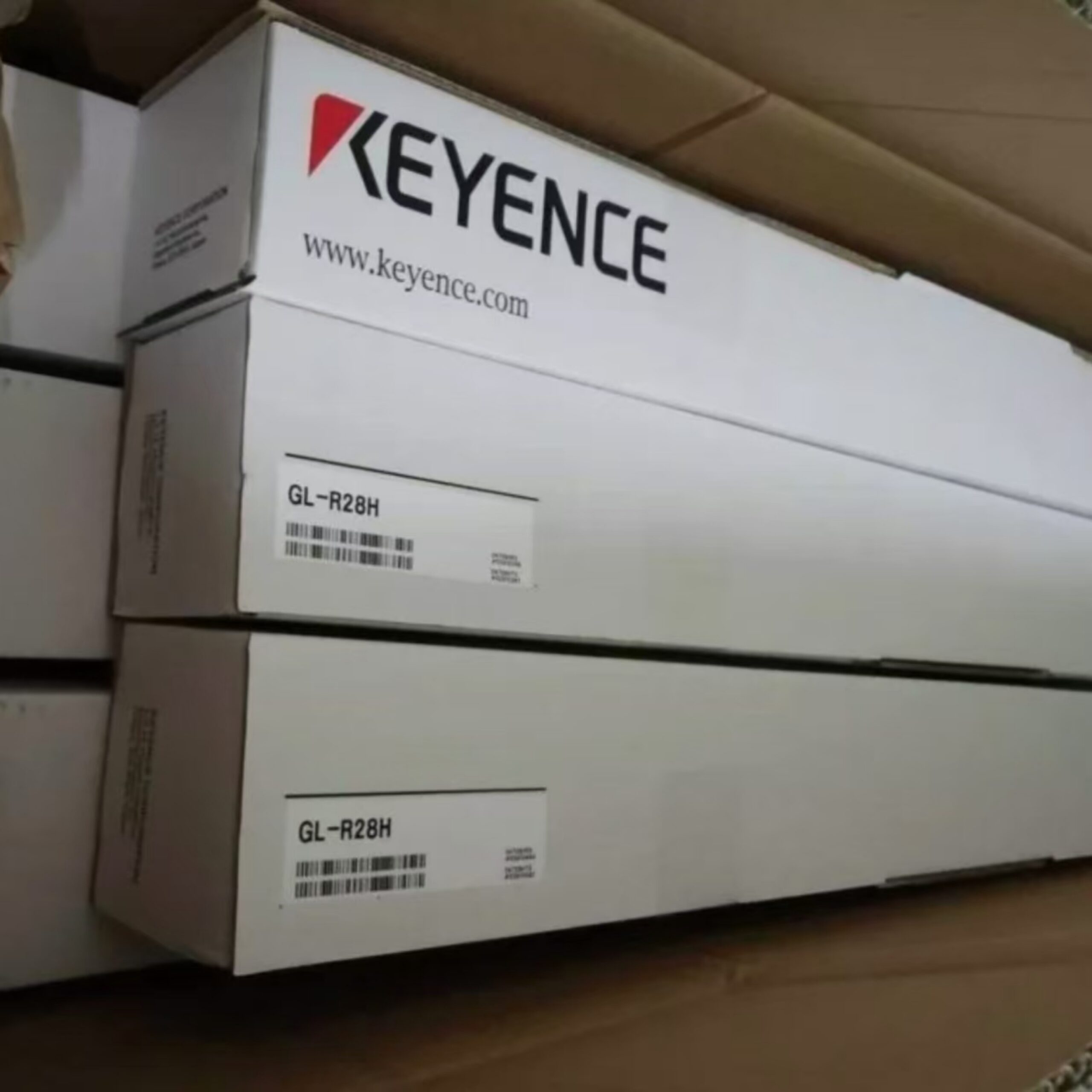

KEYENCE GL-R28H Safety Light Curtain

KEYENCE GL-R28H Safety Light Curtain

Manufacturer: KEYENCE
Model / Part Number: GL-R28H
Optical Axes (Beams): 28 infrared LED beams.
Detection Capability: 25 mm (0.98") diameter, optimized for detecting hands.
Dimensions: Total length of 560 mm (22.05"), a detection height of 540 mm (21.26"), and a beam pitch of 20 mm.
Operating Range: Long-range sensing from 0.2 to 15 meters (0.66 to 49.21 feet).
Safety Ratings: Meets highest safety standards including Type 4 ESPE, SIL3, and PL e (Category 4).
Enclosure Protection: IP65 and IP67 ratings, making it highly resistant to dust, water, oil, and heavy washdowns.
Outputs: 2 OSSD transistor outputs (PNP or NPN selectable depending on the cable type used).
Synchronization Options: Supports both Optical synchronization (no sync wire needed) and Wire synchronization.

Availability & Delivery

Availability shown is for reference only and will be confirmed at the time the order is processed.
Published quantities may change without prior notice.
The customer is responsible for verifying part number and specifications before confirming the purchase.
Certain products may be considered special order items depending on availability.
