IDEC FC6A-C40P1CE PLC CPU Module (MicroSmart FC6A)

• I/O Configuration: 40 embedded I/O points consisting of 24 digital inputs (sink/source) and 16 digital outputs. It also includes 1 embedded analog input (0-10V DC).
• Output Type: Transistor source (0.5A per point at 24V DC).
• Power Supply: 24V DC operating voltage.
• Memory & Performance: 384 KB program capacity, 1,024 timers, and 56,000 data registers. It supports high-speed counters up to 100kHz.
• Expandability: Supports up to 15 expansion modules on the right side, allowing the system to scale up to 520 digital I/O or 126 analog I/O. It also accommodates a cartridge slot for additional analog or serial ports.
• Environment: Rated for harsh environments with an operating temperature of -25°C to 65°C and certified for Class I Div 2 hazardous locations.
• Embedded Ports: Includes 1 RJ45 Ethernet port, 1 USB Mini-B port for programming, and 1 user-selectable RS232C/RS485 serial port. It also has an embedded SD memory slot for data logging and program transfers.
• Protocols: Supports Modbus TCP and RTU natively. As an All-in-One CPU, it features built-in SAE J1939 protocol capabilities, making it ideal for diesel engines, mobile power generators, and vehicular tracking systems.
• Web Server & Software: Offers an integrated web server function for custom HTML monitoring. It is configured using IDEC's WindLDR Software.

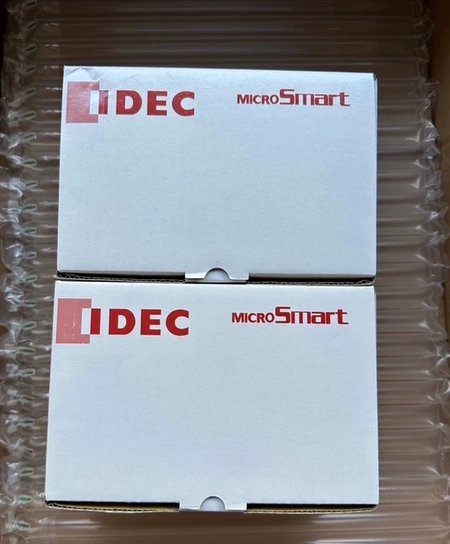

Brand New IDEC FC6A-C40P1CE PLC Module. In stock — ships worldwide within 5-10 days.

1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
