CKD F3000-8-W-F Solenoid Valve

CKD F3000-8-W-F Pneumatic Air Filter (F-W Series) - Image 2

CKD F3000-8-W-F Pneumatic Air Filter (F-W Series) - Image 3

CKD F3000-8-W-F Pneumatic Air Filter (F-W Series) - Image 4

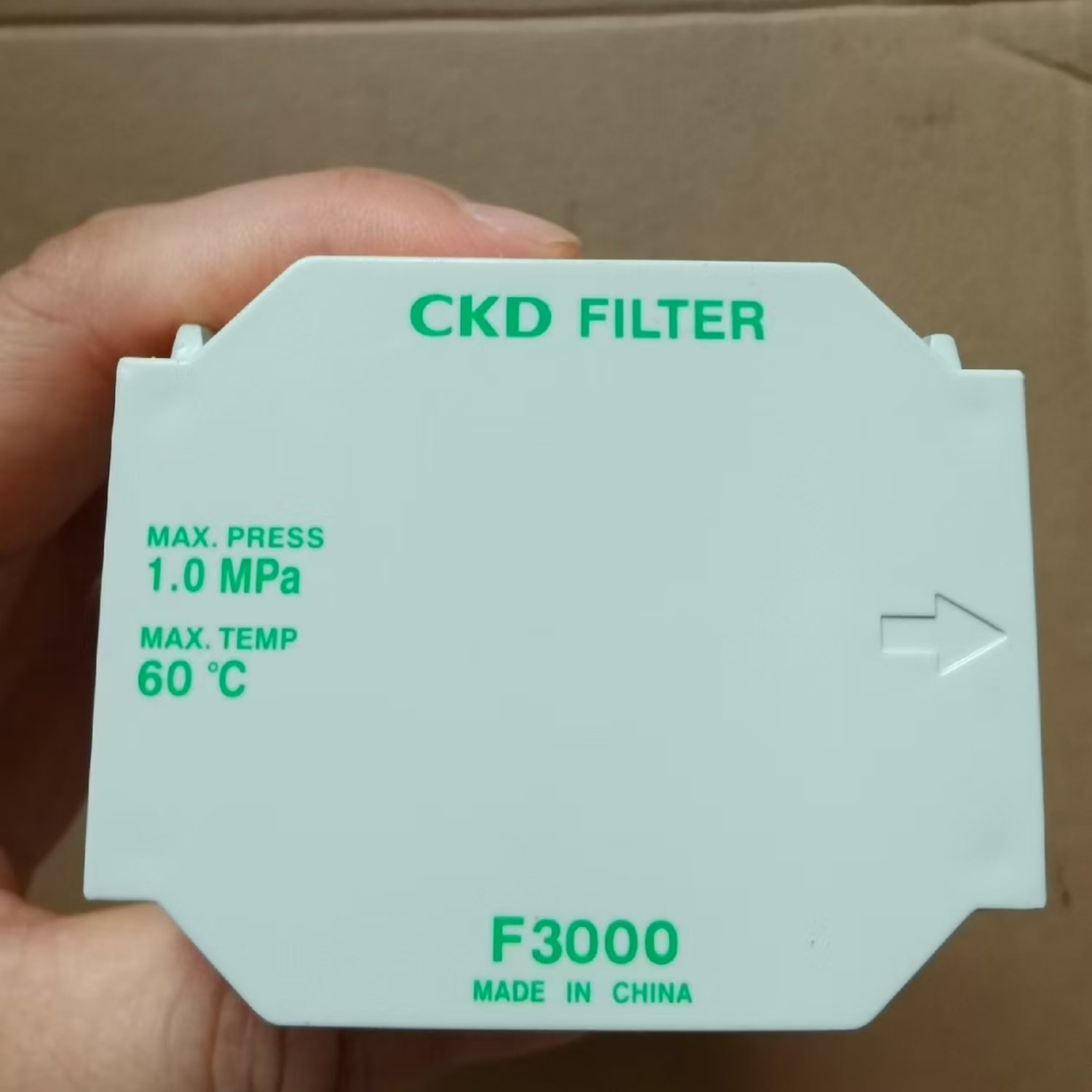

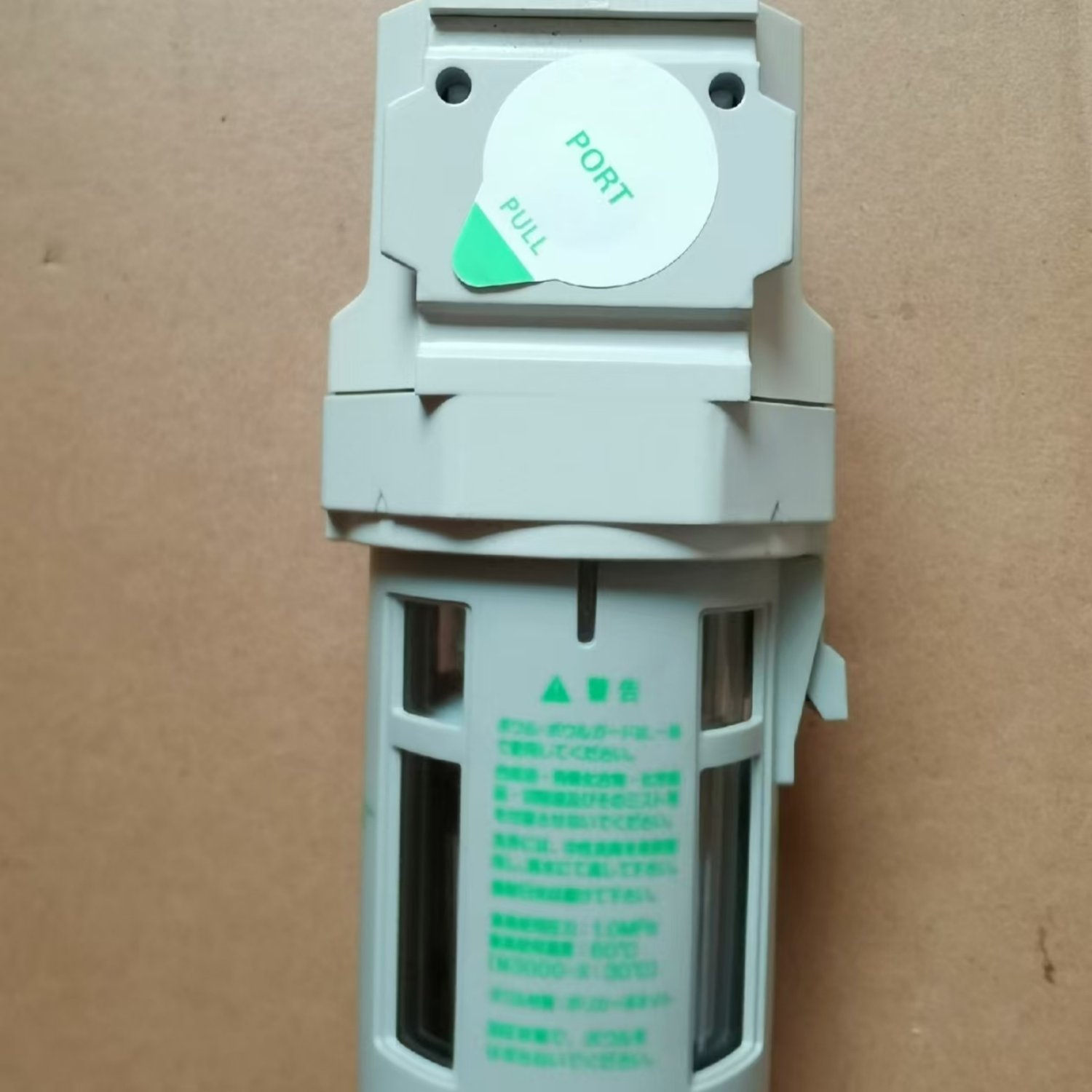

CKD F3000-8-W-F Pneumatic Air Filter (F-W Series)

REQUEST A QUOTE

Metric Attribute: Specification (Metric)
Port Size: Rc 1/4
Filtration Rating: 5 μm (Microns)
Max Working Pressure: 1.0 MPa
Proof Pressure: 1.5 MPa
Fluid Temperature Range: 5°C to 60°C
Total Unit Length: 170.5 mm
Bowl Material: Polycarbonate
Graduated Matrix Element: Features CKD's proprietary chemical fiber filter structure. The media transitions from a coarse texture on the surface to a fine density toward the core. This depth-filtration design minimizes surface clogging, significantly extending the lifespan of the element compared to surface-only alternatives.
Polycarbonate Bowl Guard: Outfitted with a transparent polycarbonate bowl enabling a 360° visual check of accumulated condensation levels, shrouded by an impact-resistant structural guard for industrial environment protection.

Brand New CKD F3000-8-W-F Solenoid Valve. In stock — ships worldwide within 5-10 days.

1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
