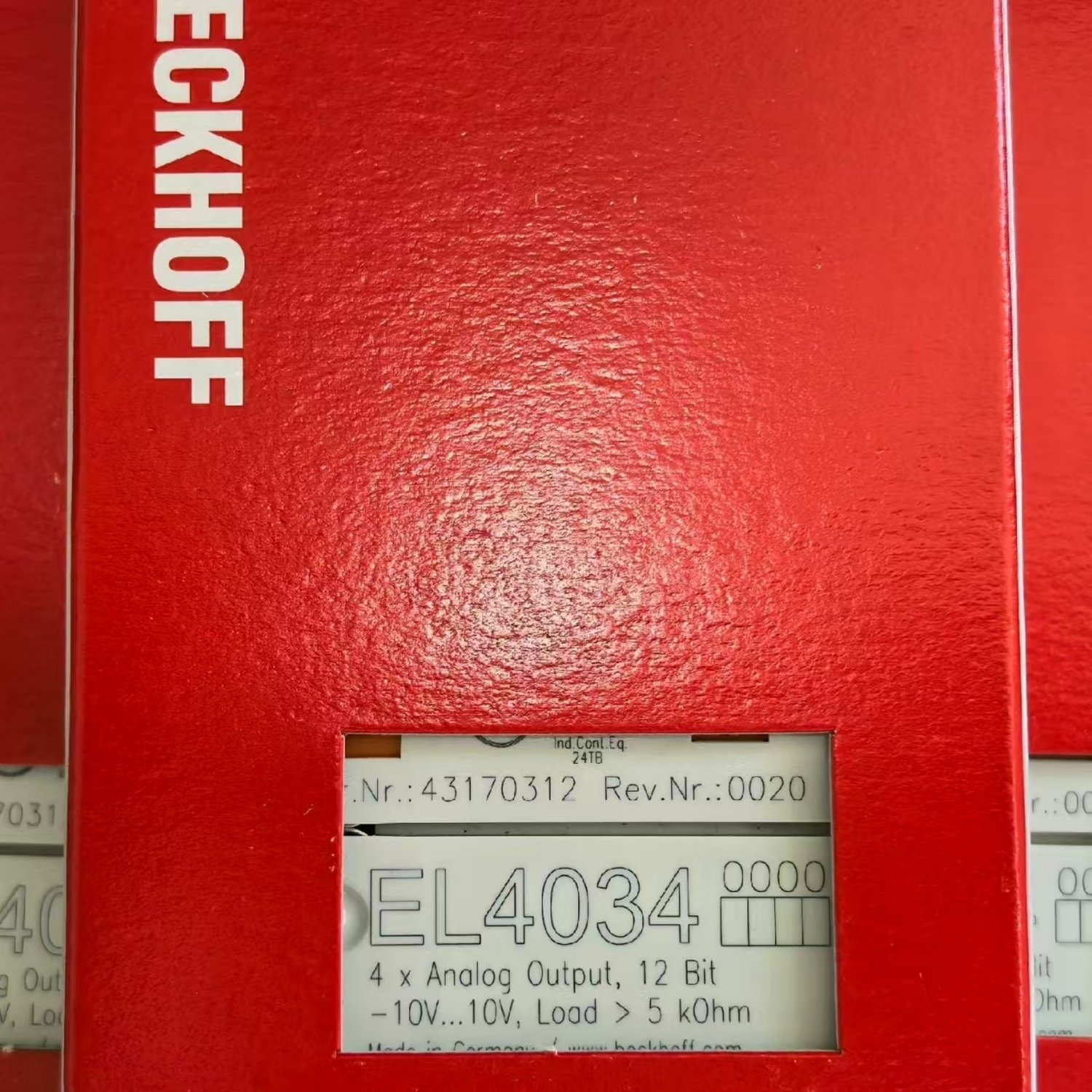

Beckhoff EL4034 4-Channel Analog Output EtherCAT Terminal

Manufacturer: Beckhoff
Model / Part Number: EL4034
Product type: EL4034 EtherCAT Terminal, 4-channel analog output terminal, voltage, +-10 V, 12 bit
Number of outputs: 4
Signal voltage: -10…+10 V, supplied to the process level with a resolution of 12 bits; output channels share a common ground potential
Load: > 5 kohm (short-circuit proof)
Conversion time: Approx. 250 us
Distributed clocks: Yes (distributed clock support with user synchronization that can be activated)
Power supply: 24 V DC via power contacts (typ. 40 mA); E-bus current consumption typ. 140 mA; output stages powered by the 24 V supply
Electrical isolation: 500 V (E-bus/signal voltage)
Bit width in the process image: 4 x 16 bit AO output
Special features: Optional watchdog with user-specific output value and ramp; output state indicated by light emitting diodes
Weight / dimensions: Approx. 85 g; 12 mm x 100 mm x 68 mm (W x H x D); polycarbonate compact terminal housing with signal LEDs
Operating conditions: -25…+60 deg C operating, -40…+85 deg C storage, 95% RH no condensation; IP20; vibration/shock per EN 60068-2-6/EN 60068-2-27; EMC per EN 61000-6-2/EN 61000-6-4
Approvals/markings: CE, CCC, UL, ATEX, IECEx, DNV, cFMus; Ex marking ATEX/IECEx II 3G Ex ec IIC T4 Gc; cFMus Class I, Division 2, Groups A, B, C, D
Product status: Regular delivery (active product; ordering variant ES4034 with pluggable wiring level also available)

Availability & Delivery

Availability shown is for reference only and will be confirmed at the time the order is processed.
Published quantities may change without prior notice.
The customer is responsible for verifying part number and specifications before confirming the purchase.
Certain products may be considered special order items depending on availability.
