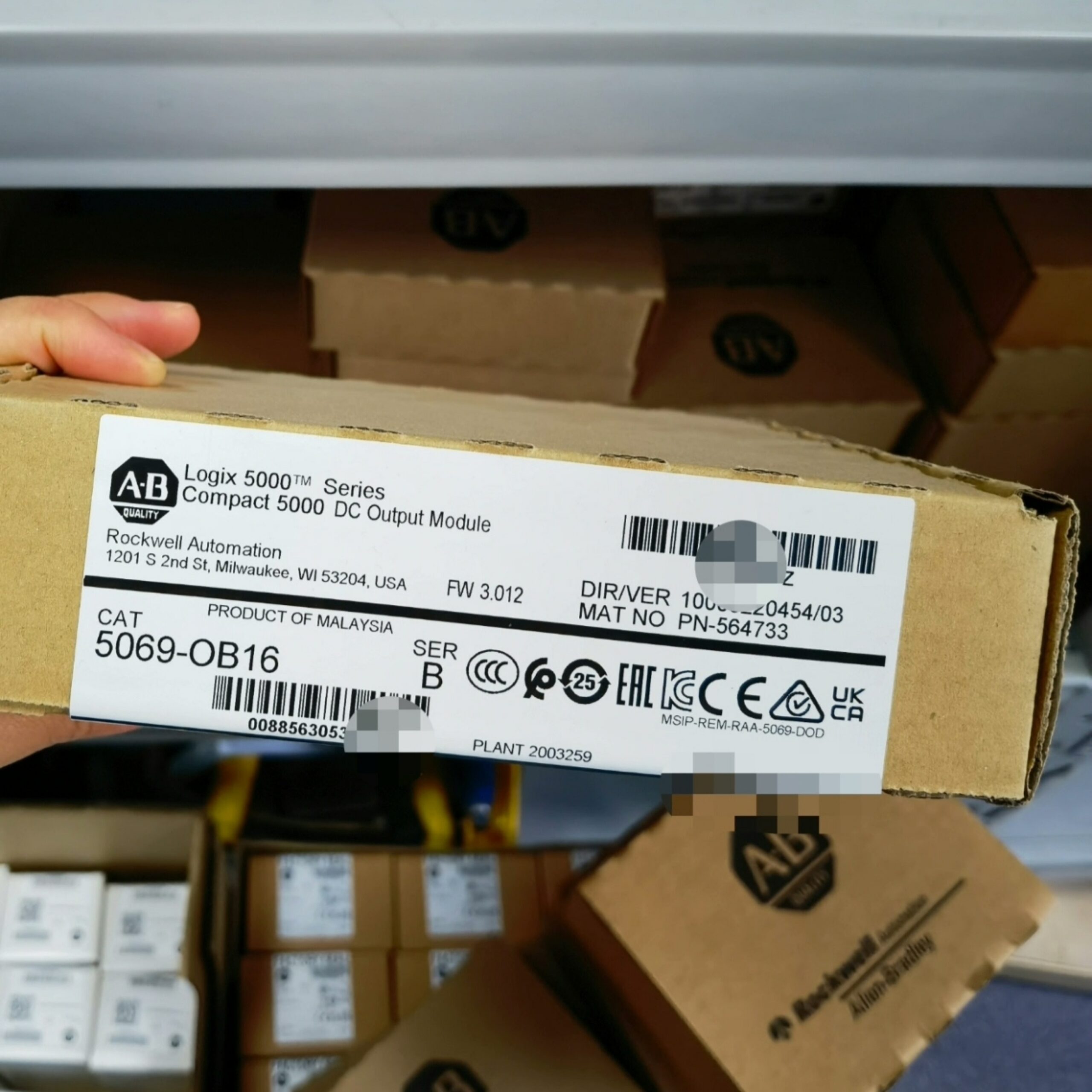

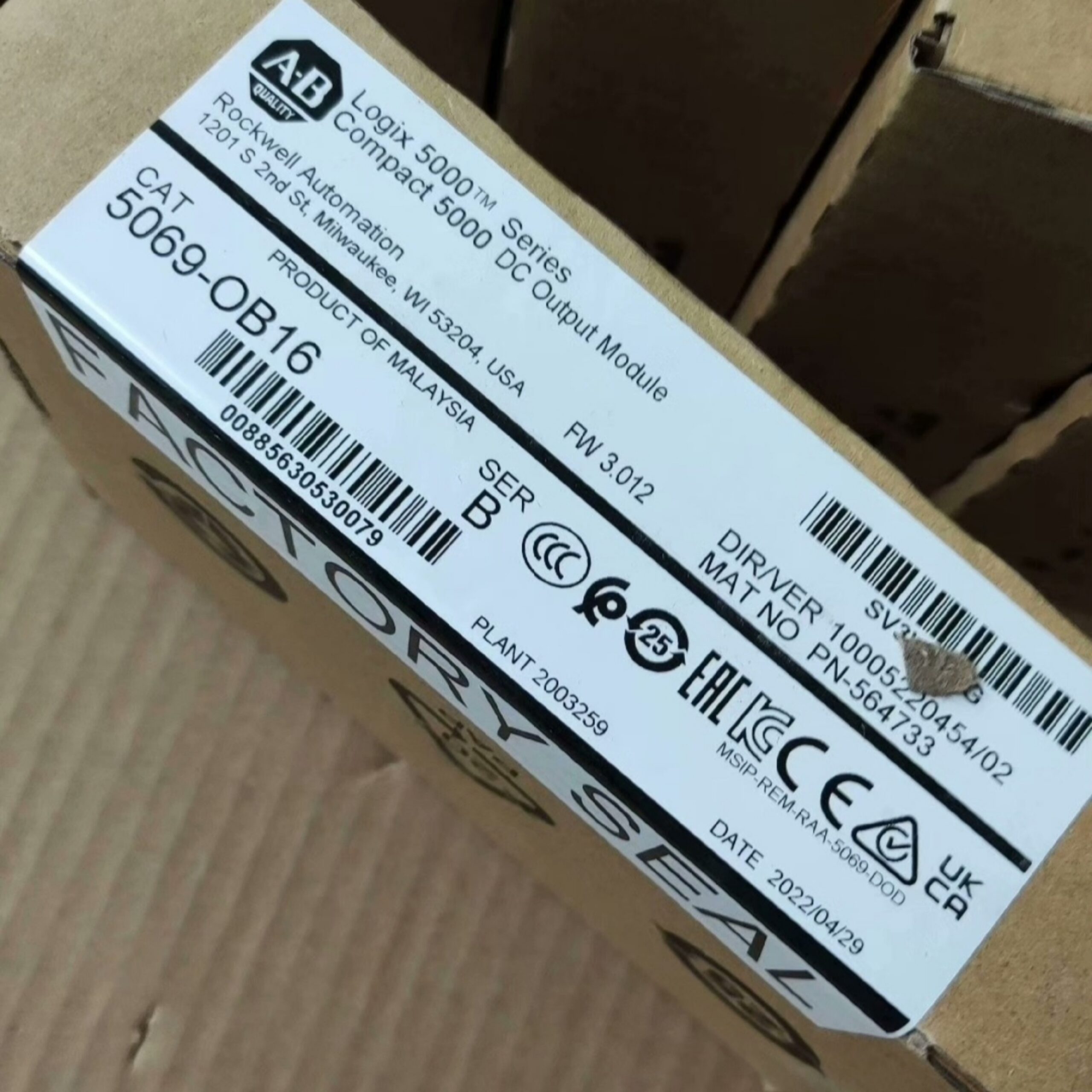

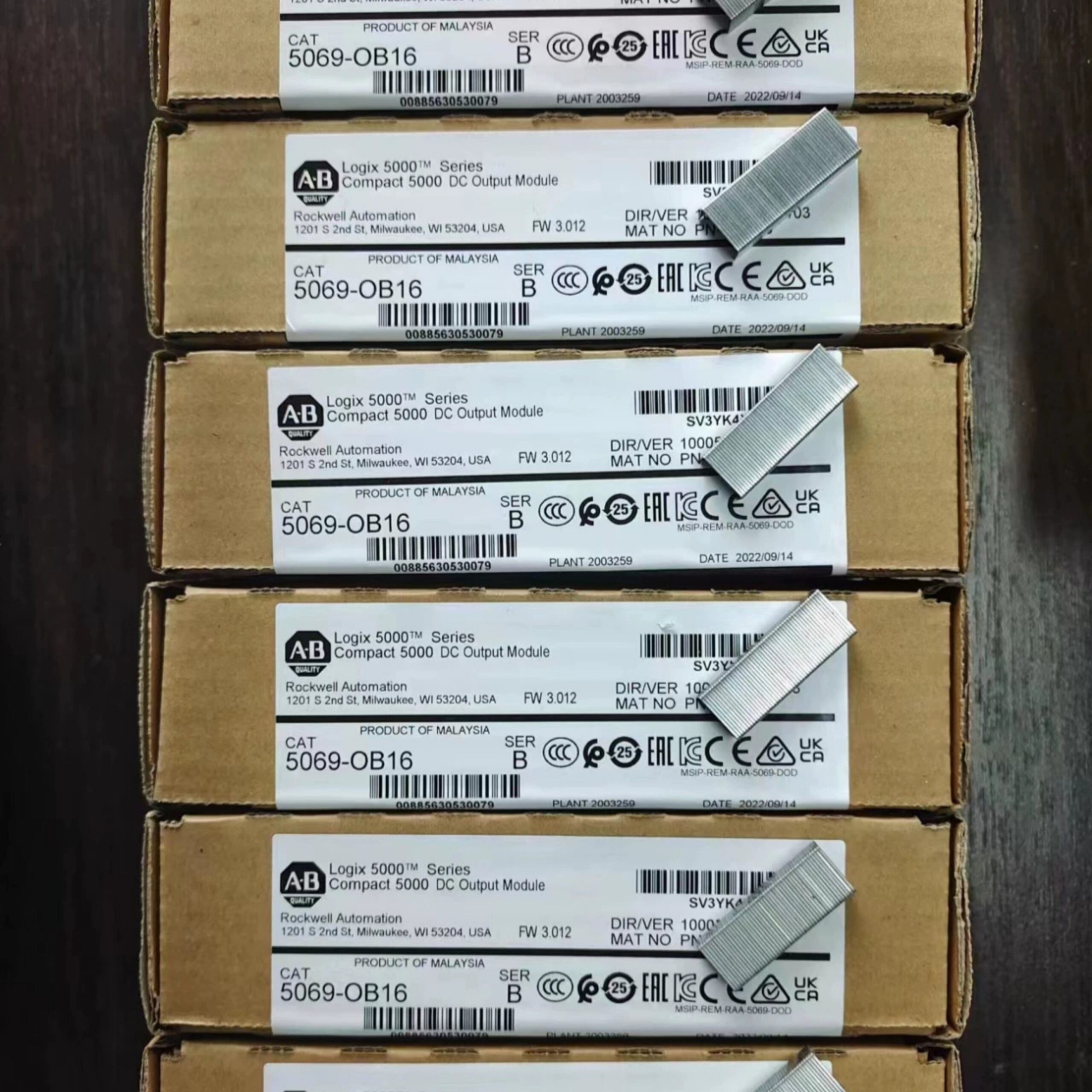

ALLEN-BRADLEY 5069-OB16 Compact 5000 digital 16-point sourcing DC output module

Manufacturer: ALLEN-BRADLEY
Model / Part Number: 5069-OB16
Technical Parameter: Specification Value
Number of Outputs: 16 Channels (1 bank of 16)
Output Type: Sourcing (provides power to the load)
Voltage Class: 12 / 24V DC nominal
Operating Voltage Range: 10…32V DC
Max Output Current: 0.5 A per channel (8 A max per module)
Minimum Load Current: 1 mA
On-State Voltage Drop: Less than 0.2V DC
Power Dissipation: 3.25 Watts (maximum)
Thermal Dissipation: 11.09 BTU/hour
Mounting Style: DIN Rail / Panel Mount
Built-in Protection: Features built-in output overload and short-circuit electronic protection to shield your automation components from electrical hazards.
Smart Status LEDs: Equipped with 1 green/red Module Status indicator and 16 yellow/red I/O status LEDs for clear visual troubleshooting.
Module Power Routing: The module is powered via Local Actuator (LA) power instead of Sensor Actuator (SA) power, allowing it to pass SA power down the line to adjacent modules without consuming it.
Required Accessories: Please note that this module requires a separate Removable Terminal Block (RTB) kit to function. It is compatible with the 5069-RTB18-SCREW (screw connection) or 5069-RTB18-SPRING (spring-clamp connection) terminal blocks.
