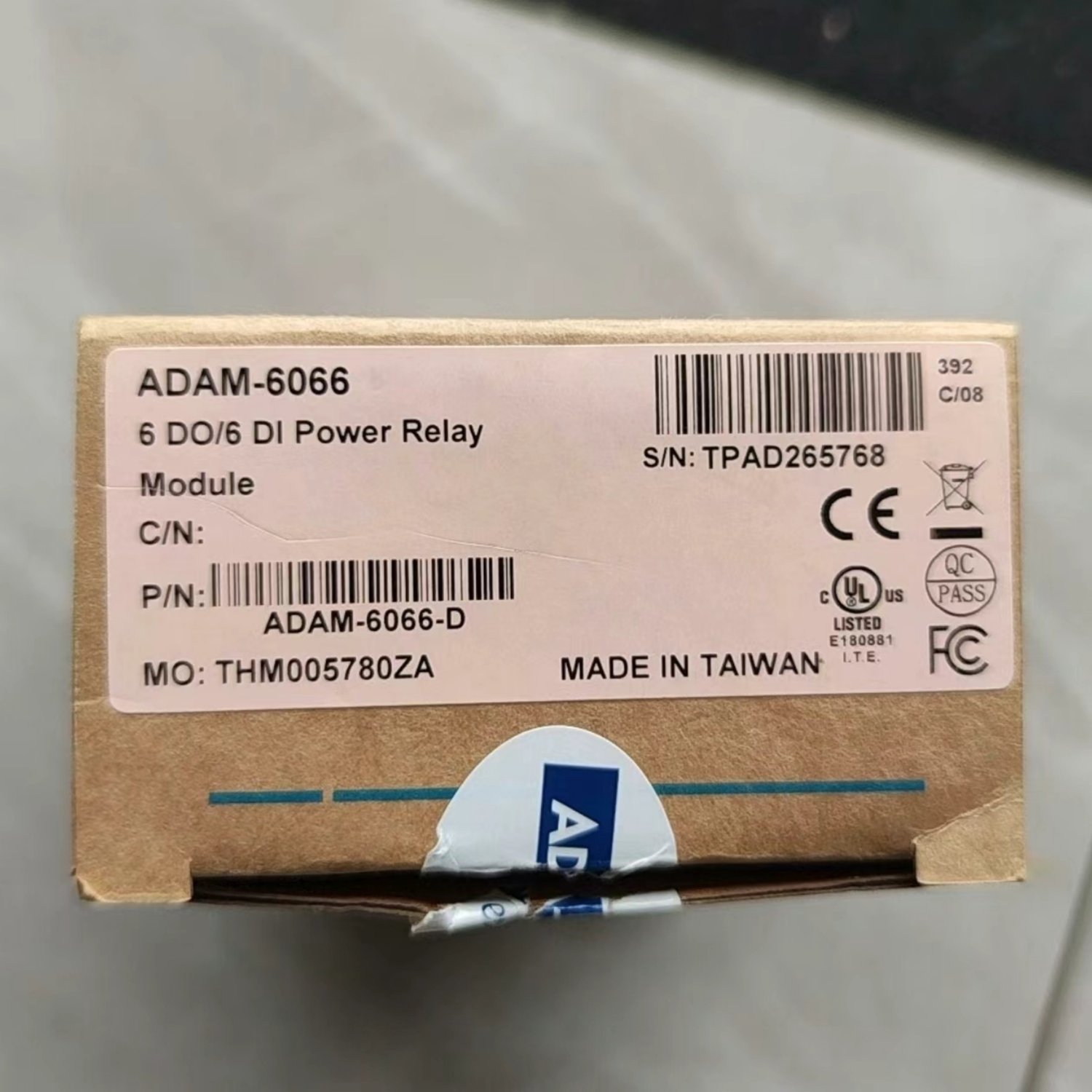

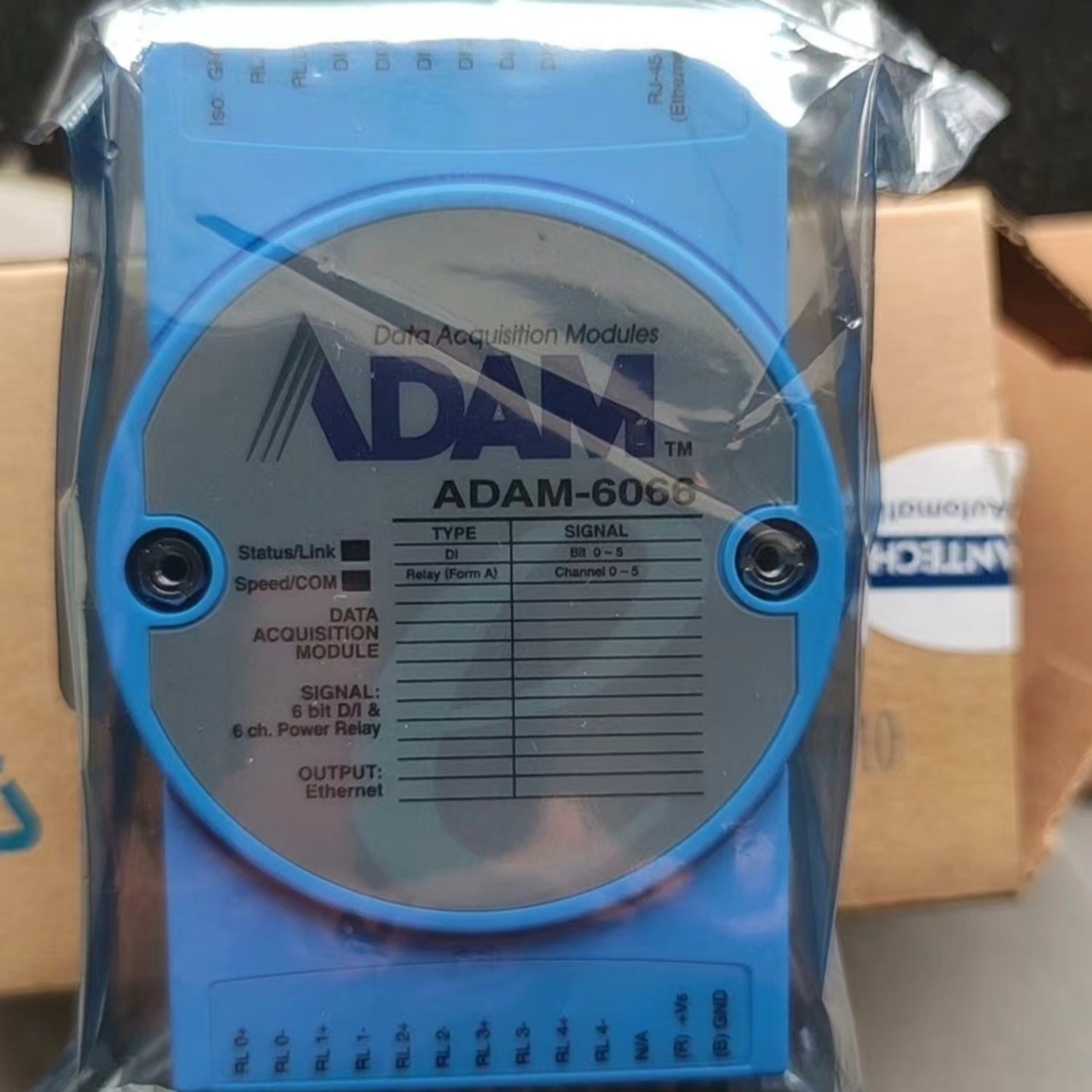

ADAM-6066 ADVANTECH Ethernet Relay Output Module

• Digital Inputs: 6 isolated channels supporting dry contacts (logic 0: close to GND, logic 1: open) and wet contacts (logic 1: 10~30 VDC).
• Relay Outputs: 6 Form A power relay channels rated for heavy-duty switching up to 3 A @ 30 VDC and 5 A @ 250 VAC.
• Counter/Encoder: Built-in counter capability with a maximum input frequency of 3 kHz.
• Protocols: Native support for Modbus/TCP, MQTT, SNMP, HTTP, UDP, TCP/IP, and ASCII commands.
• Isolation Protection: 2,000 VDC isolation voltage to safeguard internal electronics against high-energy field noise.
• Environment: Designed for harsh conditions with a rugged form factor operating between -40°C and 70°C.
• Power Supply: Accepts a wide input voltage range of 10~30 VDC.

Brand New ADVANTECH ADAM-6066 Ethernet Relay Output Module (ADAM-6000 Series). In stock — ships worldwide within 5-10 days.

1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
