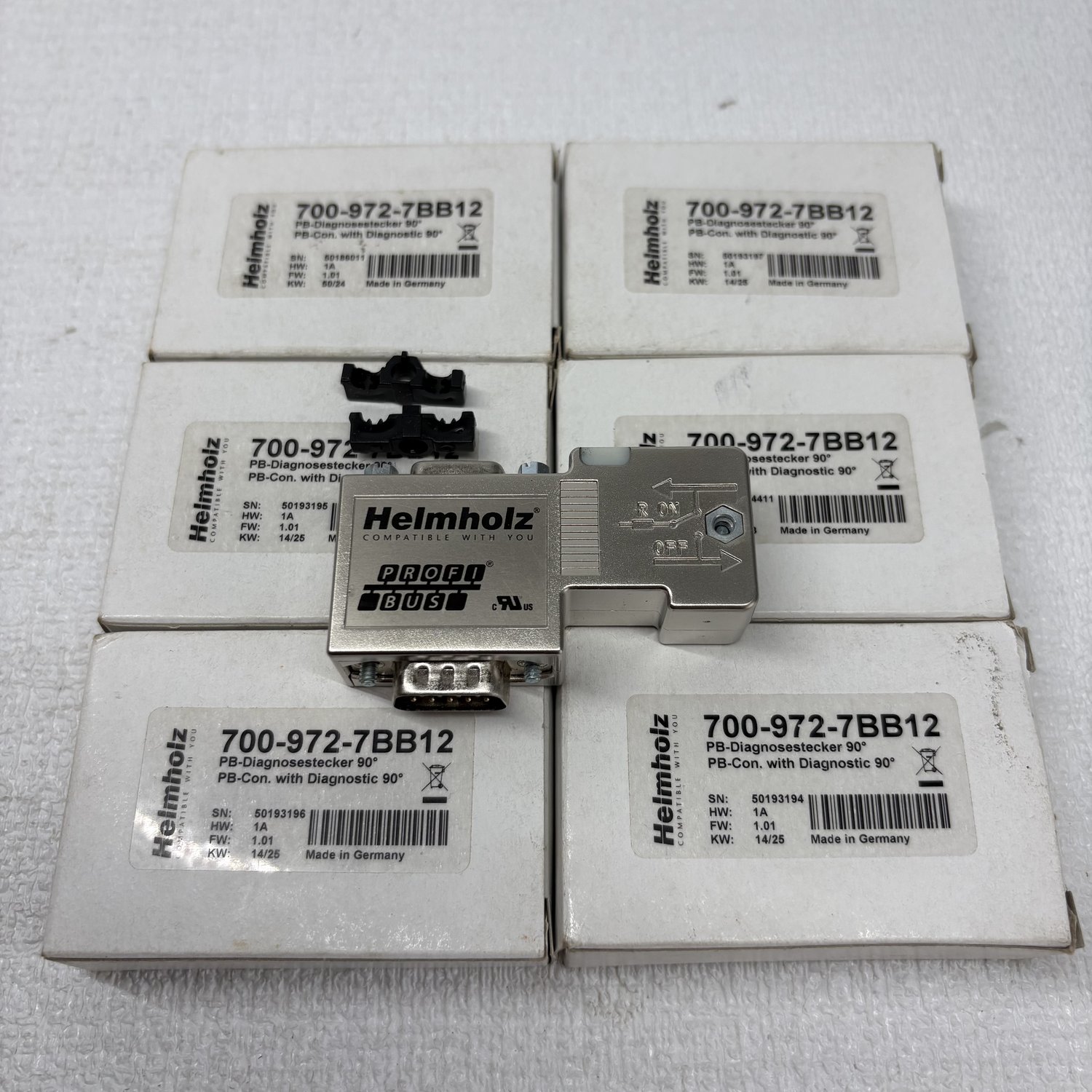

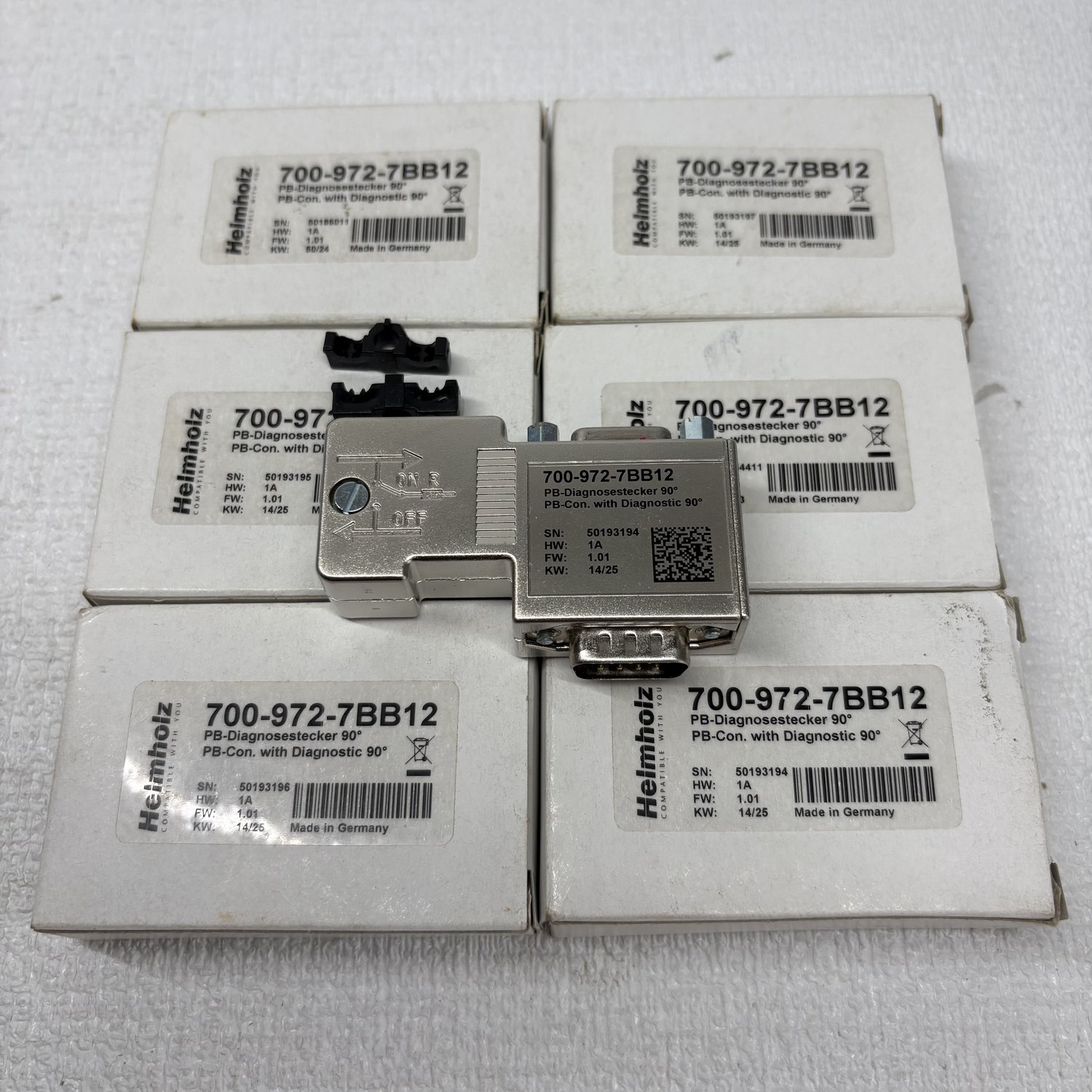

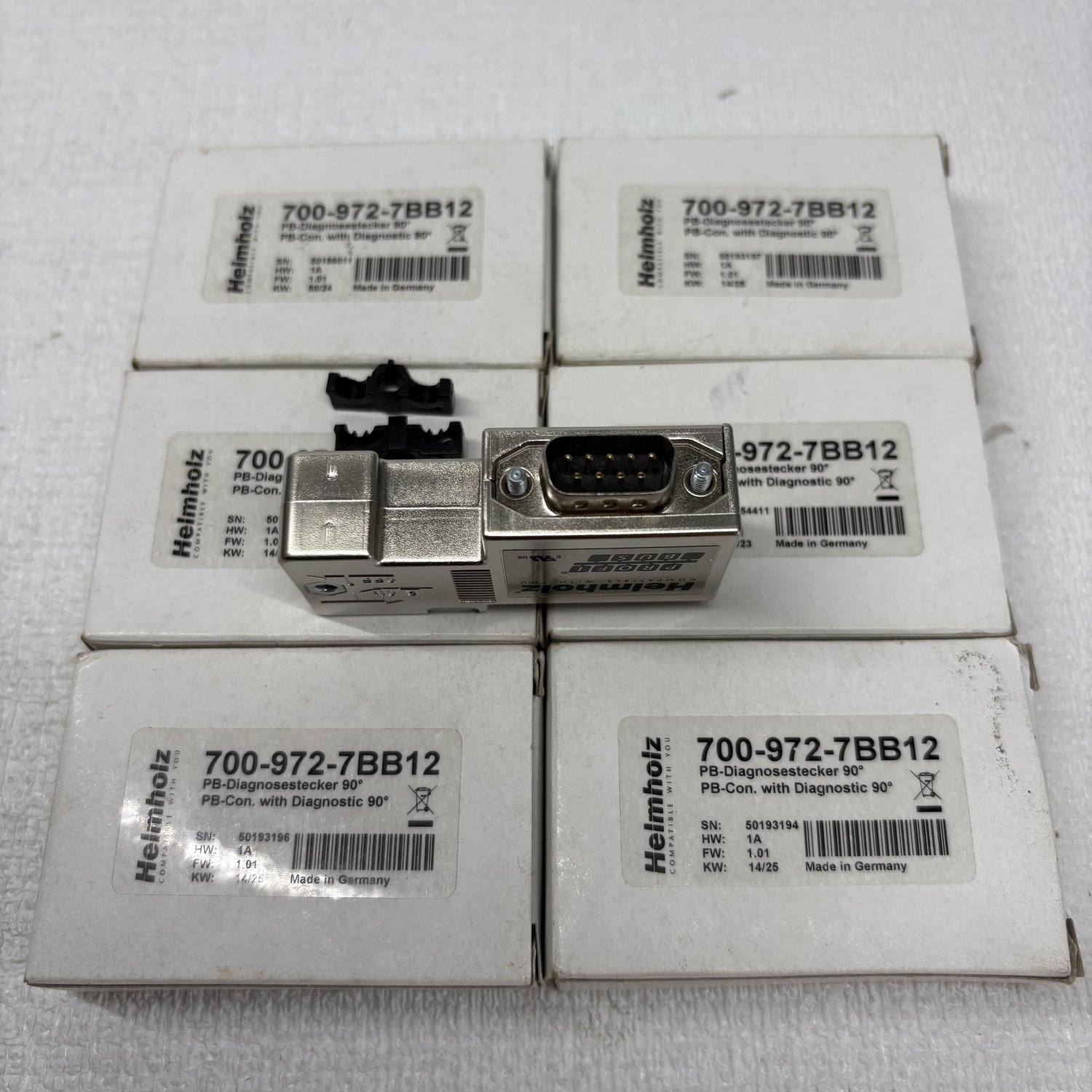

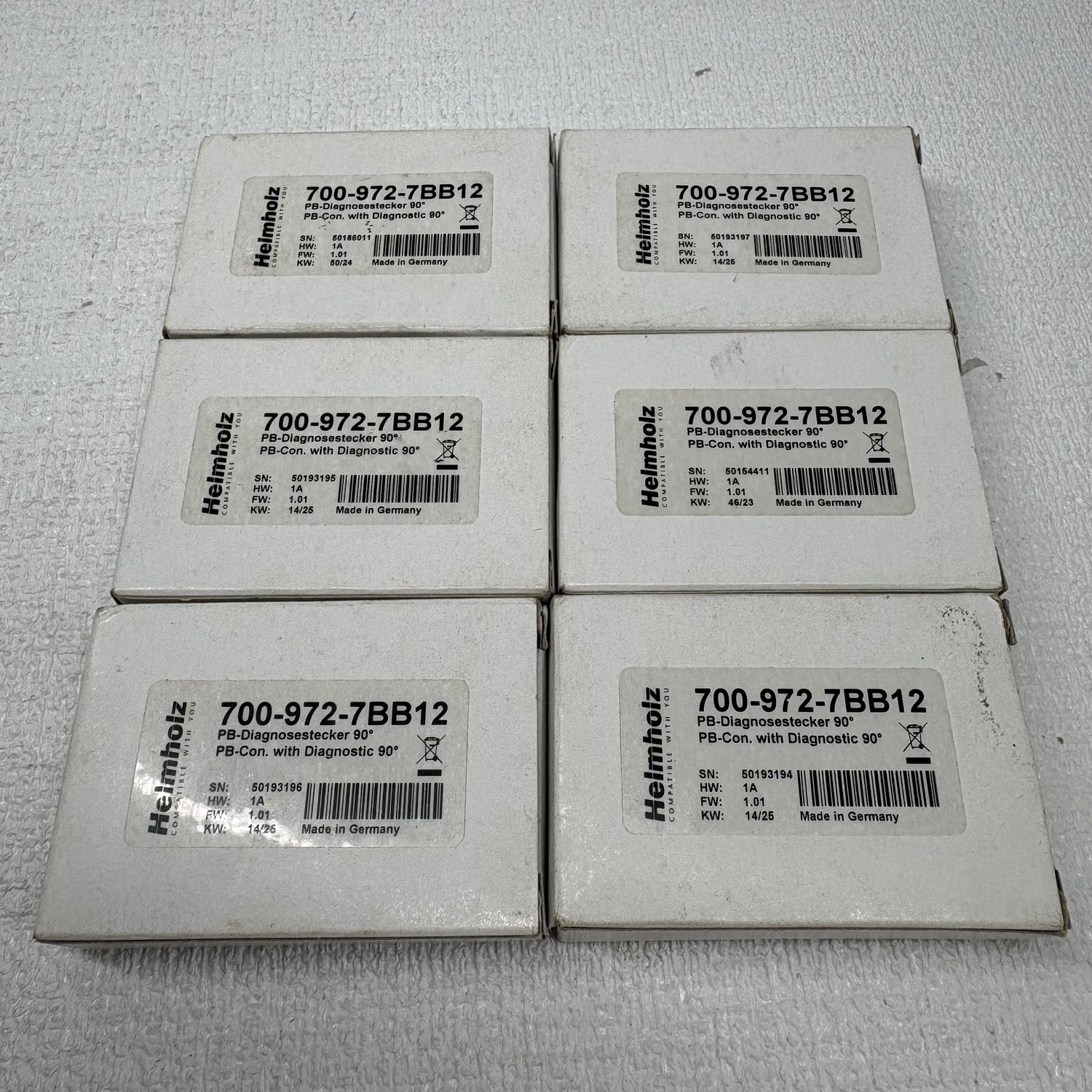

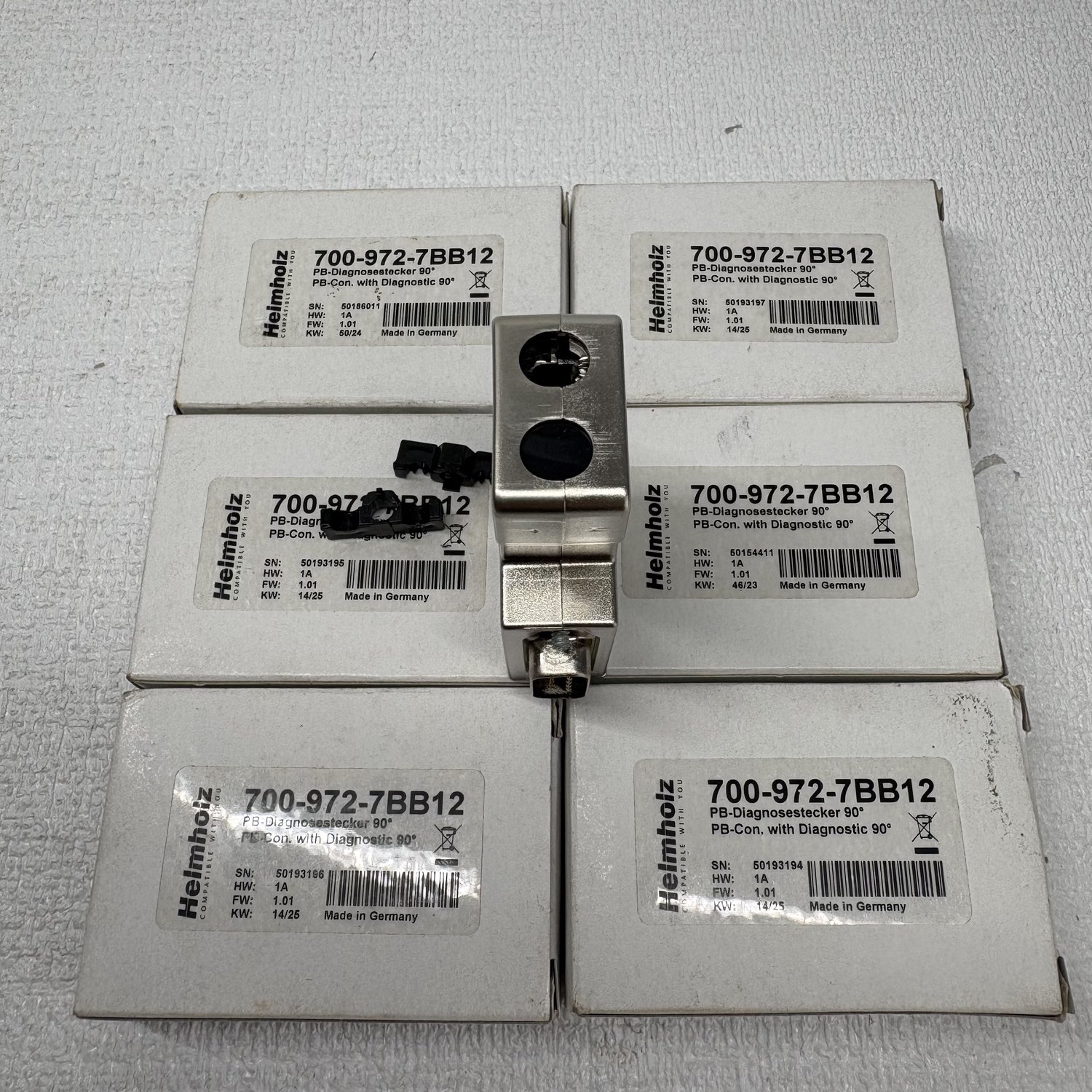

700-972-7BB12 Helmholz PROFIBUS DP Connector
- Cable Outlet: 90° vertical angled outlet, suitable for FastConnect stripping tools.
- Interface Types: One 9-pin Sub-D connector for the station, plus one integrated 9-pin Sub-D PG connection socket to hook up programming devices or extra nodes.
- Transmission Speed: Supports transmission rates up to 12 Mbps.
- Terminating Resistor: Integrated resistor combination, switchable using an accessible slide switch.
- Housing: Metalized shell to improve Electro-Magnetic Compatibility (EMC).
- Physical Profile: Dimensions of 40 x 17 x 64 mm and weighs approximately 40 g.
- Environmental Range: Built to operate across temperatures from -25 °C up to +85 °C with an IP20 protection level.

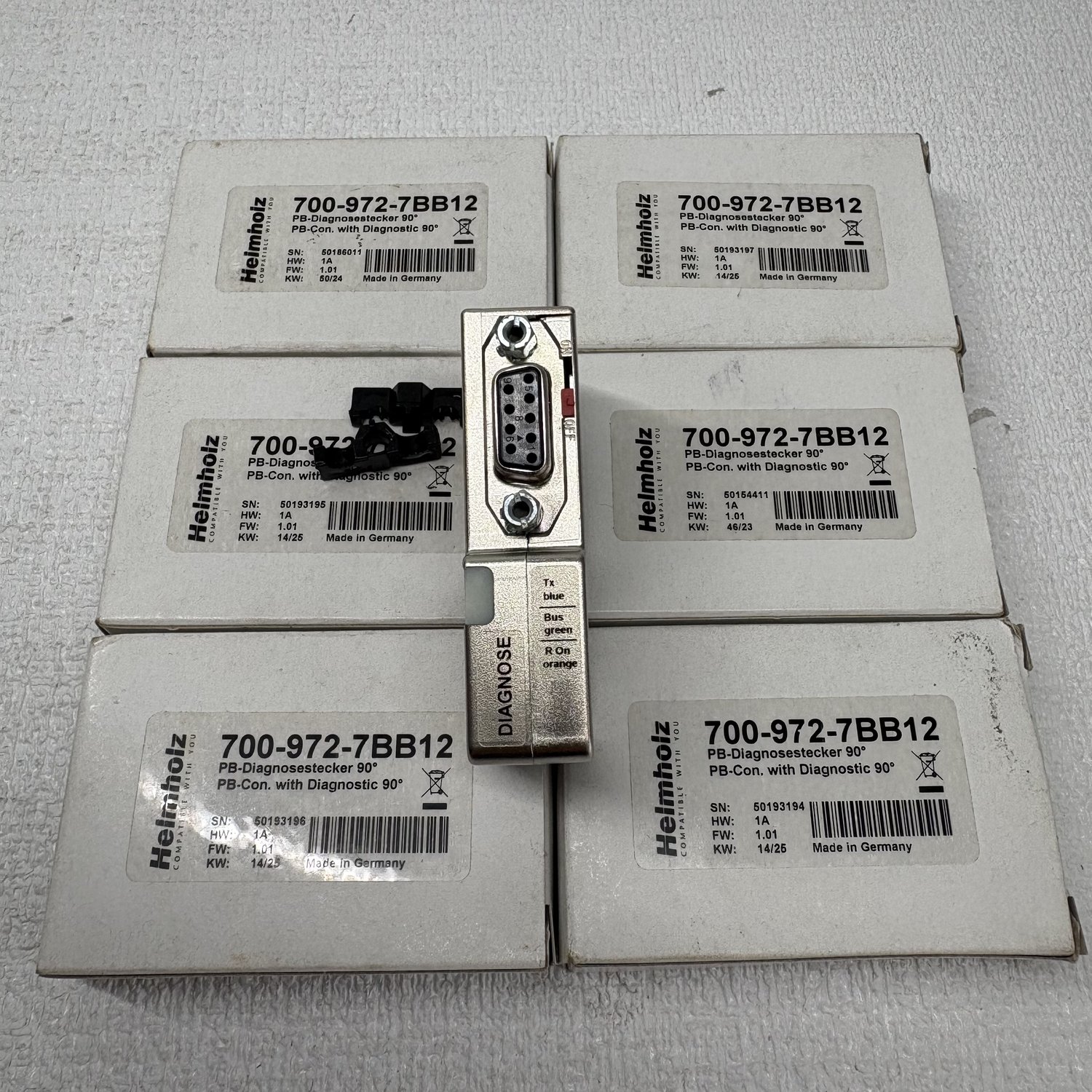

- Orange LED: On when the terminating resistor is actively switched into the circuit.
- Green LED: Indicates that bus activity is present (the network is actively transferring data).
- Blue LED: Confirms that the addressed station is successfully participating in the bus traffic.
Brand New Helmholz 700-972-7BB12 PROFIBUS DP Connector (700 Series). In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
- SKU: 700-972-7BB12
- New Original In Stock
- 6 Months Warranty
- shipping by DHL or UPS
