REQUEST A QUOTE
- Electrical Stroke: 50 mm
- Measurement Type: Passive, absolute potentiometric
- Resolution: Better than 0.01 mm
- Mechanical Mounting: Free-from-backlash pivot heads with ±12.5° angle of movement
- Environmental Protection: IP65 (dust-tight and water-jet resistant)
- Operational Lifespan: Up to 50 million movements (application dependent)
- Component Materials: Anodized aluminum housing; AISI 303 stainless steel actuating rod
- Electrical Interface: Available in a 4-pin M12 round connector or a 1m shielded PVC cable
- Pivot Head Design: The integrated rod-end pivot bearings compensate for parallel or angular tracking misalignments up to ±12.5°, ensuring smooth linear tracking without binding.
- Robust Internal Tracking: Features a double-beared actuating rod and an elastomer-damped, precious metal multi-finger wiper mechanism to guarantee stable electrical contact during vibration.
Brand New NOVOTECHNIK LWG-0050 Displacement Sensor. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Defined Electrical Range: 75 mm (2.95 in)
- Mechanical Travel: 79 mm (3.11 in)
- Nominal Resistance: 3 kΩ
- Resolution: Better than 0.01 mm
- Housing Length: 201 mm (7.91 in)
- Environmental Protection Rating: IP65 (Dust-tight, water jet resistant)
- Operating Lifespan: Up to 50 million movements (application dependent)
- Housing Material: Anodized Aluminium
- Actuating Rod: Stainless Steel (AISI 303)
- Electrical Connection: 4-pin M12x1 round connector or 1m shielded PVC cable
Brand New NOVOTECHNIK LWG-0075 Displacement Sensor. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE

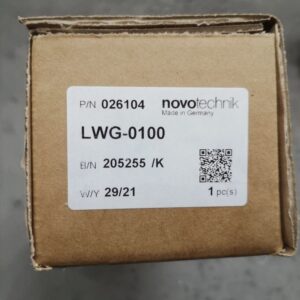

- Manufacturer & Part Number: Novotechnik / LWG-0100 (Factory ID: 026104)
- Defined Electrical Stroke: 100 mm (approx. 3.94 inches)
- Nominal Resistance: 3 kΩ (±20% tolerance)
- Independent Linearity: ±0.1%
- Resolution: Better than 0.01 mm
- Maximum Operating Voltage: 42 V DC
- Output Type: Analog Voltage Divider (Passive)
- Electrical Connection: M12 × 1 Thread, 4-pin, A-coded connector
- Environmental Protection: IP65 rated (Dust-tight and water-jet resistant)
- Operating Temperature: Up to 100°C (212°F)
Brand New NOVOTECHNIK LWG-0100 Displacement Sensor. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Manufacturer: Novotechnik (Germany)
- Series: LWG (Linear with Pivot Head Mounting)
- Defined Measuring Length: 130 mm (5.12 inches)
- Technology: Potentiometric (Conductive Plastic)
- Resolution: Better than 0.01 mm (infinite resolution)
- Environmental Protection: IP65 rated (dust-tight and water-jet resistant)
- Mechanical Mechanical Life: Up to 50 million movements
- Housing Material: Anodized Aluminum
- Actuating Rod: Stainless steel (AISI 303), rotatable
- Permissible Angular Movement: Up to ±12.5° alignment tolerance
Brand New NOVOTECHNIK LWG-0130 Displacement Sensor. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
Technical Specifications
- Defined Electrical Range (Stroke Length): 150 mm (5.91 in).
- Measurement Method: Passive, absolute potentiometric.
- Resolution: Better than 0.01 mm.
- Operating Voltage: Up to 42 V maximum.
- Protection Class: IP65 standard (dust-tight and protected against water jets).
- Mechanical Connection: Dual-beared, rotatable stainless steel actuating rod integrated with backlash-free pivot heads.
- Housing Material: Anodized aluminum.
- Electrical Connection: Typically equipped with standard M12 connector models.
- Lifespan: Up to 50 million movements, depending on the specific application.
- High Immunity to Noise: Because it is a passive absolute measuring system, the sensor is inherently insensitive to external electrical interference or magnetic disturbances.
- Flexible Alignment: The backlash-free pivot head mounting allows for a broad angle of free mechanical movement (up to ±12.5°), eliminating binding or mechanical strain in dynamic applications.
- Outstanding Linearity: Provides precise physical-to-electrical signal scaling across the entire 150 mm operational profile.
Brand New NOVOTECHNIK LWG-0150 Displacement Sensor. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
