Products

LWG-0100 Displacement Sensor For NOVOTECHNIK

NOVOTECHNIK LWG-0100 Linear Position Transducer (LWG Series)

REQUEST A QUOTE

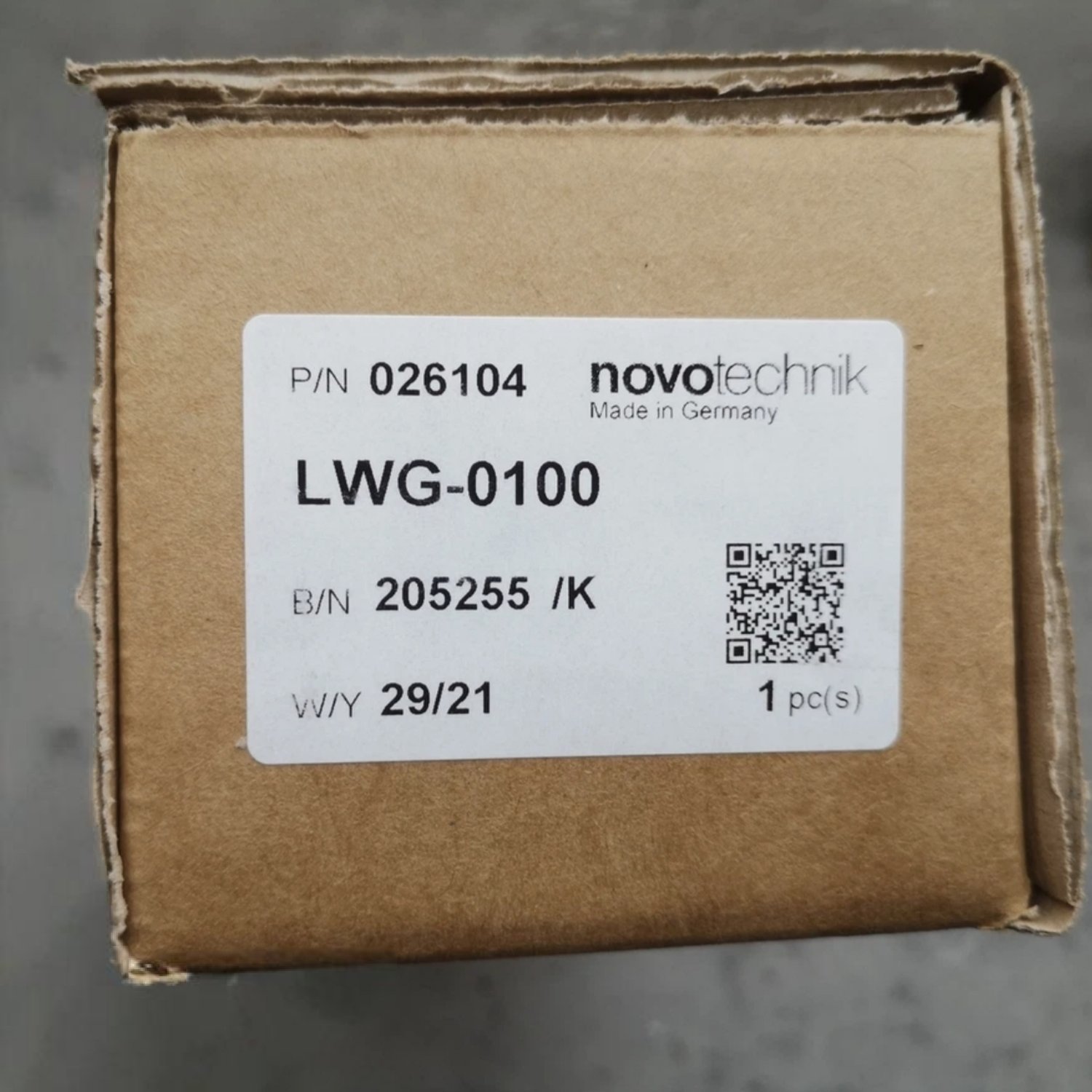

Manufacturer & Part Number: Novotechnik / LWG-0100 (Factory ID: 026104)
Defined Electrical Stroke: 100 mm (approx. 3.94 inches)
Nominal Resistance: 3 kΩ (±20% tolerance)
Independent Linearity: ±0.1%
Resolution: Better than 0.01 mm
Maximum Operating Voltage: 42 V DC
Output Type: Analog Voltage Divider (Passive)
Electrical Connection: M12 × 1 Thread, 4-pin, A-coded connector
Environmental Protection: IP65 rated (Dust-tight and water-jet resistant)
Operating Temperature: Up to 100°C (212°F)

Brand New NOVOTECHNIK LWG-0100 Displacement Sensor. In stock — ships worldwide within 5-10 days.

1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
