- Quantity of Ports: 4
- Ethernet Controller: Intel I350
- Variant/Connector Type: RJ45, shielded
- Transfer Rate: 10/100/1000 Mbit/s (Gigabit Ethernet)
- Line Length: Max. 100 meters between two stations
- B&R ID Code: 0xEC3B
- Power Consumption: 4 W
- Diagnostics: Data transfer status via integrated LED status indicators
- CE / UKCA: Yes
- UL Listing: cULus E115267 Industrial control equipment
B&R 5ACPCE.ETH4-00 Ethernet Expansion Card (APC).
-
REQUEST A QUOTE
- Manufacturer: B&R Industrial Automation (ABB)
- Part Number: 5ACPCI.ETH1-01
- Product Type: PCI Network Interface Card (Add-on Board)
- Interfaces: 1x Ethernet Port
- Transmission Rate: 10/100 Mbit/s
- Connection Type: Shielded RJ45
- Form Factor: Half-size PCI card
- Slot Compatibility: Standard 16-bit PCI slot
- Voltage Compatibility: Universal (Supports both 3.3 V and 5 V signaling)
- Power Consumption: Rated at 1.1 A to 1.6 A (depending on system load/revision)
B&R 5ACPCI.ETH1-01 Ethernet Interface Card (APC).
-
REQUEST A QUOTE
- Interface Type: Standard PCI expansion card.
- Supported Protocols: Profibus DP, K-Feldbus (K-Fieldbus), and serial COM communications.
- Primary Function: Acts as a multi-function input/output (MFIO) and network interface card, allowing industrial control hosts to communicate seamlessly with field level devices and PLCs over legacy and robust industrial networks.
B&R 5ACPCI.MFIO-K01 Fieldbus Interface Card (APC).
-
REQUEST A QUOTE
- Primary Interfaces: 1x Ethernet POWERLINK (V1/V2) interface (operates as a managing or controlled node) and 1x X2X Link master interface.
- Onboard Memory: Equipped with 1 MB SRAM for Automation Runtime / remanent process variables, and 512 KB FlashPROM.
- Hardware Form Factor: PCI half-size slot module. It features electrical isolation, a ready relay, and connects via an RJ45 port.
- Crucial Note: The unit requires two separate terminal blocks (model TB704) for wiring, which must be ordered separately.
B&R 5LS189.6 Link Logic Scanner Module (POWERLINK).
-
REQUEST A QUOTE
- Form Factor: PCI half-size card format.
- Memory Capacity: 1 MB battery-backed SRAM for remanent data storage (process variables and data objects) along with 512 KB FlashPROM.
- Power & Protection: 4-Watt power consumption with an IP20 environment protection rating.
- Additional Hardware: Integrated ready relay and plug-and-play installation support.
- Accessories Note: Requires two TB704 terminal blocks, which must be ordered separately.
B&R 5LS189.6-1 Logic Scanner Module (POWERLINK).
-
REQUEST A QUOTE
- Primary Interfaces: Features 1x Ethernet POWERLINK interface (operating as a managing or controlled node) and 1x X2X Link master interface.
- Hardware Format: Built as a standard PCI half-size expansion card designed to plug into B&R Industrial PCs (such as the APC620 or APC910 lines).
- Memory: Equipped with 1 MB of onboard SRAM dedicated to remanent data, process variables, and data objects.
- Application: Functions as an automation network processor often used in complex motion control or real-time Ethernet topologies.
B&R 5LS189.6-2 Logic Scanner Module (POWERLINK).
-
- Manufacturer: B&R
- Model / Part Number: 7IF787.9
- Module Type: aPCI industrial interface module
- Host Interface: aPCI slot
- Electrical Isolation: Galvanically isolated interface
- Required Terminal Block: TB704
-
REQUEST A QUOTE
- Manufacturer: BALLUFF
- Model / Part Number: BNI004L BNIIOL-310-000-K025
- Operating Voltage: 18–30.2 V DC
- Rated Operating Voltage: 24 V DC
- Protocol: IO-Link 1.0
- Transfer Rate: COM2, 38.4 kbaud
- Digital Inputs: 16 × PNP, Type 2
- Digital Outputs: 16 × PNP
- Mounting: DIN rail
- Enclosure Rating: IP20
- Ambient Temperature: −20 to 50 °C
BALLUFF BNI004L BNIIOL-310-000-K025 IO-Link Sensor/Actuator Hub. Key specifications include Operating Voltage: 18–30.2 V DC; Rated Operating Voltage: 24 V DC; Protocol: IO-Link 1.0; Transfer Rate: COM2, 38.4 kbaud.
-
REQUEST A QUOTE
- Data Transfer Rates: 10 / 100 Mbit/s (Automatic recognition)
- Supported Protocols: TwinCAT ADS, Modbus TCP, Beckhoff Real-Time Ethernet
- Bus Interface: 2 x RJ45 (Internal 2-channel switch)
- I/O Capacity: 64 standard Bus Terminals (Up to 255 via K-bus extension)
- Process Image Size: 512 bytes input / 512 bytes output
- Max Peripheral Signals: 512 Digital I/O or 128 Analog I/O
- Power Supply: 24 V DC (-15% / +20%)
- K-Bus Current Supply: 1750 mA
- Configuration Tool: Via Beckhoff KS2000 software
- Operating Temp: -25 °C to +60 °C (-13 °F to +140 °F)
BECKHOFF BK9100 Ethernet Bus Coupler (BK Series).
-
- Manufacturer: BECKHOFF
- Model / Part Number: EK1100-0000
- Function: Converts EtherCAT telegrams from 100BASE-TX to E-bus signals
- Data Rate: 100 Mbit/s full duplex
- Bus Interfaces: 2 x RJ45
- Supply Voltage: 24 VDC, -15%/+20%
- E-Bus Supply: 5 V, 2 A maximum
- Supported Topologies: Line, star and tree
- Dimensions: 44 x 100 x 68 mm
- Operating Temperature: -25 to +60 °C
- Degree of Protection: IP20
-
- Manufacturer: BECKHOFF
- Model / Part Number: EL6631-0010
- Fieldbus Function: PROFINET RT controller
- Ethernet Ports: 2-port switched interface
- System Bus: EtherCAT E-bus
- Mounting: DIN rail terminal assembly
-
- Manufacturer: CAREL
- Model / Part Number: PCO100TLN0
- Network Interface: tLAN serial network
- Network Connectors: 2
- Maximum Network Devices: 5
- Operating Temperature: -10 to 60 °C
- Recommended Cable: Shielded twisted-pair cable, AWG 20/22
-
REQUEST A QUOTE
- Module Type: Communication Module / LON Card
- Hardware Interface: RS-485 physical connection layer
- Network Protocol: LON (Local Operating Network)
- Device Compatibility: Engineered specifically for Danfoss electronic controllers EKC 202 and EKC 204
- Device Weight: Net weight is roughly 0.01 kg (0.35 oz), gross weight 0.02 kg (0.70 oz)
- Regulatory Approvals: CE and CMIM certified
- Product Specifications: * Type: EKA 179A Communication Module. * Interface: LON RS485. * Compatibility: EKC 202, EKC 204. * Functi…
DANFOSS 084B8565 EKA179A Data Communication Module (EKA 179 Series).
-
REQUEST A QUOTE

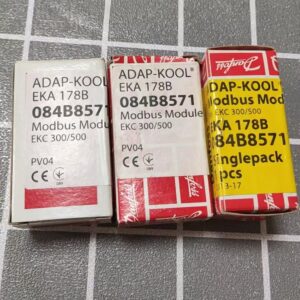

- Manufacturer: Danfoss
- Part Number (Code): 084B8571
- Type Designation: EKA 178B
- Communication Protocol: Modbus (RS-485 standard)
- Function: Data communication module / plug-in card
- Environmental Safety: PFAS-free, REACH Candidate List substance-free
- EKC Series: Compatible with EKC 300 and EKC 500 refrigeration regulators.
- AK-CC Series: Compatible with case controllers such as the AK-CC 350, AK-CC 450, and AK-CC 550 series.
- Centralized Building Management Systems (BMS): Linking commercial food displays, cold rooms, or industrial chillers to a master control room.
- Remote Performance Monitoring: Transmitting vital refrigeration data such as temperature logs, defrost schedules, and sensor diagnostic configurations over Modbus.
DANFOSS 084B8571 EKA178B Modbus Communication Module (EKA 178 Series).
-
REQUEST A QUOTE

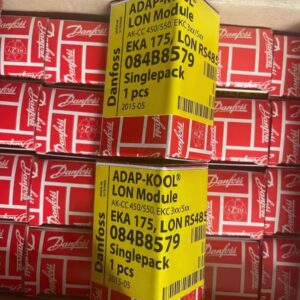

- Manufacturer: Danfoss
- Part Number (MPN): 084B8579
- Type Designation: EKA 175 / EKA 175A
- Interface / Protocol: LON-module, RS-485
- Identical Product ID: 084B8679
- Standards & Approvals: CE, CMIM, UR
- Net Weight: 0.01 kg (0.35 oz)
DANFOSS 084B8579 EKA175A LON Communication Module (EKA 175 Series).
-
REQUEST A QUOTE
- Model Type: Ethernet Communication Unit (2 Ports)
- Compatible CPUs: KV-X Series, KV-8000A
- Connection Interface: RJ-45 8-pole modular connector × 2 ports
- Transmission Rates: 10BASE-T (10 Mbps), 100BASE-TX (100 Mbps), 1000BASE-T (1000 Mbps)
- Data Refresh Modes: Automatic refresh, Direct refresh
- Configuration Software: Configured via KV Studio and PROTOCOL STUDIO
- Industrial Protocols: EtherNet/IP™, PROFINET, EtherCAT® (fixed at 100 Mbps), CC-Link IE Field™ (fixed at 1000 Mbps), Modbus/TCP (Server), MC protocol / SLMP.
- General Purpose / IT Functions: KV socket communication, PLC link, FTP Server/Client, E-mail sending/receiving, and KEYENCE sensor networks.
- Network Restriction: Note that certain protocol modes have fixed speeds; for instance, EtherCAT cannot be mixed with general-purpose socket communications on the same infrastructure if transmission rate restrictions conflict.
- PROTOCOL STUDIO Integration: By using KEYENCE’s native software environment, communication settings for secondary devices (like vision systems or barcode readers) are pre-registered. Implementing this expands the default command configuration from 160 standard commands up to 320 extended commands.
KEYENCE KV-XLE02 Ethernet Expansion Unit (KV Series).
