Showing 17–21 of 21 results
-
REQUEST A QUOTE
Technical Specifications
- Protective Field Range: 3 meters maximum protective scanning distance.
- Scanning Angle: 270° wide-angle coverage.
- Sensing Fields: Supports up to 16 field sets (48 individual fields total).
- Integration Interface: Features EFI (Enhanced Function Interface) and EFI-pro communication for seamless integration into larger safety network architectures.
- Safety Ratings: Certified up to SIL2 (IEC 61508) and PL d (Performance Level d), operating as a Type 3 safety laser sensor.
- Response Time: Configurable, with a baseline maximum performance response time of 60 ms to 80 ms.
- Enclosure Rating: IP65 certified, providing robust resistance against dust and low-pressure water jets.
- Connection: Male cable ending in an 8-pin M12 connector.
- Factory New Distribution: Platforms like WiAutomation US list factory-new units with standard express delivery options.
- Troubleshooting and Error Codes: Help diagnosing a specific fault or light sequence.
- Wiring and Integration Guides: Details on pinning out the 8-pin M12 connector or configuring the EFI networks.
SICK S32B-3011EA 1056431 Safety Laser Scanner (S300 Mini).
-
REQUEST A QUOTE
- Interface Type: HIPERFACE® (uses combined Sine/Cosine and RS-485 data)
- Resolution: 1,024 sine/cosine periods per revolution
- Absolute Revolutions: 4,096 total revolutions (Multiturn)
- Total Steps: 134,217,728 steps
- Supply Voltage: 7 to 12 V DC
- Shaft Design: 8 mm knurled, tapered shaft with a spring mounting plate
- Connection: 8-pin male radial connector
- Maximum Operating Speed: 6,000 min⁻¹ (RPM)
- Operating Temperature: –30 °C to +115 °C
SICK SRM50-HFA0-K21 1037071 Absolute Rotary Encoder (SRM50).
-
REQUEST A QUOTE
- Measurement Principle: HDDM+ (High Definition Distance Measurement plus)
- Working Range: 0.05 m to 4 m
- Scanning Range (10% Remission): 2 m
- Aperture Angle: 270° horizontal
- Scanning Frequency: 15 Hz
- Angular Resolution: 1°
- Light Source: Infrared laser (850 nm), Laser Class 1 (eye-safe)
- Supply Voltage: 9 V DC to 28 V DC
- Power Consumption: Typ. 4 W (up to 16 W max)
- Digital Outputs: 3 x PNP outputs + 1 x Device Ready output
- Interface: Micro USB (Type B) for configuration
- Enclosure Rating: IP65
- Dimensions: 60 mm x 60 mm x 79 mm
- Response Time: 1 scan (typ. 67 ms)
- Systematic Error: ± 40 mm / Statistical Error: < 30 mm
- MTBF / MTTFd: > 100 years
SICK TIM320-1131000 1062219 2D LiDAR Sensor (TiM320 Series).
-

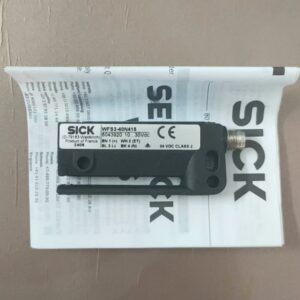

- Brand: SICK
- Model: WFS3-40N415
- Series: WFS
- Part number: 6043920
- Fork width: 3 mm
- Fork depth: 42 mm
- Light source: Infrared LED
- Output: NPN, light/dark switching
- Supply voltage: 10–30 V DC
- No-load current: 20 mA
- Maximum output current: 100 mA
- Switching frequency: 10 kHz
- Response time: 50 µs or less
- Connector: M8 male, 4-pin
- Protection: IP65
- Operating temperature: -20 to +60 °C
- Housing dimensions: 10 × 25 × 64.3 mm
- Teach-in: 2-point or dynamic
-
REQUEST A QUOTE
- Operating Principle: Photoelectric retro-reflective sensor with advanced autocollimation optics, ensuring stable detection even at very close ranges.
- Sensing Range: 0 m to 4 m max.
- Light Source: Visible red light via LED (640 nm wavelength) with a dispersion angle of approximately 1.5°.
- Supply Voltage: 10 V DC to 30 V DC.
- Switching Output & Mode: Dual PNP and NPN digital outputs. Features adjustable light-switching and dark-switching modes.
- Response & Frequency: High-speed response time of ≤ 330 μs with a maximum switching frequency of 1,500 Hz.
- Connection & Calibration: Male M12 5-pin connector. Manual adjustment via an 11-turn potentiometer.
- Housing & Durability: Rugged die-cast zinc metal housing with premium IP66, IP67, and IP69K environmental protection ratings, making it highly resistant to high-pressure washdowns.
- Motion World: Ships in 3–4 business days
SICK WL12G-3B2531 1041456 Retroreflective Photoelectric Sensor (WL12G).
