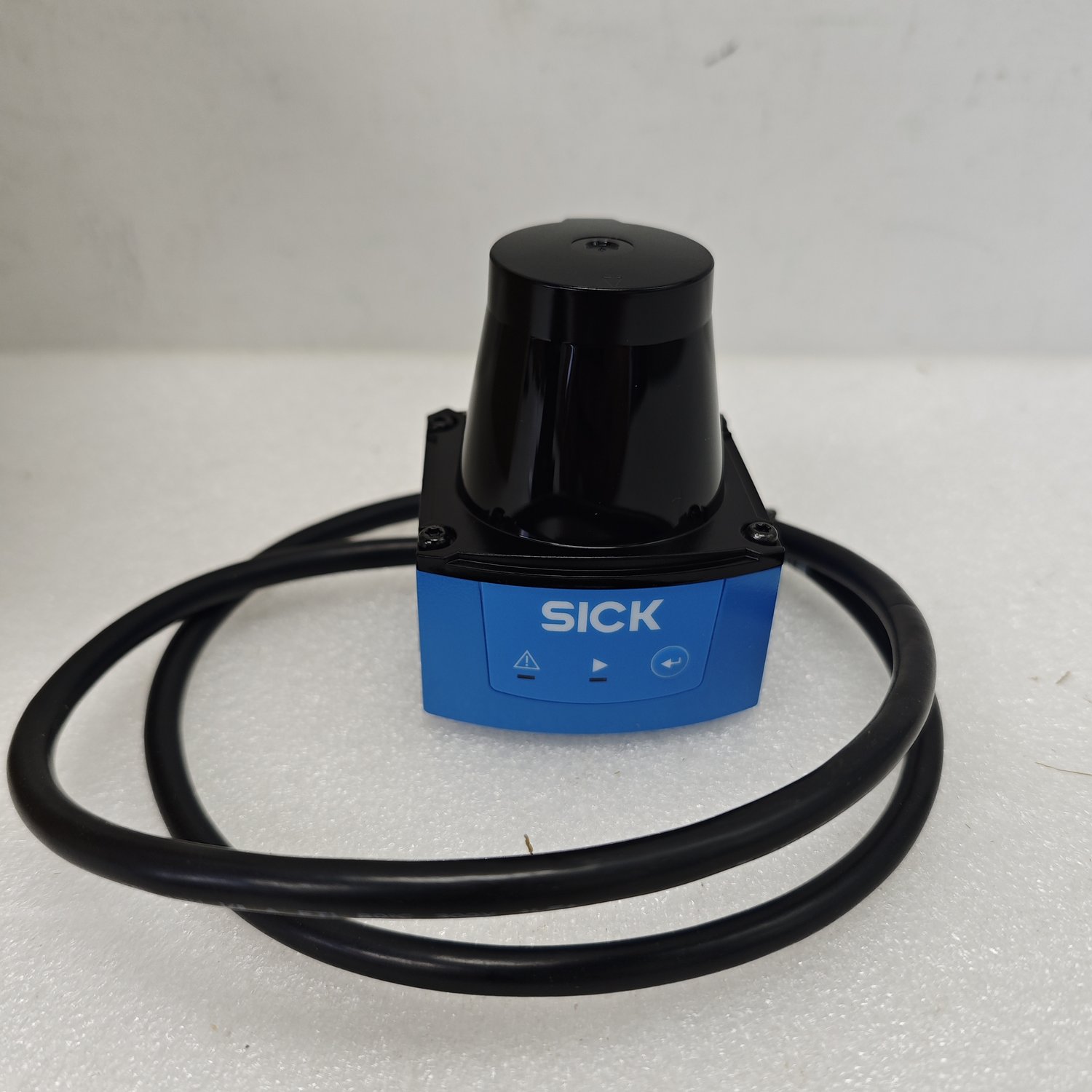

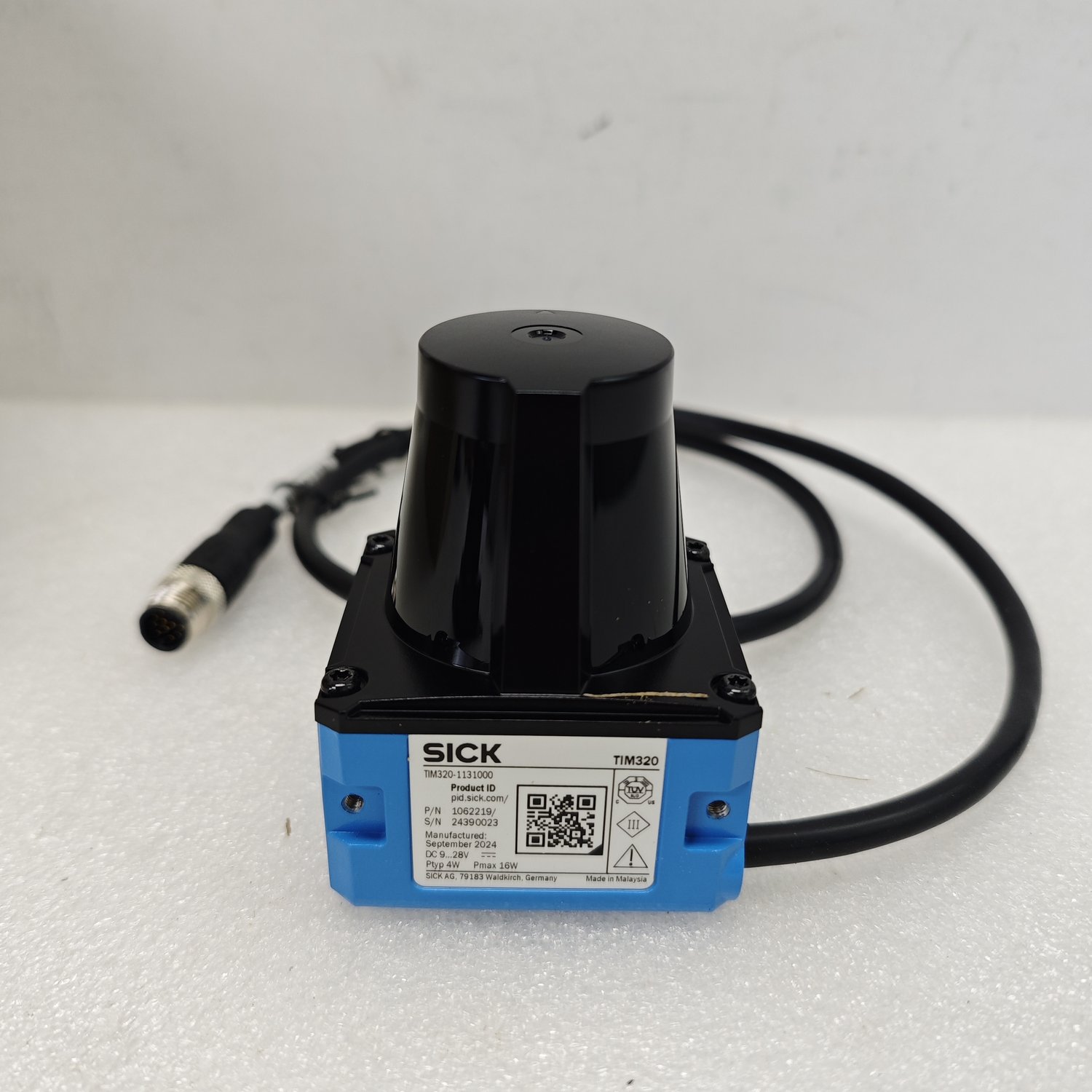

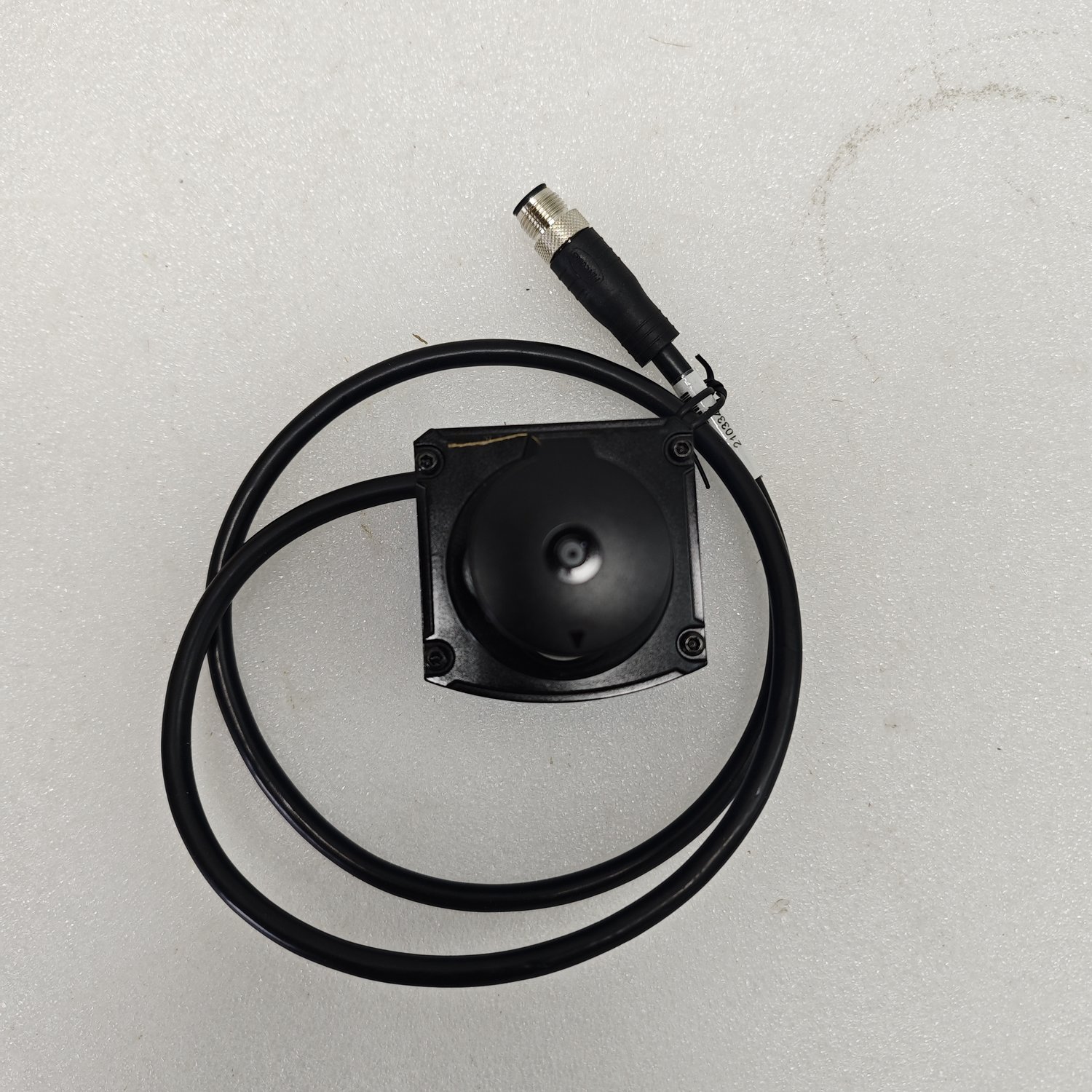

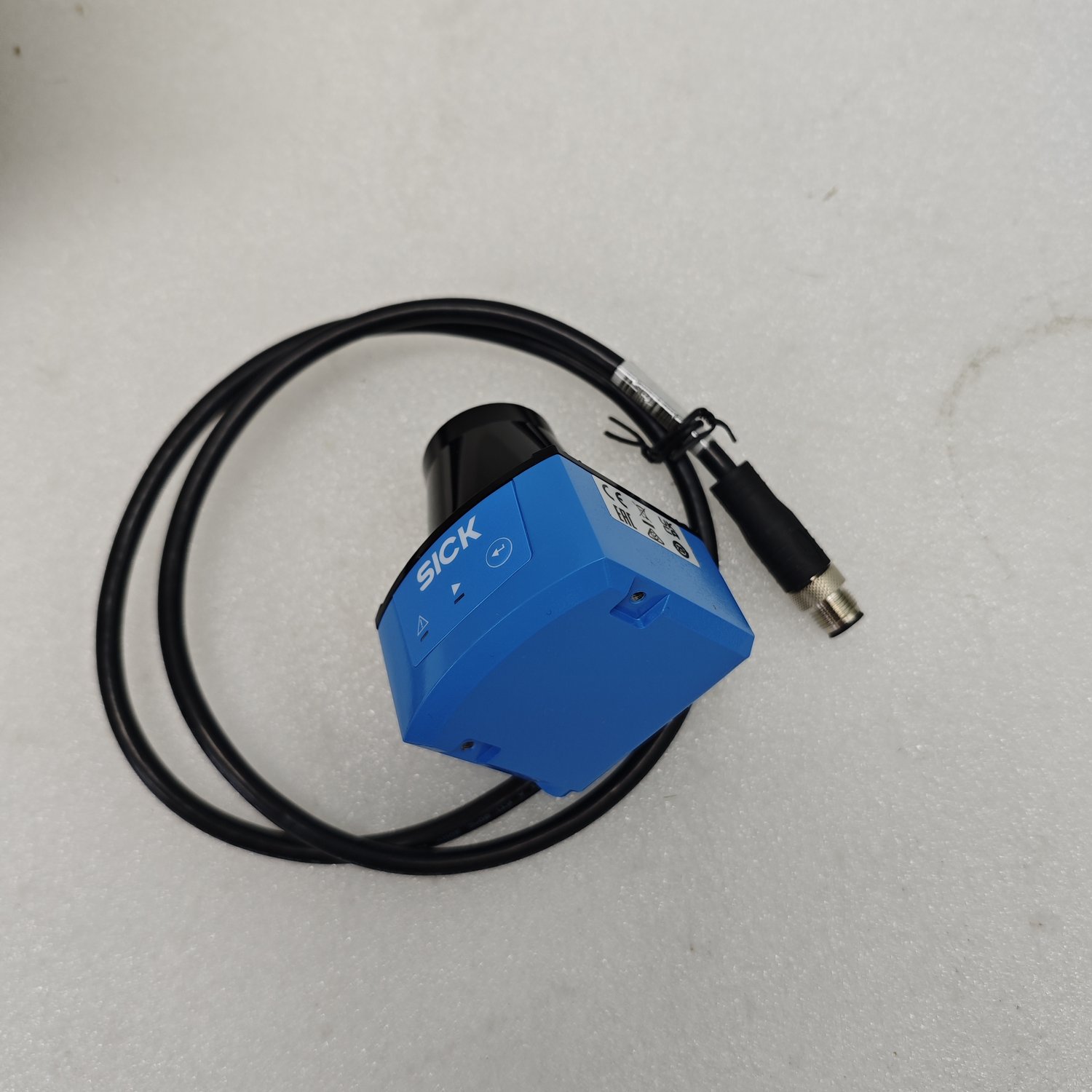

SICK TIM320-1131000 1062219 2D LiDAR Sensor (TiM320 Series)
- Measurement Principle: HDDM+ (High Definition Distance Measurement plus)
- Working Range: 0.05 m to 4 m
- Scanning Range (10% Remission): 2 m
- Aperture Angle: 270° horizontal
- Scanning Frequency: 15 Hz
- Angular Resolution: 1°
- Light Source: Infrared laser (850 nm), Laser Class 1 (eye-safe)
- Supply Voltage: 9 V DC to 28 V DC
- Power Consumption: Typ. 4 W (up to 16 W max)
- Digital Outputs: 3 x PNP outputs + 1 x Device Ready output
- Interface: Micro USB (Type B) for configuration
- Enclosure Rating: IP65
- Dimensions: 60 mm x 60 mm x 79 mm
- Response Time: 1 scan (typ. 67 ms)
- Systematic Error: ± 40 mm / Statistical Error: < 30 mm
- MTBF / MTTFd: > 100 years
Brand New SICK TIM320-1131000 1062219 2D LiDAR Sensor (TiM320 Series). In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
- SKU: TIM320-1131000 1062219
- New Original In Stock
- 6 Months Warranty
- shipping by DHL or UPS
