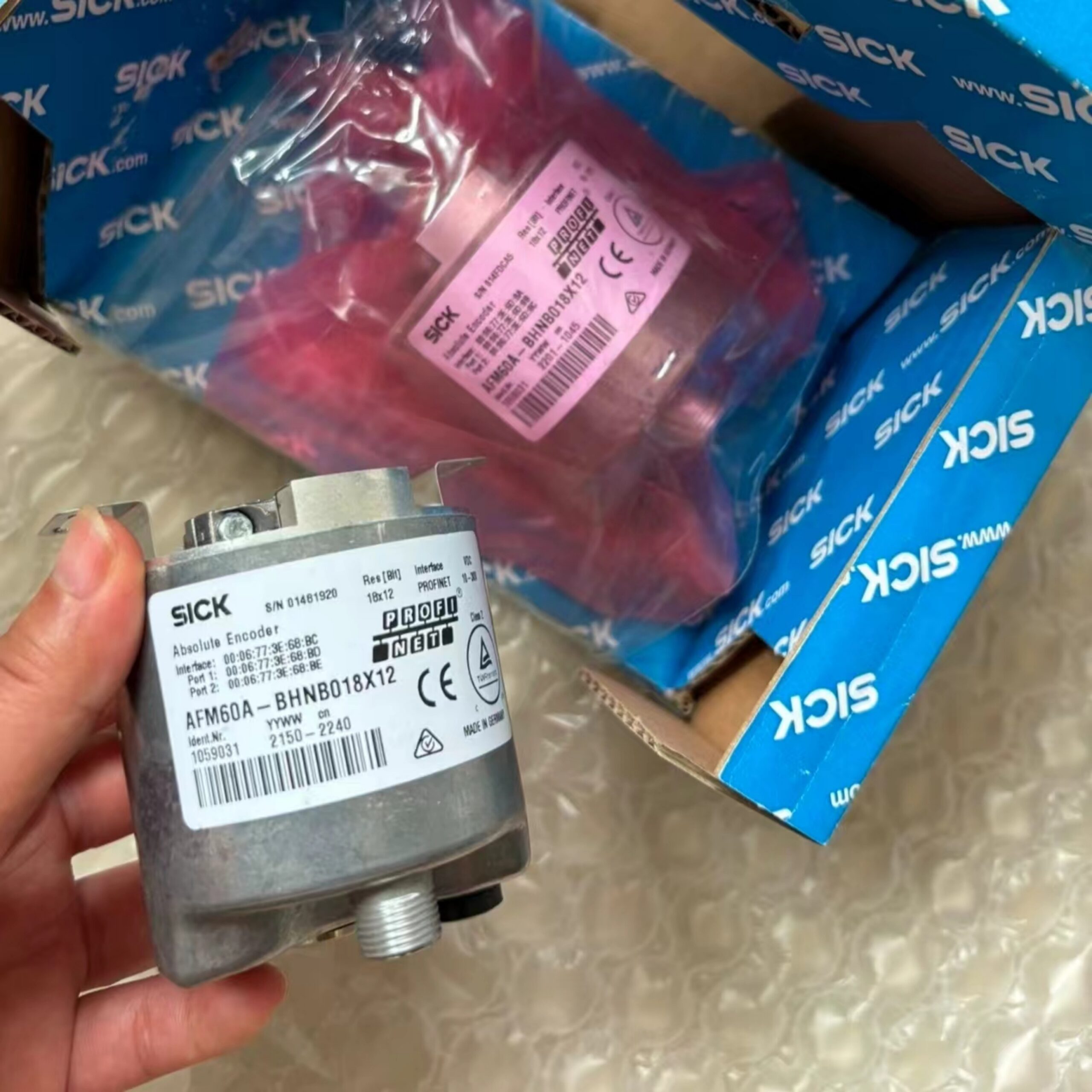

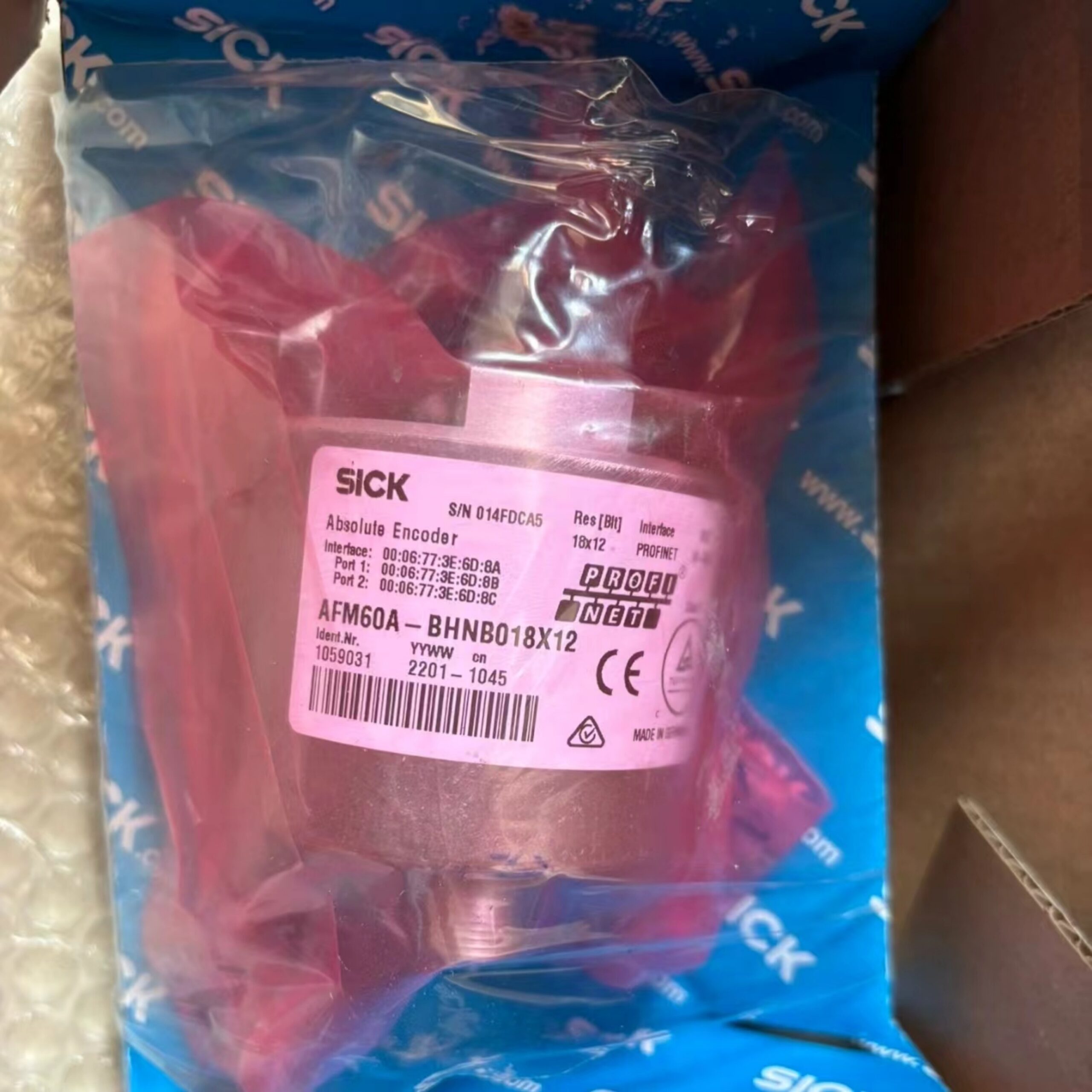

SICK AFM60A-BHNB018X12 Absolute Rotary Encoder

Manufacturer: SICK
Model / Part Number: AFM60A-BHNB018X12
Resolution: 18-bit single-turn (262,144 unique steps per rotation) and 12-bit multi-turn (4,096 total tracked rotations).

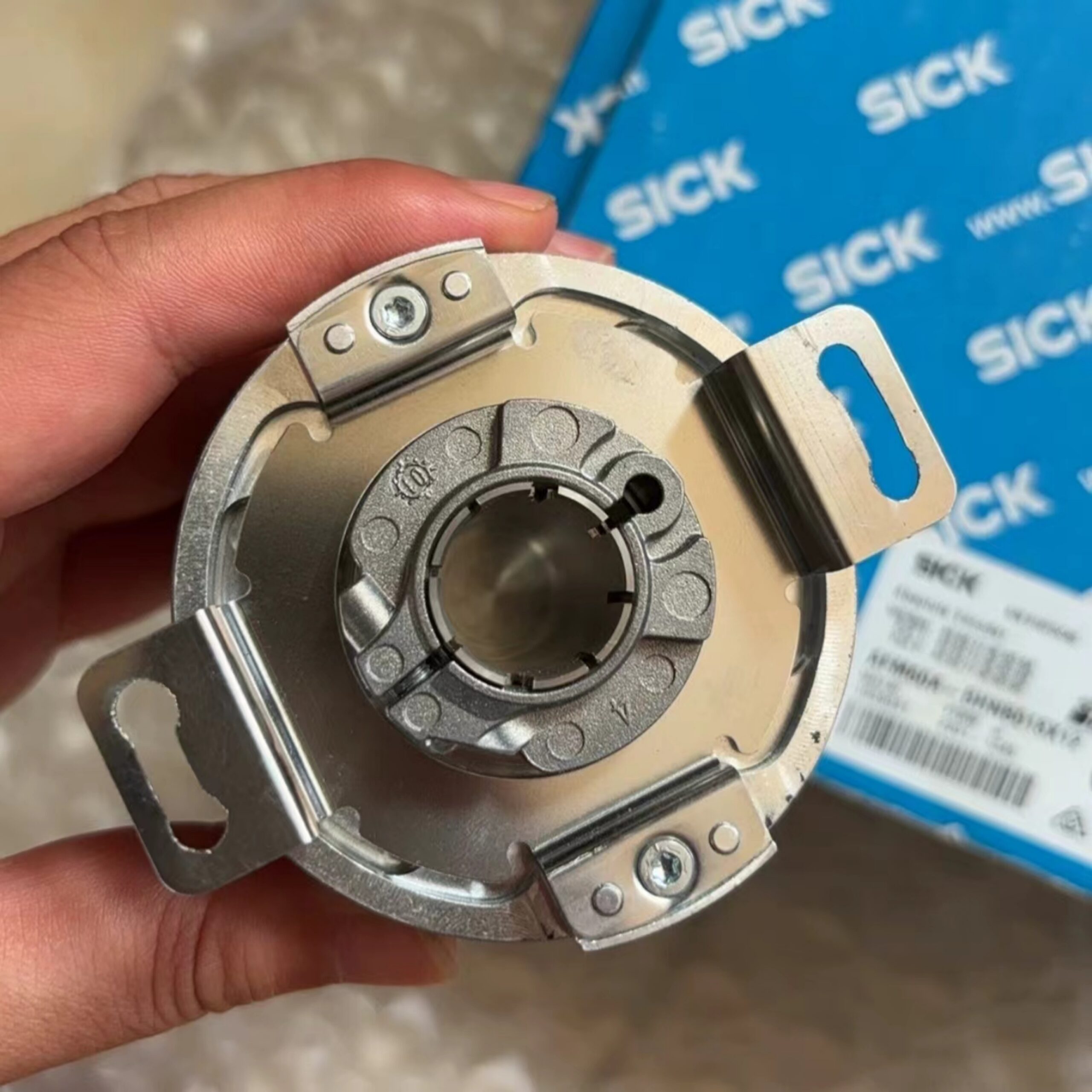

Shaft Type: 15 mm blind hollow shaft (it slips directly onto an existing motor or machine shaft).
Communication Interface: PROFINET, which lets it talk directly to industrial PLCs (Programmable Logic Controllers) over standard Ethernet cables.

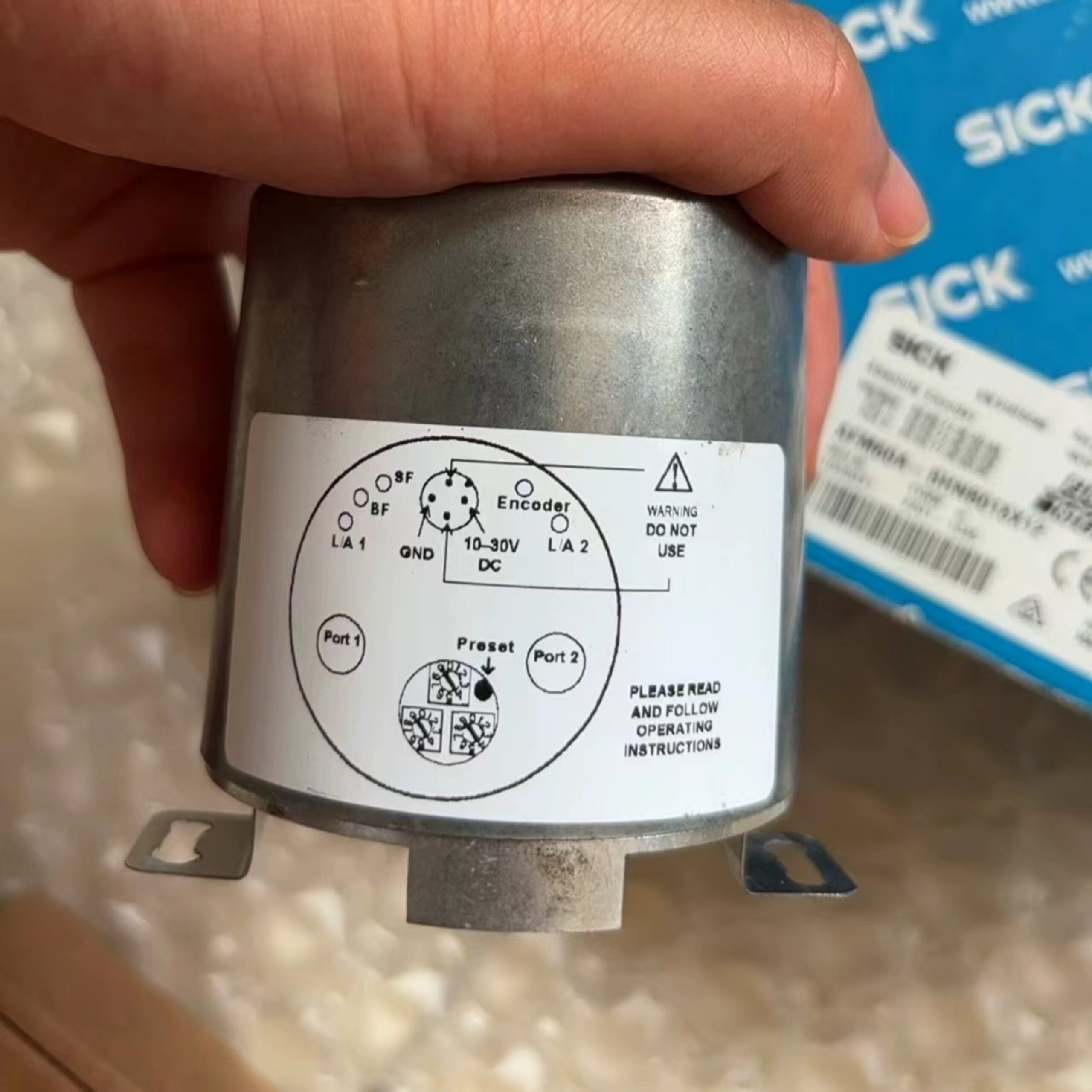

Connection: 3 x M12, 4-pin axial connectors.
Voltage Rating: Operates on standard 10 V DC to 30 V DC power.
Durability Rating: IP65 on the shaft side and IP67 on the housing side, making it highly dust-proof and water-resistant.
Temperature Range: Works in harsh environments from -40°C to +85°C (-40°F to 185°F).
Smart Diagnostics: Includes built-in evaluation tools and a 32-bit fault header to help you quickly figure out if something goes wrong.
Integrated Web Server: Features a built-in web page that allows technicians to change settings, view statuses, or push firmware updates directly over an IP network.
Rugged Build: Uses solid mechanical gears for rotation tracking and a robust metal code disc that resists shock and vibration much better than traditional glass discs.
