Showing 17–32 of 40 results
-

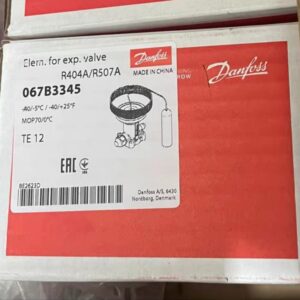

- Manufacturer: DANFOSS
- Model / Part Number: 067B3345
- Product Type: TE 12 Thermostatic Element
- Compatible Refrigerants: R404A and R507A
- Temperature Range: -40°C to -5°C (-40°F to 25°F)
- MOP Point: 0°C (32°F) at MOP 70
- Maximum Working Pressure: 28.0 bar (400 psig)
- Pressure Equalization: External equalization via a 1/4-inch Flare connection
- Capillary Tube Length: 3,000 mm (118 inches)
- Body Material: Brass
- Net Weight: 0.529 kg (1.17 lbs)
- MOP Function: Built-in Maximum Operating Pressure (MOP) protection at 0°C. This protects the compressor motor against overload during system startup.
- Laser Welded Element: The power element is constructed using advanced laser welding technology. This gives the metal a longer lifetime and better strength under pressure.
- Parts Program: This is a separate piece of a modular system. You can mix and match this element with various Danfoss valve bodies and orifice sizes to fit your specific cooling setup.
-

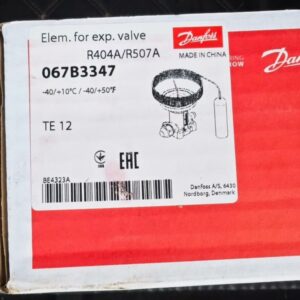

- Manufacturer: DANFOSS
- Model / Part Number: 067B3347
- Model Series: TE 12 (specifically the TES 12 configuration)
- Compatible Refrigerants: R404A and R507A
- Pressure Equalization: Externally equalized with a 1/4-inch flare connection type
- Capillary Tube Length: 118 inches (3,000 mm)
- Temperature Range: -40°F to 50°F (-40°C to 10°C)
- Maximum Working Pressure: 400 psig (28 bar)
- Body Material: Brass
-

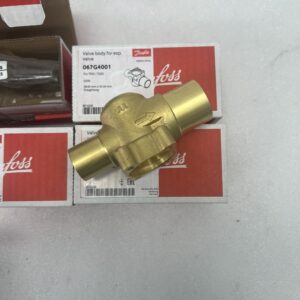

- Manufacturer: Danfoss
- Model / Part Number: 067G4001
- Compatible Models: Designed for TE 55 and TQ 55 expansion valve series.
- Flow Direction: Straightway (passage), meaning the fluid flows in a straight line through the body.
- Inlet Connection: 28 mm Solder / ODF (Outside Diameter Female) connection.
- Outlet Connection: 35 mm Solder / ODF connection.
- Material & Weight: Typically constructed of durable, corrosion-resistant brass/metal, weighing approximately 0.66 kg (1.46 lbs).
-
REQUEST A QUOTE

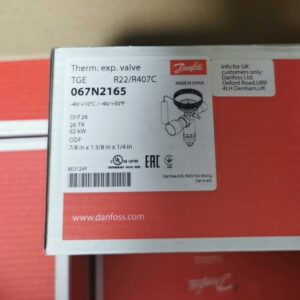

- Manufacturer: DANFOSS
- Model / Part Number: 067N2165
- Refrigerants: R22 and R407C
- Temperature Range: -40 to 10 °C
- Inlet Connection: 7/8-inch solder ODF
- Outlet Connection: 1-3/8-inch solder ODF
- Pressure Equalization: External, 1/4-inch connection
- Flow Configuration: Bi-flow, straightway body
- Maximum Working Pressure: 49 bar
- Capillary Tube Length: 3000 mm
- Body Material: Brass with copper connections
DANFOSS 067N2165 is an externally equalized thermostatic expansion valve for R22 and R407C refrigeration systems. It has solder ODF connections and a bi-flow configuration.
-
REQUEST A QUOTE
- Model Designation: TGEL 6.5
- Compatible Refrigerants: Engineered specifically for R-410A and R-32.
- Capacity: Rated at 5.5 to 6.5 Tons / 24 kW.
- Inlet: 1/2 inch Solder, ODF
- Outlet: 5/8 inch Solder, ODF
- Equalization Line: 1/4 inch Solder, ODF (External equalization)
- Capillary Tube Length: 59 inches (1500 mm)
- Flow Design: Bi-flow capability with balanced port design to ensure stable performance under varying head pressures.
- Body & Material: Brass body with copper solder connections and a laser-welded stainless steel power element.
- Maximum Working Pressure: 46 Bar (667 Psig)
DANFOSS 067N3153 Thermostatic Expansion Valve (TGE Series).
-
REQUEST A QUOTE
- Model / Series: T2 / TS 2
- Refrigerants: R404A / R507A
- Inlet Connection: 3/8-inch Flare
- Outlet Connection: 1/2-inch Flare
- Equalization: Internally Equalized
- Temperature Range: -40°F to 50°F (-40°C to 10°C)
- Max Working Pressure (PS): 500 psig / 34 bar
- Capillary Tube Length: 59 inches / 1.5 meters
- MOP (Max Operating Pressure): None (Without MOP)
- Body Material: Brass
DANFOSS 068Z3400 Thermostatic Expansion Valve (T2 Series).
-
REQUEST A QUOTE
- Product Model: AK-CC 525A
- Manufacturer Code: 084B8019
- Supply Voltage: 230 V AC
- Power Consumption: 5 VA
- Hardware Terminals: Screw Terminals
- Relay Configuration: 5 Onboard Relays
- Valve Compatibility: AKV Series
- Display Form Factor: Without Built-in Display
- Network Bus Options: LON / MODBUS / DANBUSS
- Adaptive Superheat Control: Maximizes evaporator efficiency while preventing destructive liquid slugging to the compressor by regulating the opening of the AKV valve.
DANFOSS 084B8019 Case Controller (AK-CC 525A Series).
-
REQUEST A QUOTE
- Module Type: Communication Module / LON Card
- Hardware Interface: RS-485 physical connection layer
- Network Protocol: LON (Local Operating Network)
- Device Compatibility: Engineered specifically for Danfoss electronic controllers EKC 202 and EKC 204
- Device Weight: Net weight is roughly 0.01 kg (0.35 oz), gross weight 0.02 kg (0.70 oz)
- Regulatory Approvals: CE and CMIM certified
- Product Specifications: * Type: EKA 179A Communication Module. * Interface: LON RS485. * Compatibility: EKC 202, EKC 204. * Functi…
DANFOSS 084B8565 EKA179A Data Communication Module (EKA 179 Series).
-
REQUEST A QUOTE
- Manufacturer: Danfoss
- Part Number (Code): 084B8571
- Type Designation: EKA 178B
- Communication Protocol: Modbus (RS-485 standard)
- Function: Data communication module / plug-in card
- Environmental Safety: PFAS-free, REACH Candidate List substance-free
- EKC Series: Compatible with EKC 300 and EKC 500 refrigeration regulators.
- AK-CC Series: Compatible with case controllers such as the AK-CC 350, AK-CC 450, and AK-CC 550 series.
- Centralized Building Management Systems (BMS): Linking commercial food displays, cold rooms, or industrial chillers to a master control room.
- Remote Performance Monitoring: Transmitting vital refrigeration data such as temperature logs, defrost schedules, and sensor diagnostic configurations over Modbus.
DANFOSS 084B8571 EKA178B Modbus Communication Module (EKA 178 Series).
-

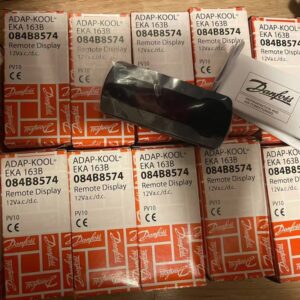

- Manufacturer: Danfoss
- Model / Part Number: 084B8574 EKA163B
- Type designation: EKA 163B (remote display, read-only, no operating buttons)
- Code number: 084B8574
- Supply voltage: 12 V DC (from controller)
- Display: LED, 3 digits; readout accuracy 0.1 deg C in measuring range
- Electrical connection: Via plug (B-version); plug-in cable type
- Communication: TTL (B-version)
-
- Manufacturer: Danfoss
- Model / Part Number: 084B8575 EKA164B
- Model Type: EKA 164B (Type B communication)
- Part Number / Code: 084B8575
- Screen Type: 3-digit visual LED display
- Supply Voltage: 12 V DC (also supports 12 V AC)
- Power Consumption: 1.0 VA
- Communication Protocol: TTL data connection interface
-
REQUEST A QUOTE
- Manufacturer: Danfoss
- Part Number (MPN): 084B8579
- Type Designation: EKA 175 / EKA 175A
- Interface / Protocol: LON-module, RS-485
- Identical Product ID: 084B8679
- Standards & Approvals: CE, CMIM, UR
- Net Weight: 0.01 kg (0.35 oz)
DANFOSS 084B8579 EKA175A LON Communication Module (EKA 175 Series).
-
REQUEST A QUOTE
- Model / Type: MBT 3560-0000-0150-10-110
- Sensor Element: Pt1000 (Integrated Transmitter)
- Output Signal: 4 – 20 mA
- Temperature Measuring Range: -50°C to 200°C (-58°F to 392°F)
- Insertion Length: 150 mm (5.9 in)
- Process Connection Type: G 1/4 A (Thread standard: ISO 228)
- Protection Tube Material: AISI 316 Ti (Stainless steel)
- Electrical Connection: Angular connector / DIN-Plug (EN 175301-803-A)
- Electrical Connection Size: Pg 9
- Supply Voltage Range: 10 – 32 V DC
DANFOSS 084Z4032 Temperature Transmitter (MBT 3560 Series).
-
REQUEST A QUOTE
- Model Series: MBT 3560
- Insertion Length: 70 mm / 2.76 in
- Process Connection: G 1/2 A (Thread standard: ISO 228)
- Measuring Range: -50°C to 150°C (-58°F to 302°F)
- Sensor Element: Pt1000
- Electrical Connection: M12 x 1 (4-pin male)
- Enclosure Rating: IP67
- Protection Tube Material: Stainless Steel (AISI 316 Ti)
DANFOSS 084Z4050 Compact Temperature Transmitter (MBT 3560 Series).
-
REQUEST A QUOTE
- Manufacturer: Danfoss
- Model / Type: LCP 102
- Part Number: 130B1107 (Alternate: 130-B1107)
- Display Type: Illuminated graphic display with plain text
- Enclosure Rating: Type 3R / Type 4X (when properly mounted)
- Physical Weight: 0.35 lbs / ~0.16 kg
- Country of Origin: Denmark
- Multi-Language Interface: Features an illuminated graphic display supporting plain text in all major international languages and characters.
- Quick Commissioning: Built-in "Quick Menu" guides technicians swiftly through standard commissioning parameters.
- Parameter Management: Allows users to easily save, back up, and copy parameter sets from one VLT drive to another.
DANFOSS 130B1107 VLT Control Panel (LCP 102 Series).
-
REQUEST A QUOTE
- Component Type: Numerical Control Unit / Basic Operator Panel (BOP)
- Drive Compatibility: VLT Micro Drive FC 51 Series (All Horsepower Ratings)
- Speed Control: Integrated Rotary 10k Potentiometer
- Display Technology: High-Contrast Numerical LCD Display
- Enclosure Rating: Fully Enclosed: IP 20 base / IP 54 front panel (IP 21 when standard unit-mounted)
- Operating Temp: 14°F to 122°F (-10°C to 50°C)
- Mounting Options: Direct local interface or remote cabinet mounting via kit
- Parameter Copy Function: Simplifies multi-drive commissioning by allowing you to store the complete parameter configuration from one VFD and download it onto another.
- Hand-Off-Auto Control: Includes dedicated navigation toggles for immediate manual override during startup, commissioning, or motor maintenance sequences.
- Quick Menu Access: Programmed with an optimized fast-track menu structure to minimize setup times for standard motor deployments.
DANFOSS 132B0101 Local Control Panel (LCP 12 Series).
