Products

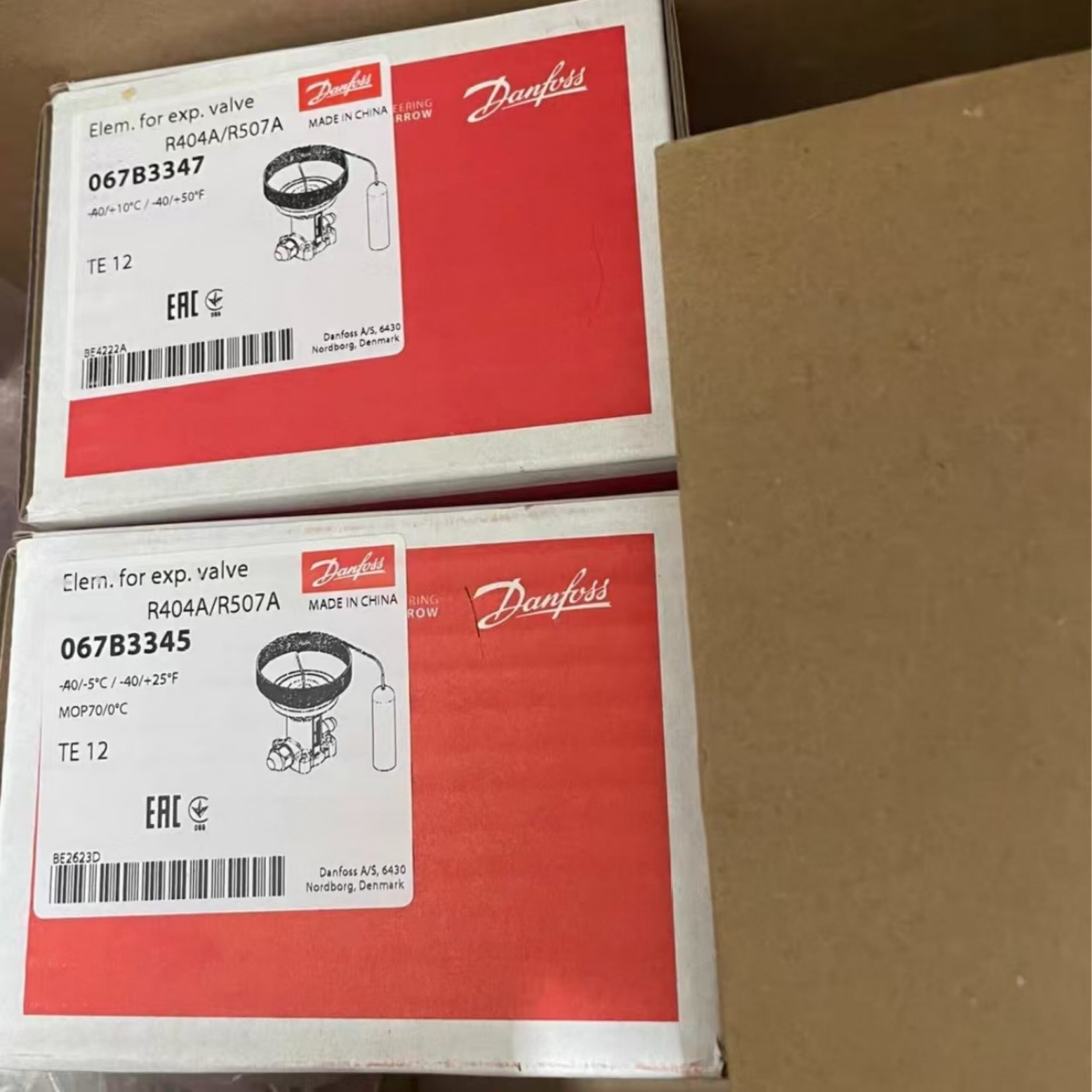

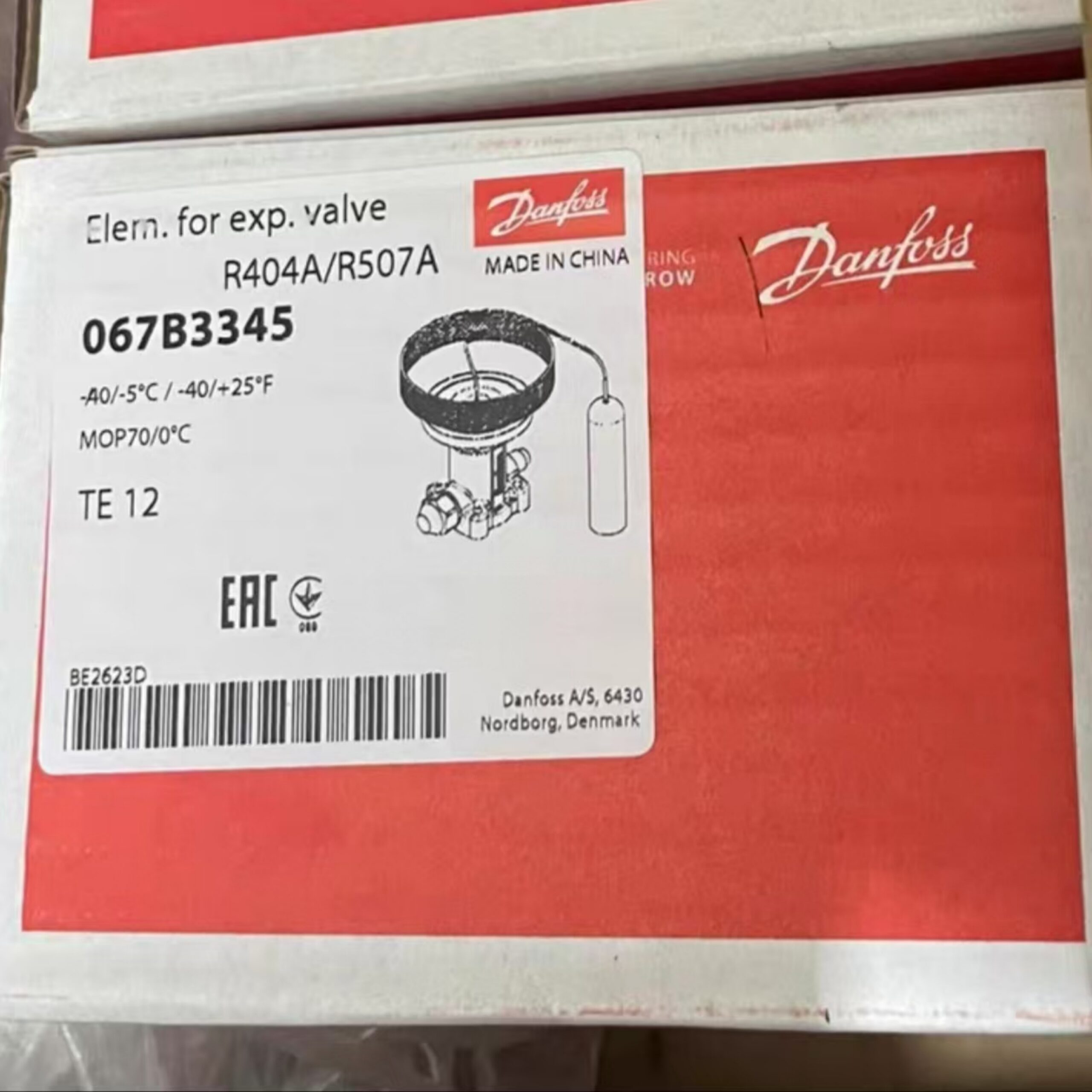

DANFOSS 067B3345 Industrial Valve Component

Manufacturer: DANFOSS
Model / Part Number: 067B3345
Product Type: TE 12 Thermostatic Element
Compatible Refrigerants: R404A and R507A
Temperature Range: -40°C to -5°C (-40°F to 25°F)
MOP Point: 0°C (32°F) at MOP 70
Maximum Working Pressure: 28.0 bar (400 psig)
Pressure Equalization: External equalization via a 1/4-inch Flare connection
Capillary Tube Length: 3,000 mm (118 inches)
Body Material: Brass
Net Weight: 0.529 kg (1.17 lbs)
MOP Function: Built-in Maximum Operating Pressure (MOP) protection at 0°C. This protects the compressor motor against overload during system startup.
Laser Welded Element: The power element is constructed using advanced laser welding technology. This gives the metal a longer lifetime and better strength under pressure.
Parts Program: This is a separate piece of a modular system. You can mix and match this element with various Danfoss valve bodies and orifice sizes to fit your specific cooling setup.

Availability & Delivery

Availability shown is for reference only and will be confirmed at the time the order is processed.
Published quantities may change without prior notice.
The customer is responsible for verifying part number and specifications before confirming the purchase.
Certain products may be considered special order items depending on availability.
