Showing 17–32 of 58 results
-
- Manufacturer: Allen-Bradley
- Model / Part Number: 1746-NT4
- Product type: SLC 500 4-channel thermocouple/mV input module (Series B)
- Input channels: 4 (backplane isolated)
- Input types: Thermocouple or DC millivolt per channel, with cold junction compensation
- A/D conversion: Sigma-Delta modulation
- Input filtering: Programmable low-pass digital filter (10/50/60/250 Hz notch)
- Normal mode rejection: >100 dB at 50/60 Hz
- Common mode rejection: >150 dB at 50/60 Hz
- Isolation: 500 V dc continuous (inputs to chassis and backplane)
- Backplane load: 60 mA at 5 V dc + 40 mA at 24 V dc; 0.8 W max
-

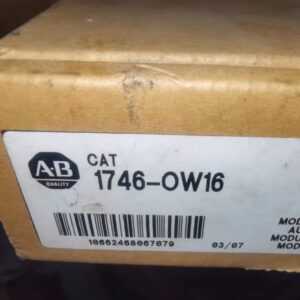

- Manufacturer: Allen-Bradley
- Model / Part Number: 1746-OW16
- Module type: Relay contact output module, 16 channels, AC/DC voltage category; 8 points per common
- Output signal (load voltage): 5 to 125 V DC or 5 to 265 V AC digital contact output
- Relay contact ratings: Make/break 15 A / 1.5 A at 120 V AC; 7.5 A / 0.75 A at 240 V AC; DC limited to 28 VA, max 2 A below 14 V; min load current 10 mA at 5 V DC; 0 mA off-state leakage
- Continuous current: 8.0 A per common; module limited to 16.0 A AC and 1440 VA total
- Backplane current consumption: 0.170 A at 5 V DC; 0.180 A at 24 V DC
- Signal delay, max resistive load: On = 10.0 ms; Off = 10.0 ms
-

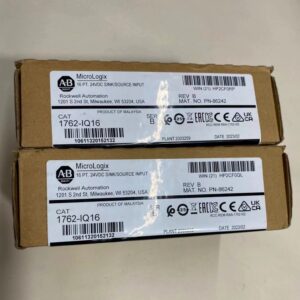

- Manufacturer: ALLEN-BRADLEY
- Model / Part Number: 1762-IQ16
- Controller Family: MicroLogix 1200
- Input Channels: 16 digital inputs
- Nominal Input Voltage: 24 VDC
- Mounting: DIN rail
-

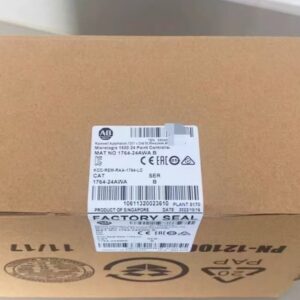

- Manufacturer: Allen-Bradley
- Model / Part Number: 1764-24AWA
- Product type: MicroLogix 1500 programmable controller, 24-point fixed I/O base unit with processor and integrated power supply
- Input points: 12 discrete inputs, 120 V AC
- Output points: 12 relay outputs, including 2 individually isolated relays
- Supply voltage: 120/240 V AC
- Communication: Built-in RS-232C communication port
- Lifecycle status: Discontinued by Rockwell Automation; lifecycle cutoff 2017-06-30
-

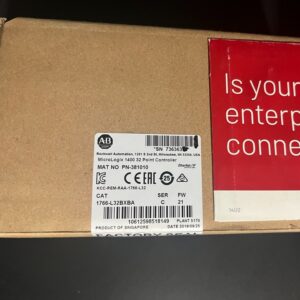

- Manufacturer: Allen-Bradley
- Model / Part Number: 1766-L32BXBA
- Series: MicroLogix 1400
- Input Power Voltage: 24V DC
- Memory Capacity: 20 KB user memory
- Mounting Options: DIN Rail or Panel Mount
- Operating Temperature: -20°C to 60°C (-4°F to 140°F)
- Weight: 2.31 lbs (1.05 kg)
-

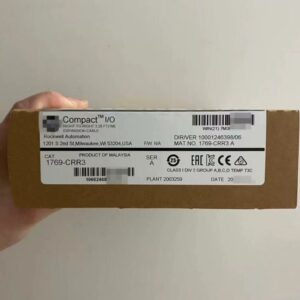

- Manufacturer: Allen-Bradley
- Model / Part Number: 1769-CRR3
- Catalog Number: 1769-CRR3
- Cable Length: 1 meter (3.28 feet)
- Connection Type: Right-to-Right (Right side of one chassis to the right side of another)
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- System Expansion: Extends the 1769 communication bus beyond the physical limit of a single compact I/O bank or chassis.
- High-Speed Communication: Ensures stable and secure data routing between the main processor and secondary I/O module banks.
-

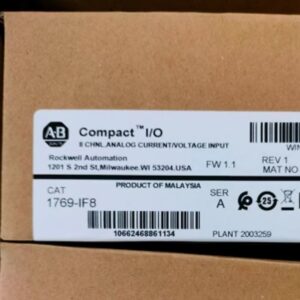

- Manufacturer: ALLEN-BRADLEY
- Model / Part Number: 1769-IF8
- Number of Inputs: 8 differential or single-ended analog channels
- Input Ranges (Voltage): ±10V DC, 0–10V DC, 1–5V DC, 0–5V DC
- Input Ranges (Current): 4–20 mA, 0–20 mA
- Resolution: 16 bits (unipolar); 15 bits plus sign (bipolar)
- Backplane Current Draw: 120 mA @ 5V DC, 70 mA @ 24V DC
- Input Impedance: Voltage terminal: 220 kΩ
-

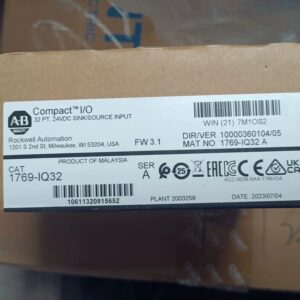

- Manufacturer: ALLEN-BRADLEY
- Model / Part Number: 1769-IQ32
- Input Channels: 32, arranged in four groups of eight
- Voltage Category: 24 VDC
- Operating Voltage: 10–30 VDC at 30 °C
- Input Type: Sinking or sourcing
- On-State Voltage: 10 VDC minimum
- Off-State Voltage: 5 VDC maximum
- On-State Current: 2.0 mA minimum
- Input Delay: 8 ms
- Backplane Current: 170 mA at 5.1 VDC
- Mounting: DIN rail or panel
-

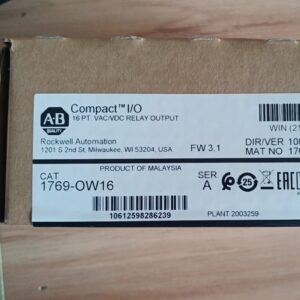

- Manufacturer: Allen-Bradley
- Model / Part Number: 1769-OW16
- Outputs: 16 Form A (normally open) relay contacts.
- Operating Voltages: 5 to 265 Volts AC or 5 to 125 Volts DC.
- Current Draw: 205 mA at 5.1V DC and 180 mA at 24V DC from the system backplane.
- Heat Dissipation: 4.75 Total Watts.
- Distance Rating: Can be mounted up to 8 modules away from the system power supply.
- Max Continuous Current (Per Point): 2.5 Amps.
- Max Continuous Current (Per Common): 10 Amps.
- Max Continuous Current (Per Module): 20 Amps.
- Minimum Load Current: 10 mA at 5 Volts DC.
- Signal Delay (Max): 10 milliseconds for turning both on and off with a resistive load.
- Off-State Leakage: 0 mA.
- Mounting Options: Can be attached to a standard DIN rail or panel mounted.
- Operating Temperature: 0°C to 60°C (32°F to 140°F).
- Enclosure Type: Open-type design.
- Isolated Groups: 2 groups of 8 outputs
- Dimensions: 118 × 35 × 87 mm
-
REQUEST A QUOTE
- Manufacturer: Allen-Bradley / Rockwell Automation
- Input Voltage Range: 85 to 265 V AC (nominal 120 / 240 V AC)
- Module Distance Rating: 8 (Up to 8 modules can be installed on either side)
- Mounting Options: DIN Rail or Panel Mount
- Dimensions / Weight: 118 × 70 × 87 mm (4.65 × 2.76 × 3.43 in) / 525 g (1.16 lbs)
- Internal Protection: Replaceable Fuse (Wickmann 19195-3.15A or Littelfuse 02183.15MXP)
- Distance Rating Boundary: The 1769-PA2 features a rigid power supply distance rating of 8. This dictates that no hardware module can be positioned more than 8 slots away from the power supply unit to minimize voltage drops across the backplane ribbon connections.
- Voltage Selection Switch: Always inspect the input voltage selector toggle before executing live wire connections. Setting an incorrect profile (such as exposing a 120 V configuration to 240 V lines) will instantly rupture the internal protection fuse or permanently damage the backplane transformer circuit.
- Expansion Limits: While a standard platform setup allows a total expansion bank footprint of up to 16 modules, bank splitting modules and subsequent supplementary power supplies must obey system load calculations. Ensure total module 5V and 24V current draws do not cross the 2.0A and 0.8A thresholds respectively.
ALLEN-BRADLEY 1769-PA2 AC Power Supply Module (CompactLogix).
-
REQUEST A QUOTE
- Input Voltage Range: 85–132V AC or 170–265V AC (Selectable via physical switch)
- Input Frequency: 47–63 Hz
- Current Capacity: 4.0 A @ 5V DC and 2.0 A @ 24V DC
- Total Output Power: 18 Watts
- Max Inrush Current: 25 A @ 132V AC
- Power Consumption: 200 VA @ 120V AC / 240 VA @ 240V AC
- Power Dissipation: 18 W @ 60°C (140°F)
- Mounting Options: DIN Rail or Panel Mount
- Dimensions: 4.65" H x 2.76" W x 3.43" D (118mm x 70mm x 87mm)
- Maximum Module Support: Can connect up to 16 I/O modules within a system bank.
ALLEN-BRADLEY 1769-PA4 AC Power Supply Module (CompactLogix).
-

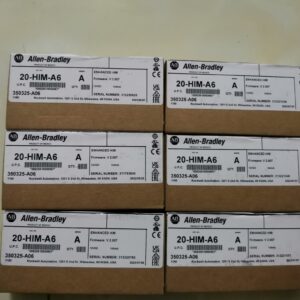

- Manufacturer: ALLEN-BRADLEY
- Model / Part Number: 20-HIM-A6
- Input Power: 12V DC, supplied directly by the host drive
- Current Consumption: 140 mA
- Communication Speed: 125 Kbps or 500 Kbps
- Enclosure Rating: NEMA Type 1 (Indoor protection against dust)
- Operating Temp: 0 to 50 °C (32 to 122 °F)
- Physical Dimensions: 116 mm x 70 mm x 16 mm (4.57" x 2.75" x 0.63")
- Weight: 91 grams (3.2 oz)
-
REQUEST A QUOTE
- Product Line: Micro850® (Enhanced Version)
- Total Embedded I/O: 24 Points (14 Inputs, 10 Outputs)
- Digital Inputs: 14 inputs, 24V AC/DC
- Digital Outputs: 10 outputs, Relay type
- Input Power Supply: 24V DC (Operating range: 20.4–26.4V DC)
- Power Consumption: 28 Watts
- High-Speed Counters (HSC): 4 Channels (100 kHz support)
- Enclosure / Environmental: IP20 Standard (Indoor industrial use)
- Mounting Options: DIN Rail or Panel Mount
- Terminal Screw Torque: 0.6 Nm
ALLEN-BRADLEY 2080-L50E-24QWB Programmable Logic Controller (PLC) (Micro850).
-
- Manufacturer: Allen-Bradley
- Model / Part Number: 2080-LC10-12AWA
- Power Supply: 120V AC or 240V AC line power.
- Total Inputs: 8 digital inputs (120/240V AC).
- Total Outputs: 4 high-current relay outputs.
- Output Ratings: Relays 0 and 1 support up to 8 Amps; relays 2 and 3 support up to 4 Amps.
- Memory Size: 4 KB of memory space.
- Mounting: Fits on standard 35mm DIN rails or direct panel mounting.
- Programming Software: Connected Components Workbench (CCW)
- PC Connection: The unit requires a separate adapter, the 2080-USBADAPTER, to connect directly to a computer using a standard USB cable.
- No Extension Modules: Unlike larger PLCs, the Micro810 cannot connect to plug-in expansion modules to increase its I/O count.
- Optional LCD Display: You can plug in a 1.5-inch screen module (2080-LCD) to monitor values, change settings, or clear errors directly on the machine without a PC.
-

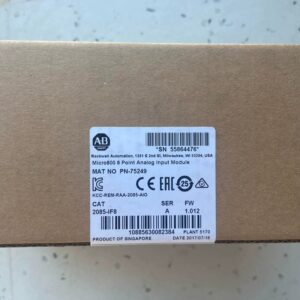

- Manufacturer: ALLEN-BRADLEY
- Model / Part Number: 2085-IF8
- Number of Inputs: 8 Channels (Analog, isolated from system)
- Input Ranges (Voltage): ±10V DC, 0–10V DC
- Input Ranges (Current): 4–20 mA (Default), 0–20 mA
- Resolution: 16-bit
- Backplane Current: 110 mA @ 5V DC, 50 mA @ 24V DC
- Power Consumption: 1.5W maximum
-
REQUEST A QUOTE
- Manufacturer / Line: Allen-Bradley / PowerFlex 4
- Power Output: 1.0 HP / 0.75 kW
- Output Current: 4.5 Amps
- Input Voltage: 3-Phase, 200–240V AC (5.2A input rating)
- Enclosure Style: IP20 / NEMA Type Open (Panel Mount / DIN Rail)
- Interface Module: Fixed Digital Keypad & LED Display
- Communication: Integral RS-485
- EMC Filter: No CE Compliant Filter Included
- Braking Mechanism: Standard Brake Drive Mechanism
- Overcurrent Limits: Features protection up to a 200% hardware limit for 60 seconds and a 300% instantaneous fault limit for 3 seconds.
ALLEN-BRADLEY 22A-B4P5N104 Variable Frequency Drive (VFD) (PowerFlex 4).
