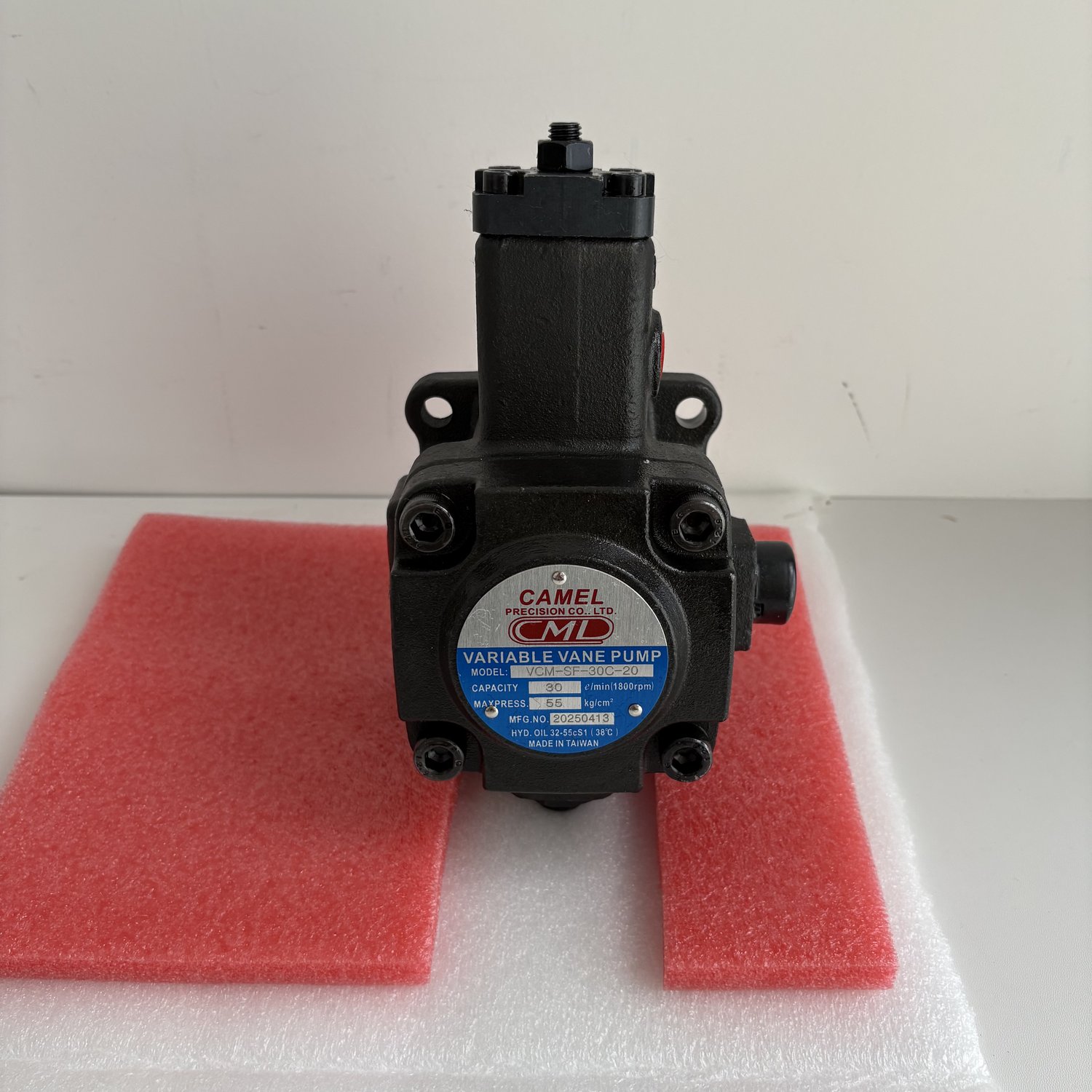

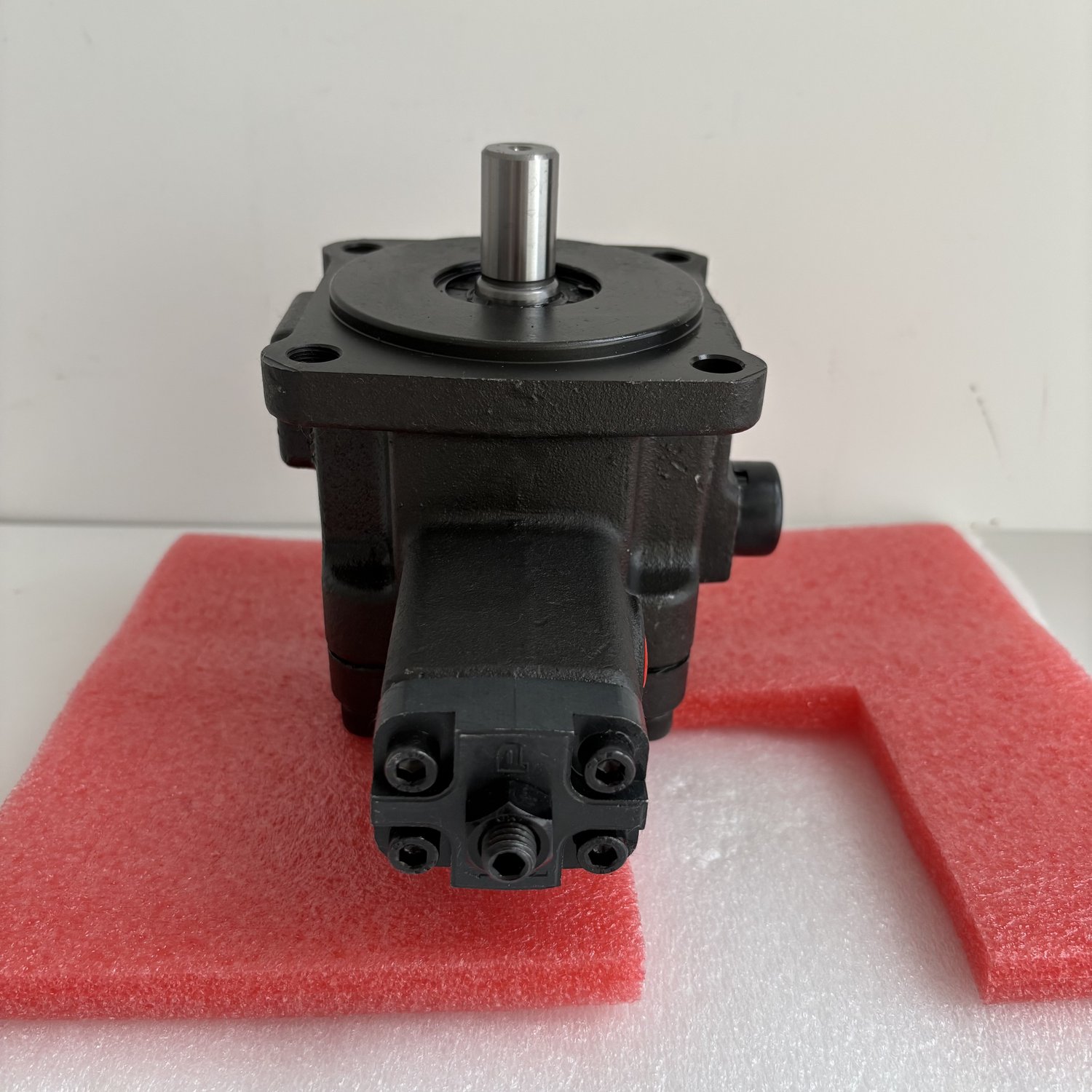

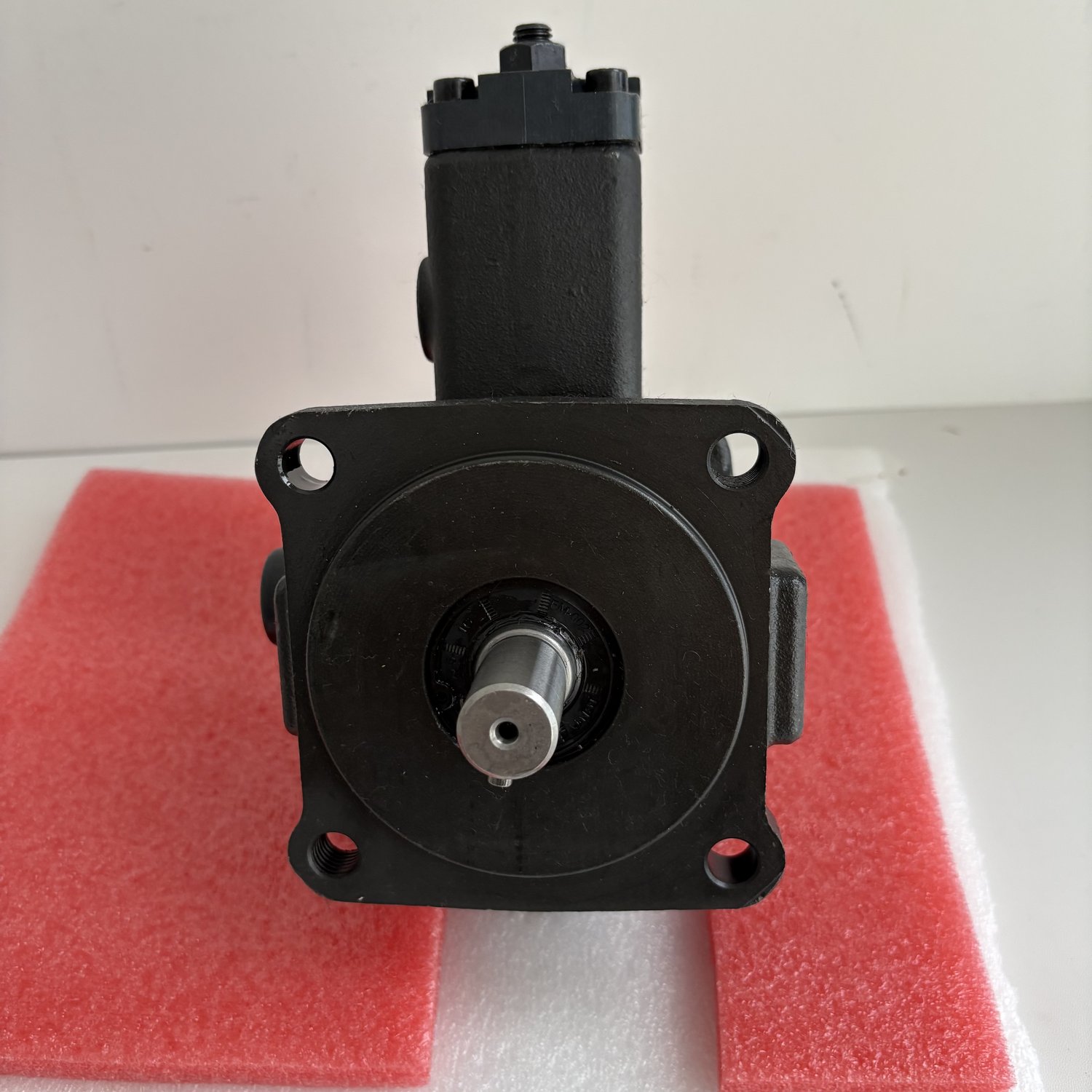

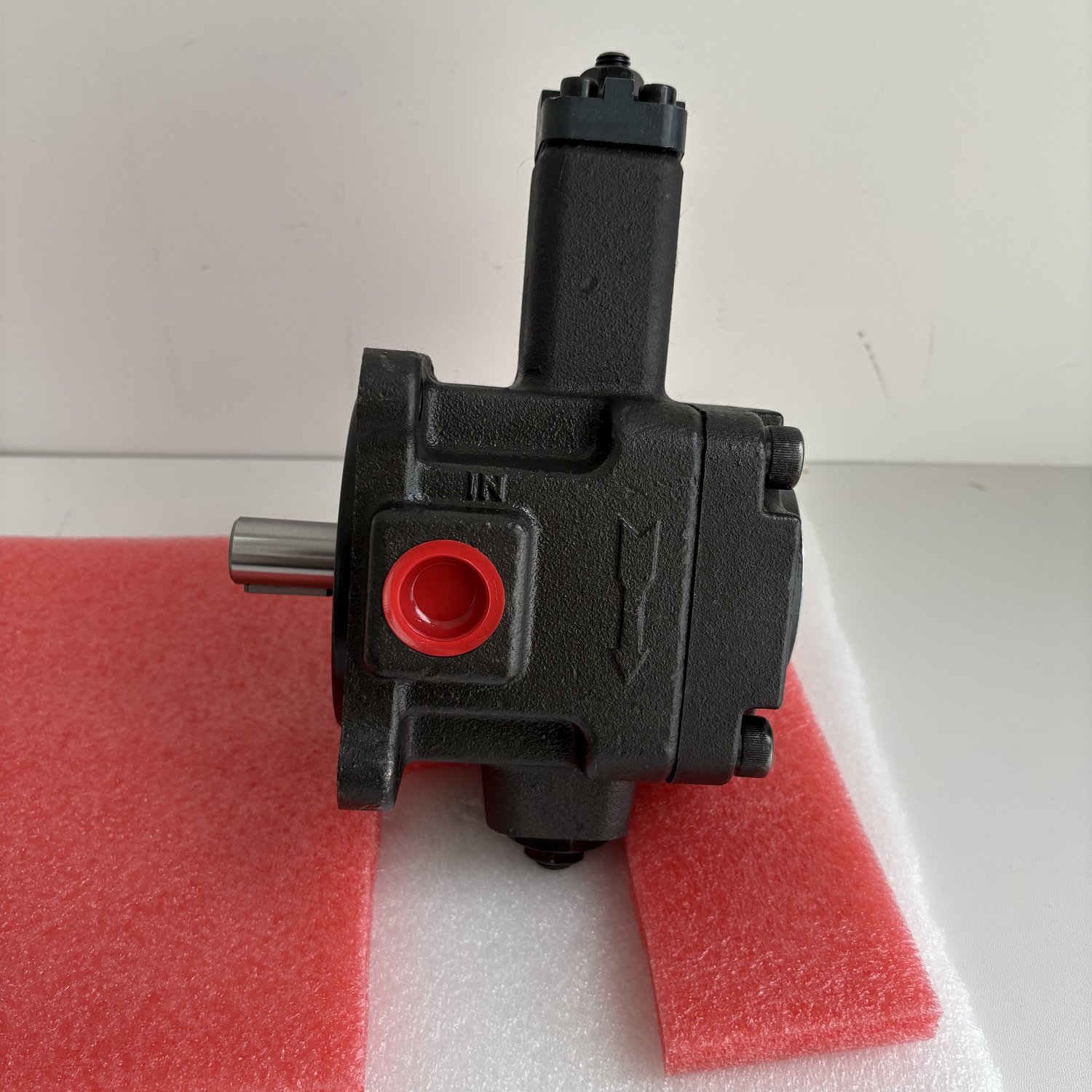

CML VCM-SF-30C-20 Variable Displacement Vane Pump (VCM Series)
- Flow Capacity: 30 L/min
- Maximum Pressure: 55 kgf/cm² (approx. 5.5 MPa / 800 psi)
- Shaft Diameter: 19 mm
- Mounting Setup: 4 Bolt holes / Hole-to-hole spacing: 90 mm / Lip size: 95.02 mm
- Port Sizes: Inlet: 3/4″ PT | Outlet: 1/2″ PT | Drain: 1/4″ PT
- Energy Efficiency: The variable vane design automatically adjusts displacement based on system demands, avoiding rapid oil temperature spikes and lowering power draw.
- Modular Integration: It is engineered to share a single motor with an external gear pump series (such as the EGA series), drastically saving physical workspace and motor costs.
- Primary Uses: Frequently installed in dedicated hydraulic machinery, cooling circulation pump systems, and compression molding machines.
Brand New CML VCM-SF-30C-20 Variable Displacement Vane Pump (VCM Series). In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
- SKU: VCM-SF-30C-20
- New Original In Stock
- 6 Months Warranty
- shipping by DHL or UPS
