BELIMO SMQ24A Damper Actuator (SMQ Series)

• Torque: Minimum 16 Nm at nominal voltage.
• Damper Size: Optimized for air dampers up to approximately 3.2 m².
• Running Time: Ultra-fast 7 seconds.
• Control Type: Open-close (Note: Not suitable for 3-point/floating control applications).
• Nominal Voltage: AC 24 V (50/60 Hz) / DC 24 V.
• Voltage Range: AC 19.2 to 28.8 V / DC 21.6 to 28.8 V.
• Power Consumption (Operation): 15 W at nominal torque.
• Power Consumption (Rest/At-Rest Position): 2 W.
• Wire Sizing Capacity: 26 VA (with a maximum inrush current of 20 A @ 5 ms).
• Electrical Connection: Pre-wired with a 1-meter cable (3 x 0.75 mm²).

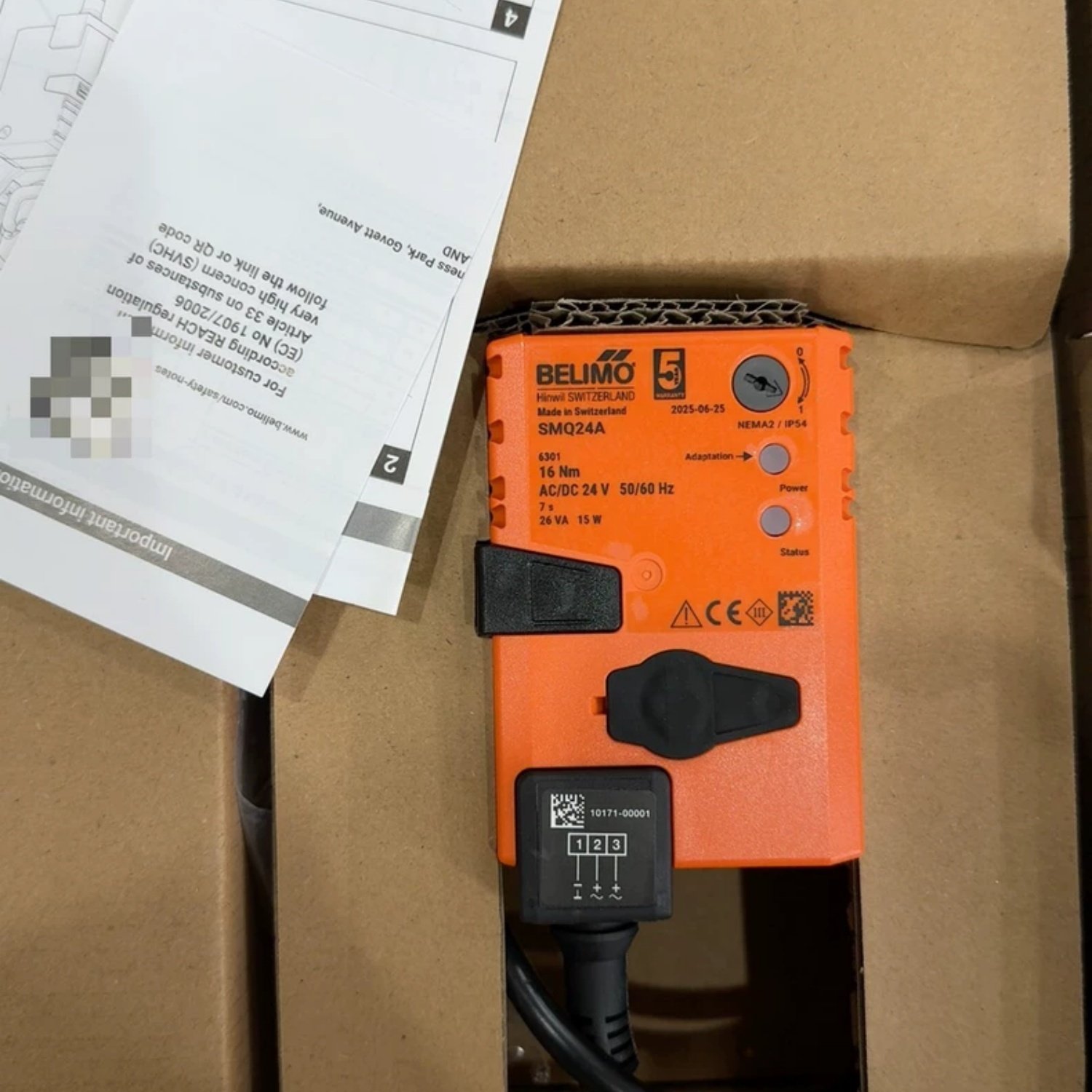

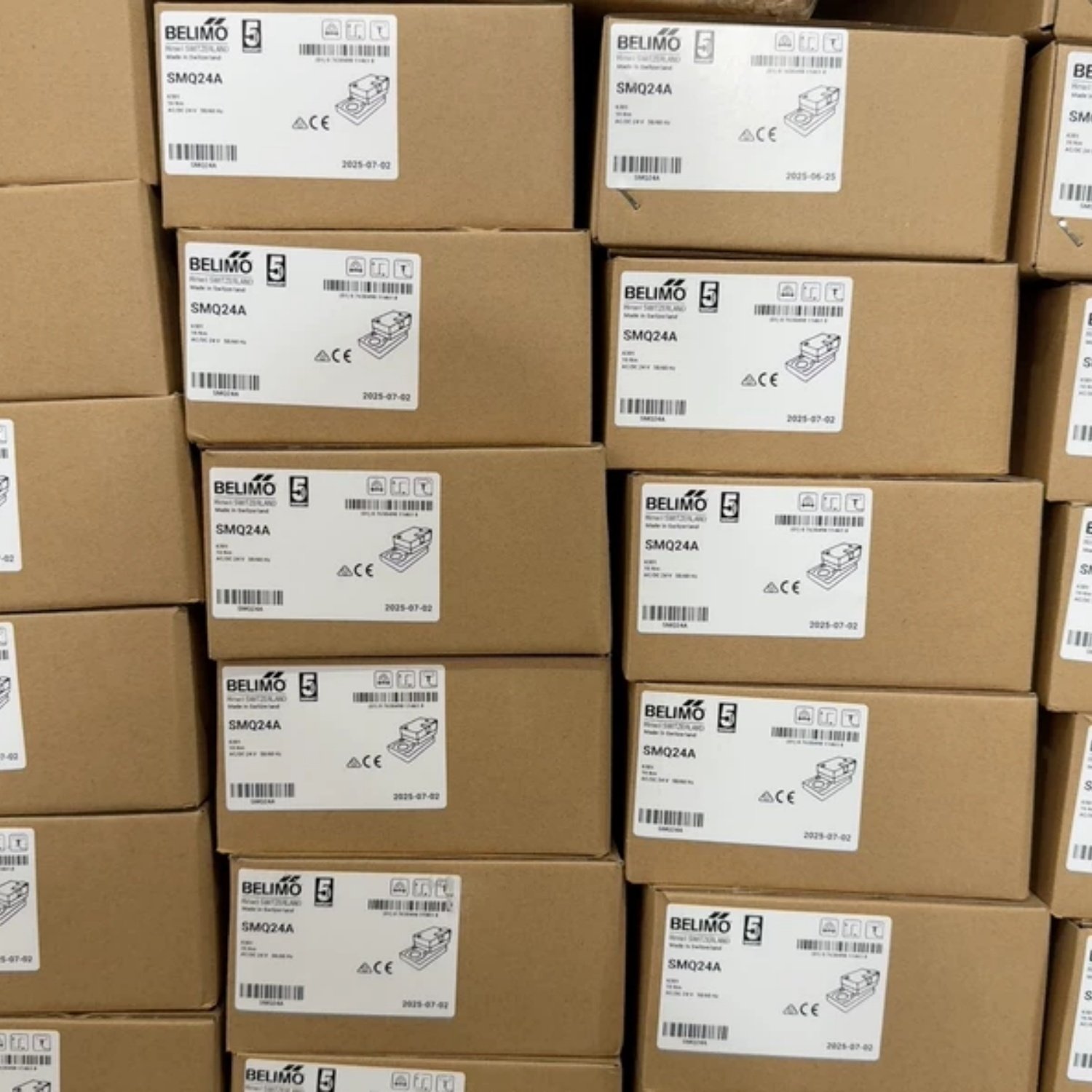

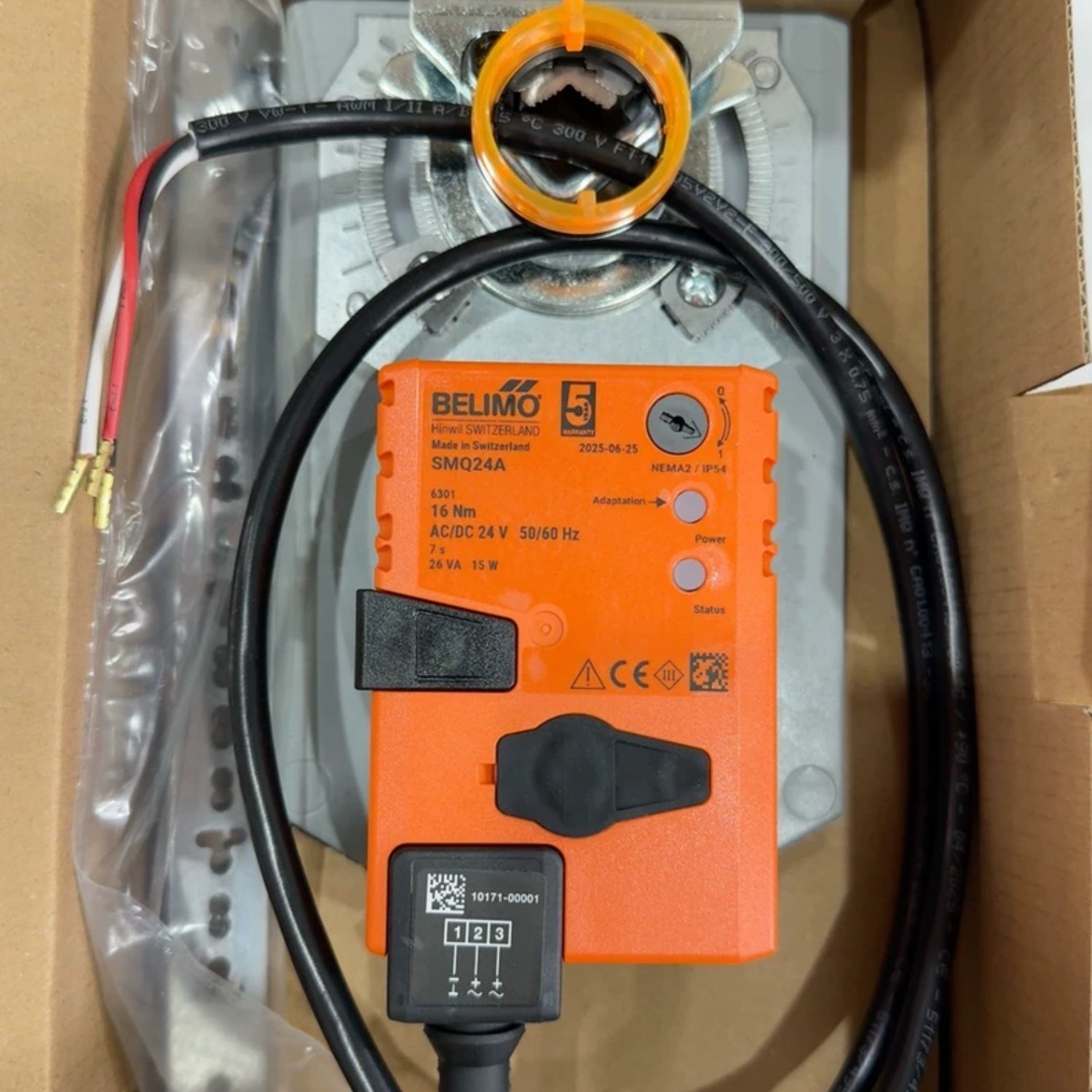

Brand New BELIMO SMQ24A Actuator. In stock — ships worldwide within 5-10 days.

1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
