BELIMO SGF24 Positioner (SGF Series)

• Supply Voltage: AC/DC 24 V (50/60 Hz)
• Power Consumption: 0.3 W (Running) / 1 VA (Wire sizing)
• Control Signal Output (Y): Selectable 2…10 VDC or 0.5…10 VDC via internal slide switch
• Control Range: 0 to 100% of the actuator's rotation angle
• Mounting Style: Flush, front-panel mounting (Note: If you need surface mounting, look for the Belimo SGA24)
• Protection Class: IP40
• Wiring Terminals: Supports up to 1.5 mm² (14 AWG) wire max

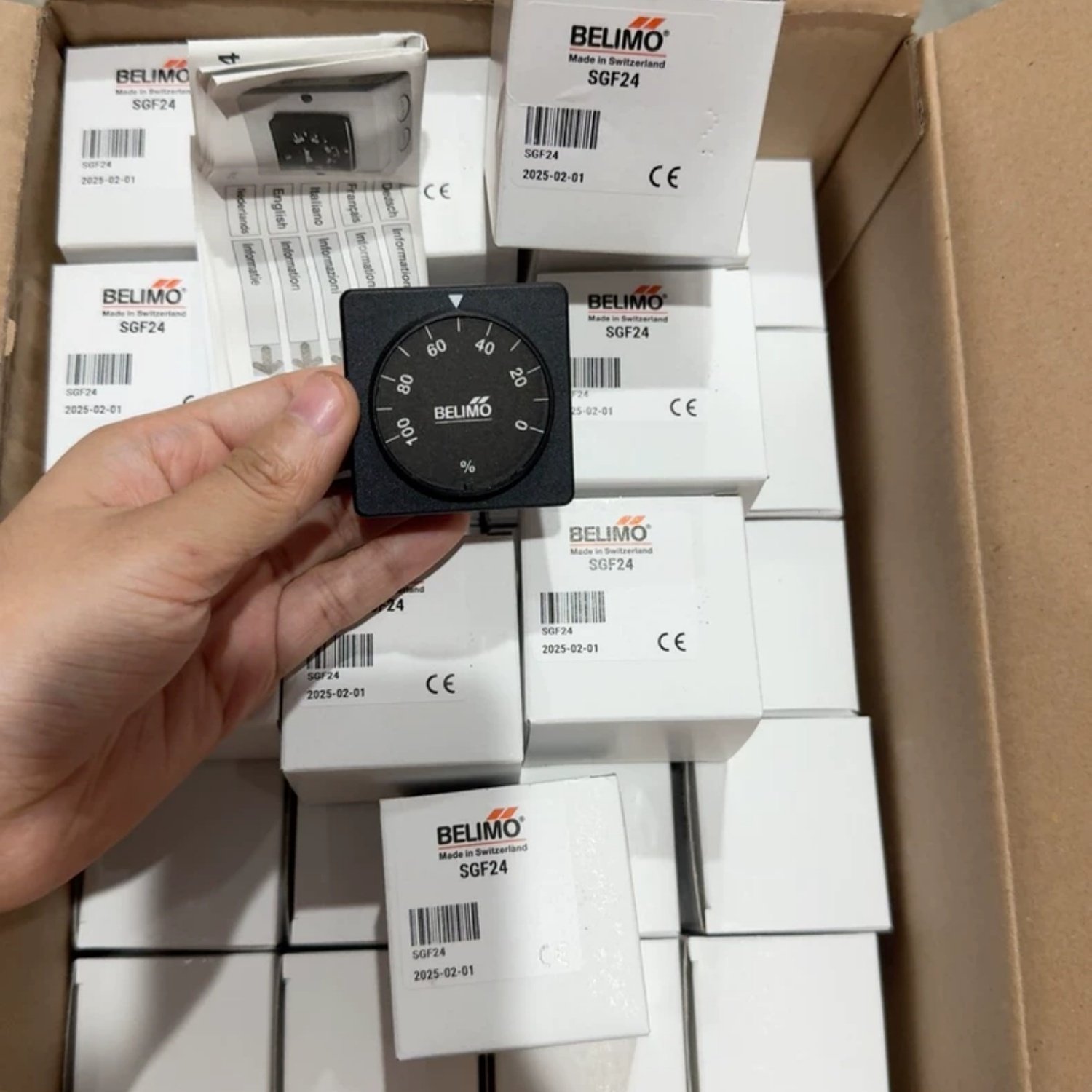

• Remote Manual Control: Turning the manual rotary knob outputs a proportional signal directly to the actuator to adjust airflow manually. The physical rotation range of the knob can be limited mechanically using adjustable physical stops.
• Minimum Positioner Limit: When wired alongside an automatic master controller, the SGF24 acts as a "higher of two signal" selector. Whichever signal is greater—the automated controller or the manual positioner—is sent to the actuator, ensuring a minimum damper position is strictly enforced (e.g., for fresh air requirements).
• OEM Part Cross-References: It is also distributed directly through equipment manufacturers, such as under Greenheck Product #381657.

Brand New BELIMO SGF24 Actuator. In stock — ships worldwide within 5-10 days.

1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
