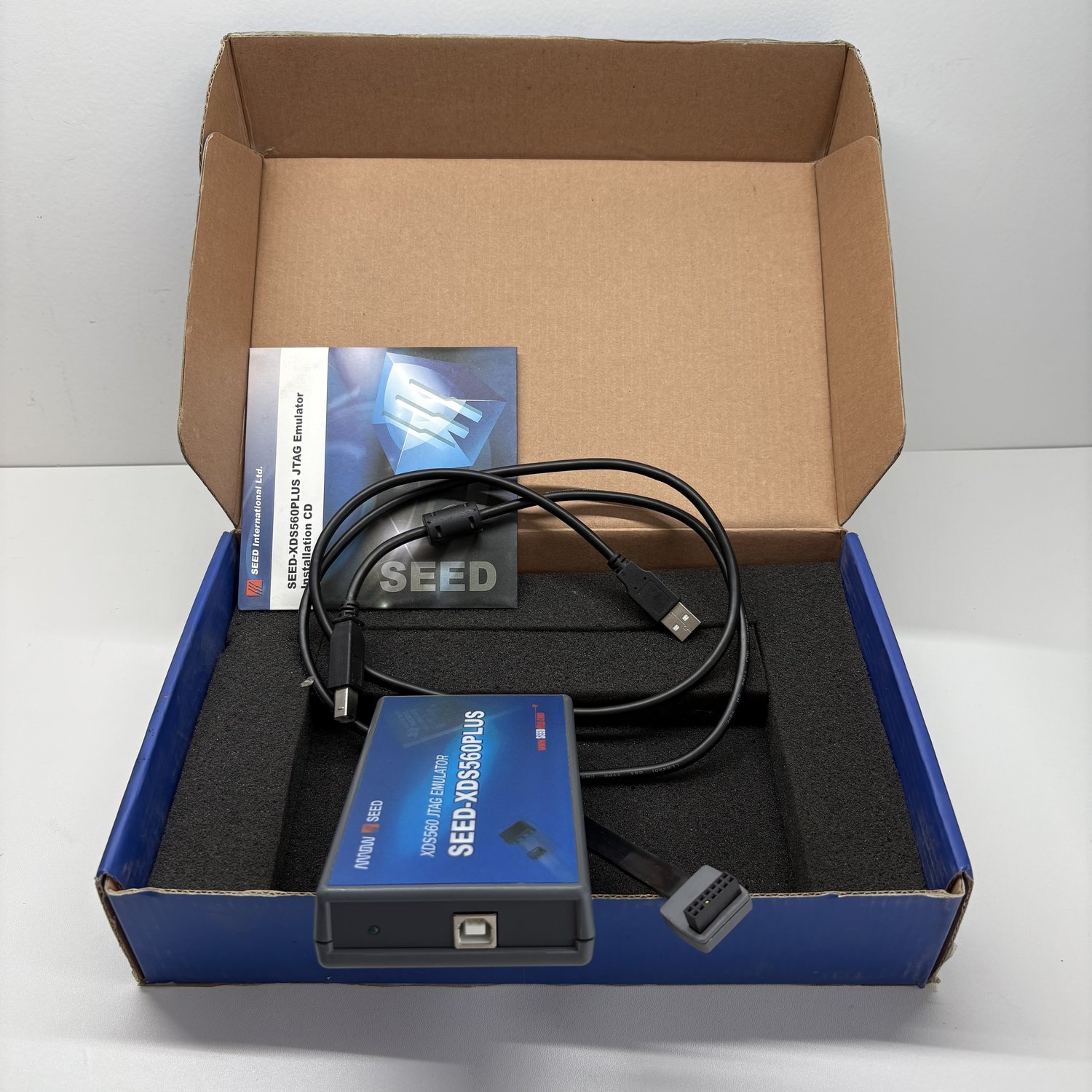

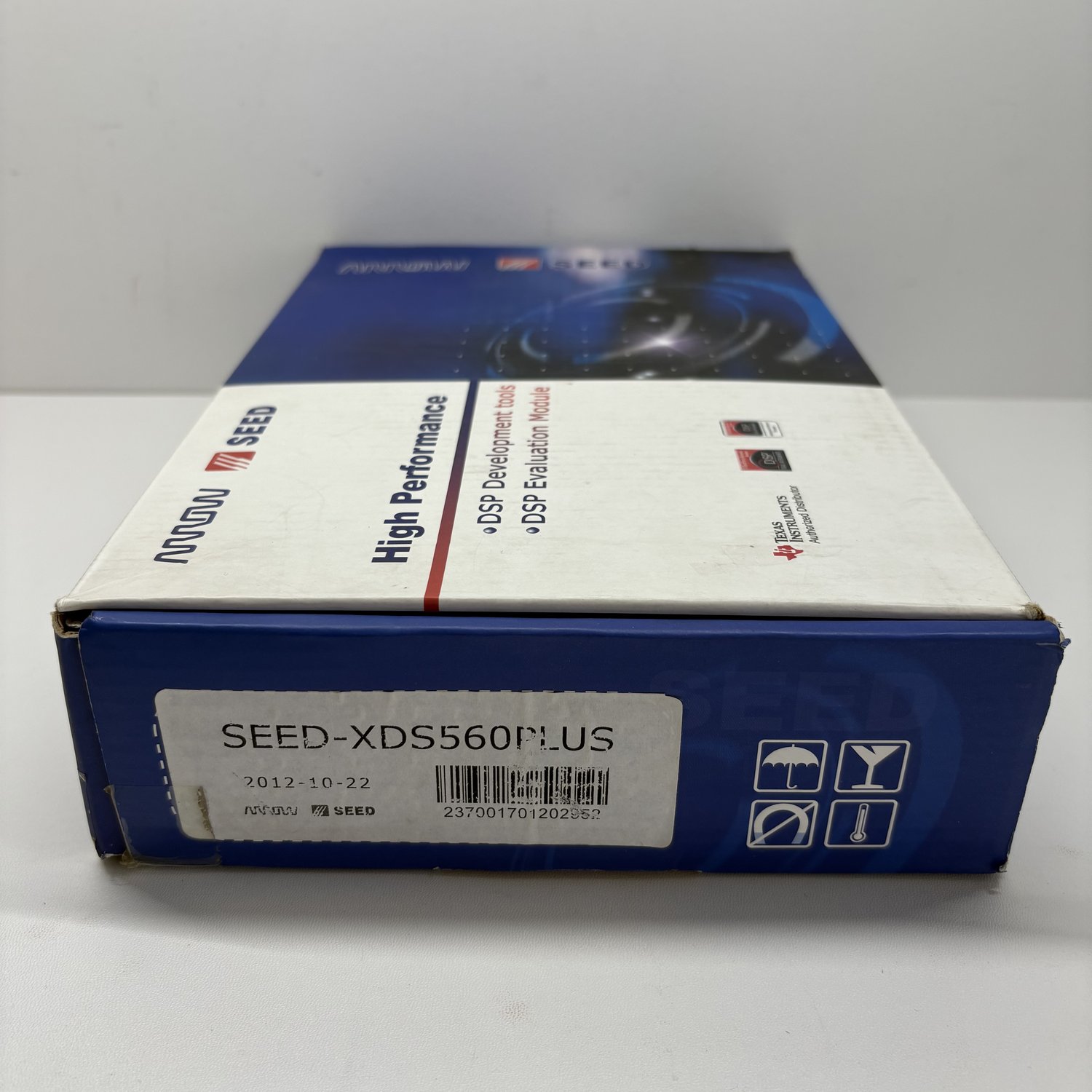

SEED SEED-XDS560PLUS DSP Hardware Emulator (XDS560 Series)

• Interface & Power: Uses a USB 2.0 interface and is completely USB bus-powered, eliminating the need for an external power supply.
• Performance: Offers high-speed Real-Time Data Exchange (RTDX) with transfer rates exceeding 2 MB/sec. It provides code download rates of 512 KB/sec, making it roughly 10 to 20 times faster than legacy XDS510-class emulators.
• Clock & Voltage Handling: Features a self-adaptive clock ranging from 500 kHz to 35 MHz / 50 MHz. It includes auto-sensing voltage support matching TI's device roadmap from 0.5V to 5V.
• Target Connection: Equipped with a standard 14-pin JTAG header (often bundled with a 14-to-20 pin adapter).
• Supported IDEs: Fully compatible with legacy versions of TI Code Composer Studio (CCS), explicitly supporting CCS V2.2, V3.x, V4, and V5.
• Operating Systems: Originally compiled for older Windows environments, officially supporting Windows 2000, XP, and Vista.
• Product Overview: SEED-XDS560PLUS is a DSP development tool (DSP emulator) developed by SEED. It supports TI's LF24XX,. F28XX, C50…

Brand New SEED SEED-XDS560PLUS DSP Hardware Emulator (XDS560 Series). In stock — ships worldwide within 5-10 days.

1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
