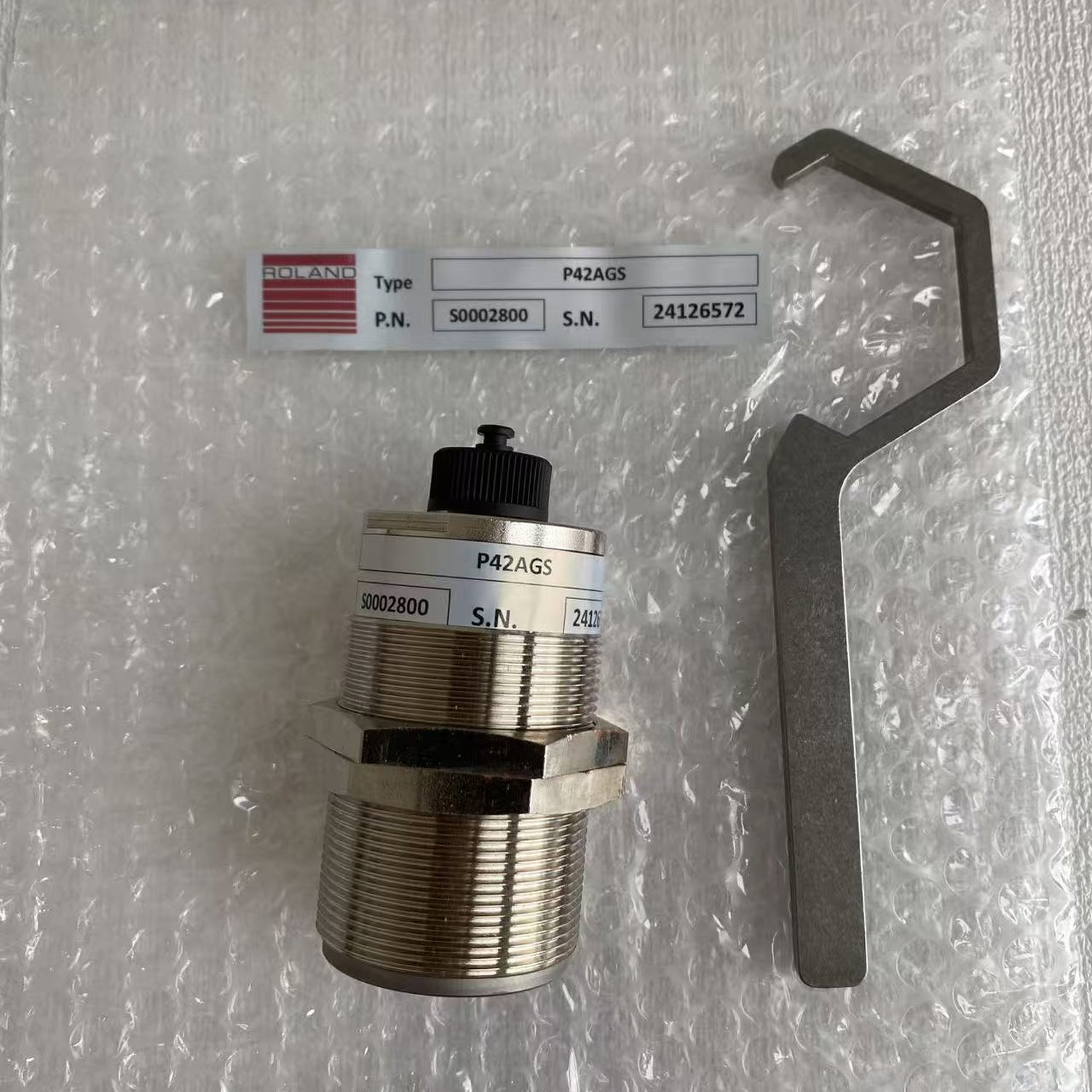

Roland P42AGS Double Sheet Detection Sensor (P42 Series)

• Measuring Range: 0.2 to 4.0 mm (0.01 to 0.16 inches) of single sheet thickness.
• Target Material: Ferrous materials only (magnetic steel sheets).
• Physical Dimension: Threaded body size of M42 x 1.5.
• Enclosure Rating: IP65 dust and water resistance.
• Ambient Operating Temperature: 0°C to 60°C (30°F to 140°F).
• Weight: Approx. 0.42 kg (0.93 lbs).

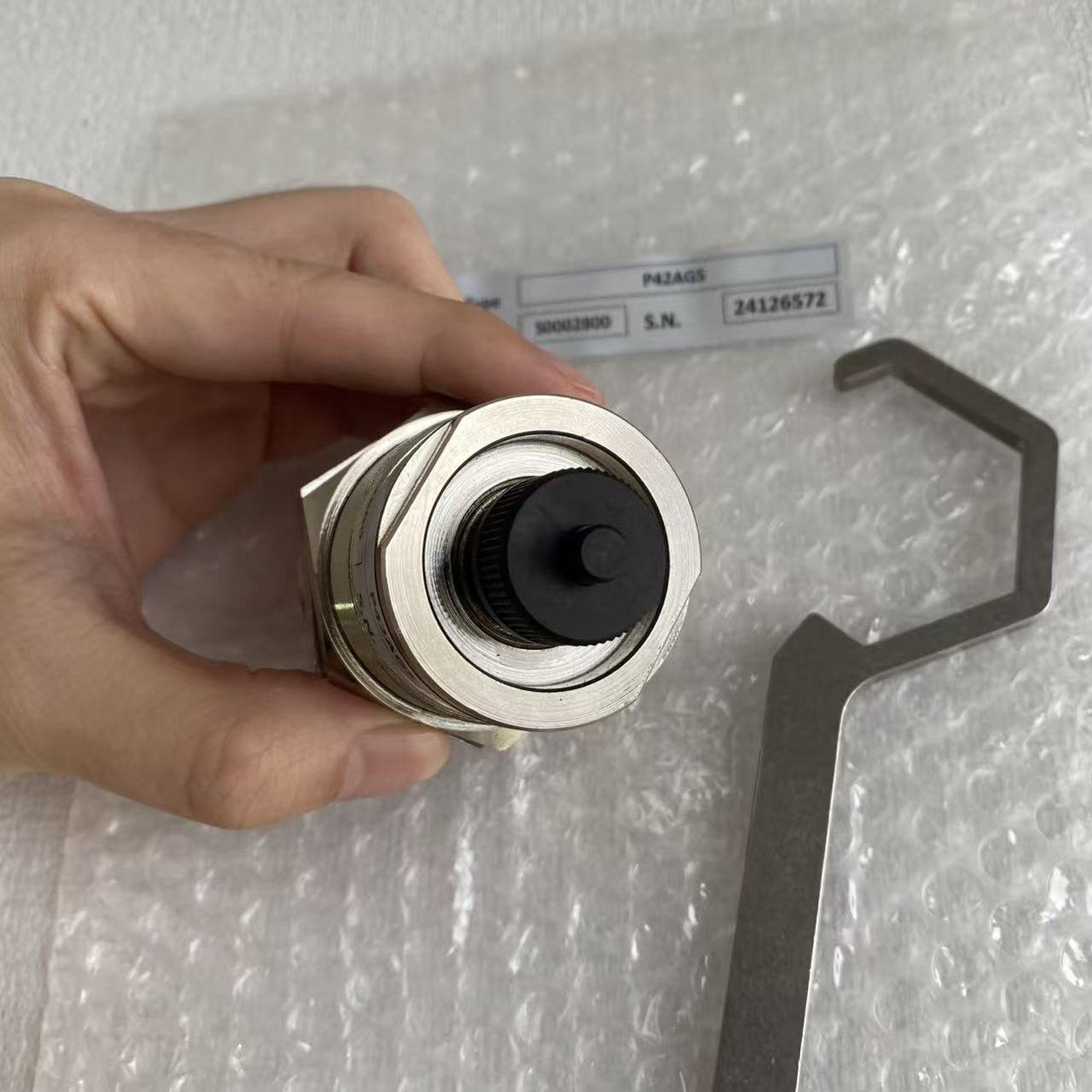

• Connection Type: Pluggable interface utilizing an M12 plug connector (sold without cable; compatible with straight or 90° angled cable plugs).

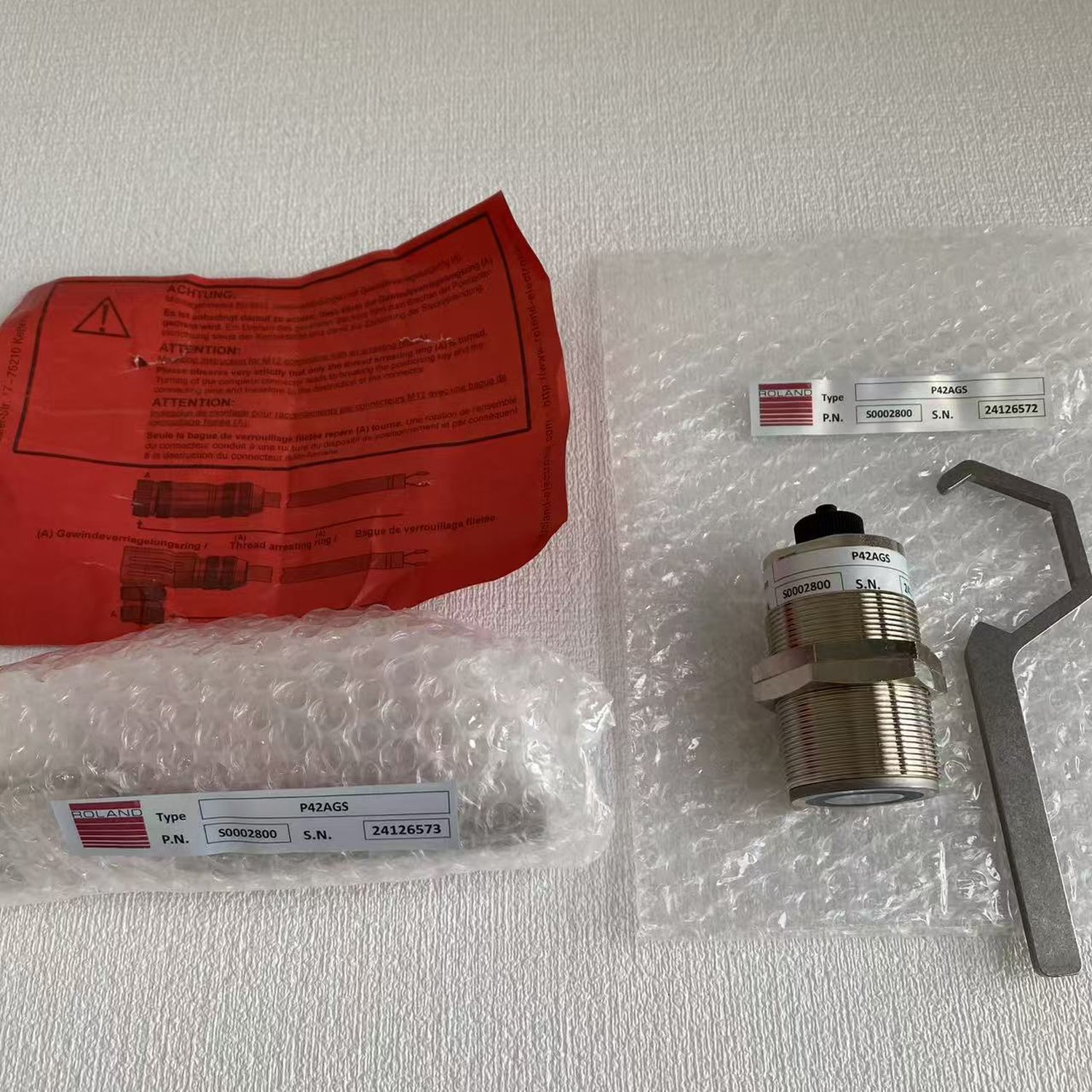

• Mounting Accessories: Ships with 2 flat nuts. It is designed to be paired with spring-loaded sensor brackets, such as the Roland SHX42 or SHS42GS brackets, to ensure reliable surface contact.
• Air Gap Tolerance: The P42AGS features exceptionally high air gap tolerance. For instance, when processing a 2.0 mm thick ferrous sheet at a 120% double sheet threshold, it can tolerate an air gap of up to 0.5 mm between the sensor and the first sheet, or up to 3.0 mm between overlapping sheets.
• Non-Destructive Sensing: Utilizing electromagnetic fields instead of permanent magnets, the sensor exerts no residual magnetic force on the metal blanks after the measurement is finished.

Brand New Roland P42AGS Double Sheet Detection Sensor (P42 Series). In stock — ships worldwide within 5-10 days.

1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
