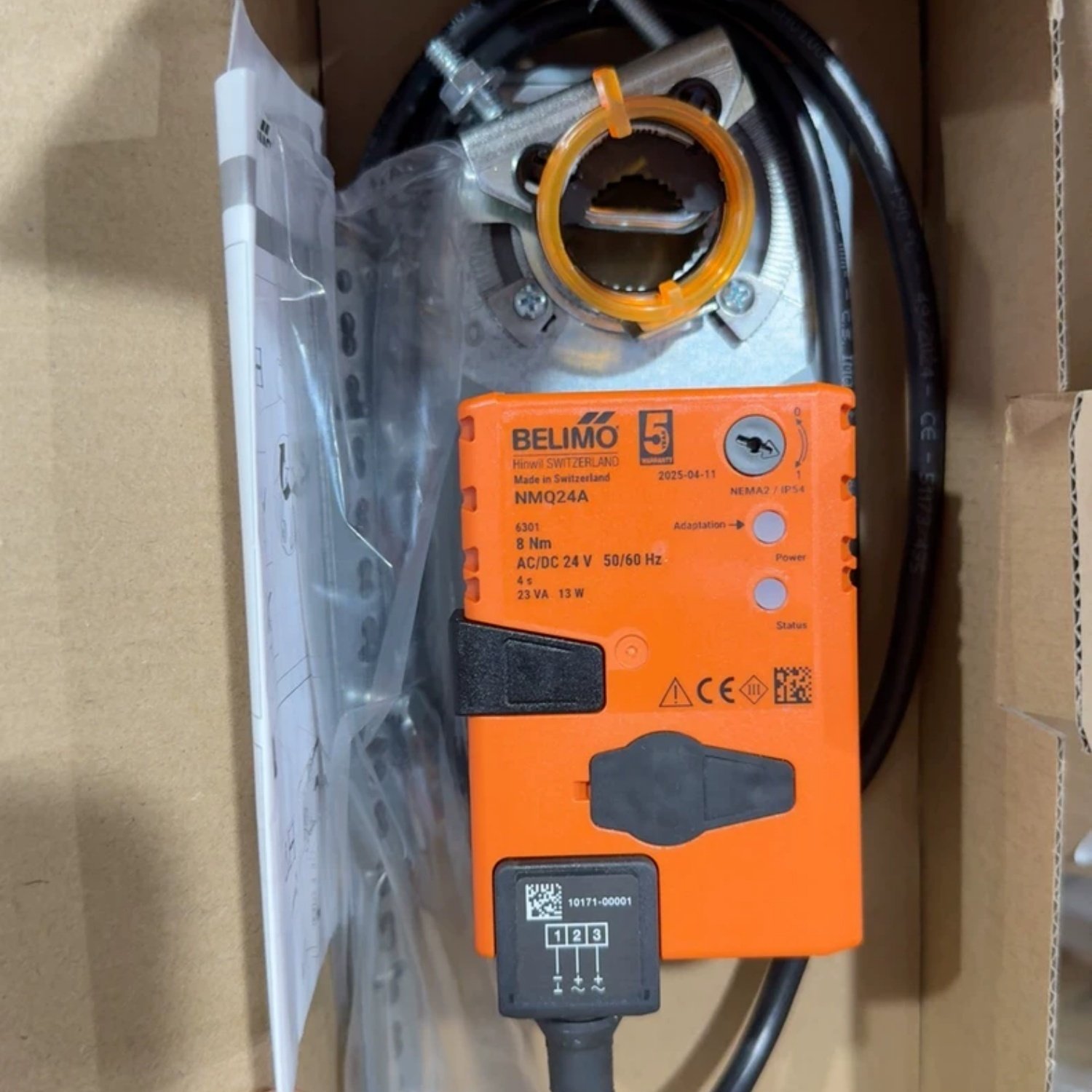

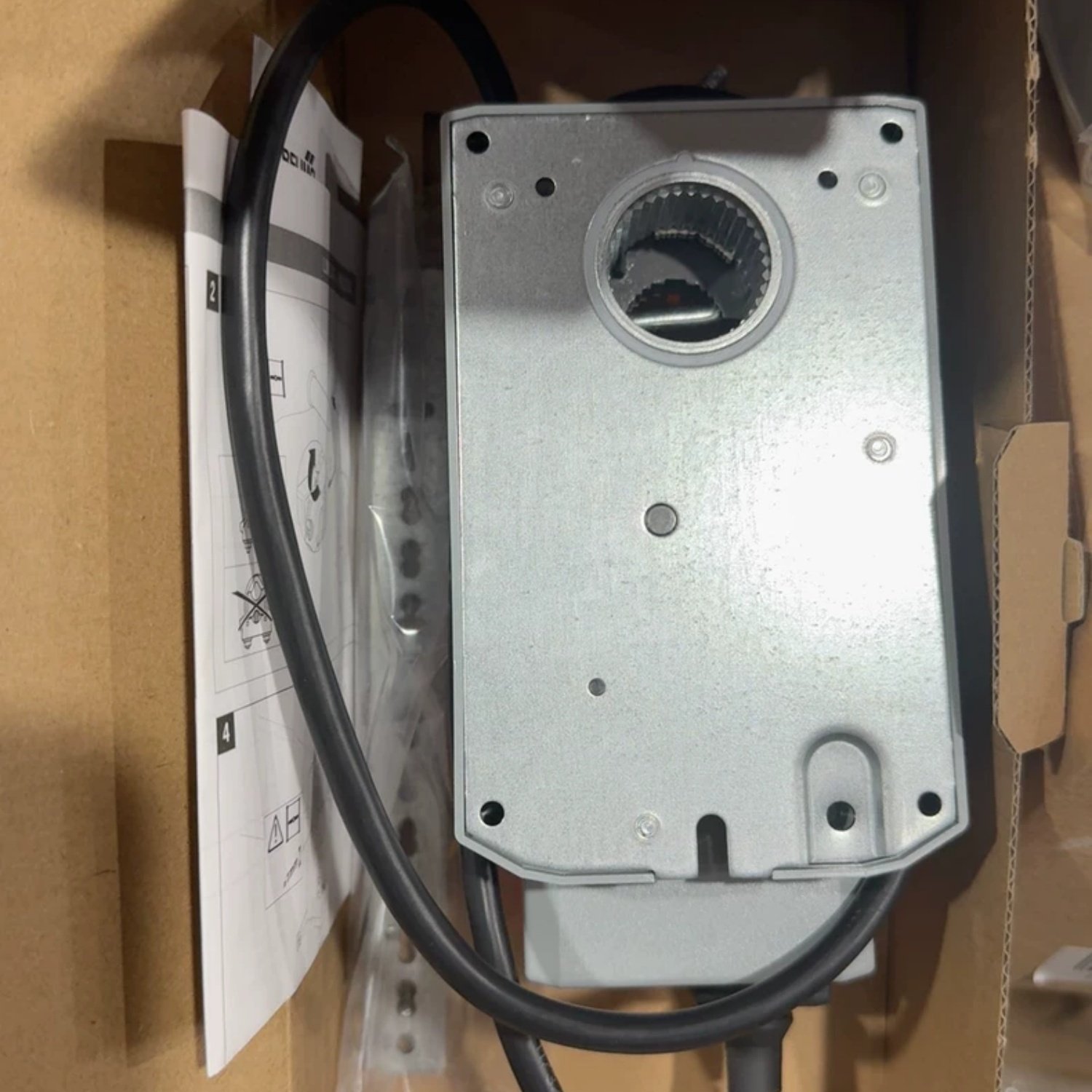

BELIMO NMQ24A Damper Actuator (NMQ Series)

• Torque: 8 Nm (70 in-lb), suitable for air damper sizes up to approximately 2 m².
• Running Time: Ultra-fast 4 seconds for a 90° rotation.
• Nominal Voltage: AC/DC 24 V (50/60 Hz).
• Control Type: Open/Close (Note: It is not designed for 3-point floating applications).
• Power Consumption: 13 W during operation / 2 W at rest.
• Enclosure Rating: IP54 (NEMA 2 equivalent).
• Simple Direct Mounting: Easily fastens to a universal shaft clamp and includes an anti-rotation strap.
• Manual Override: Features a self-resetting push-button that disengages the gear train for manual adjustment.
• High Operational Safety: The motor is completely overload-proof, requires no end-limit switches, and stops automatically when it hits a mechanical end stop.

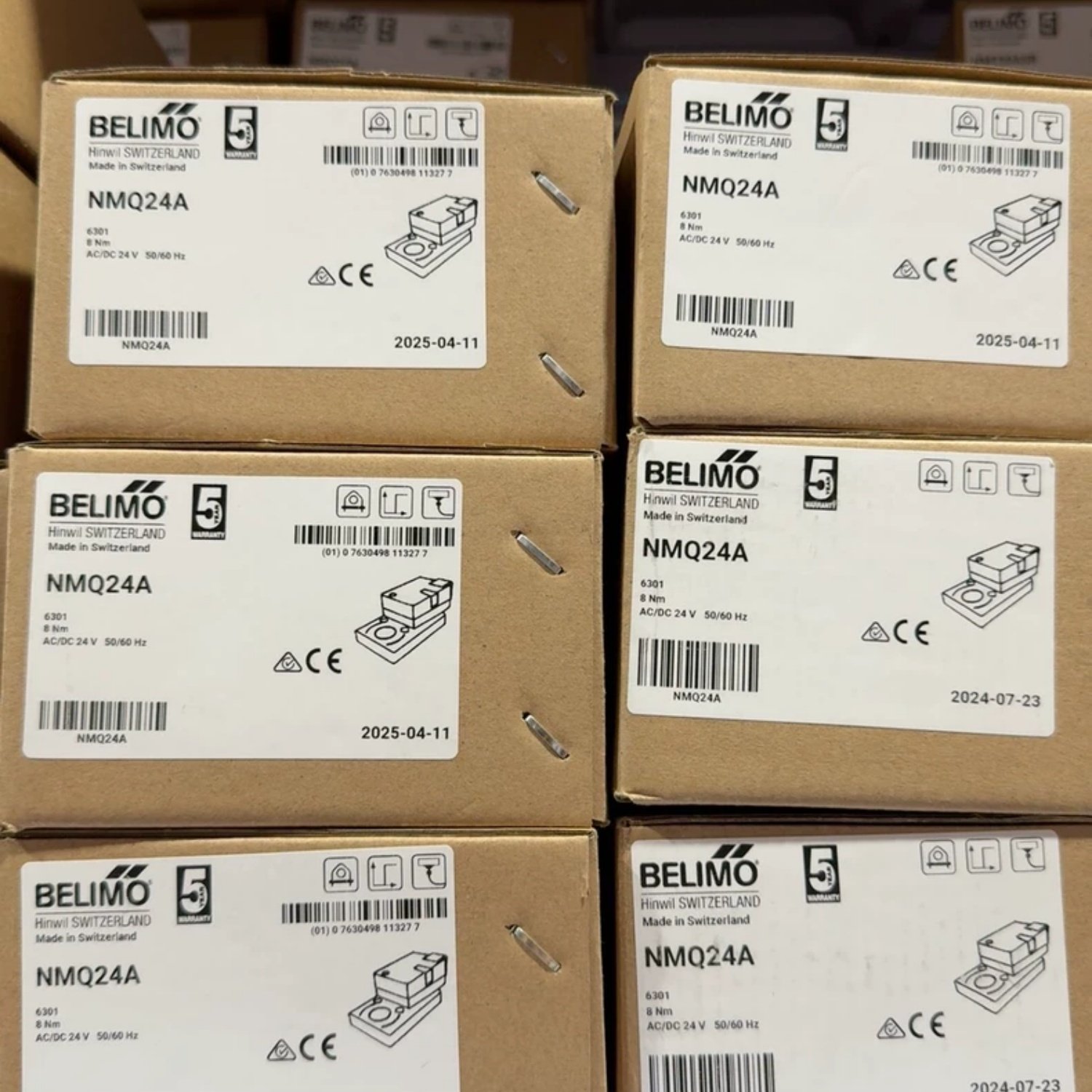

Brand New BELIMO NMQ24A Actuator. In stock — ships worldwide within 5-10 days.

1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
