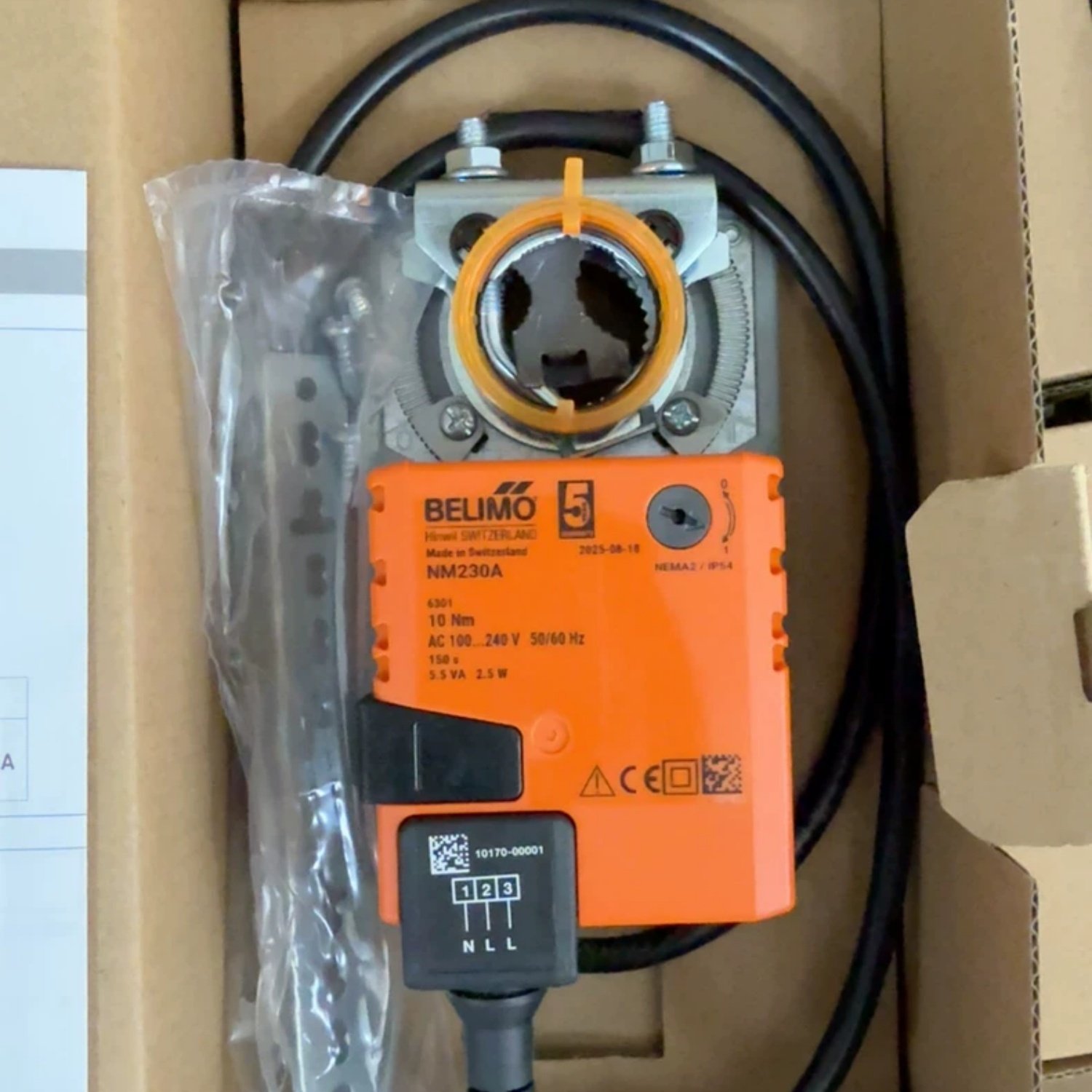

BELIMO NM230A Damper Actuator (NM Series)
- Nominal Voltage: AC 100…240 V (50/60 Hz)
- Nominal Torque: 10 Nm
- Control Type: Open-close (On-Off), 3-point
- Power Consumption: 2.5 W (In operation) / 0.6 W (At rest) / 5.5 VA (Wire sizing)
- Running Time: 150 s / 90°
- Angle of Rotation: Max. 95° (Adjustable mechanical end stops)
- Direction of Motion: Selectable with switch 0 (CCW) / 1 (CW)
- Enclosure Rating: IP54 / NEMA 2
- Mechanical Connection: Universal shaft clamp 8…26.7 mm
- Electrical Connection: Cable 1 m, 3 x 0.75 mm²
Brand New BELIMO NM230A Actuator. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
- SKU: NM230A
- New Original In Stock
- 6 Months Warranty
- shipping by DHL or UPS
