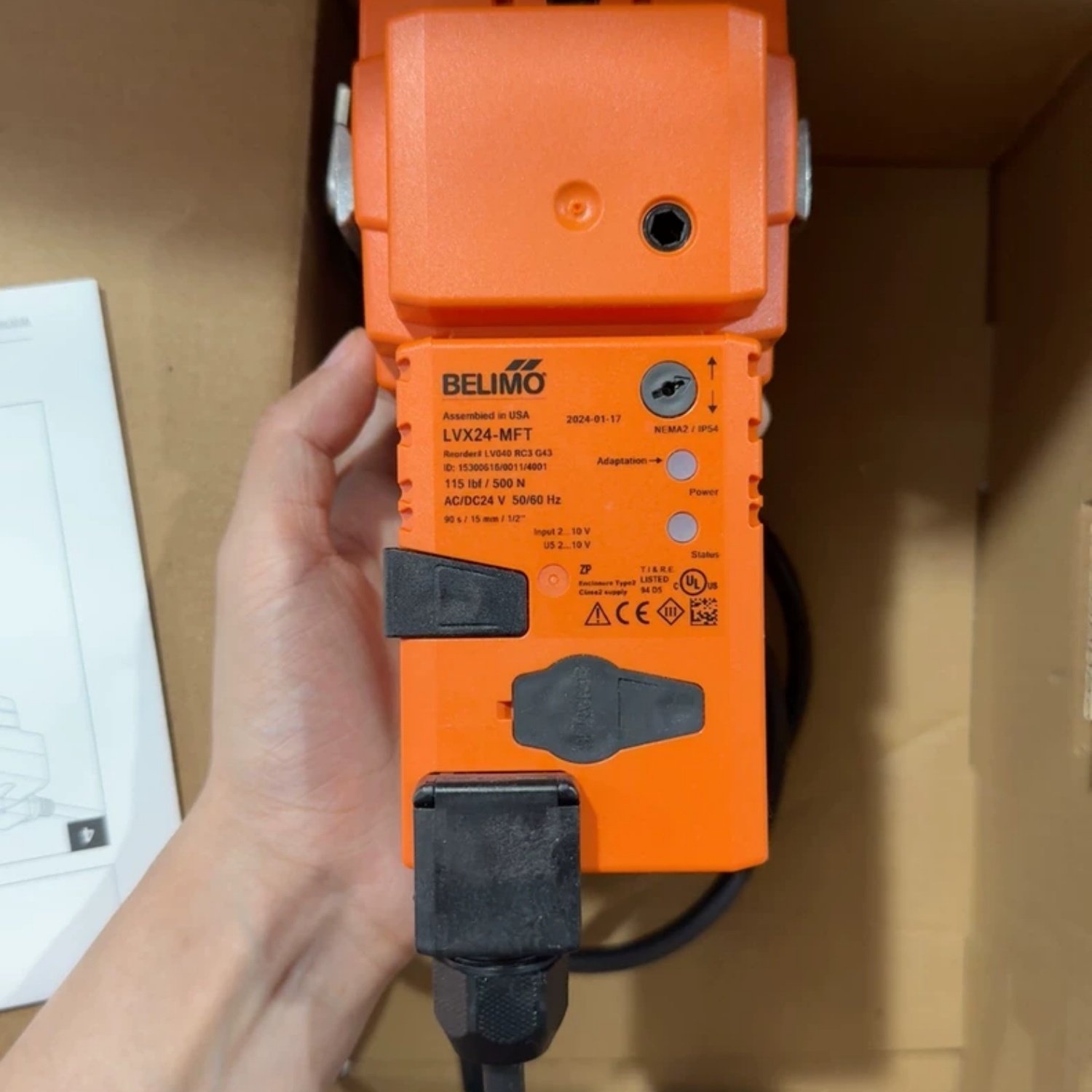

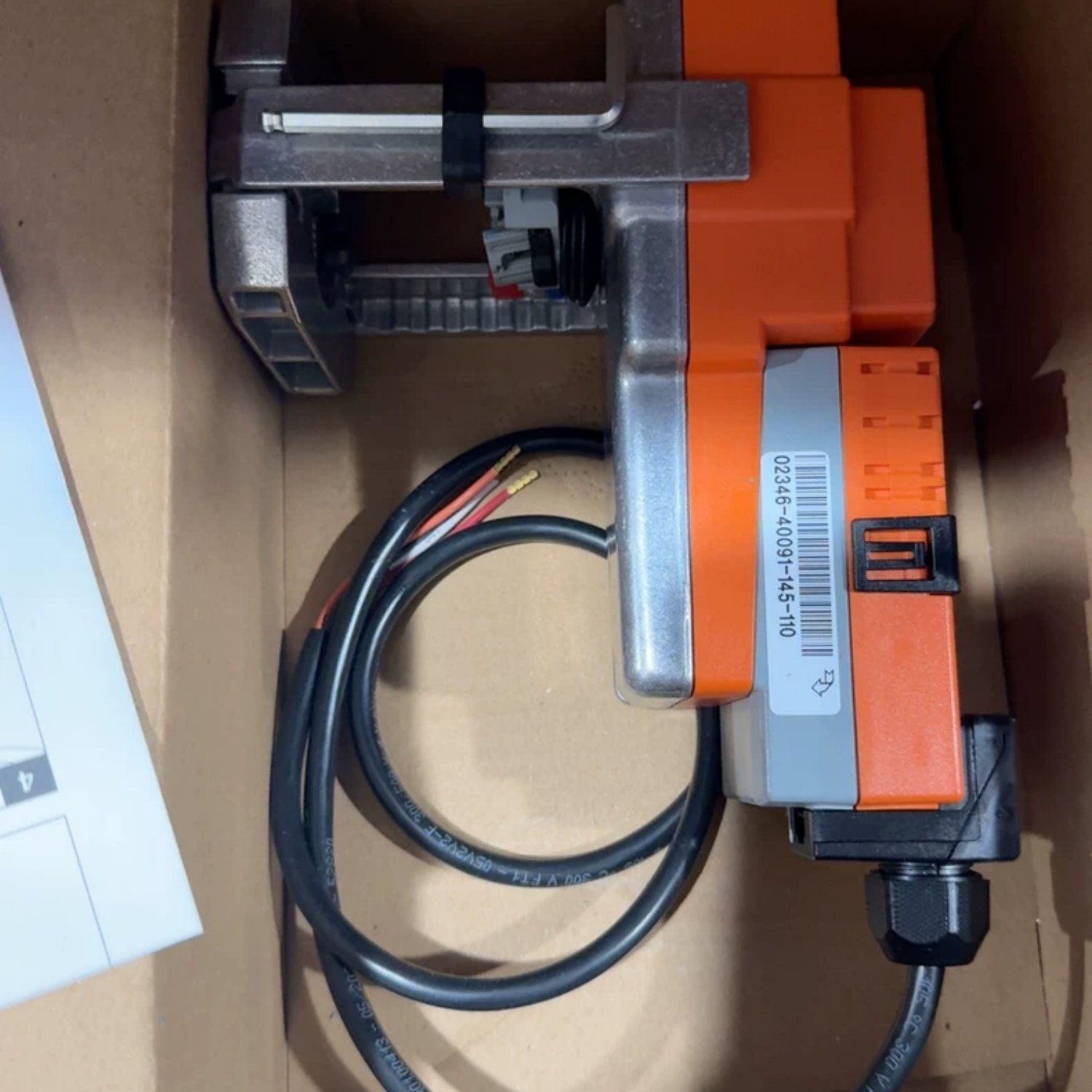

BELIMO LVX24-MFT Valve Actuator (LV Series)
- Control Type: Multi-Function Technology (MFT), programmable (Default analog 2…10 V DC, but configurable for floating point, PWM, or On/Off).
- Linear Force: 500 N [115 lbf].
- Supply Voltage: AC/DC 24 V (50/60 Hz).
- Power Consumption: 2.5 W running / 1.5 W holding; 4 VA for wire sizing.
- Running Time: 90 seconds (programmable range from 90 to 150 seconds).
- Stroke Length: Up to 0.6" [15 mm] for LV series linkages, or 3/4" [20 mm] for SV series.
- Manual Override: 4 mm hex crank (included).
- Enclosure Rating: IP54 / NEMA 2.
- Electrical Connection: 3 ft [1 m], 18 GA plenum-rated cable with 1/2" conduit connector.
- Assembly Type: Description
Brand New BELIMO LVX24-MFT Actuator. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
- SKU: LVX24-MFT
- New Original In Stock
- 6 Months Warranty
- shipping by DHL or UPS
