LR230A 220V BELIMO Rotary Valve Actuator

• Torque: 5 Nm (Newton meters)
• Power Supply: AC 100…240 V at 50/60 Hz (Nominal range: AC 85…265 V)
• Power Consumption: 2 W when running / 0.5 W in the rest position
• Running Time: 90 seconds for a 90° rotation
• Control Type: Open/close (2-point) or 3-point floating
• Enclosure Rating: IP54 / NEMA 2 (dust and splash protection)
• Connection: Comes with an integrated 1-meter, 3-wire PVC cable
• Overload Protection: The actuator is completely overload protected, eliminating the need for electrical limit switches. It automatically stops spinning once it hits its physical end stops.
• Manual Override: Features a temporary or lockable manual override push-button, which disengages the gear train so you can adjust the valve by hand during setup or testing.
• Simple Direct Mounting: Designed to attach quickly to standard ball valves using just one central screw, preventing improper mechanical alignment.

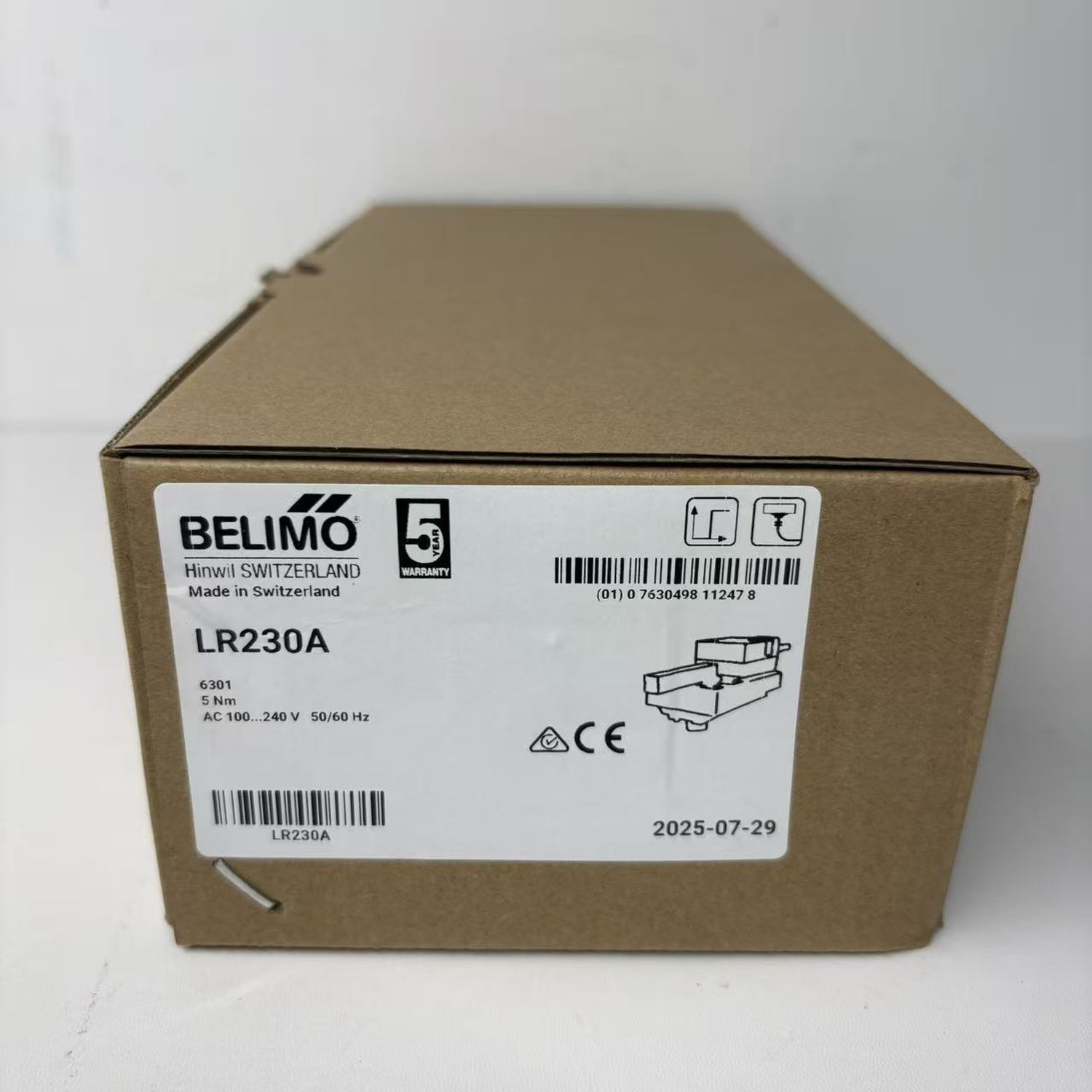

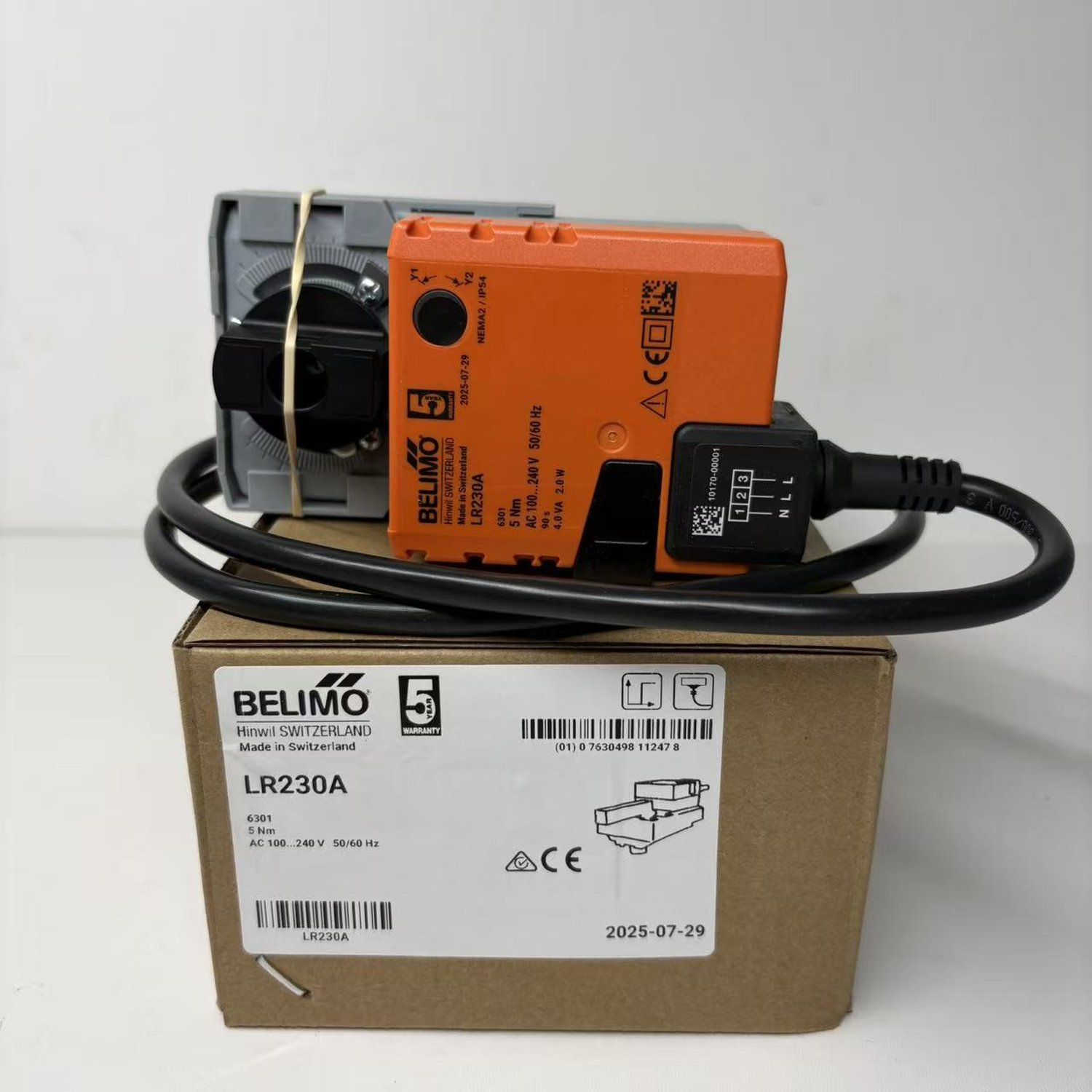

Brand New BELIMO LR230A 220V Rotary Valve Actuator (LR Series). In stock — ships worldwide within 5-10 days.

1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
