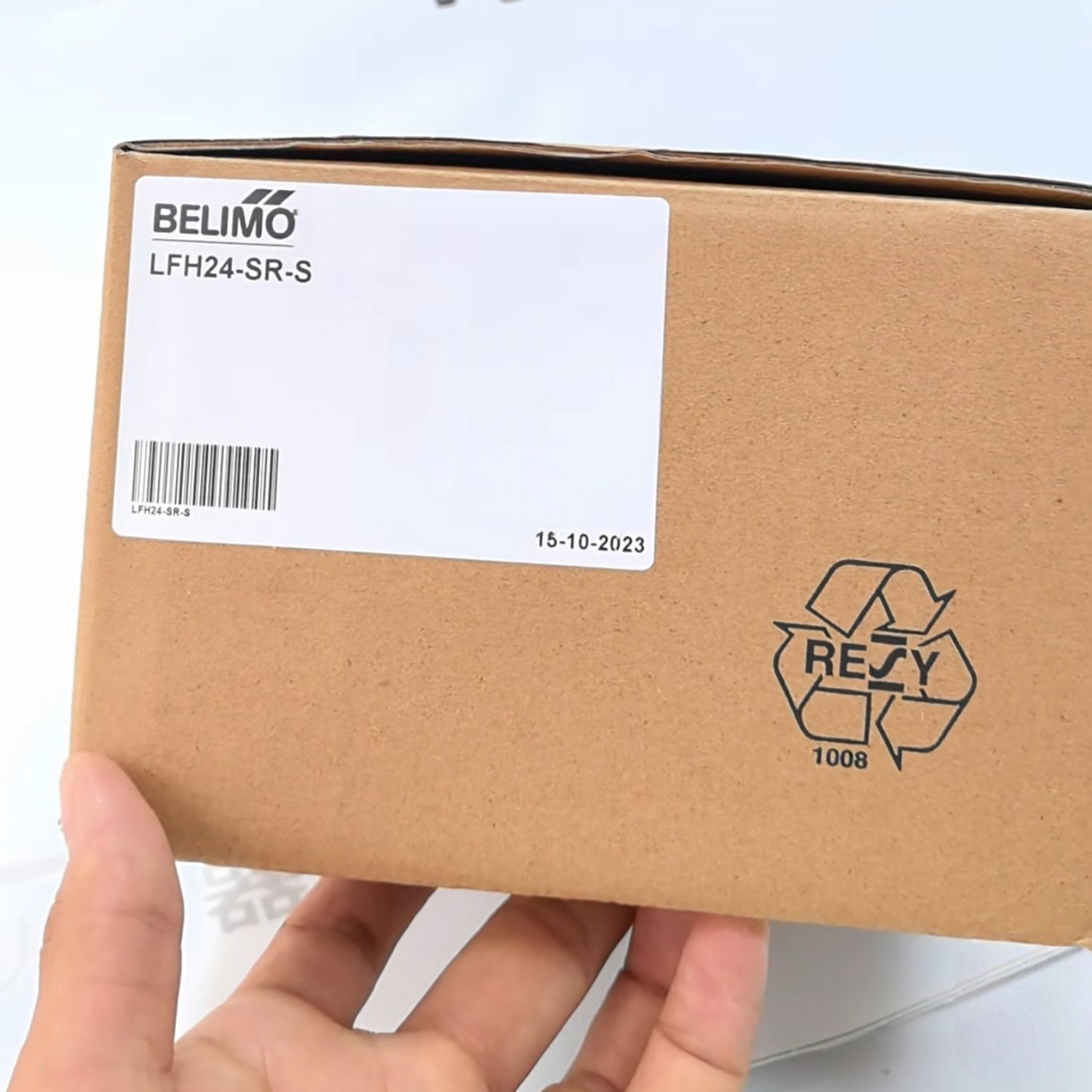

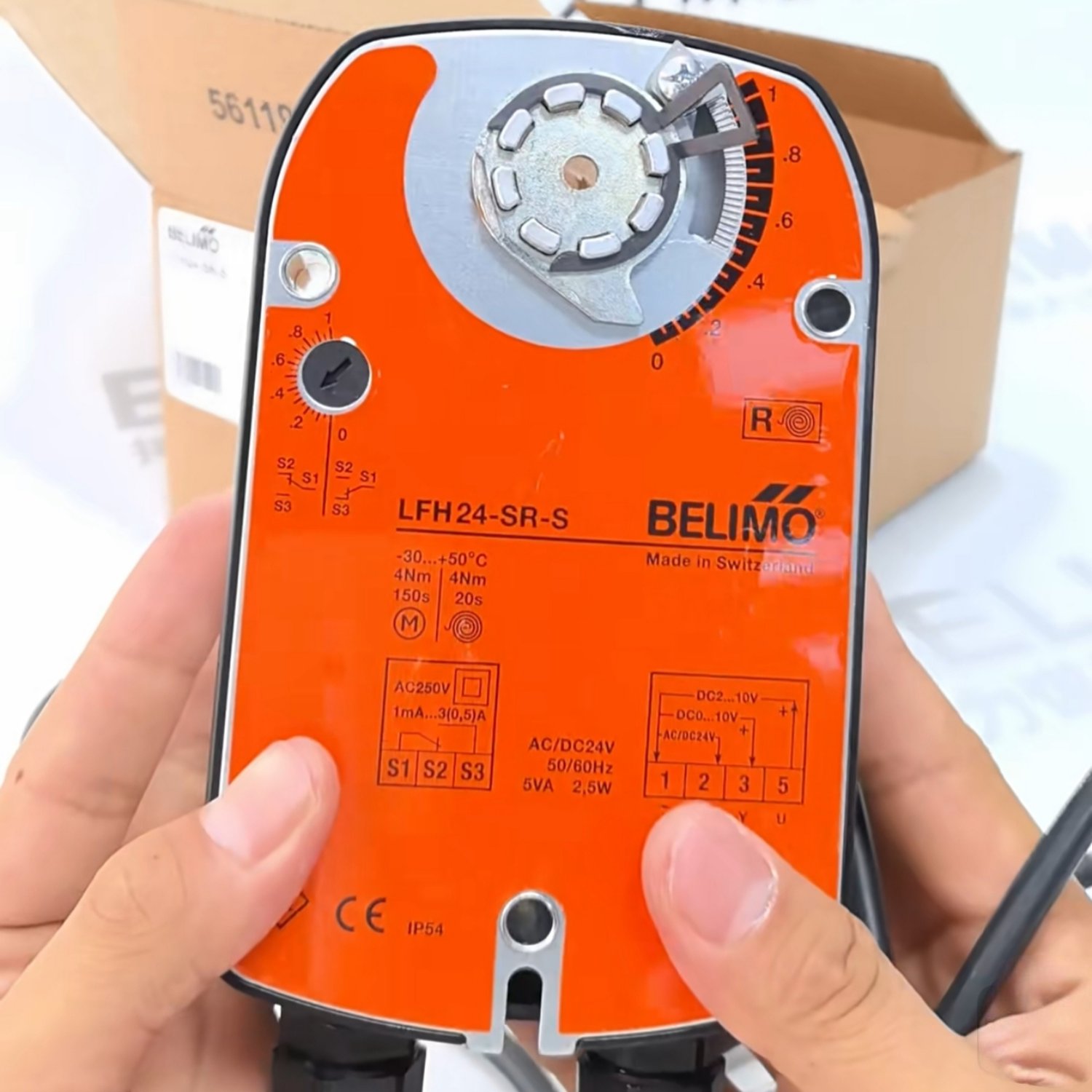

LFH24-SR-S BELIMO Rotary Valve Actuator
- Nominal Voltage: AC/DC 24 V (50/60 Hz)
- Torque: 4 Nm (approx. 35 in-lb)
- Control Type: Modulating DC 2…10 V proportional signal
- Position Feedback: DC 2…10 V
- Power Consumption: 2.5 W running / 1 W holding (5 VA wire sizing)
- Running Time (Motor): 150 seconds for 90° rotation
- Running Time (Fail-Safe): < 20 seconds (Spring Return)
- Fail-Safe Position: De-energized NC (Normally Closed / Valve Closed)
- Auxiliary Switch: Integrated SPDT switch for position feedback or safety interfacing
- Angle of Rotation: 90°
- Manual Override: Hand lever included
- Enclosure Rating: IP54 / NEMA 2
- Ambient Temperature Range: -30°C to 50°C [-22°F to 122°F]
- Electrical Connection: Pre-wired cable (1 meter supply/control cable and integrated auxiliary switch cable)
Brand New BELIMO LFH24-SR-S Rotary Valve Actuator (LF Series). In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
- SKU: LFH24-SR-S
- New Original In Stock
- 6 Months Warranty
- shipping by DHL or UPS
Availability & Delivery
- Availability shown is for reference only and will be confirmed at the time the order is processed.
- Published quantities may change without prior notice.
- The customer is responsible for verifying part number and specifications before confirming the purchase.
- Certain products may be considered special order items depending on availability.
