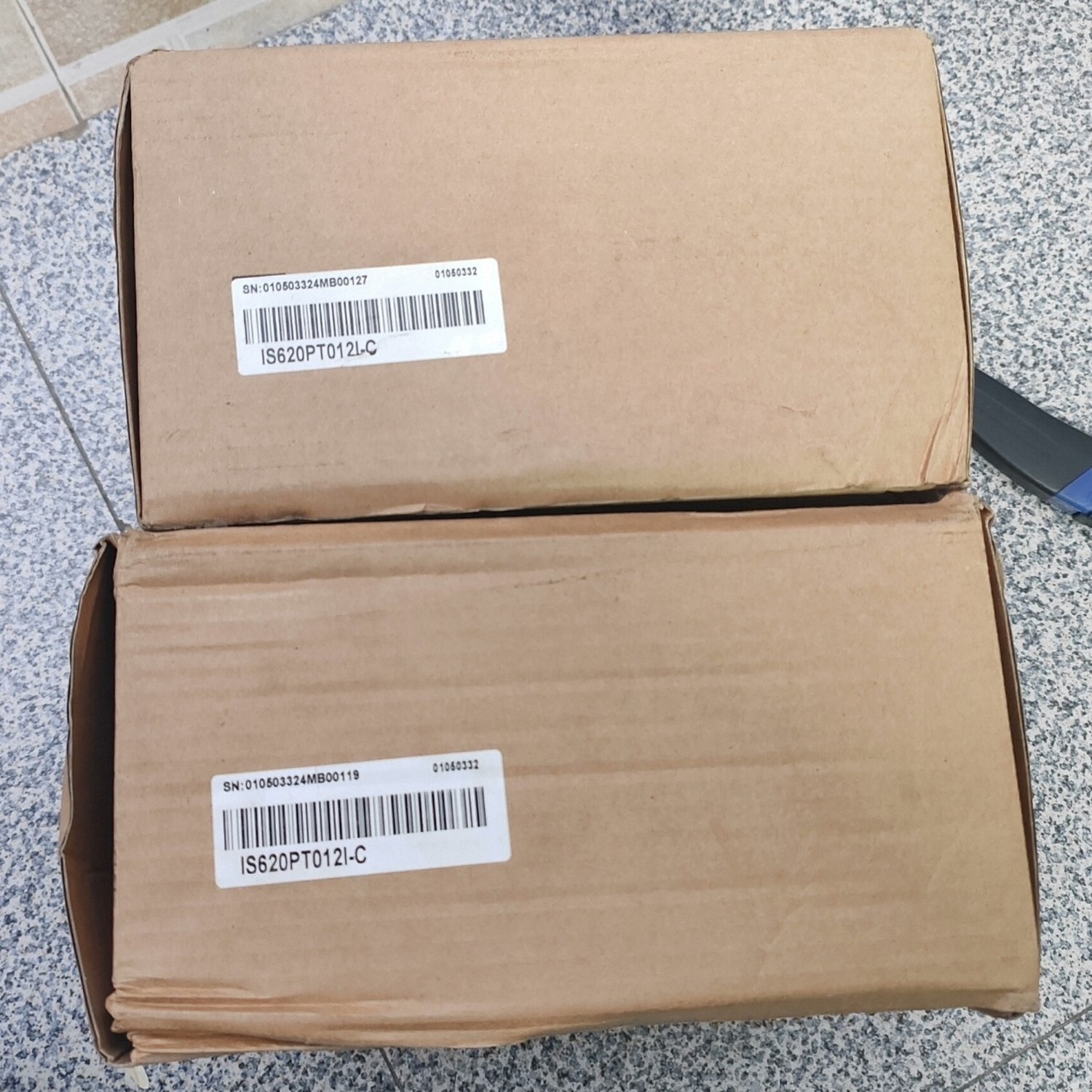

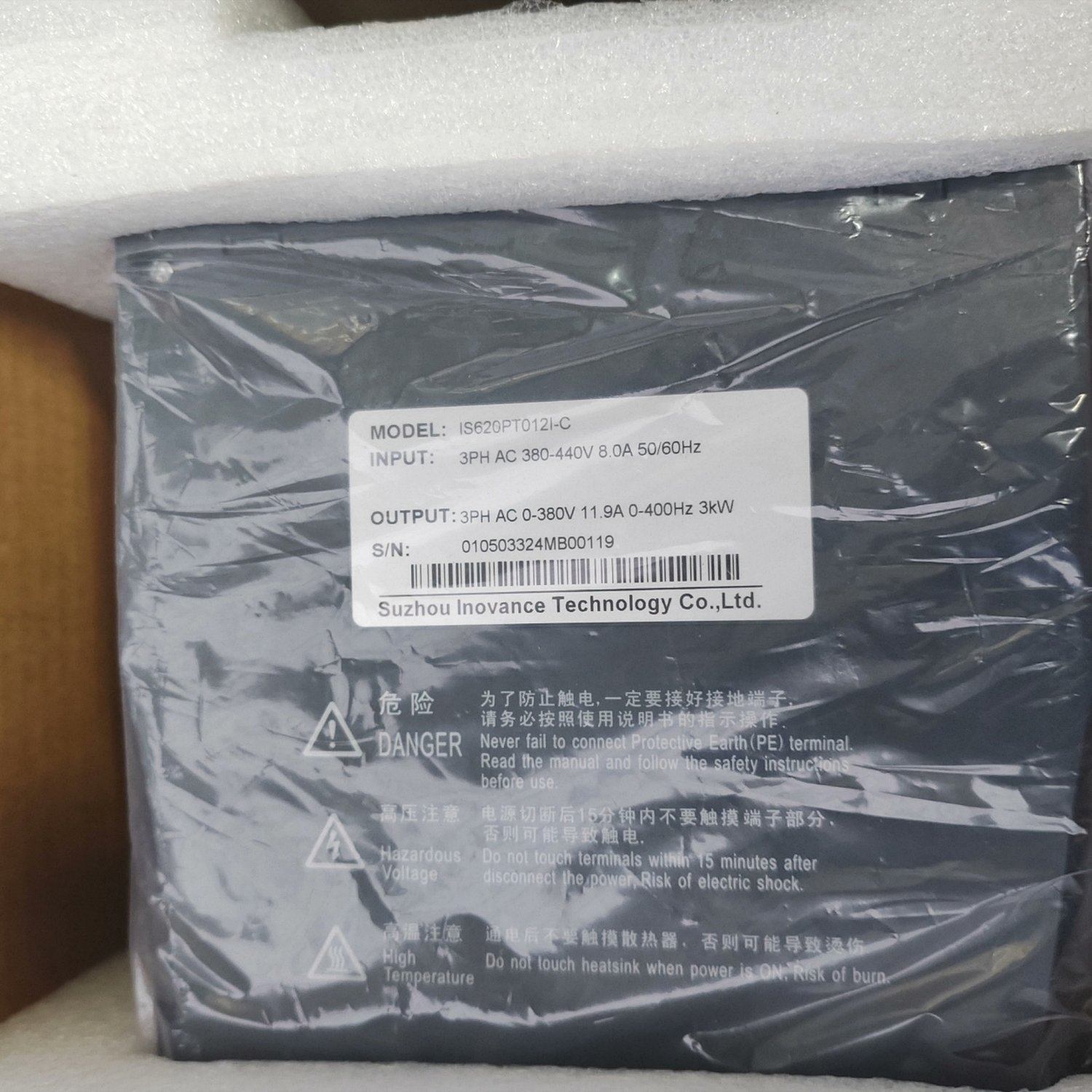

INOVANCE IS620PT012I-C AC Servo Drive (IS620)

Power Output: 3.0 kW (3000 Watts)
Input Rating: 3-Phase, 380V to 440V AC (50/60Hz), 8.0A
Output Rating: 3-Phase, 0V to 380V AC (0Hz to 400Hz), 11.9A
Control Interfaces: Pulse/Direction, Analog Input, and 23-bit Absolute Encoder support
I/O Capacity: 16 Digital Inputs / 16 Digital Outputs
Communication Protocols: Modbus, Profibus, Ethernet/IP, OPC UA
Physical Housing: IP20 Protection Rating; weight approximately 2.05 kg (4.52 lbs)
High Bandwidth & Tuning: Features a high-speed loop bandwidth of up to 1.2 kHz. It supports online/offline inertia auto-tuning, automatic gain adjustment, and adaptive notch filters to suppress mechanical resonance.
Integrated Safety & Protection: Equipped with built-in hardware protection including Emergency Stop (E-Stop) and Overload Protection. It complies with international safety standards like IEC 61508 and ISO 13849.
Software Configuration: Fine-tuning and system diagnostic monitoring are handled externally via the proprietary InoServoShop PC software toolkit.

Brand New INOVANCE IS620PT012I-C Servo Drive. In stock — ships worldwide within 5-10 days.

1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.

Availability & Delivery

Availability shown is for reference only and will be confirmed at the time the order is processed.
Published quantities may change without prior notice.
The customer is responsible for verifying part number and specifications before confirming the purchase.
Certain products may be considered special order items depending on availability.
