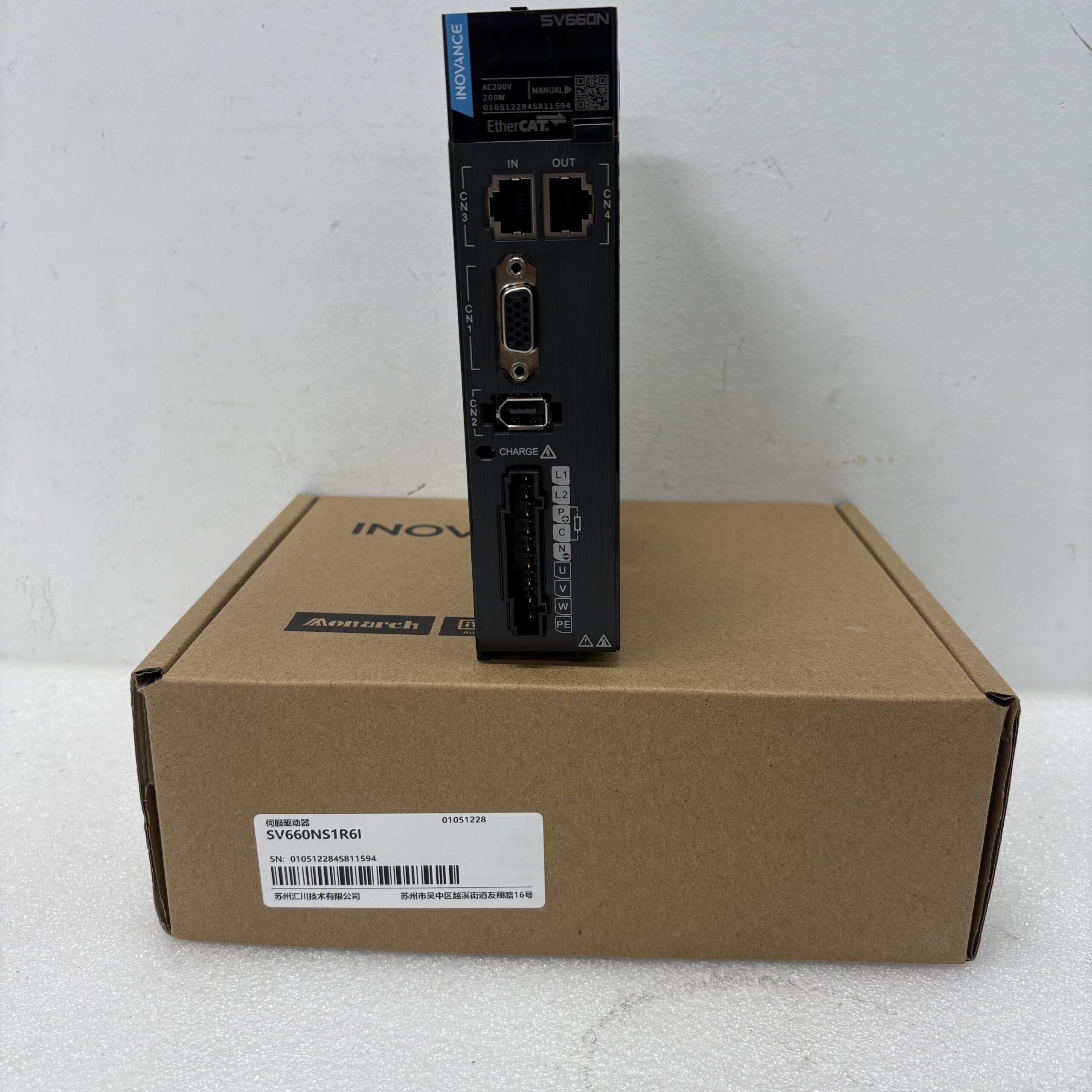

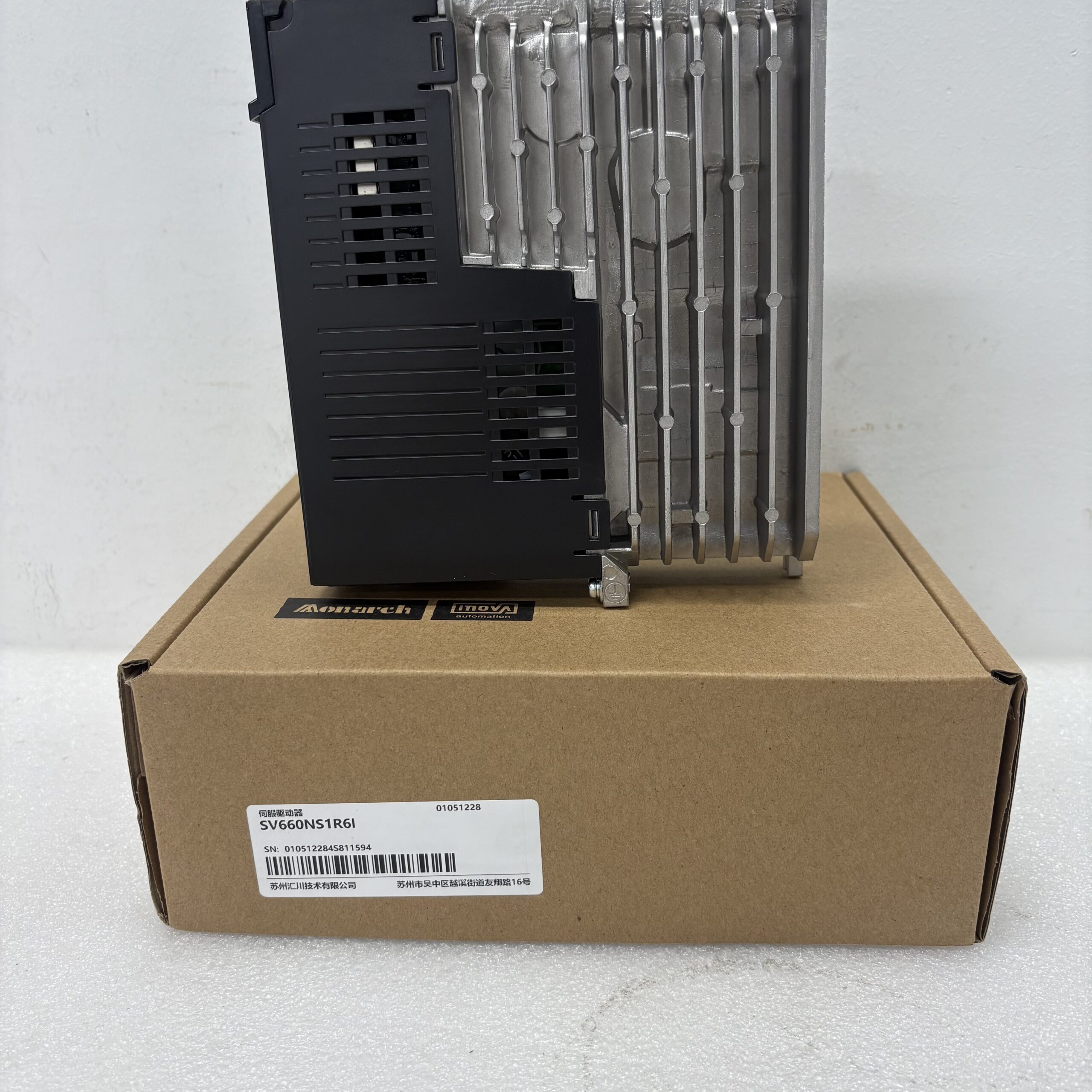

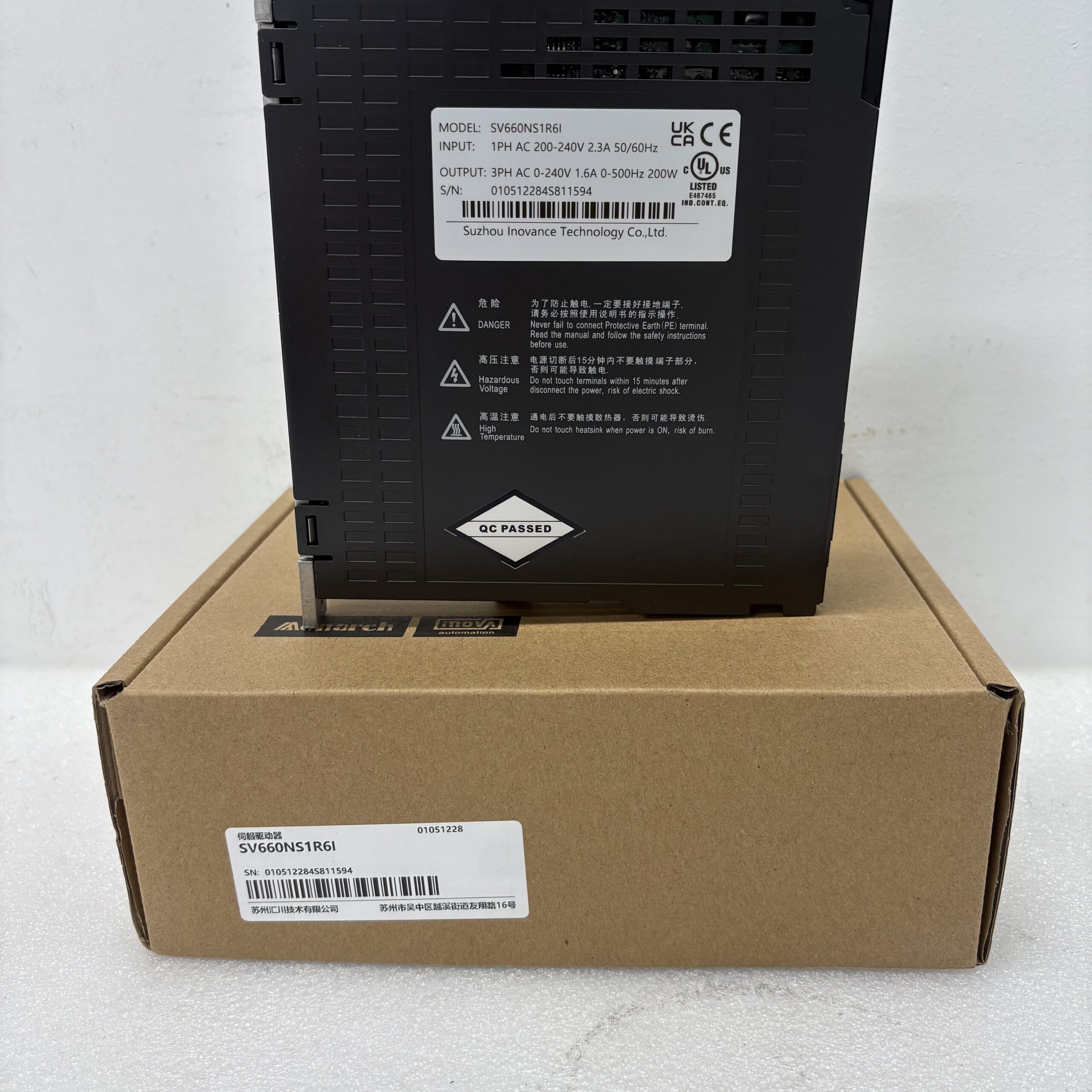

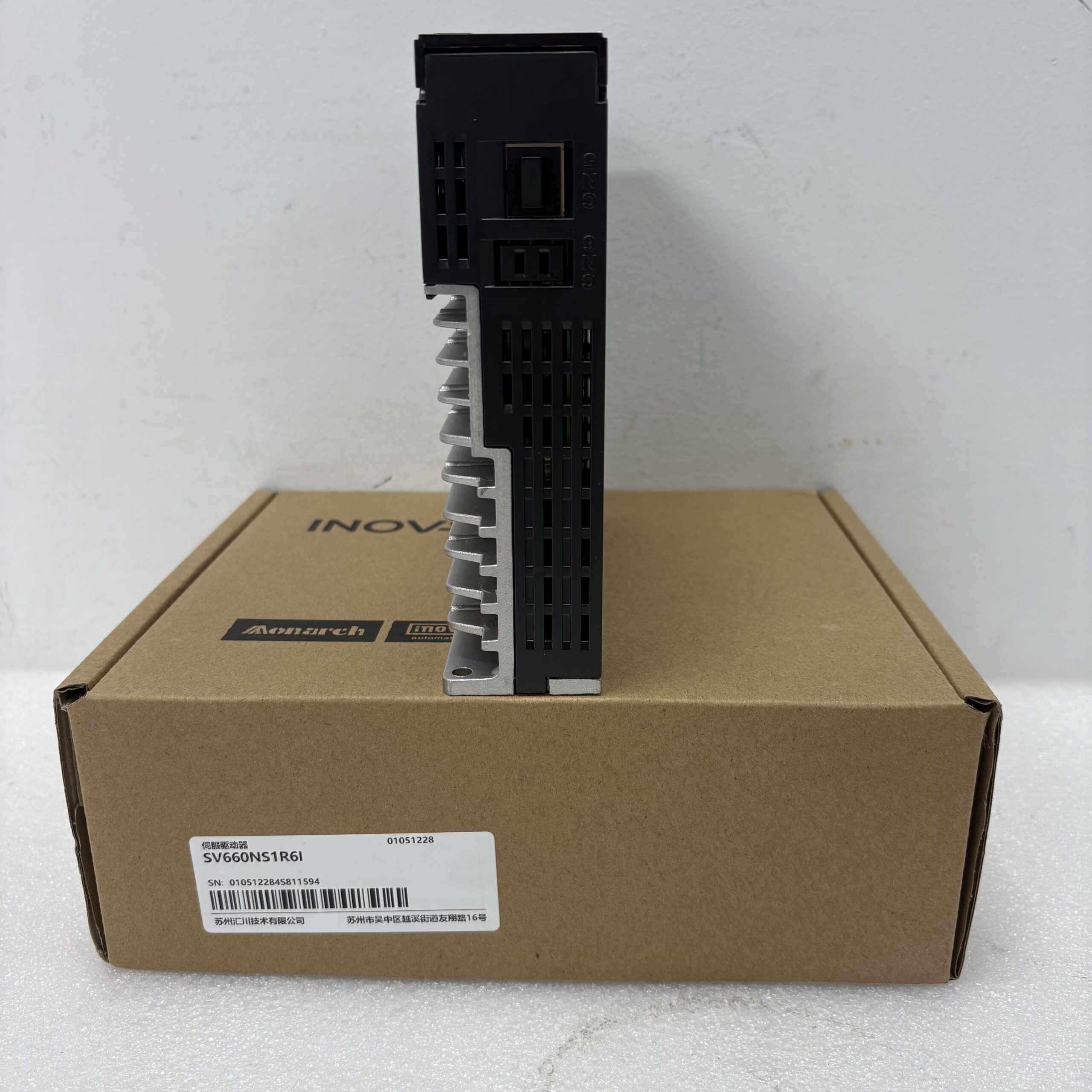

Inovance SV660NS1R6I Servo Drive
- Manufacturer: Inovance
- Model / Part Number: SV660NS1R6I
- Output Power: 200 W (0.2 kW)
- Network Protocol: EtherCAT
- Input Power Supply: Single-Phase, 200–240 V AC, 50/60 Hz (2.3 A)
- Output Power Supply: Three-Phase, 0–240 V AC, 0–400 Hz (1.6 A rated / 5.8 A max)
- Current Loop Bandwidth: 4.5 kHz (ultra-fast response)
- Speed Loop Bandwidth: Up to 3 kHz
- Safety Integration: Safe Torque Off (STO) – SIL3 compliant
- Enclosure Rating: IP20
- Weight: ~770 grams
- Vibration & Resonance Control: Supports auto-tuning, stiffness level settings, and utilizes up to four simultaneous notch filters to stop mechanical shaking.
- High-Speed Processing: Achieves an ultra-short EtherCAT cycle time of 125 μs.
- Encoder Support: Works flawlessly with Inovance MS1 series motors that use high-resolution 23-bit absolute encoders.
- Physical Installation Details: Read the Inovance SV660N Hardware Guide to see mounting footprints, dimensions, and terminal pinouts.
- Product Overview: Browse the main Inovance SV660N Series Catalog for a broader look at performance charts and accessories.
- SKU: SV660NS1R6I
- New Original In Stock
- 6 Months Warranty
- shipping by DHL or UPS
