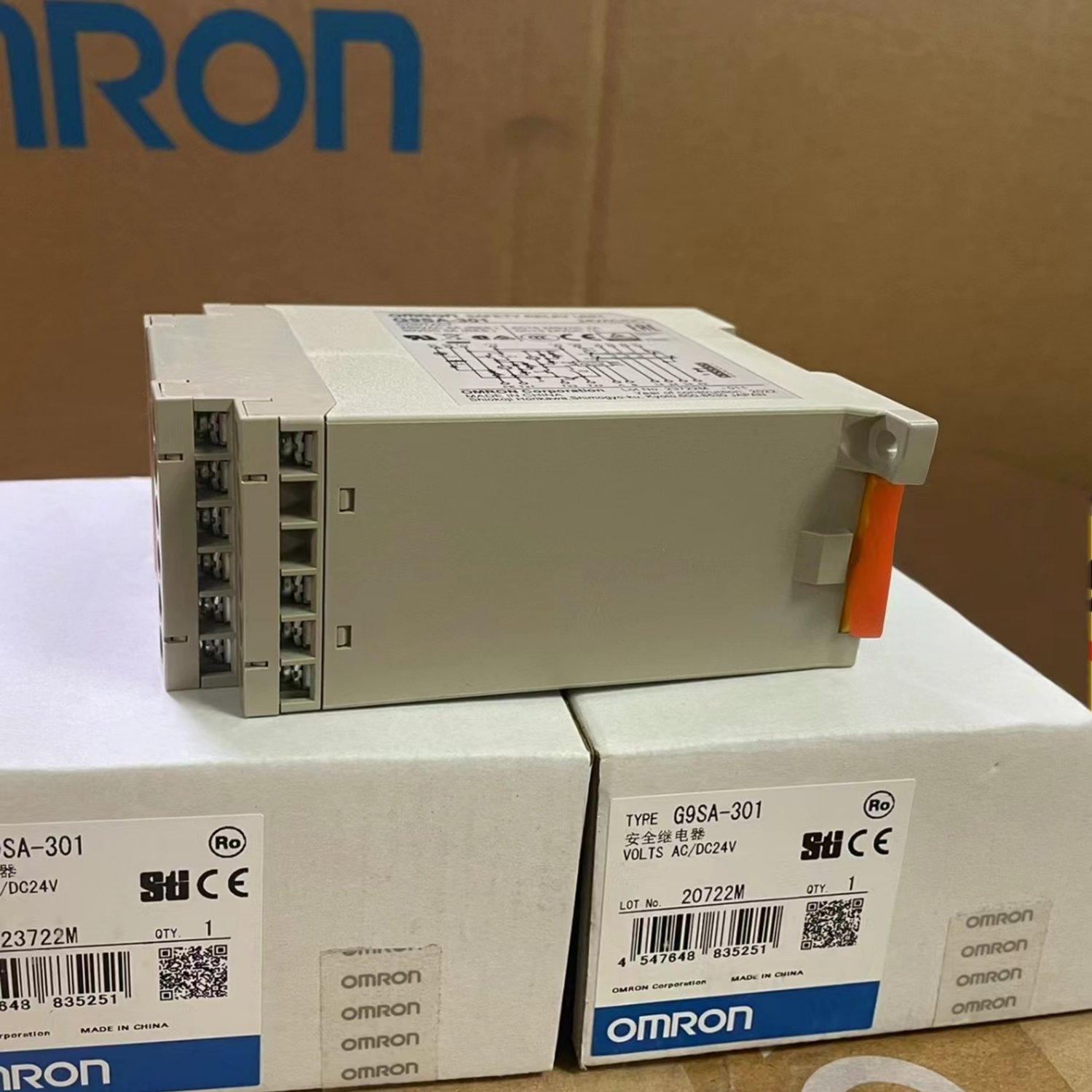

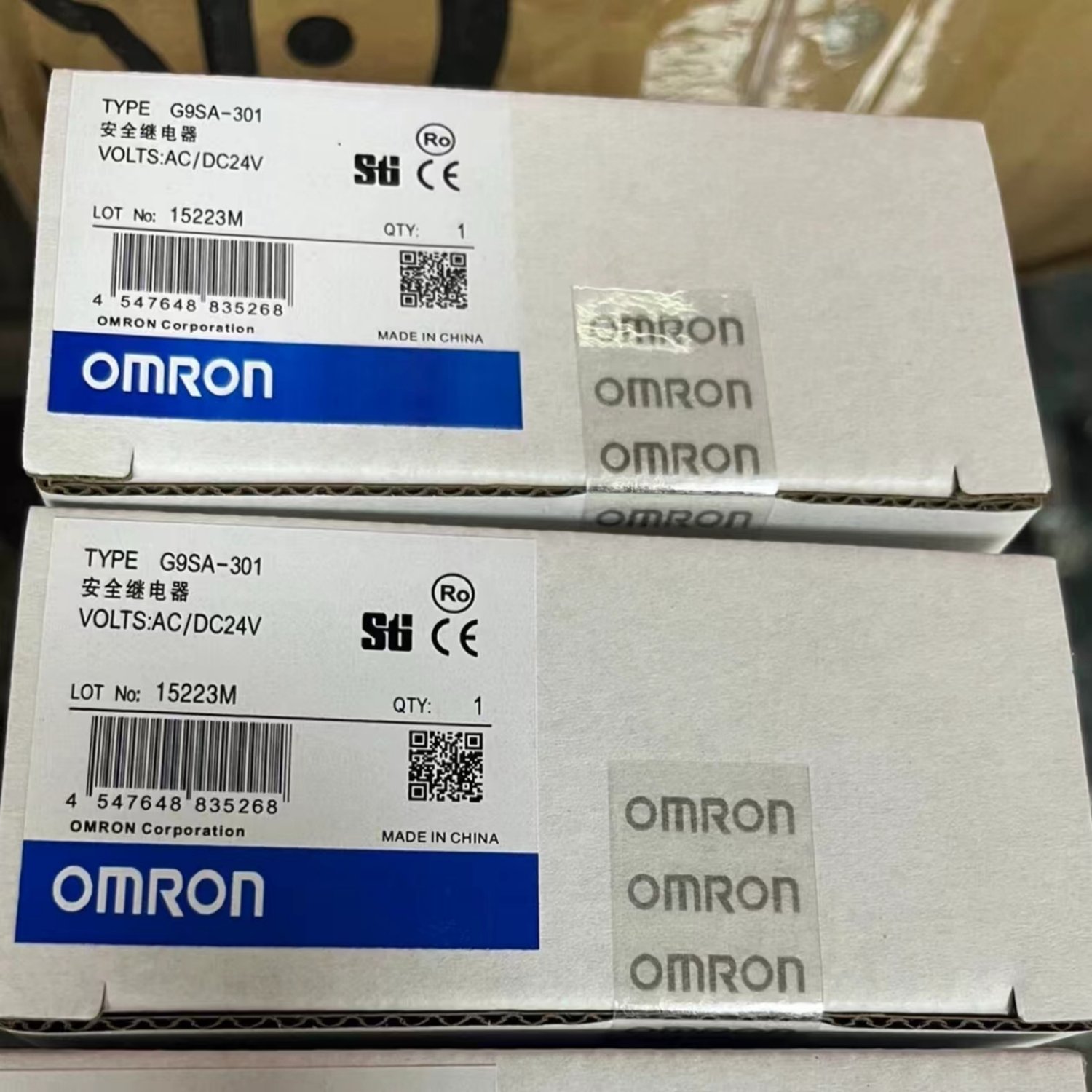

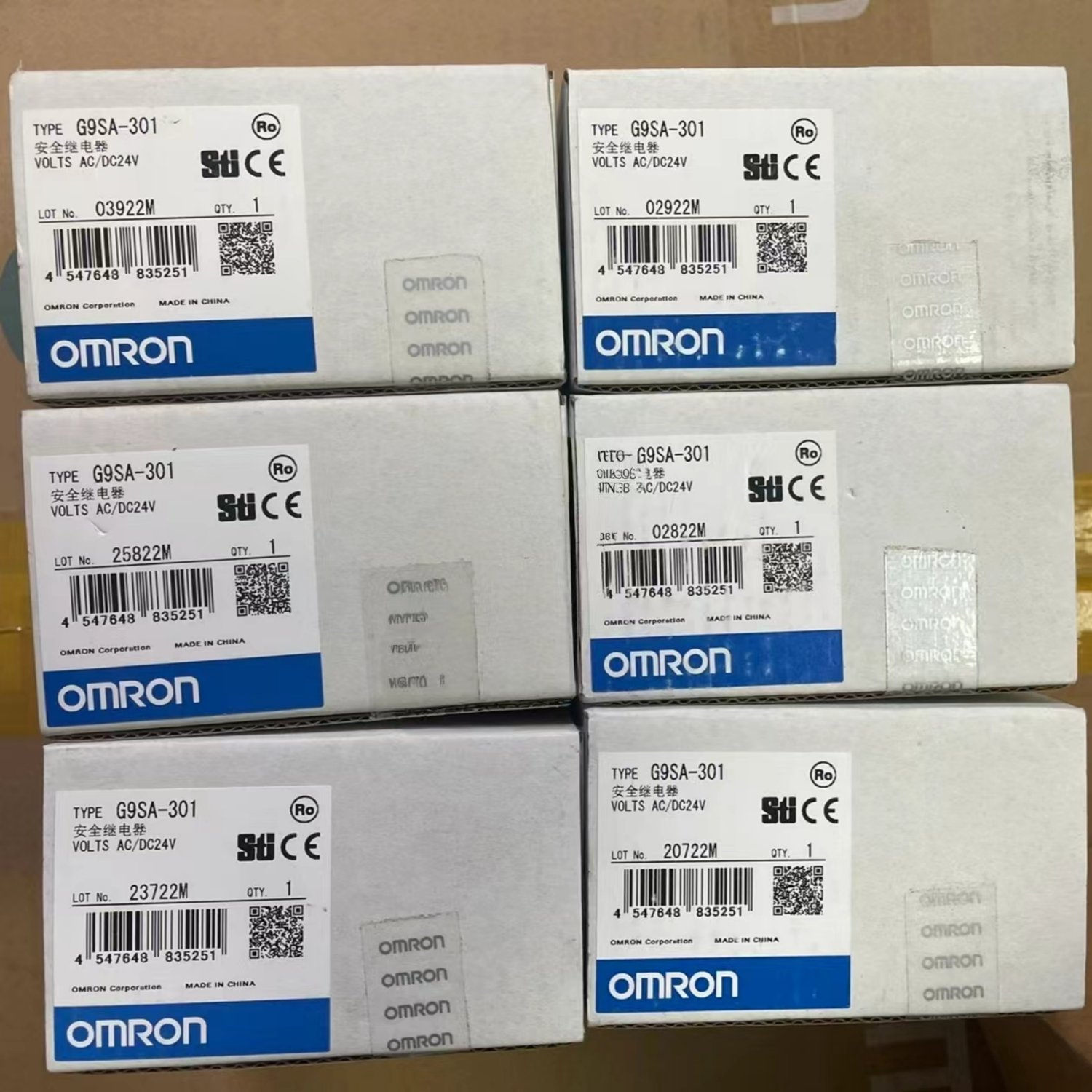

OMRON G9SA-30124V Safety Relay Unit (G9SA)
- Power Supply Voltage: 24 VAC/VDC (50/60 Hz)
- Operating Voltage Range: 85% to 110% of rated voltage
- Power Consumption: 1.7 W max. (at 24 VDC) / 5.7 VA max. (at 24 VAC)
- Safety Outputs (Instantaneous): 3PST-NO (3 Normally Open poles)
- Auxiliary Output: SPST-NC (1 Normally Closed pole)
- Rated Switching Voltage: 250 VAC, 30 VDC
- Operating / Response Time: Operating: 30 ms max. / Response: 10 ms max.
- Safety Category: PLe / Category 4 (conforming to EN ISO 13849-1)
- Housing Width: 45 mm (DIN rail or screw mounting)
- PE: Protective Earth / Ground terminal.
Brand New OMRON G9SA-30124V Relay. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
- SKU: G9SA-30124V
- New Original In Stock
- 6 Months Warranty
- shipping by DHL or UPS
