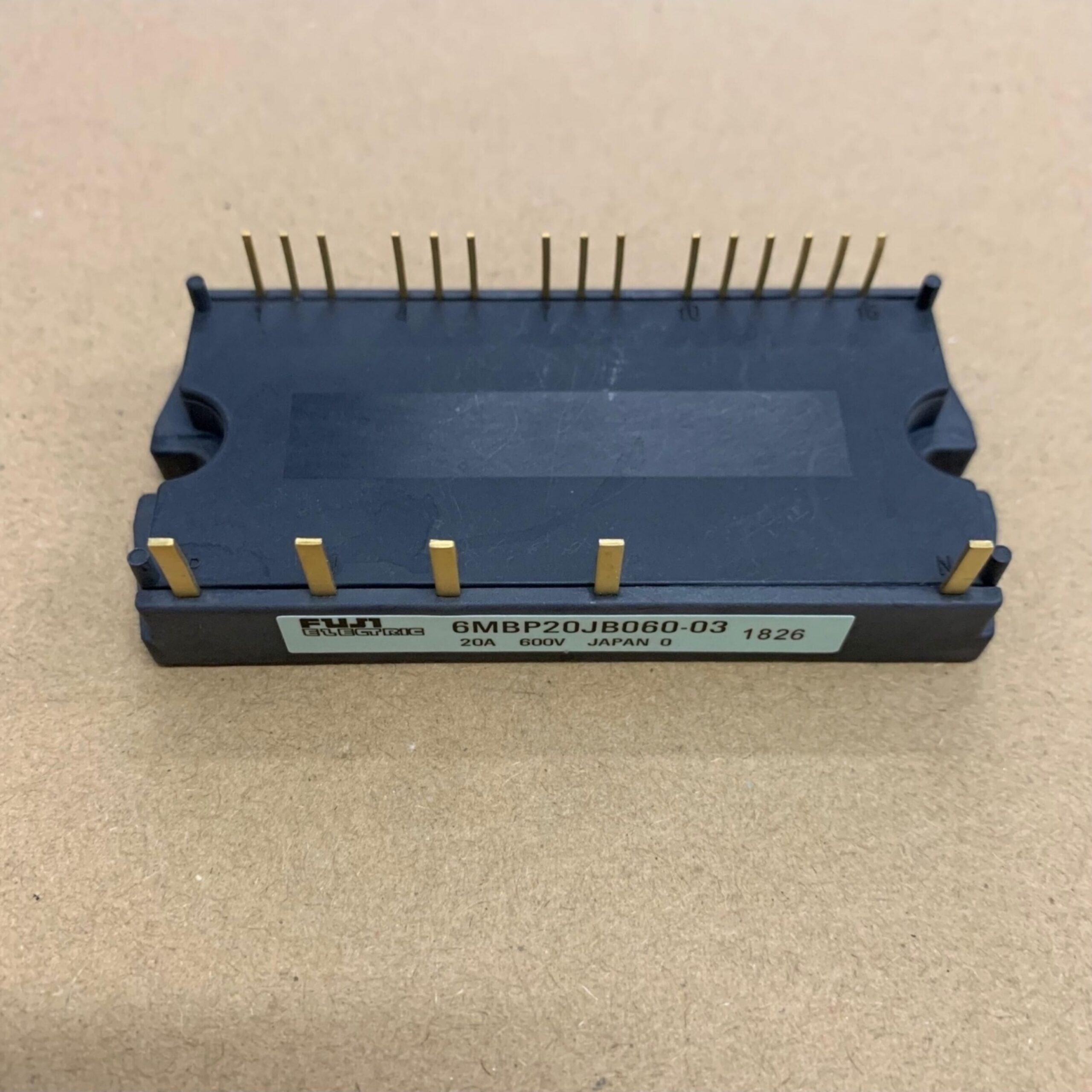

FUJI 6MBP20JB060-03 Intelligent Power Module

Manufacturer: FUJI
Model / Part Number: 6MBP20JB060-03
Voltage Rating: 600V (Maximum Collector-Emitter Voltage)
Current Rating: 20A (Continuous Collector Current)
Power Dissipation: 63 Watts maximum per transistor
Technology: 7th-generation Insulated Gate Bipolar Transistor (IGBT)
Package Type: P633A compact package
Alternative Part Number: Fanuc A50L-0001-0273#A (frequently used in industrial machinery)
All-in-One Design: It bundles 6 IGBT switches (a three-phase bridge) along with their steering diodes and control circuitry into one small block. This cuts down on the number of separate pieces needed on a circuit board.
Built-in Safety Guardrails: The module protects itself and the machinery by automatically sensing dangerous events. It shuts down safely if it encounters overcurrent (too much electricity), under-voltage (not enough control power), or over-temperature (overheating).
Energy Efficient: It uses modern chip design to reduce energy lost as heat, helping the machine run cooler and use less electricity.

Availability & Delivery

Availability shown is for reference only and will be confirmed at the time the order is processed.
Published quantities may change without prior notice.
The customer is responsible for verifying part number and specifications before confirming the purchase.
Certain products may be considered special order items depending on availability.
