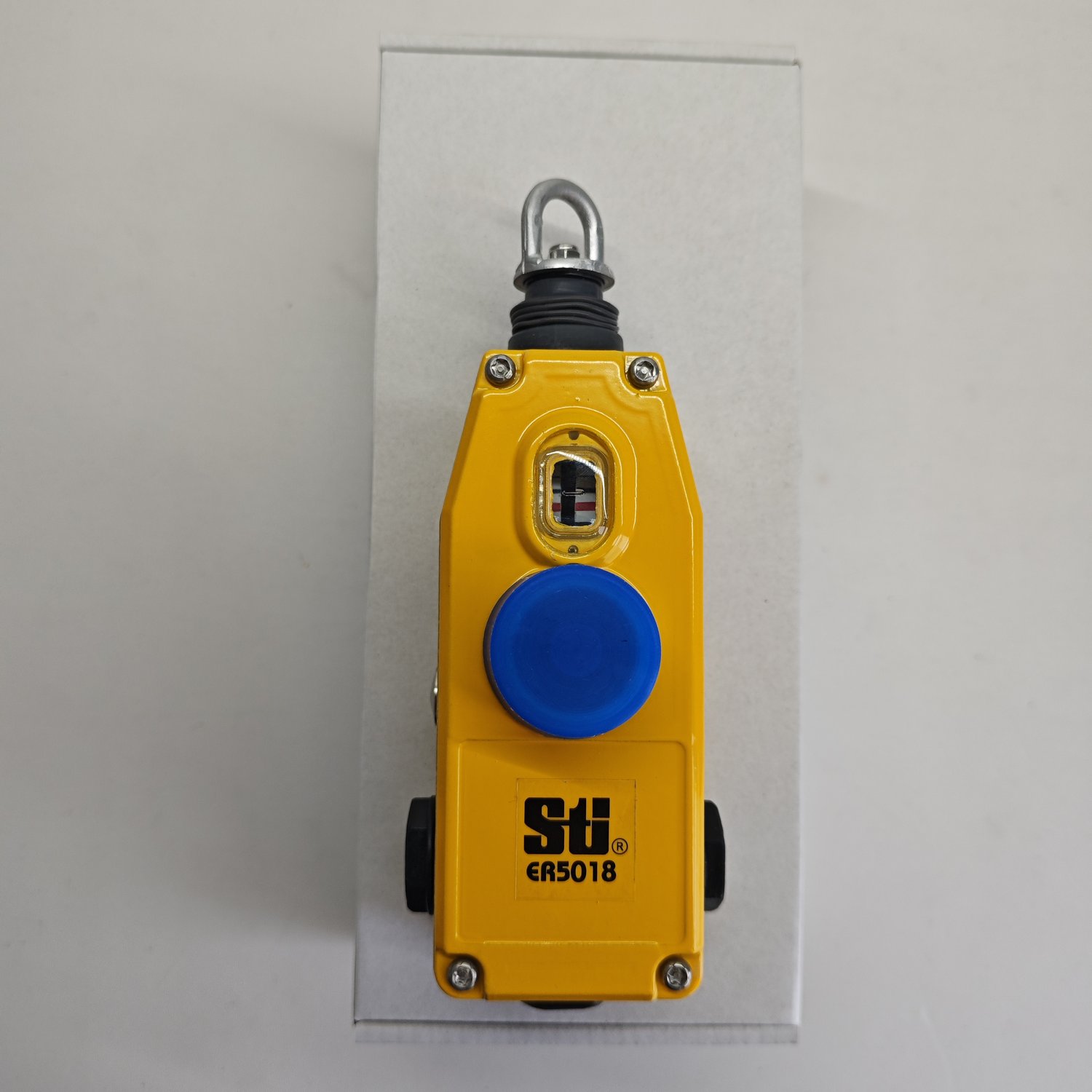

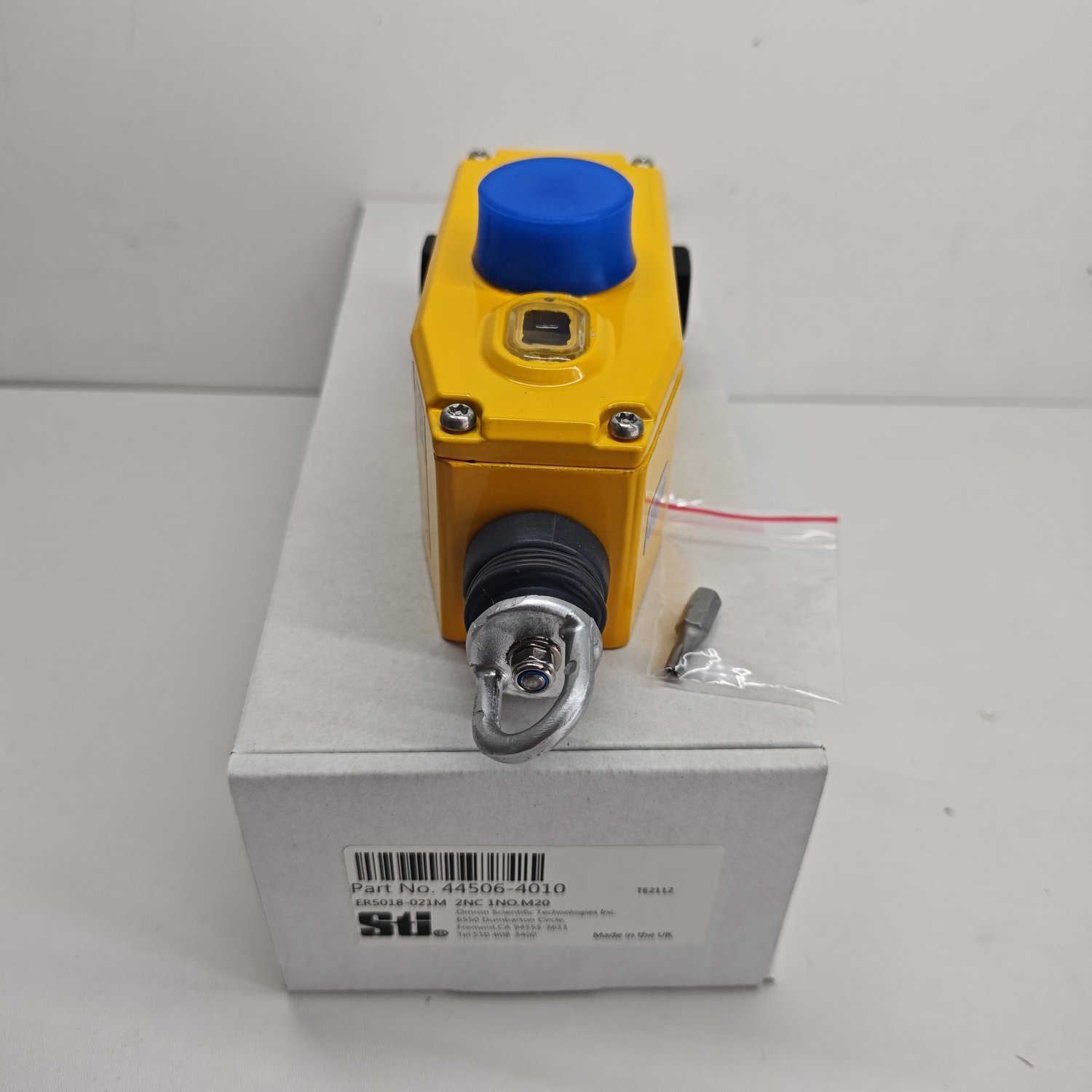

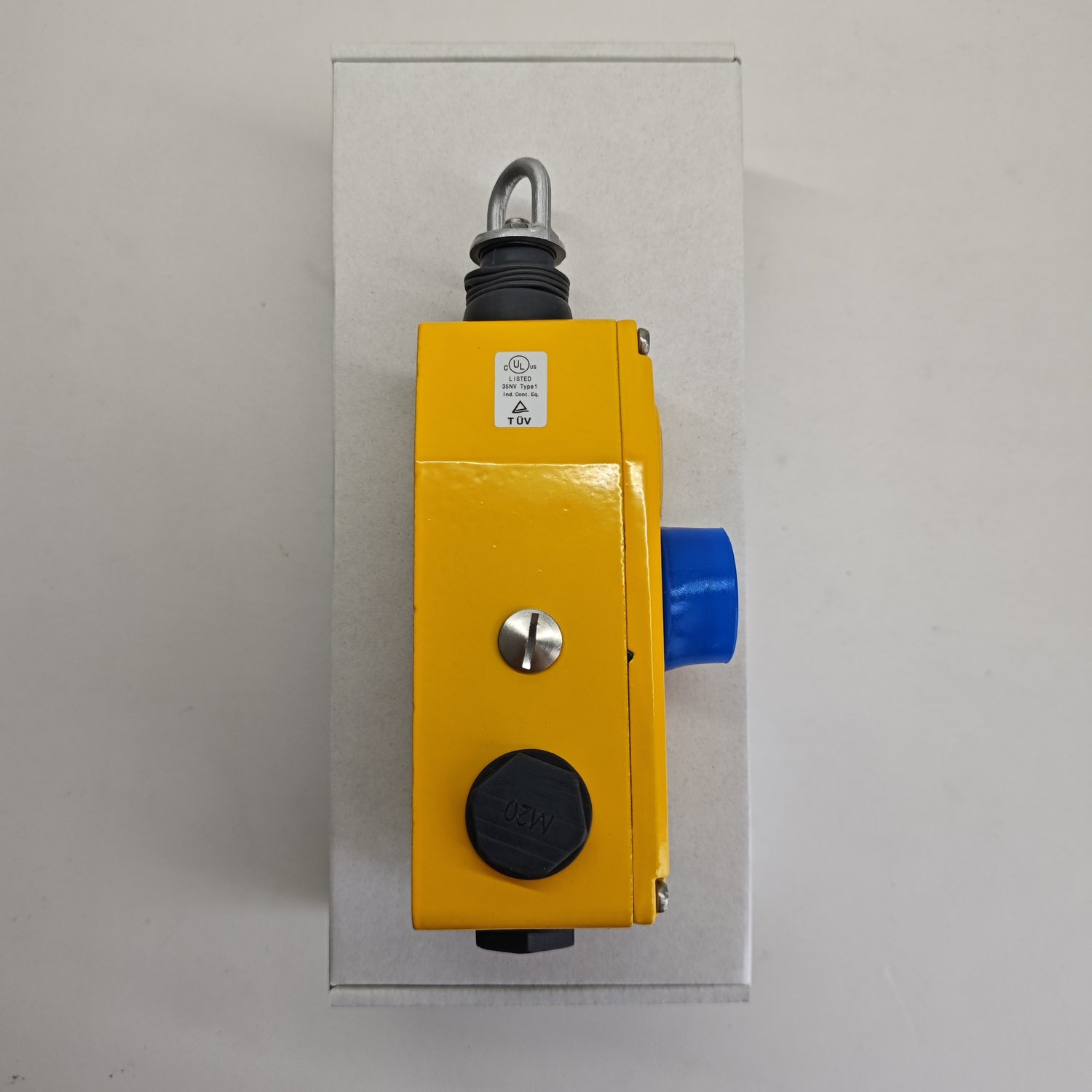

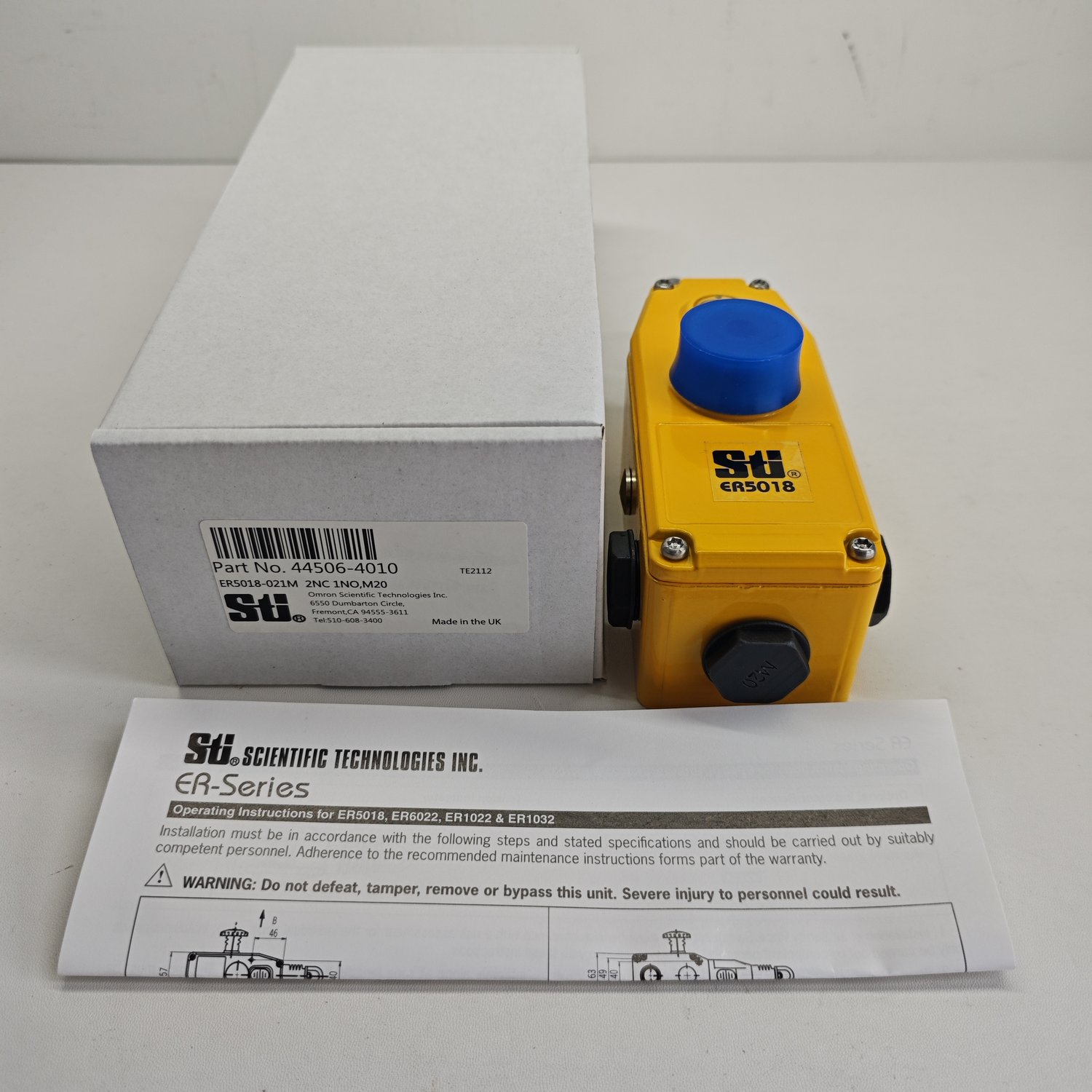

Sti ER5018-021M Rope-Pull Emergency Stop Switch (ER5018 Series)
- Contact Configuration: 3PST: 2 N/C (Safety Contacts) + 1 N/O (Auxiliary Contact)
- Max Rope Span: Up to 40 meters (131 feet)
- Electrical Rating: 6A at 120V AC / 3A at 240V AC; 2.5A at 24V DC
- Conduit / Wiring Entry: 3 x M20 conduit entries
- Ingress Protection: IP67 / NEMA 6 (Water washdown proof)
- Housing Material: Heavy-duty die-cast aluminum with a stainless steel eye nut
- Operating Temperature: -25°C to 80°C (-13°F to 176°F)
- Reset Mechanism: Blue reset knob/button
- Built-in Tension Indicator: Features an integrated visual indicator window to make initial rope tensioning setup and system maintenance simple and precise.
- Vibration Tolerant: Uses snap-acting switch contacts to protect against accidental machine trips caused by industrial vibrations.
- Dual-Sided Mounting: The blue reset knob can be utilized for either left-side or right-side pull string configurations.
- Safety Certifications: Conforms to strict global safety rules including IEC947-5-1, IEC947-5-5, EN418, UL508, and BS5304.
Brand New Sti ER5018-021M Rope-Pull Emergency Stop Switch (ER5018 Series). In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
- SKU: ER5018-021M
- New Original In Stock
- 6 Months Warranty
- shipping by DHL or UPS
