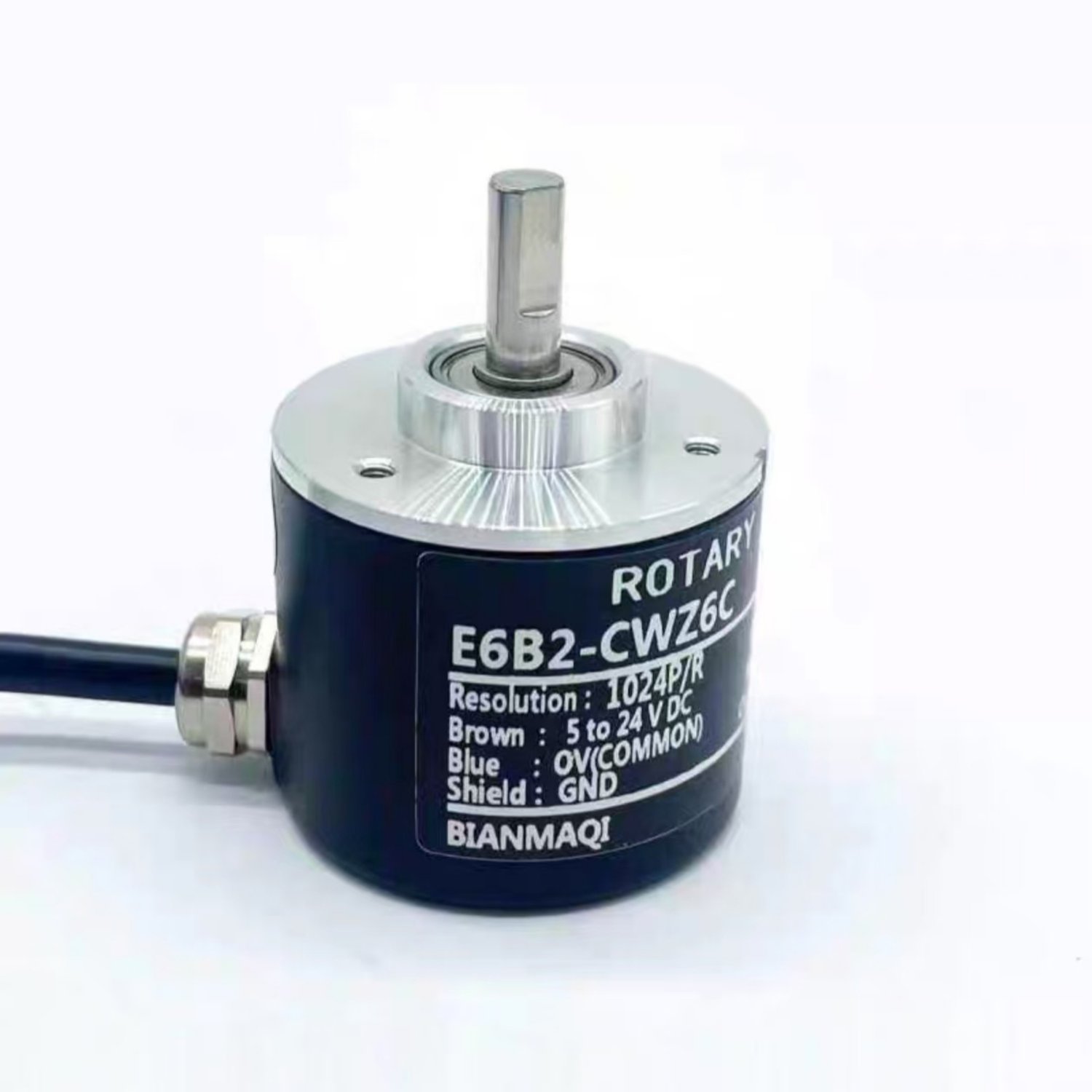

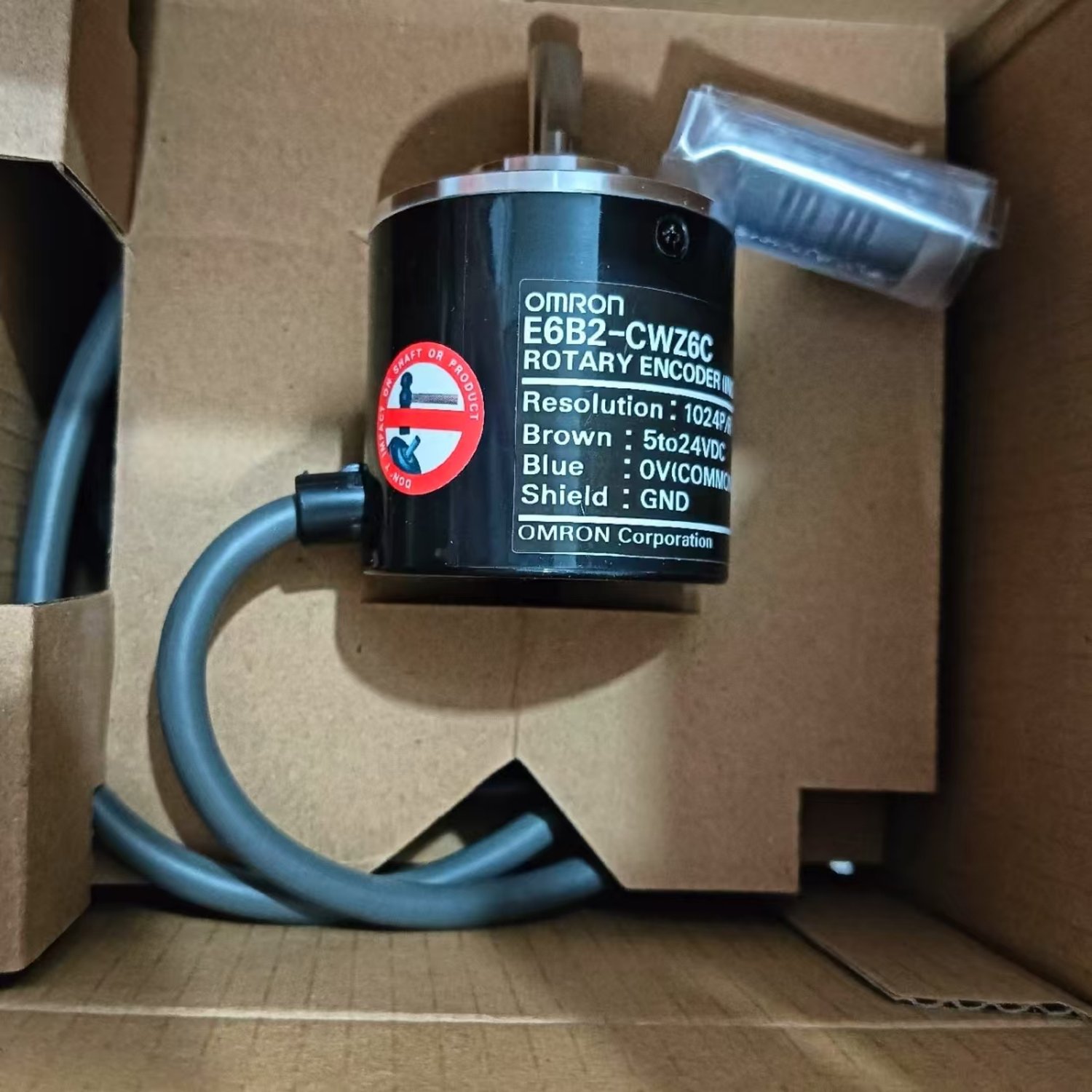

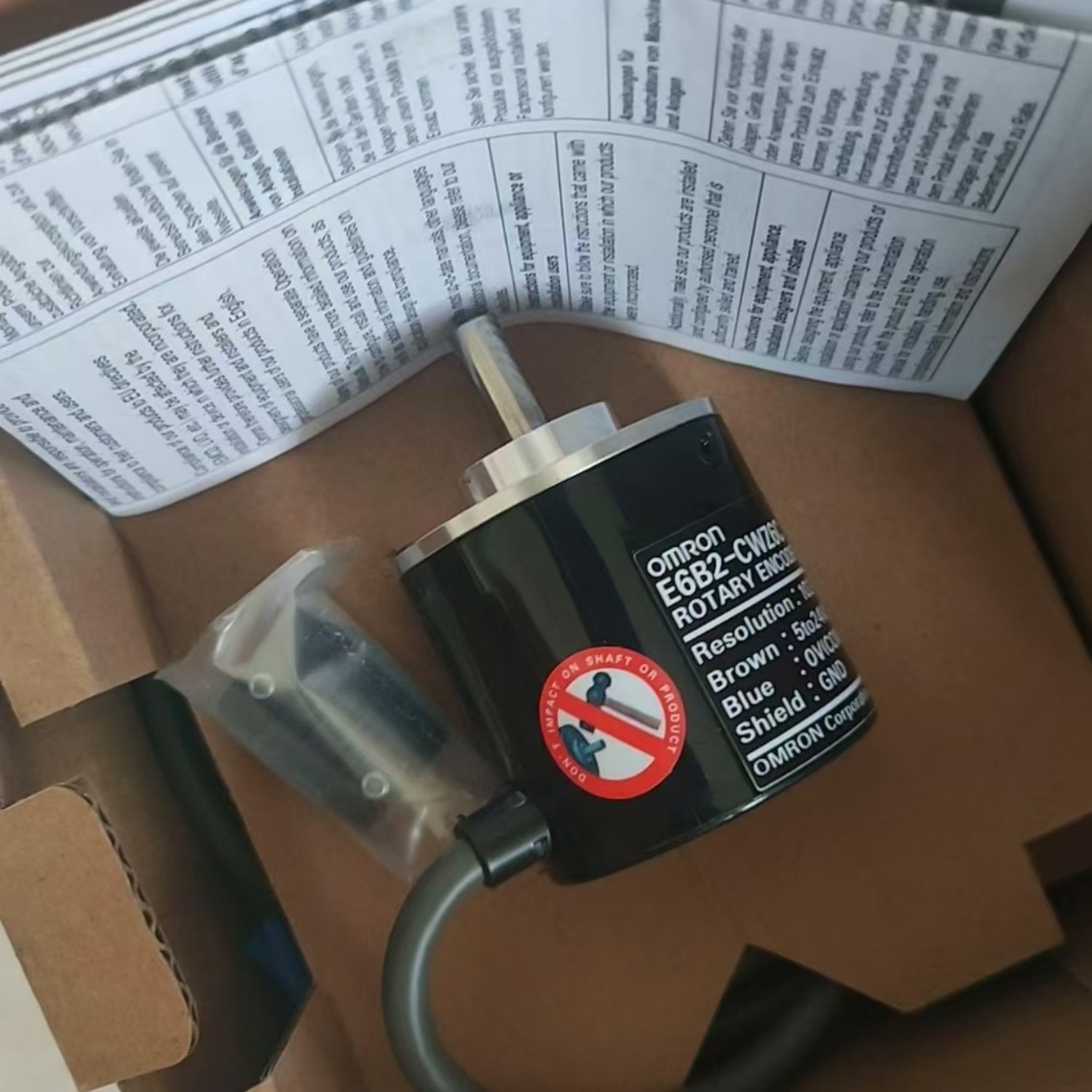

OMRON E6B2-CWZ6C 1024P-R Rotary Encoder (E6B2)
- Resolution: 1024 Pulses per Revolution (P/R), delivering highly accurate granular feedback.
- Power Supply Voltage: 5 to 24 VDC, making it widely compatible with different PLCs and control systems.
- Output Type: NPN Open Collector.
- Output Phases: A, B, and Z (reversible), allowing direction sensing via phase difference and origin alignment via the Z-phase index.
- Mechanical Dimensions: 40 mm casing diameter with a 6 mm solid flatted (D-shape) shaft.
- Max Speed: Up to 6000 RPM permissible rotation.
- Environmental Protection: IP50 rating with operating tolerances from -10 to 70 °C.
- Brown: Power Supply (5 to 24 VDC)
- Blue: 0V / Common (GND)
- Black: Phase A output
OMRON E6B2-CWZ6C 1024P-R Rotary Encoder (E6B2).
- SKU: E6B2-CWZ6C 1024P-R
- New Original In Stock
- 6 Months Warranty
- shipping by DHL or UPS
