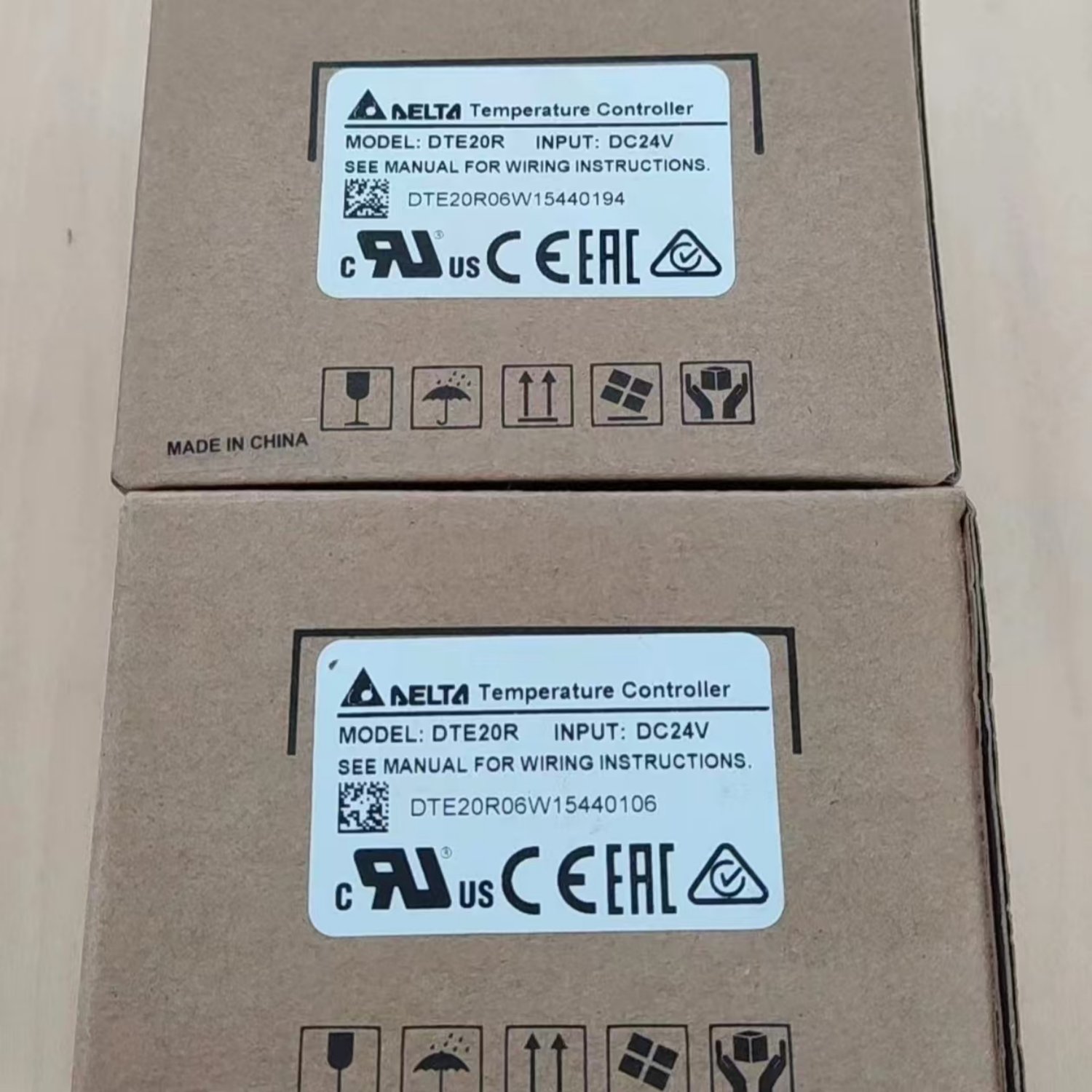

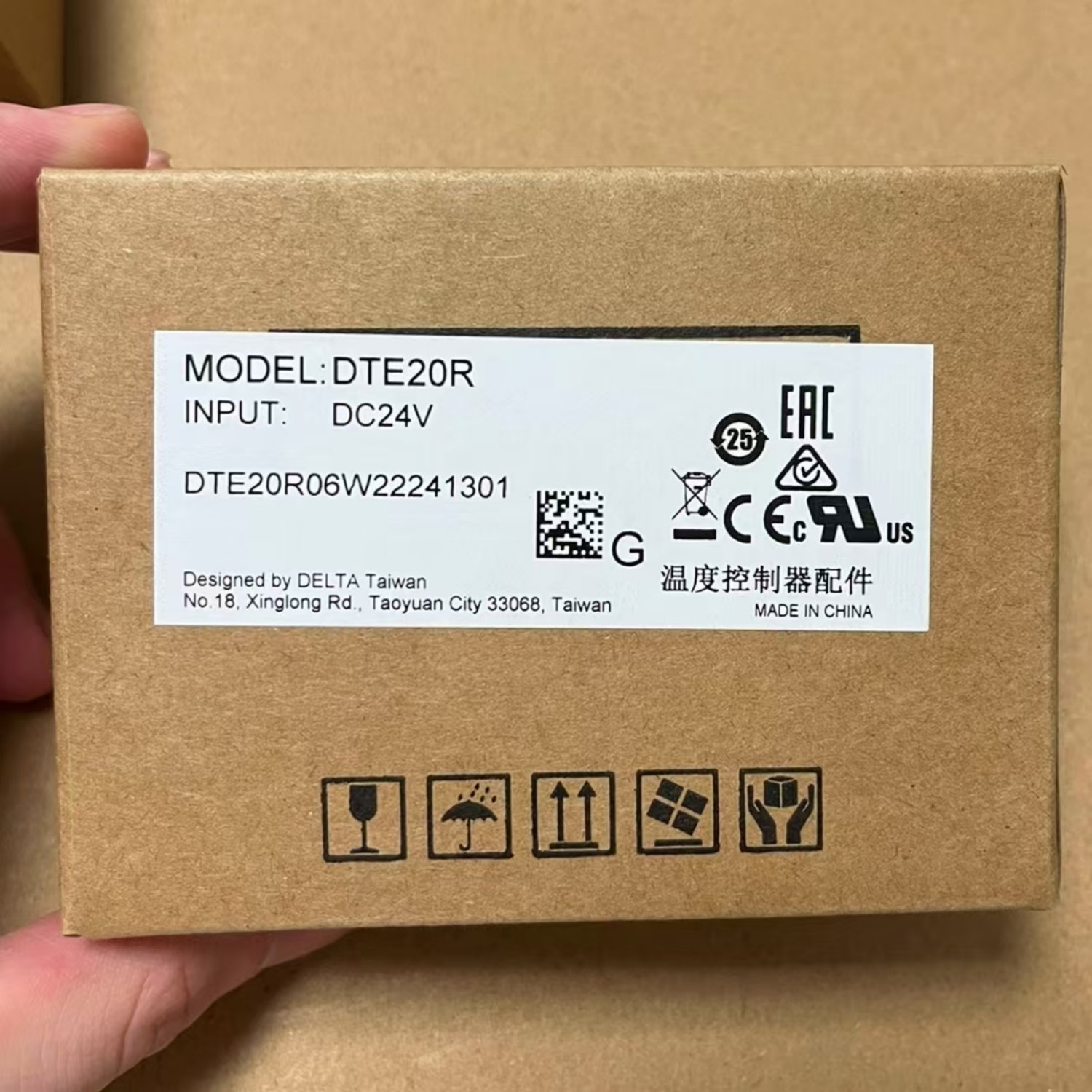

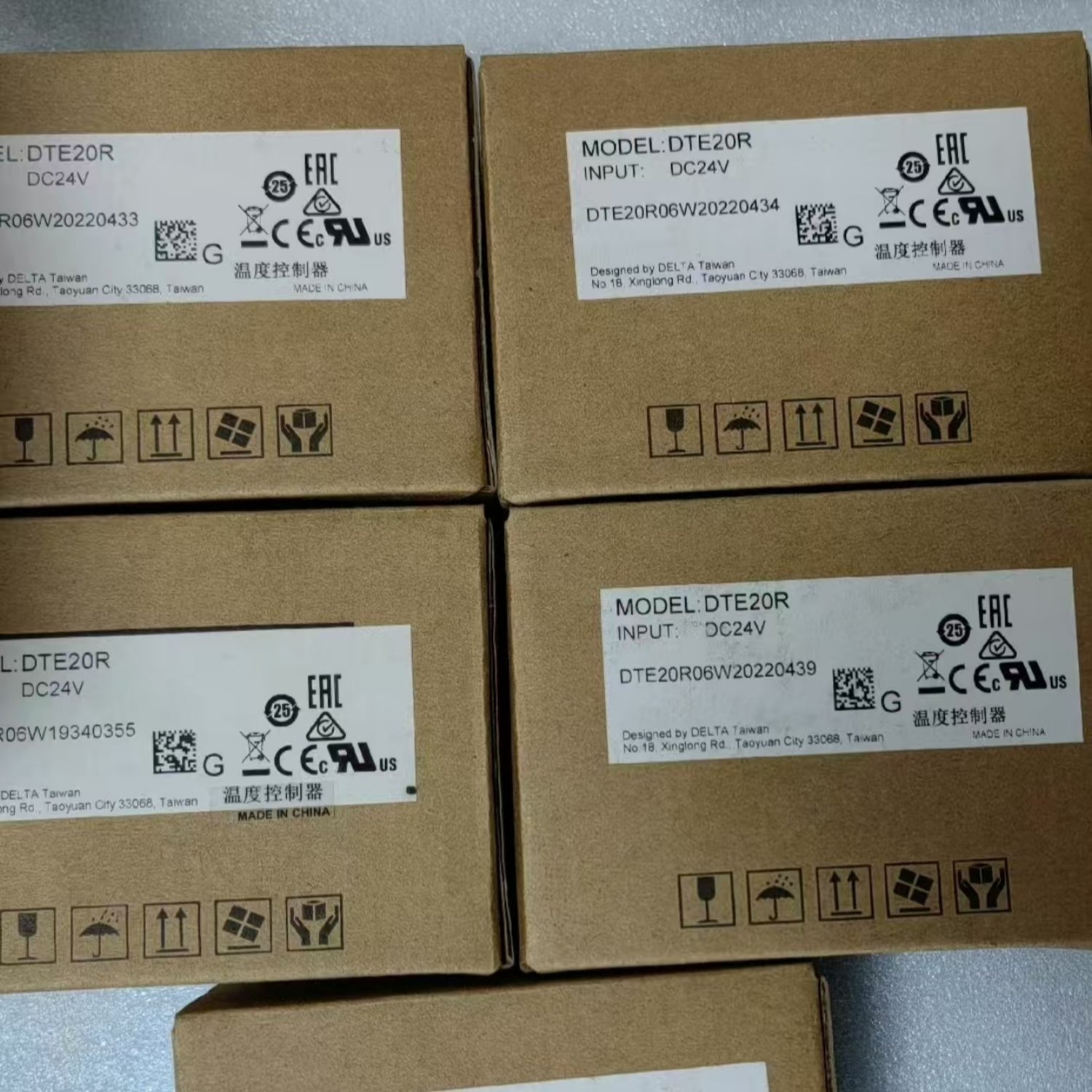

DELTA DTE20R Temperature Controller (DTE Series)

• Manufacturer: Delta Electronics
• Model Number: DTE20R
• Operating Voltage: 24 V-DC
• Output Type: Relay Output Module (4 Channels)
• Mounting Format: Standard DIN Rail installation
• Communication: Built-in 2-wire RS-485 (Baud rate up to 115,200 bps)
• Multi-Channel Independence: The base platform supports up to 8 groups of thermocouple or platinum resistance (RTD) inputs. Each channel operates independently to monitor different sectors of a system at the same time.
• Modular Scalability: The system is easily expandable. You can scale your operations by connecting up to 7 DTC2000 expansion controllers directly to the DTE host. It features a practical auto-ID setup function and synchronous communication protocols to simplify multi-zone expansion.
• Programmable Controls: For complex thermal profiling, the module allows users to configure up to 64 distinct sets of targeted temperatures and operational time durations.
• High-Density Wiring Savings: Because the unit mounts straight onto a standard DIN rail, it eliminates extensive panel wiring, dramatically shrinking overall control cabinet footprints.

Brand New DELTA DTE20R Temperature Controller. In stock — ships worldwide within 5-10 days.

1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
