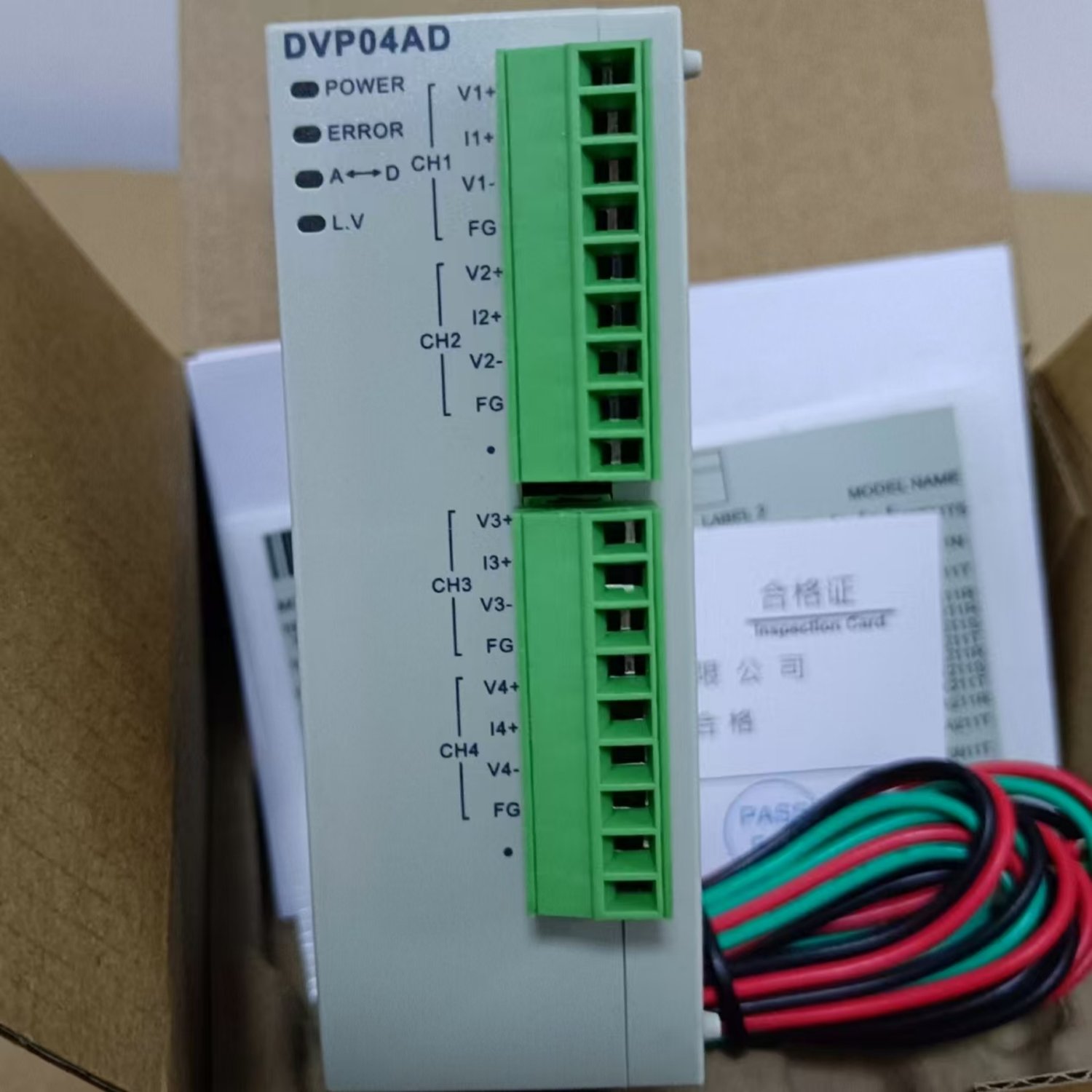

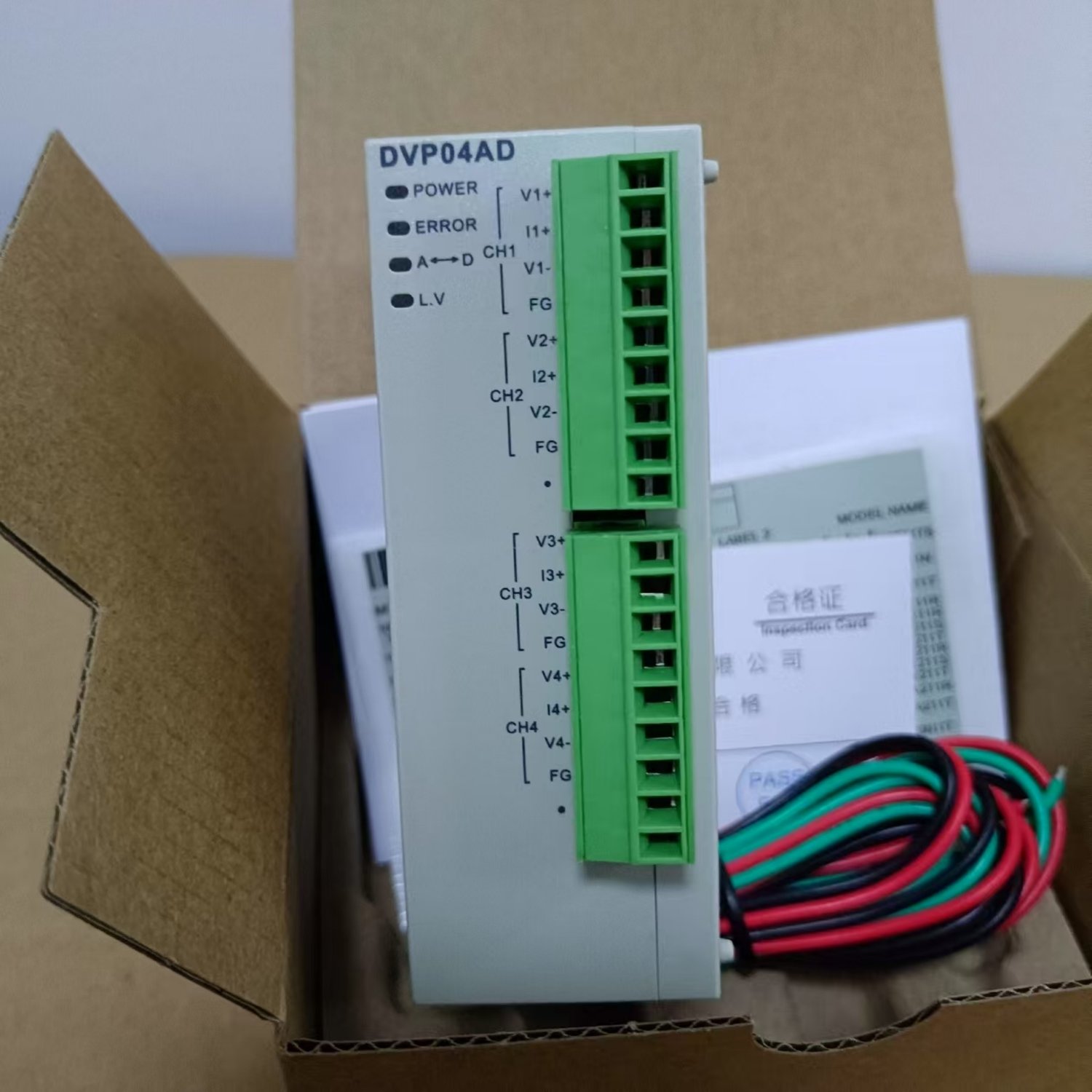

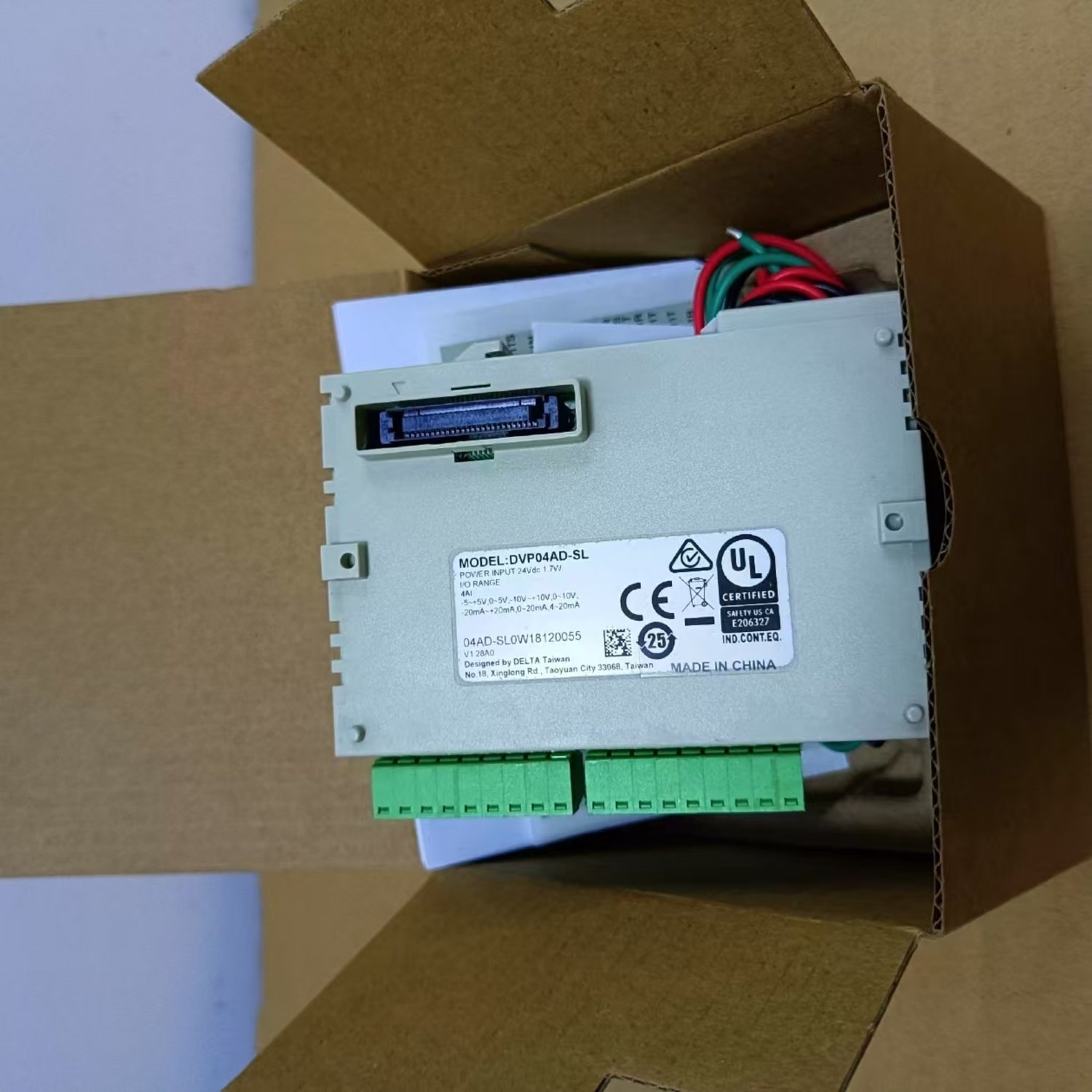

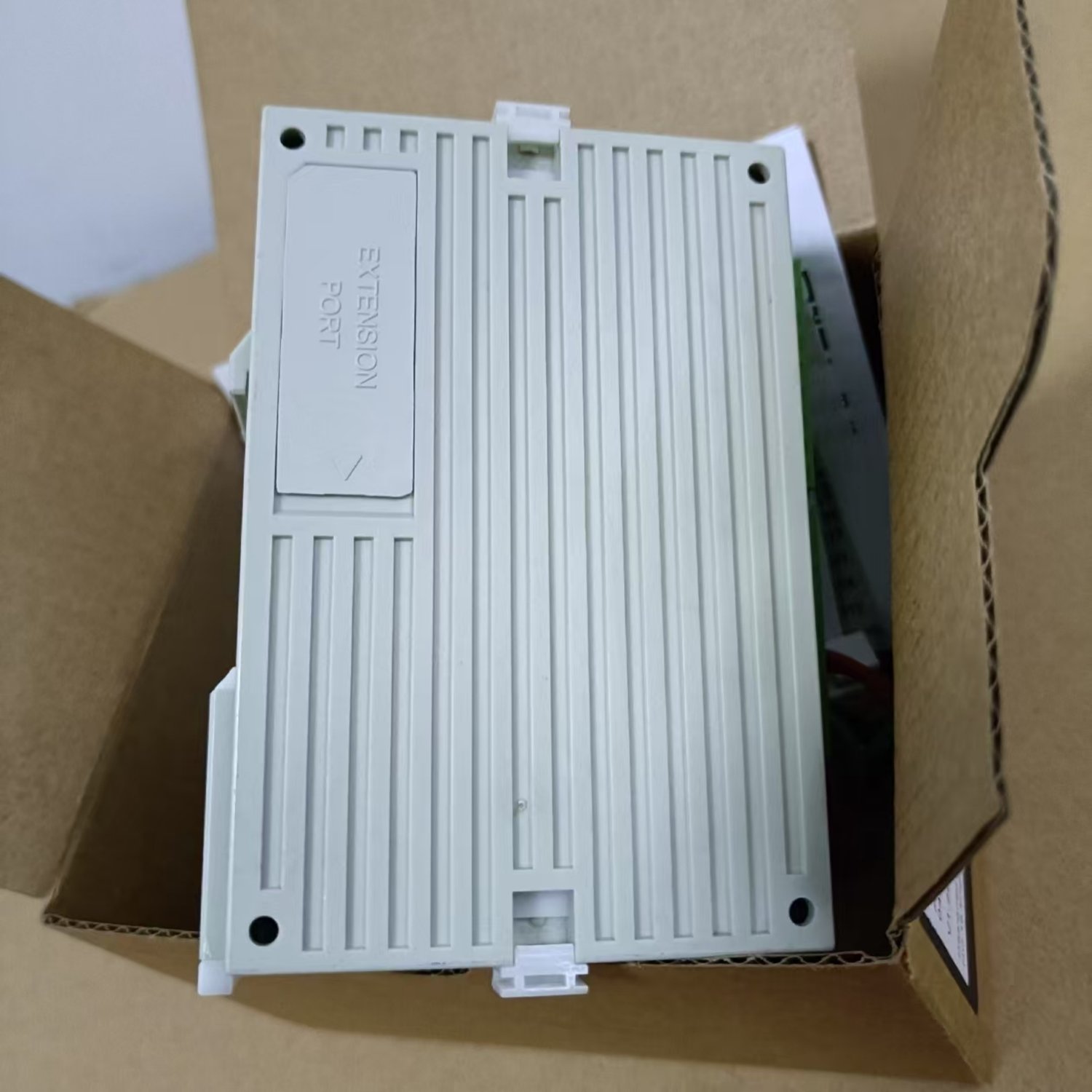

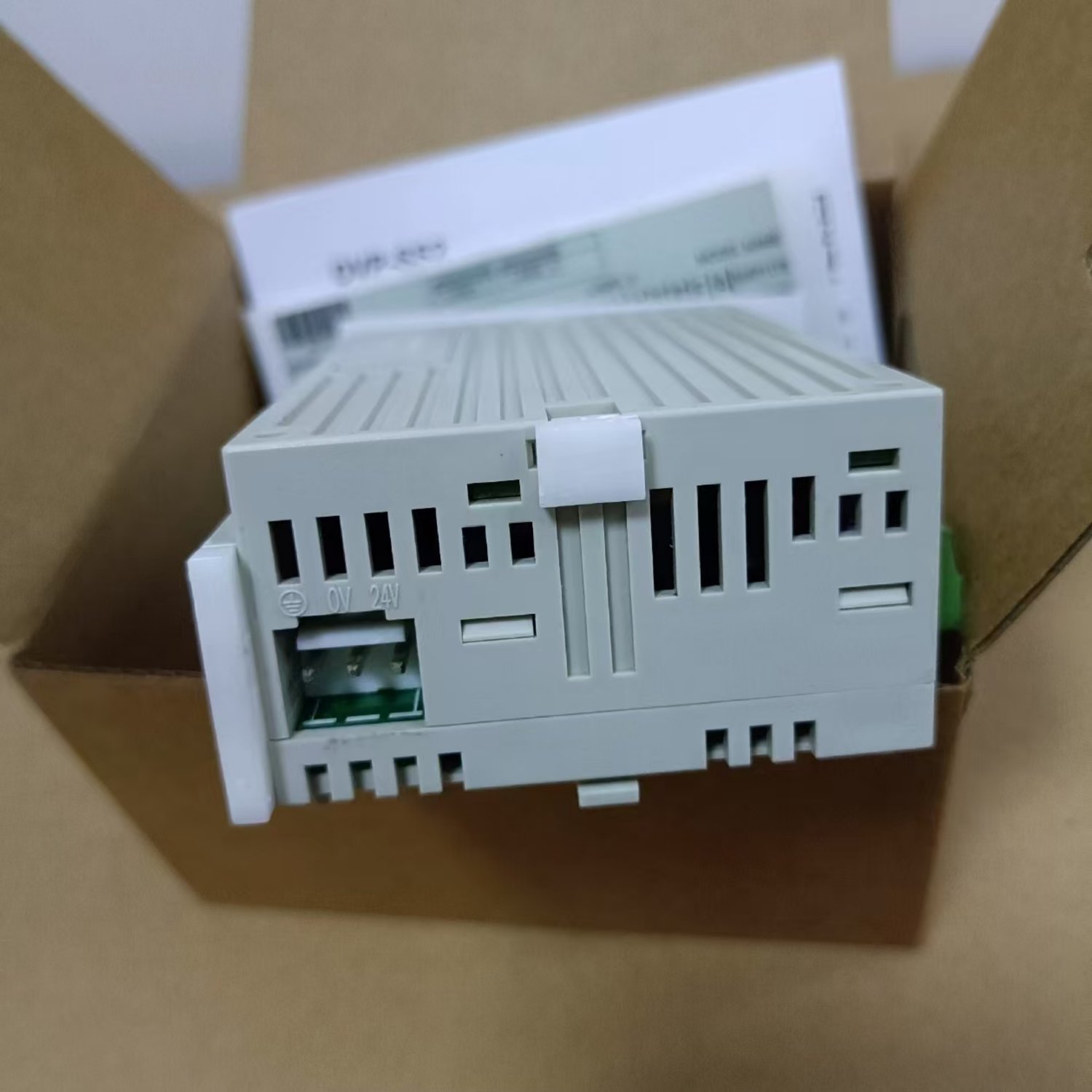

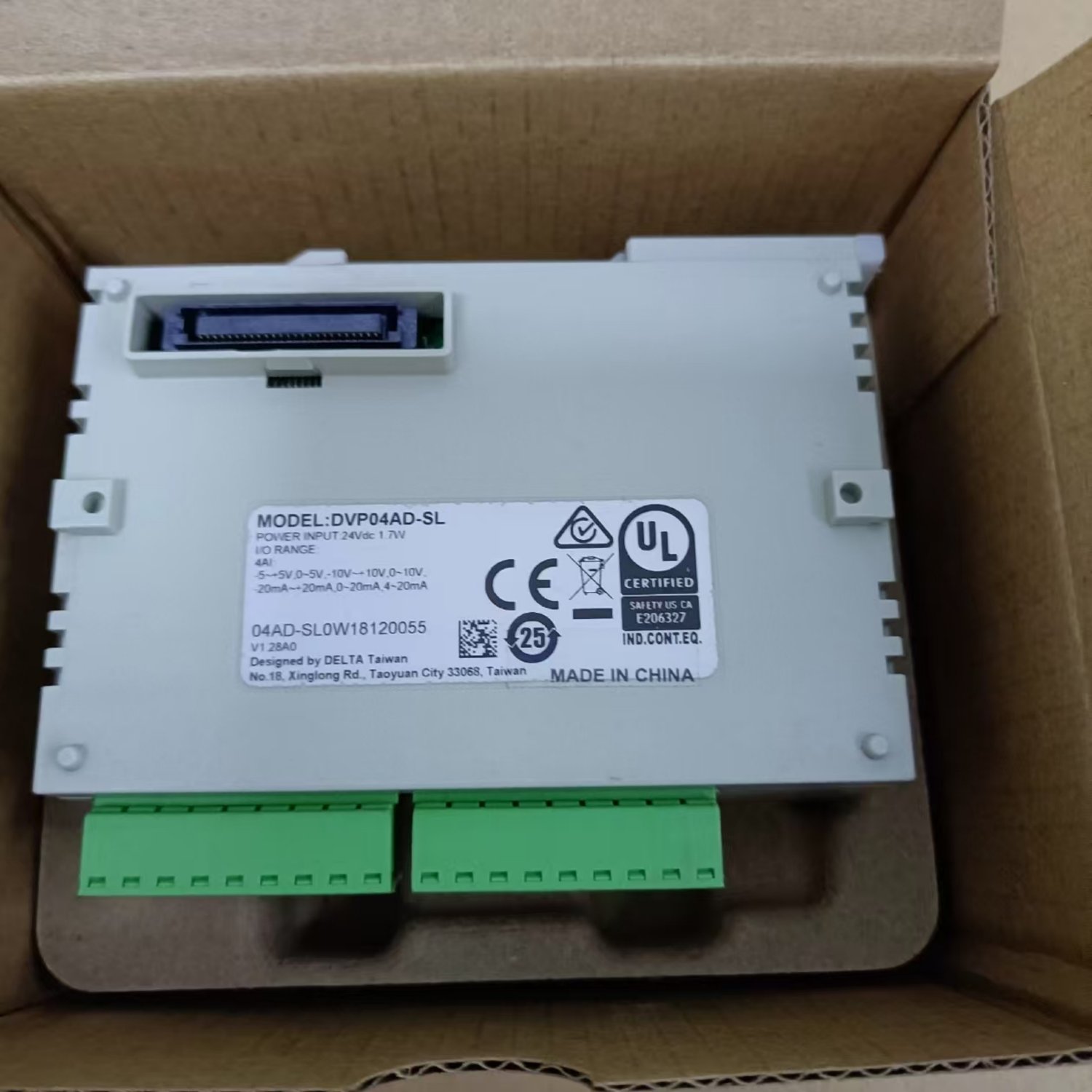

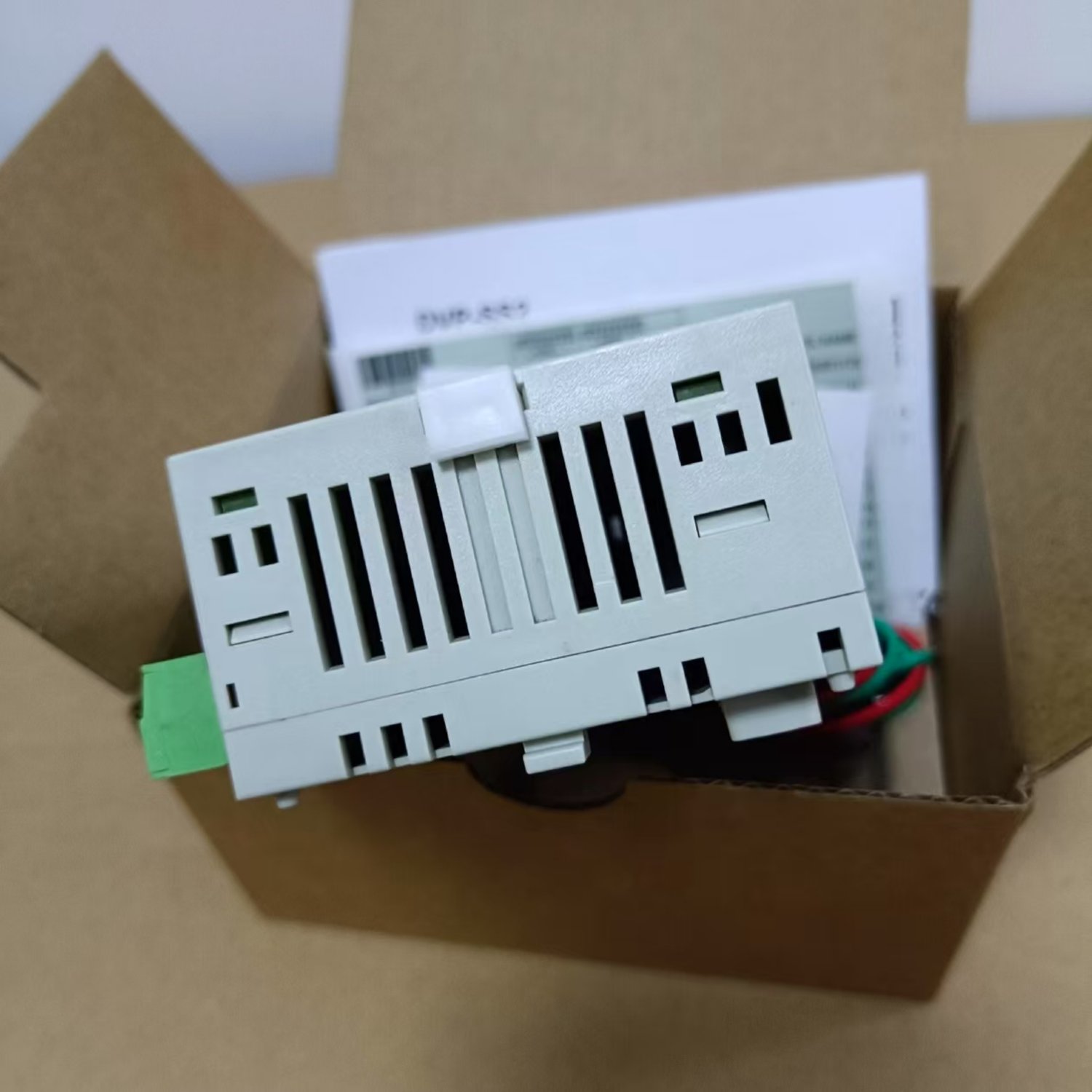

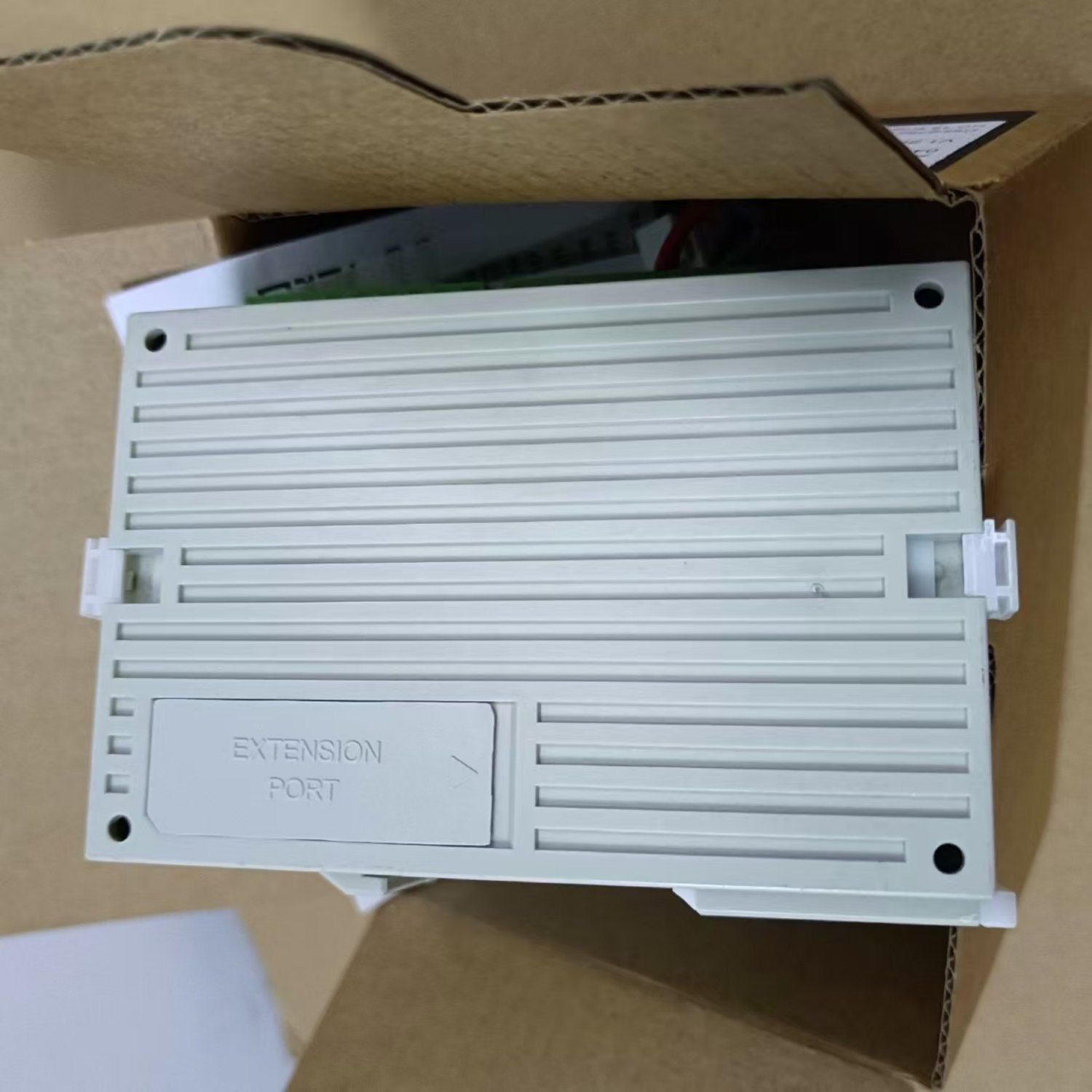

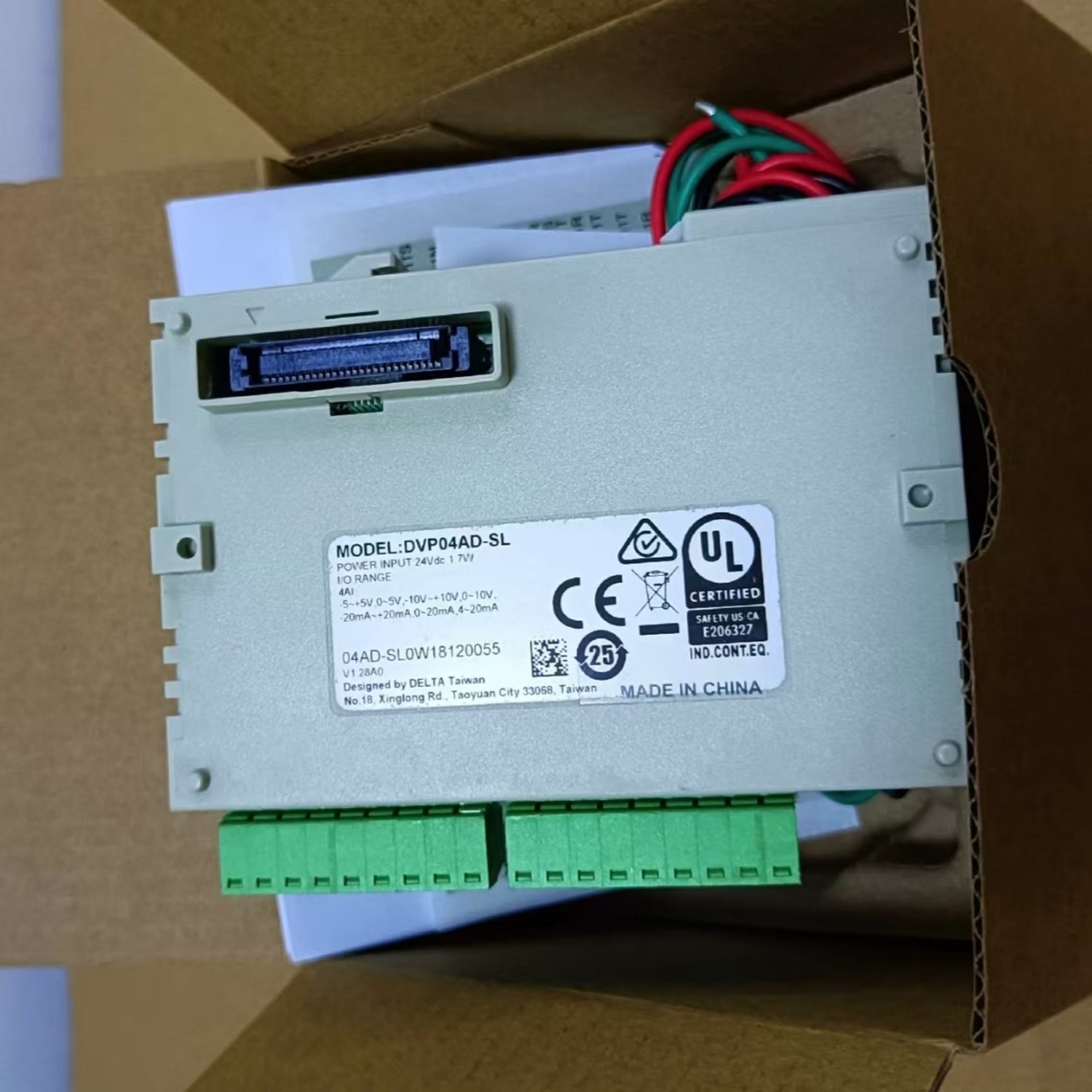

DELTA DVP04AD-SL Analog Input Module
- Manufacturer: DELTA
- Model / Part Number: DVP04AD-SL
- Channels: 4 independent input channels (voltage or current selectable per channel).
- Resolution: 16-bit A/D conversion.
- Conversion Time: 250 μs per point / channel.
- Power Supply: +24VDC (-15% ~ +20%), 3.5W maximum power consumption.
- Digital Range: Standardized to values of -8,000 ~ +8,000 (or up to 16-bit equivalents depending on the software application setup).
- Device Type: Open-type device meant for installation inside a protected control cabinet.
- Input Type: Configuration Ranges Resolution
- Voltage Input: -10V to +10V, -5V to +5V, 0V to 10V, 1V to 5V 312.5 µV
- Current Input: -20mA to +20mA, 0mA to 20mA, 4mA to 20mA 625 nA
- Left-Side (SL) High-Speed Bus: Connects directly to the left side of compatible master PLCs to bypass slower standard extension channels.
- Control Registers (CR): Configuration and measurement tracking are achieved by mapping the module's internal Control Registers.
- Instructions: Data transfer is programmed using the standard FROM and TO instructions in Delta's ISPSoft or WPLSoft environment.
- Key features: * Conversion time: 250 ¼ / point. * Output: 0-10V, -10-10V, 4-20mA, 0-20mA. * Analog I/O extension modules (left sid…
- SKU: DVP04AD-SL
- New Original In Stock
- 6 Months Warranty
- shipping by DHL or UPS
