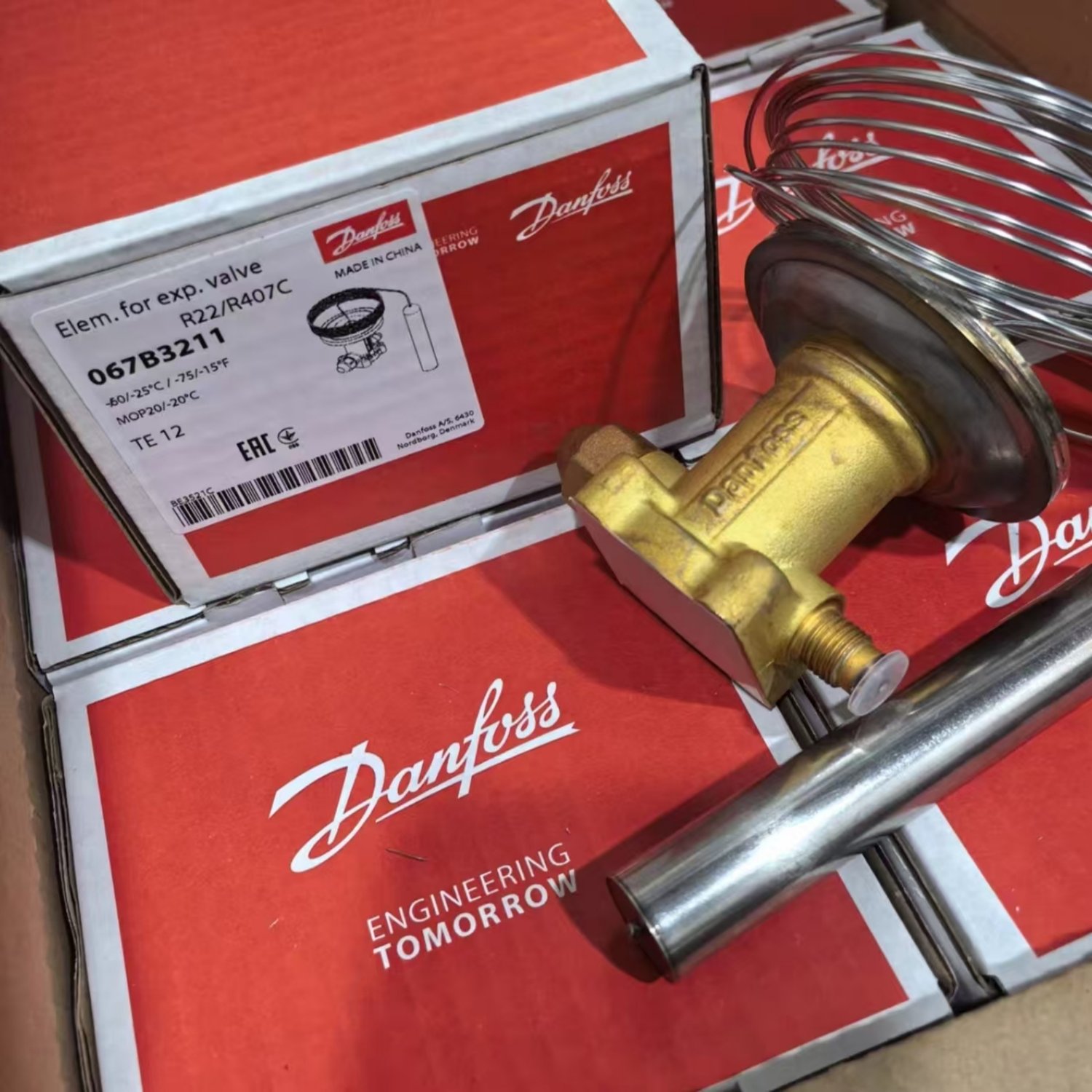

DANFOSS 067B3211 Thermostatic Expansion Valve

Manufacturer: DANFOSS
Model / Part Number: 067B3211
Specification Field: Technical Data
Product Type / Series: TEX 12 Thermostatic Element (TE 5 – TE 55 parts program)
Compatible Refrigerants: R22 / R407C
Pressure Equalization: Externally equalized via a 1/4-inch Flare connection
Capillary Tube Length: 118 inches (3,000 mm)
Maximum Working Pressure: 400 psig (28 bar)
MOP (Max Operating Pressure): MOP 20 (-5°F / -20°C)
Temperature Range: -60°C to -25°C (-75°F to -15°F)
Body Material: Brass (laser welded for an extended lifetime)
Modular Component: This is an element (power head) only, part of Danfoss's interchangeable parts program. It must be paired with a compatible TE 12 valve body and the appropriate orifice size to construct a complete operational expansion valve.
External Equalization: The external equalizer line senses pressure directly at the evaporator outlet, neutralizing the effect of any pressure drops across the evaporator coils for far more accurate superheat control.

Availability & Delivery

Availability shown is for reference only and will be confirmed at the time the order is processed.
Published quantities may change without prior notice.
The customer is responsible for verifying part number and specifications before confirming the purchase.
Certain products may be considered special order items depending on availability.
