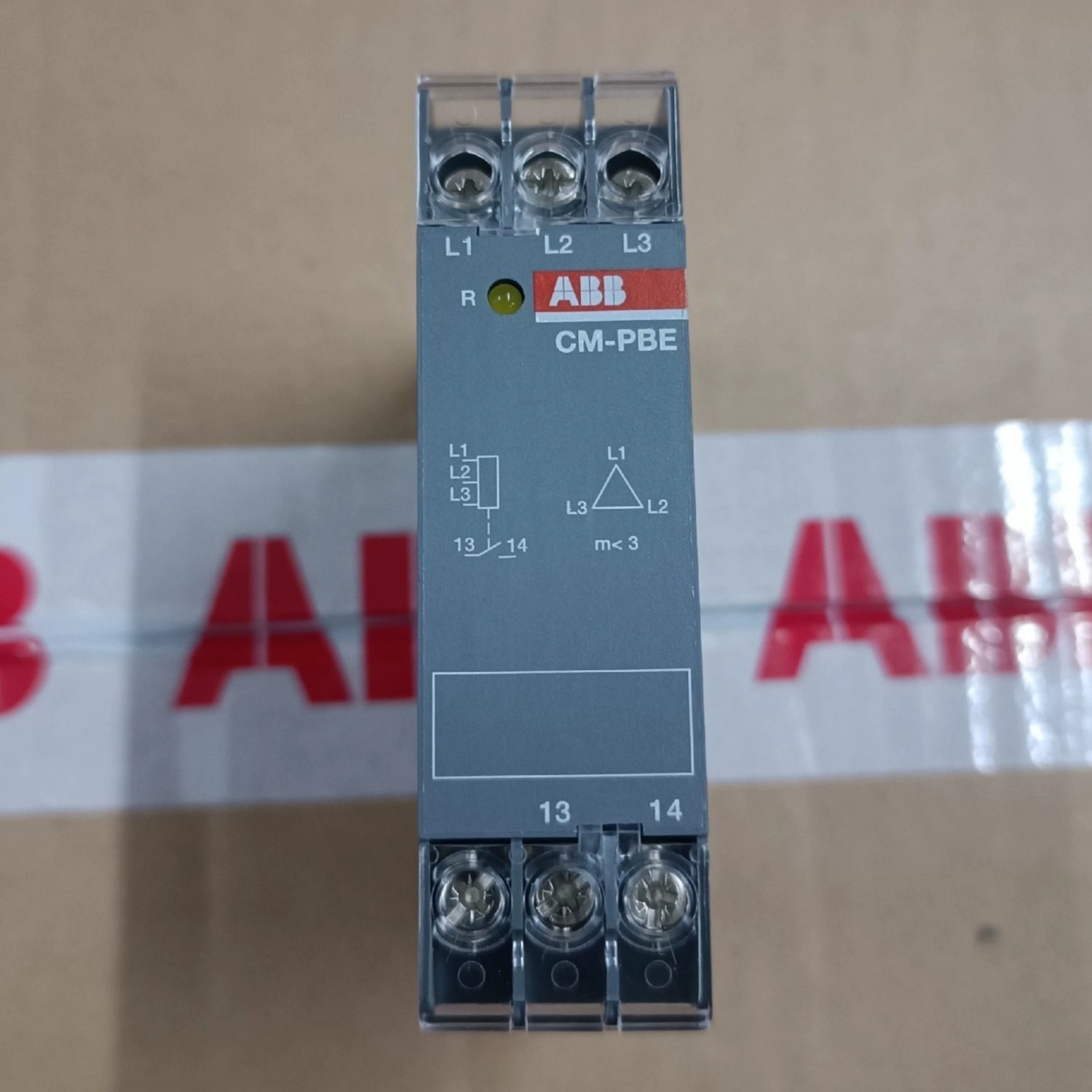

CM-PBE 3×380-440VAC Phase Monitoring Relay For ABB

ABB CM-PBE 3×380-440VAC Three-Phase Monitoring Relay (CM Series) - Image 2

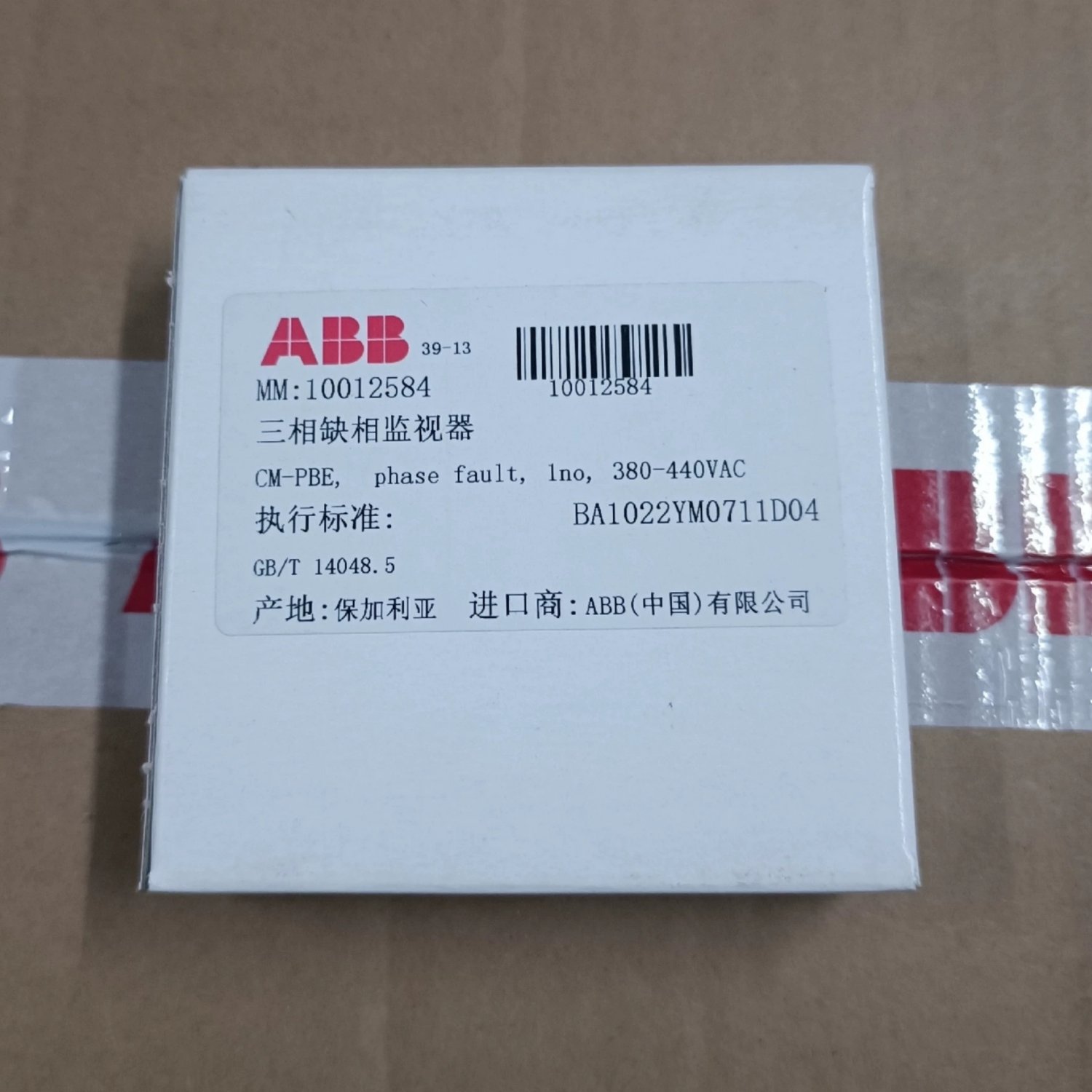

ABB CM-PBE 3×380-440VAC Three-Phase Monitoring Relay (CM Series) - Image 3

ABB CM-PBE 3×380-440VAC Three-Phase Monitoring Relay (CM Series)

REQUEST A QUOTE

Catalog Number / Product ID: 1SVR550882R9500
UPC / EAN: 4013614348136
Measuring & Control Supply Voltage: 380–440 V AC (L₁, L₂, L₃ Line-to-Line, 50/60 Hz)
Output Type: 1 Normally Open (N/O) contact, working on the closed-circuit principle
Contact Rating: 250 V / 4 A
Fixed Trip Threshold: Phase failure occurs when measuring voltage drops below 60% of rated voltage
Timing Parameters: 500 ms start-up delay / 150 ms tripping delay
Terminal / Mounting Type: Screw terminals; Snap-on mounting for standard DIN Rail (TH35)
Status Indicators: Yellow LED for Relay Status (R)
Compliance / Standards: UL 508, CAN/CSA C22.2 No.14, IEC/EN 61000-6-2/3, RoHS

Brand New ABB CM-PBE 3×380-440VAC Phase Monitoring Relay. In stock — ships worldwide within 5-10 days.

1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
