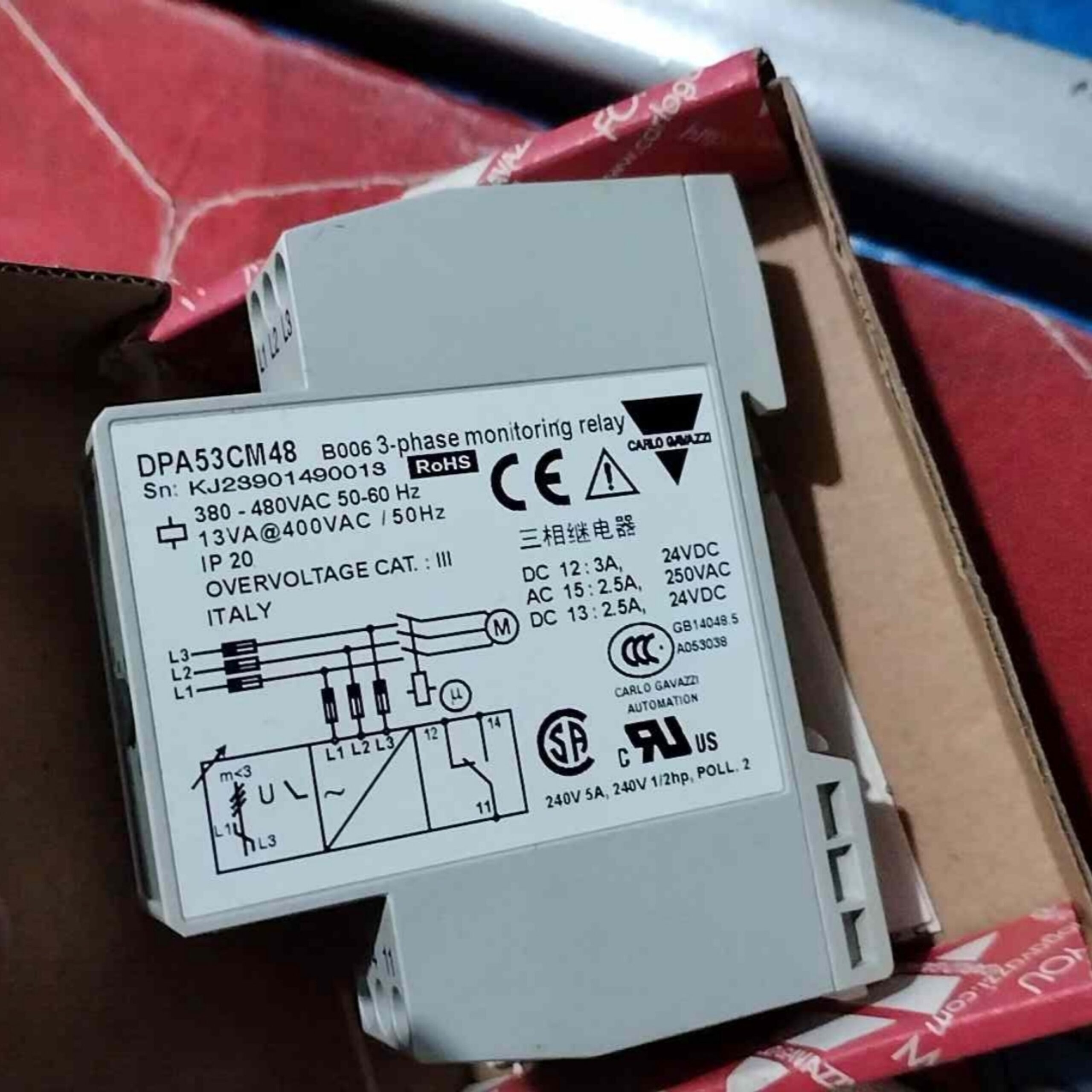

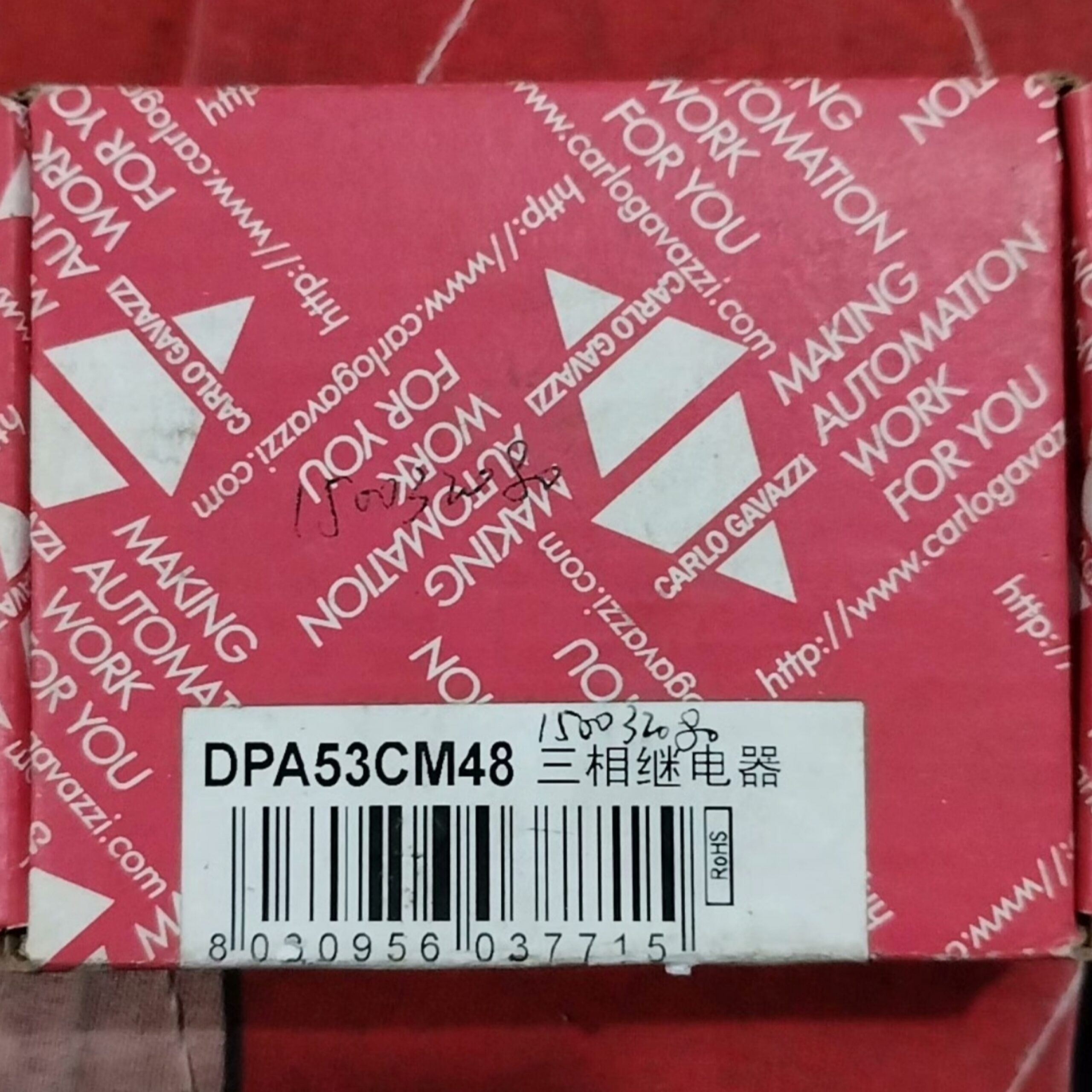

Carlo Gavazzi DPA53CM48 Three-Phase Monitoring Relay
- Manufacturer: Carlo Gavazzi
- Model / Part Number: DPA53CM48
- Nominal voltage range: 380–480 V AC, line-to-line
- Supply tolerance: ±15% (323–552 V AC)
- Nominal frequency: 50–60 Hz
- Power supply: From measured phases L1 and L3
- Power consumption: <13 VA
- Monitoring functions: Phase sequence, phase loss and undervoltage
- Output: 1 SPDT electromechanical relay
- Output terminals: 11, 12, 14
- Alarm logic: Relay de-energised on alarm
- Thermal contact rating: 5 A at 250 V AC
- AC-15 rating: 2.5 A at 250 V AC
- DC-12 rating: 5 A at 24 V DC
- DC-13 rating: 2.5 A at 24 V DC
- Time delay adjustment: None
- Housing width: 17.5 mm
- Mounting: Mini DIN rail
- SKU: DPA53CM48
- New Original In Stock
- 6 Months Warranty
- shipping by DHL or UPS
Availability & Delivery
- Availability shown is for reference only and will be confirmed at the time the order is processed.
- Published quantities may change without prior notice.
- The customer is responsible for verifying part number and specifications before confirming the purchase.
- Certain products may be considered special order items depending on availability.
