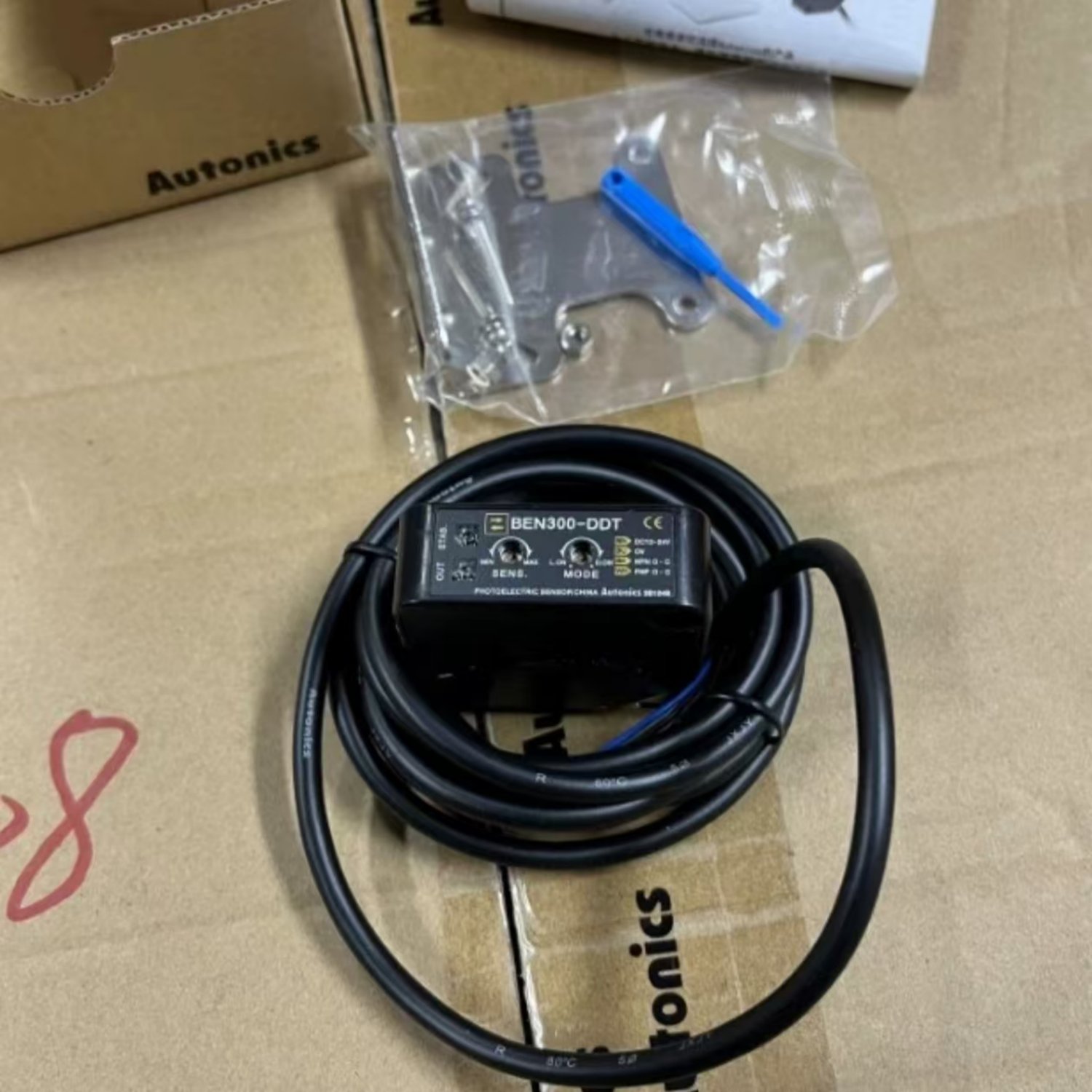

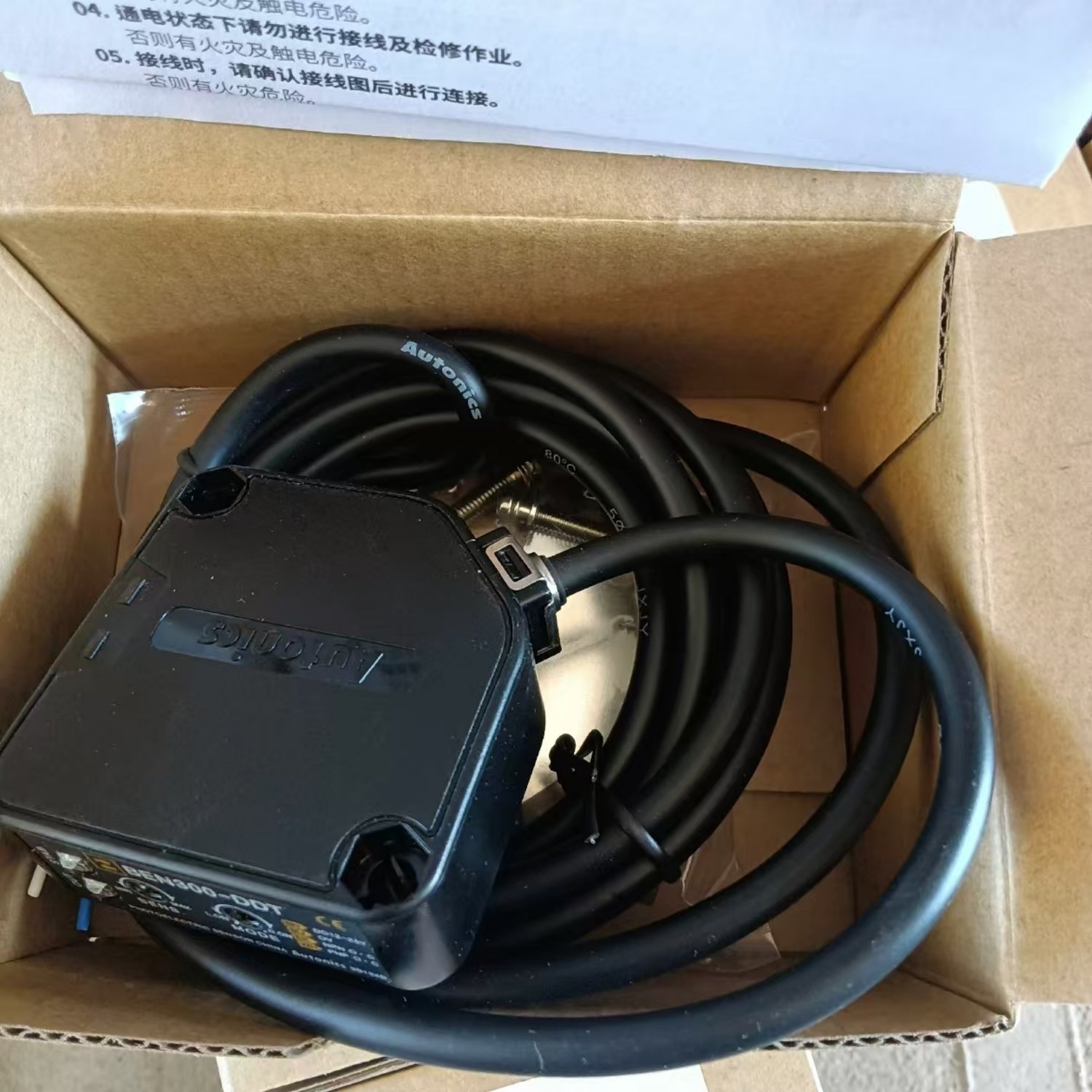

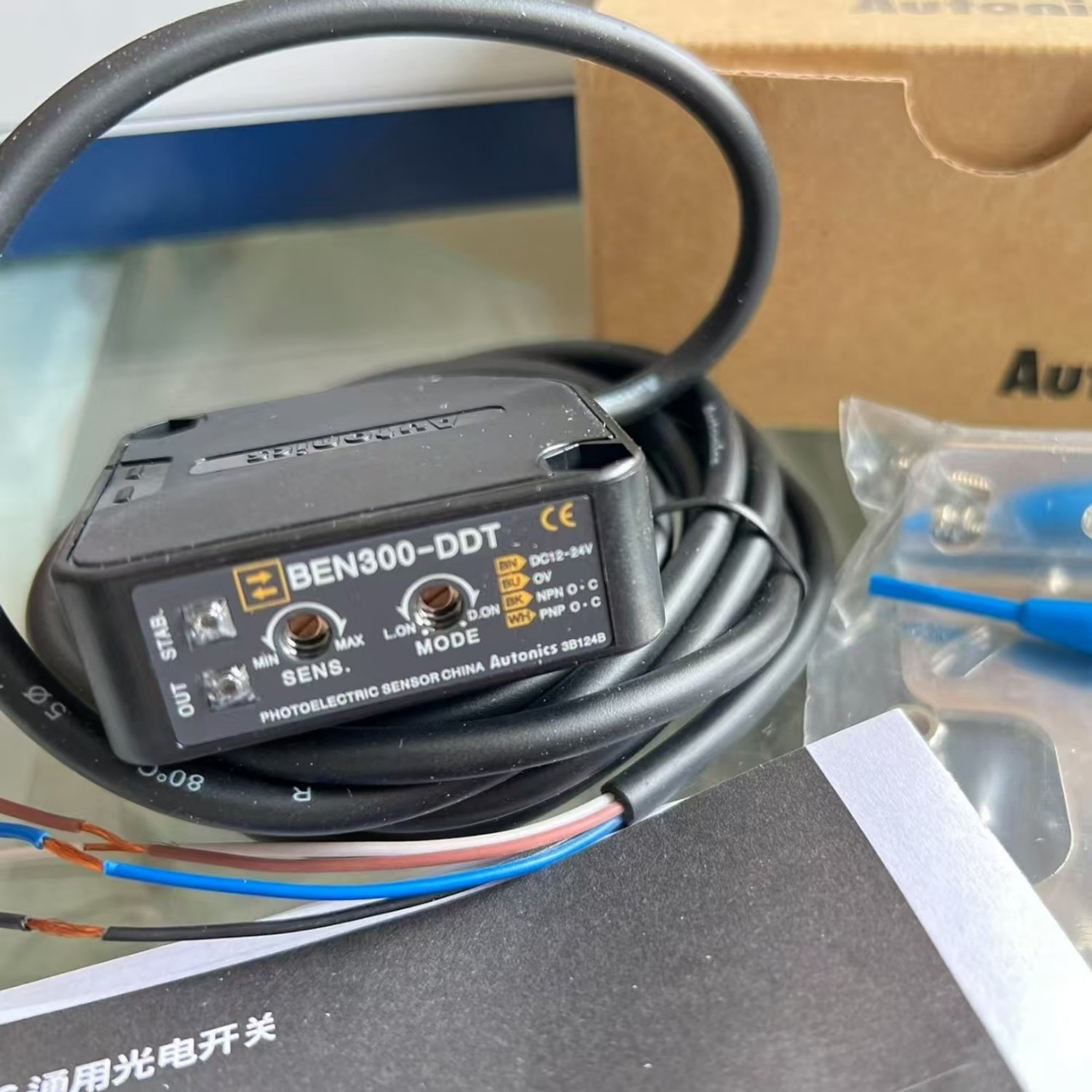

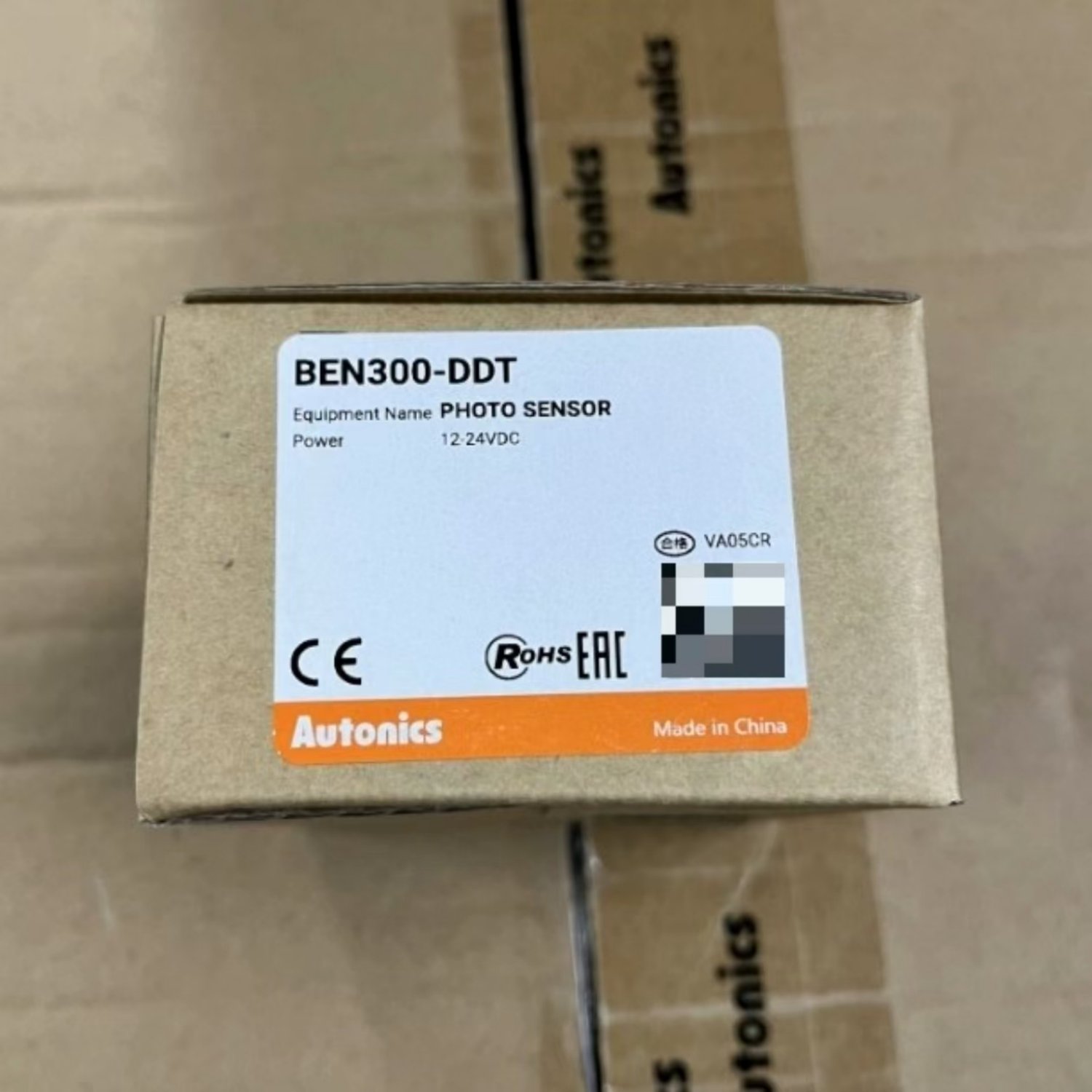

BEN300-DDT AUTONICS Diffuse Reflective Photoelectric Sensor

Sensing Type: Diffuse reflective
Sensing Distance: 300 mm (12 inches)
Sensing Target: Opaque and translucent materials
Light Source: Infrared LED (940 nm)
Response Time: Maximum 1 ms
Power Supply: 12–24 VDC (±10% ripple)
Operation Mode: Light-ON / Dark-ON selectable via a built-in switch
Control Output: NPN and PNP open collector simultaneous output
Connection Type: Attached 2-meter cable
Built-in Amplifier: Avoids the need for external control units, saving space in tight industrial enclosures.
Simultaneous Output: Simplifies wiring and integration by providing both NPN and PNP transistor outputs at once.
Noise Immunity: Features a built-in specialized IC photodiode that filters out electrical interference and ambient sunlight up to 11,000 lx.
Visual Diagnostics: Includes stability and output LED indicators for quick installation, troubleshooting, and alignment checking.
Common Uses: Ideally deployed on assembly lines, conveyor systems, packaging machines, and bottling plants to verify object positioning or piece counting.

Brand New AUTONICS BEN300-DDT Diffuse Reflective Photoelectric Sensor (BEN Series). In stock — ships worldwide within 5-10 days.

1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.

Availability & Delivery

Availability shown is for reference only and will be confirmed at the time the order is processed.
Published quantities may change without prior notice.
The customer is responsible for verifying part number and specifications before confirming the purchase.
Certain products may be considered special order items depending on availability.
