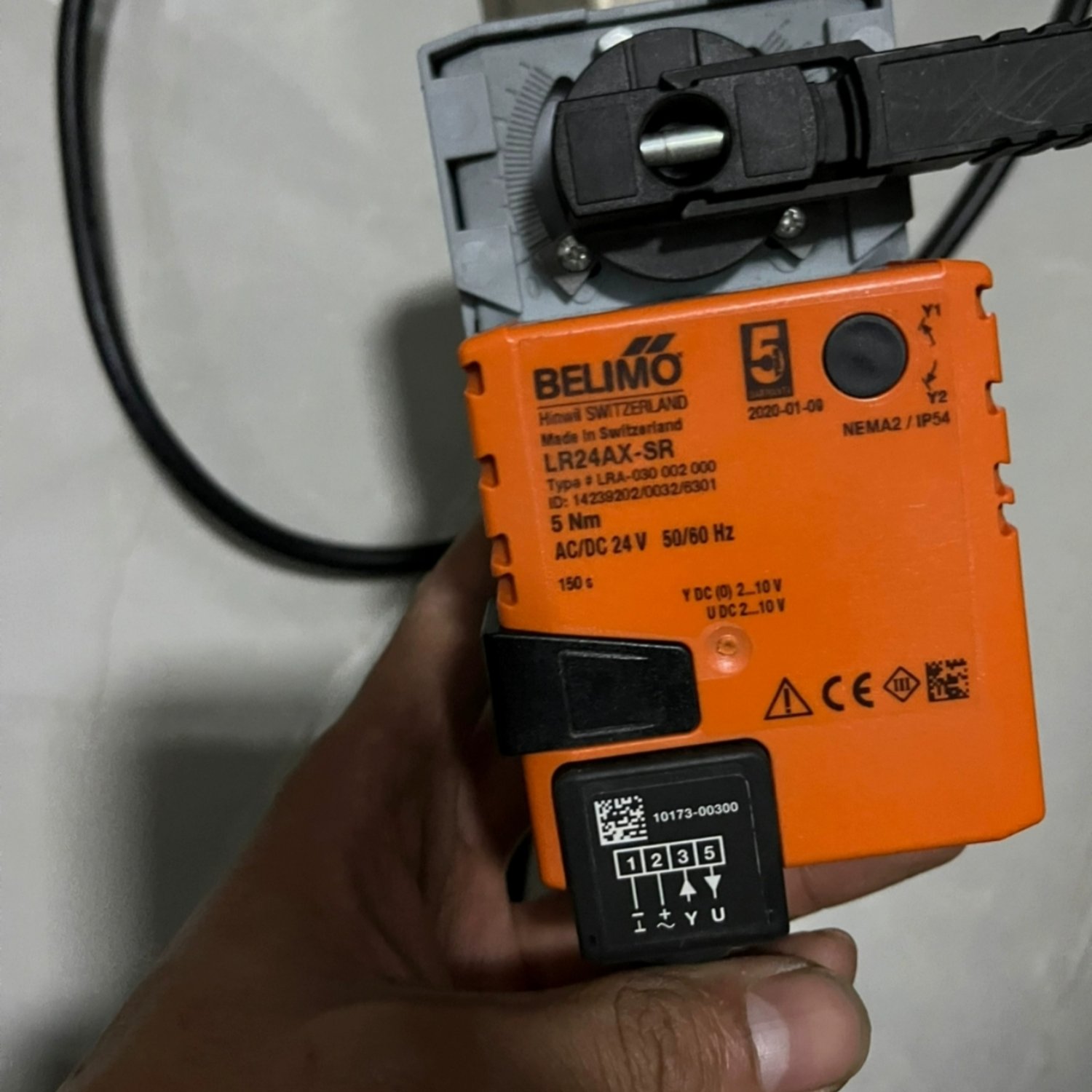

BELIMO LR24AX-SR Ball Valve Rotary Actuator
- Manufacturer: BELIMO
- Model / Part Number: LR24AX-SR
- Nominal Voltage: AC/DC 24 V, 50/60 Hz
- Operating Range: AC/DC 19.2 to 28.8 V
- Power Consumption (Running): 1.5 W
- Power Consumption (Holding): 0.4 W
- Transformer Sizing: 3 VA (wire sizing)
- Electrical Connection: 1-meter pre-installed cable (4 x 0.75 mm²)
- Torque: Minimum 5 Nm at nominal voltage
- Control Input (Y): DC 2…10 V (Input impedance: 100 kΩ)
- Position Feedback (U): DC 2…10 V
- Angle of Rotation: Maximum 90°, adjustable via mechanical end stops
- Running Time: 90 seconds for a 90° rotation
- Manual Override: External push-button (temporary or permanent gear disengagement)
- Direction of Rotation: Reversible switch setting (0/1 or Left/Right selection)
- Protection Class: Class III (safety extra-low voltage)
- Enclosure Rating: IP54 (NEMA 2, UL Enclosure Type 2)
- Ambient Temperature: -30°C to 50°C [-22°F to 122°F]
- SKU: LR24AX-SR
- New Original In Stock
- 6 Months Warranty
- shipping by DHL or UPS
