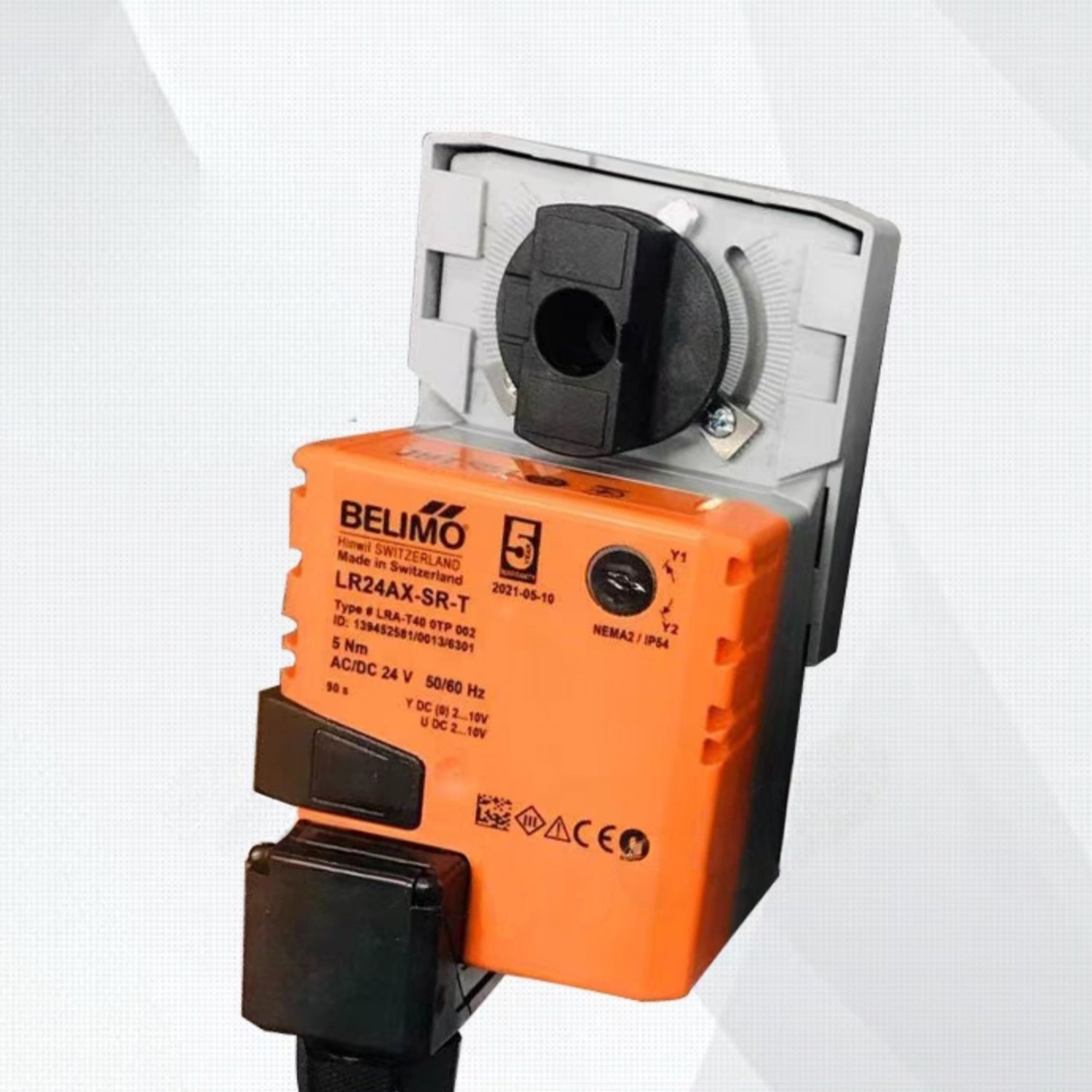

BELIMO LR24AX-SR-T Ball Valve Rotary Actuator

Manufacturer: BELIMO
Model / Part Number: LR24AX-SR-T
Model Type / Breakdown: LR24AX-SR-T (Type: LRA-T40) Aeliya Marine Tech
Nominal Voltage: AC/DC 24 V (50/60 Hz) AC 19.2…28.8 V / DC 19.2…28.8 V
Torque: 5 Nm Ideal for modulating ball valves
Control Signal (Y): DC 0…10 V Operating range: DC 2…10 V
Position Feedback (U): DC 2…10 V For electronic position indication (0…100%)
Power Consumption: 1.5 W (Running) / 0.4 W (Holding) Wire sizing capacity: 3 VA
Running Time: 90 seconds / 90° rotation Standard motor configuration
Connection Type: Screw Terminals ("-T") Unprotected terminal strip/cover interface
Enclosure Rating: IP54 / NEMA 2 Dust and splash-water resistant
Ambient Temperature: -30°C to 50°C (-22°F to 122°F) Maintenance-free design
Unit Weight: 420 grams (0.42 kg) Compact and lightweight build
Simple Direct Mounting: Attaches directly to the ball valve using a single screw. The integrated position indicator doubles as a mounting tool.
Manual Override: Features an external push button that temporarily disengages the gear train for manual adjustment.
High Operational Safety: Overload protected with an automatic stop mechanism at the end stops; no mechanical limit switches required.
Adjustable Rotation Angle: Mechanical end stops allow the default 90° angle of rotation to be customized.

Availability & Delivery

Availability shown is for reference only and will be confirmed at the time the order is processed.
Published quantities may change without prior notice.
The customer is responsible for verifying part number and specifications before confirming the purchase.
Certain products may be considered special order items depending on availability.
