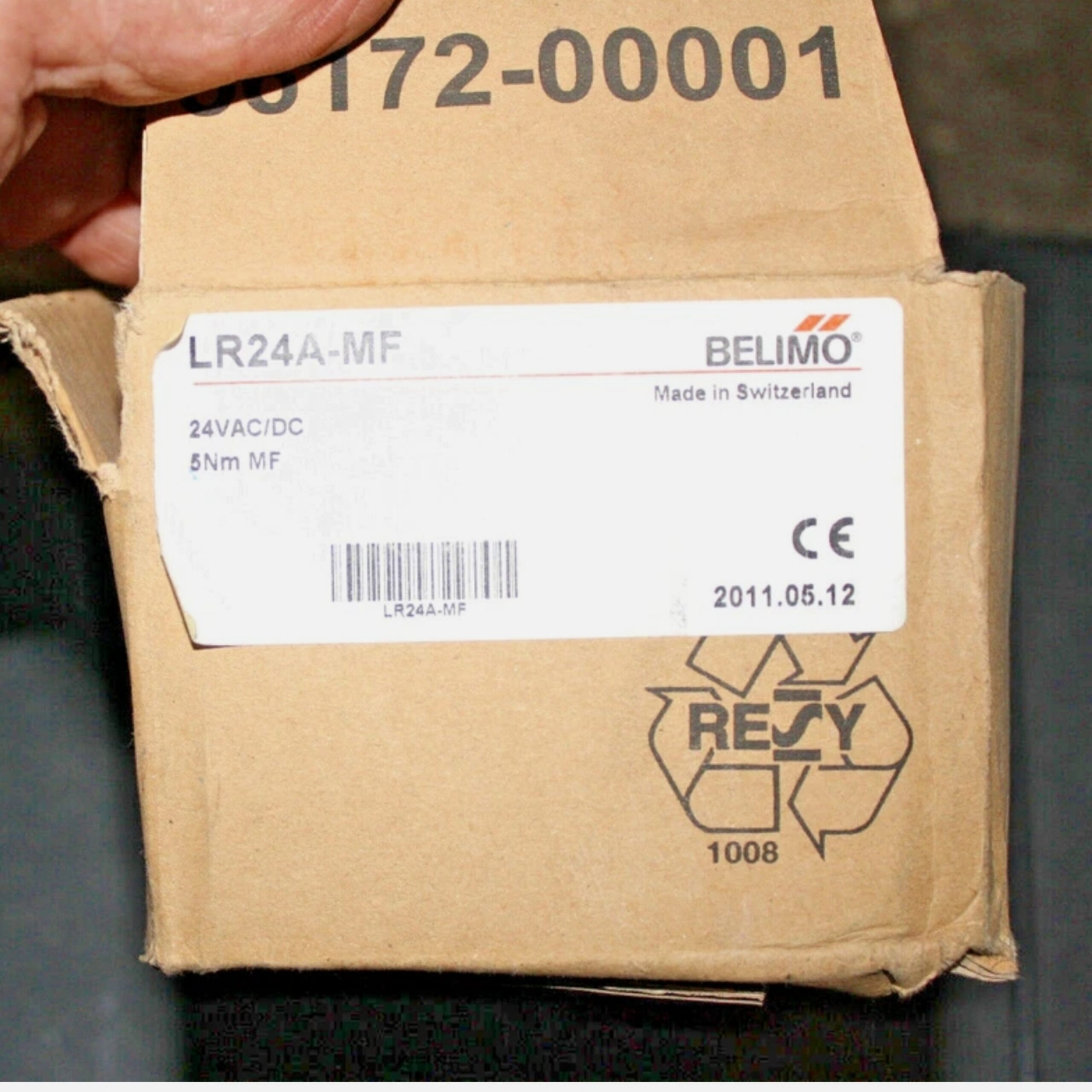

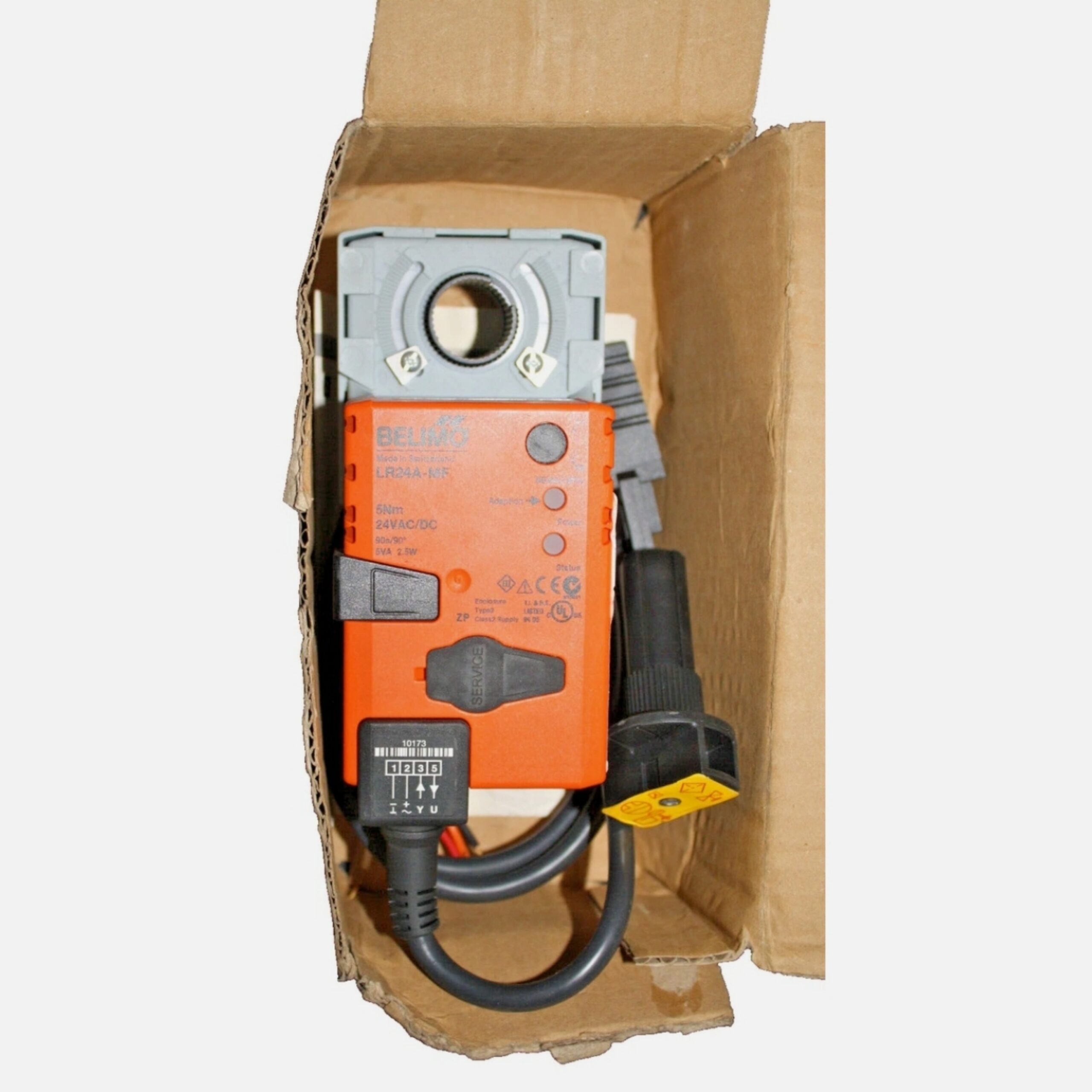

Belimo LR24A-MF Modulating Rotary Valve Actuator
- Manufacturer: Belimo
- Model / Part Number: LR24A-MF
- Nominal supply: 24 V AC/DC
- Supply range: 19.2–28.8 V AC; 21.6–28.8 V DC
- Frequency: 50/60 Hz
- Torque: 5 Nm
- Default control: 2–10 V modulating
- Position feedback: 2–10 V; maximum 0.5 mA
- Input impedance: 100 kΩ
- Running time: 90 seconds per 90°; configurable 35–150 seconds
- Operating power: 2.5 W
- Holding power: 1.2 W
- Wire sizing: 5 VA
- Connection: 1 m cable, 4 × 0.75 mm²
- Manual override: Lockable push-button
- Protection: IP54
- Ambient temperature: −30 to +50 °C
- Weight: 0.59 kg
- SKU: LR24A-MF
- New Original In Stock
- 6 Months Warranty
- shipping by DHL or UPS
