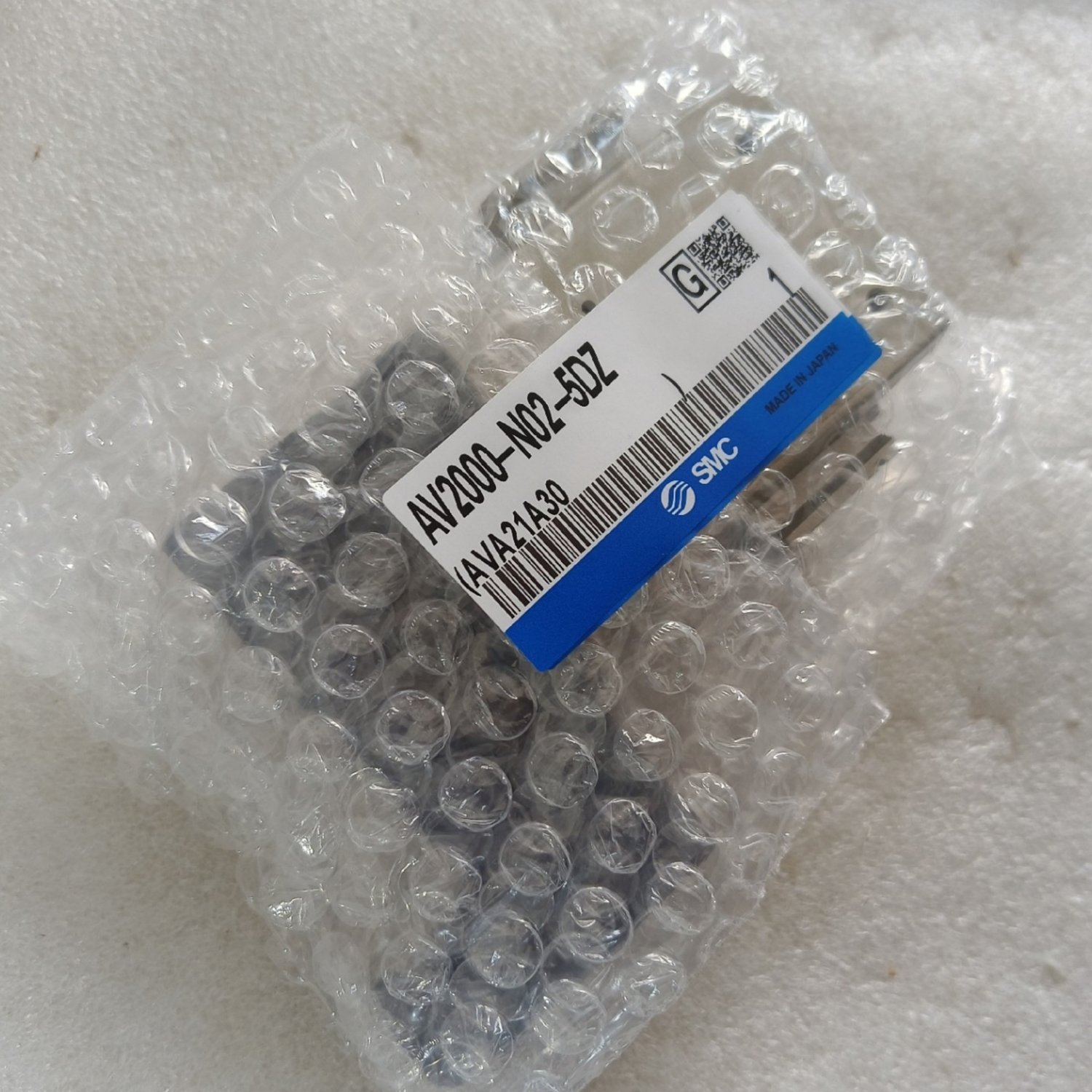

SMC AV2000-N02-5DZ Soft Start Valve (AV2000)

• Fluid & Media: Compressed air (General quality / Dry air)
• Operating Pressure Range: 0.2 to 1.0 MPa (29 to 145 psi)
• Proof Pressure: 1.5 MPa
• Coil Rated Voltage: 24 VDC
• Allowable Voltage Fluctuation: -15% to +10% of rated voltage
• Manual Override: Non-locking push type (Flush style)
• Flow Direction: Left to right
• FRL Compatibility: Features modular connectivity, allowing it to hook directly into SMC combination air preparation units.
• Safety Exhaust: Quickly vents downstream pressure when electrical power to the solenoid is cut.
• Adjustable Start-up Speed: Equipped with a needle valve to adjust the initial low-speed air supply rate before fully switching over to line pressure.

Brand New SMC AV2000-N02-5DZ Soft Starter. In stock — ships worldwide within 5-10 days.

1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
