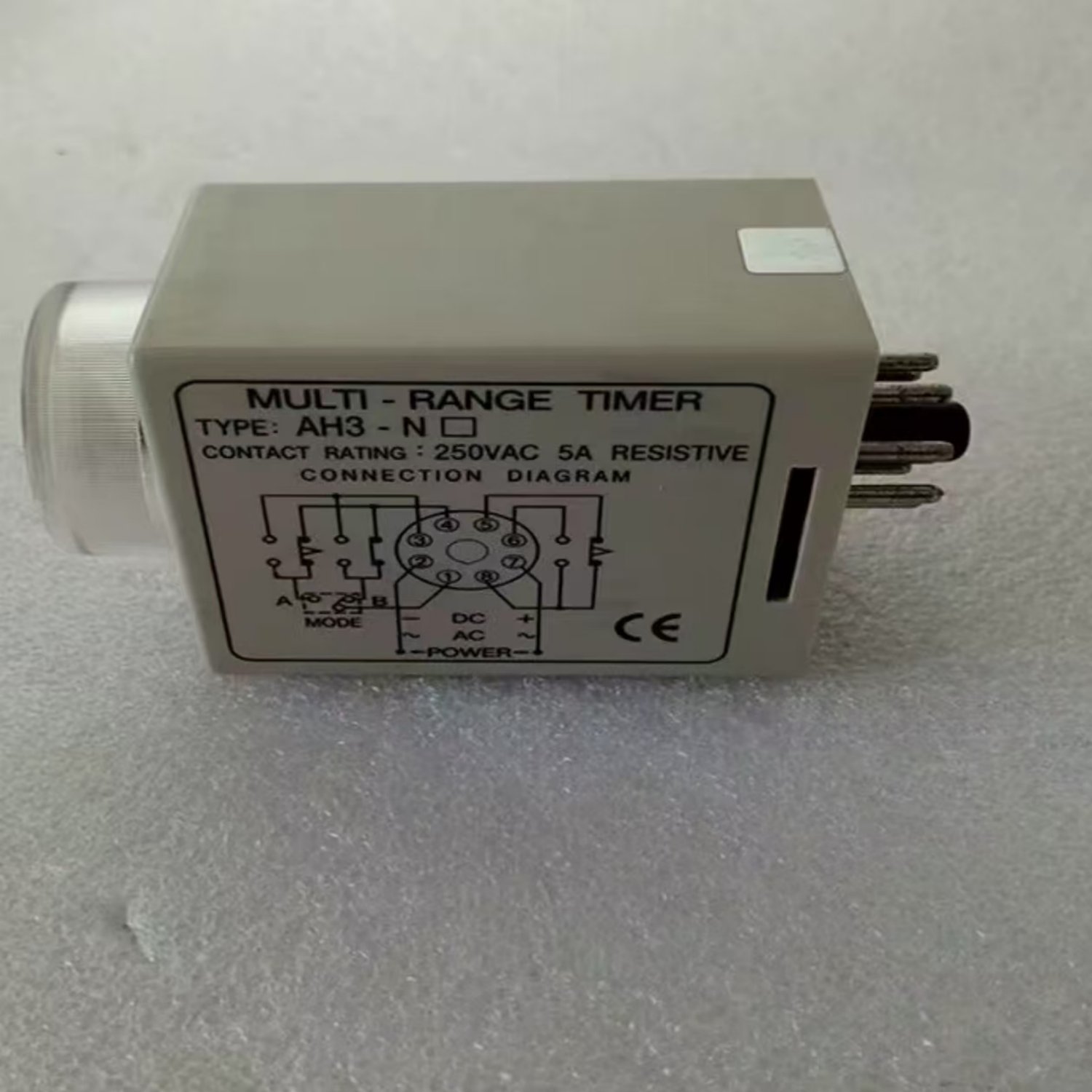

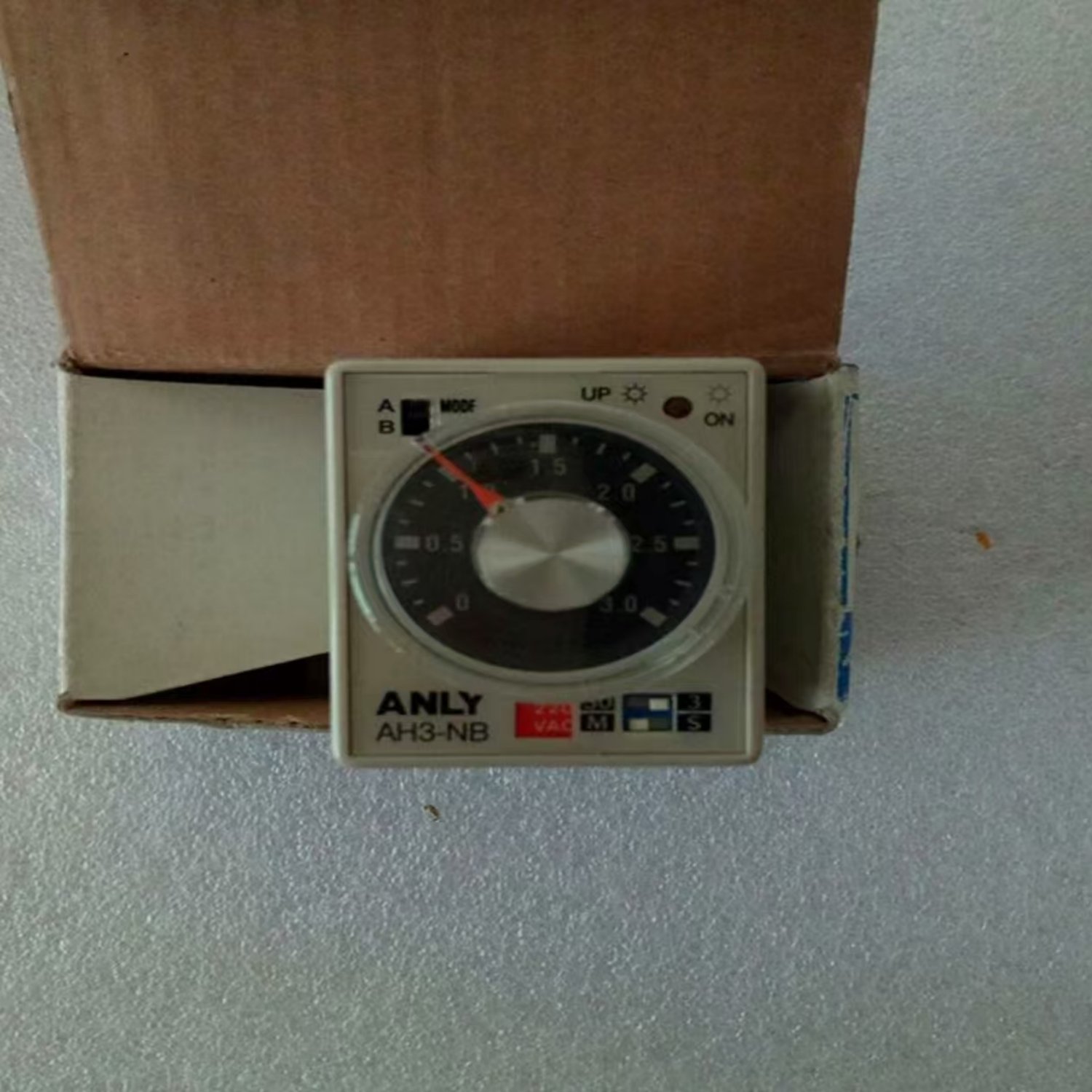

ANLY AH3-NB AC220V Time-Delay Relay (AH3 Series)

• Operating Voltage: 220V AC (Acceptable range: 200V to 240V AC), 50/60 Hz
• Contact Rating: 5A at 250VAC (Resistive load)

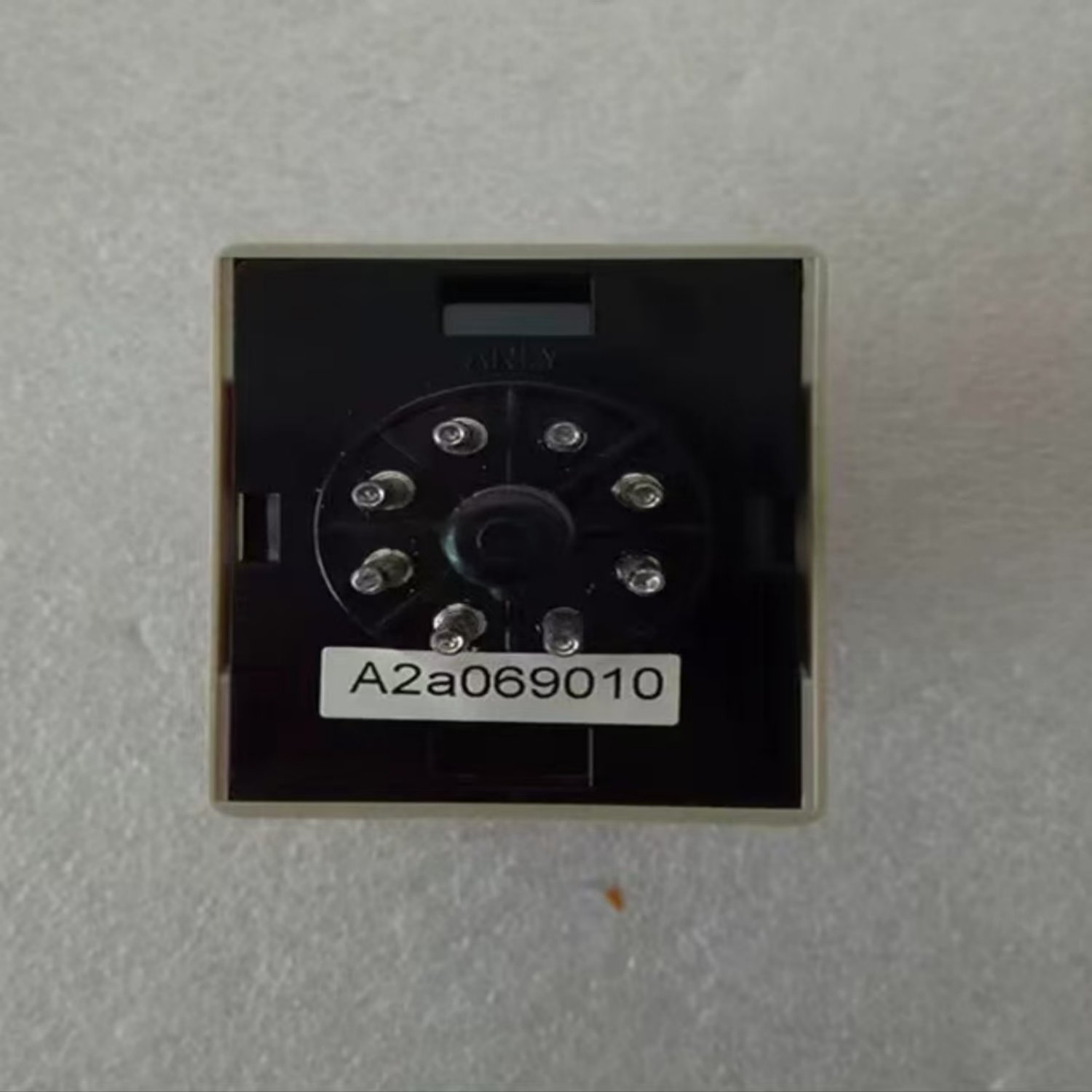

• Pin Configuration: 8-Pin circular plug-in base (typically mounts to a PF083A socket)
• Timing Series (NB): 4 Selectable Ranges: 0–3 seconds, 0–30 seconds, 0–3 minutes, 0–30 minutes
• Dimensions: 50mm × 40mm × 82mm / 1.97" × 1.57" × 3.23" (W × H × D)
• Certifications: CE certified, UL / C-UL recognized, RoHS compliant
• DIP Switch Range Adjustment: The "NB" designation identifies the specific time-scale assortment. Users can configure the hidden DIP switches on the side or bottom of the housing to switch the faceplate's scaling dynamically between seconds (S) and minutes (M).
• A/B Operating Modes: A built-in slide switch allows the operator to alternate between two distinct contact behaviors:
• Mounting Adaptability: Out of the box, it is designed for surface mounting or standard DIN-rail mounting via an 8-pin base socket. It can also be flush-mounted into a control panel cutout using a standard Type Y-40 adapter.

Brand New ANLY AH3-NB AC220V Relay. In stock — ships worldwide within 5-10 days.

1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
