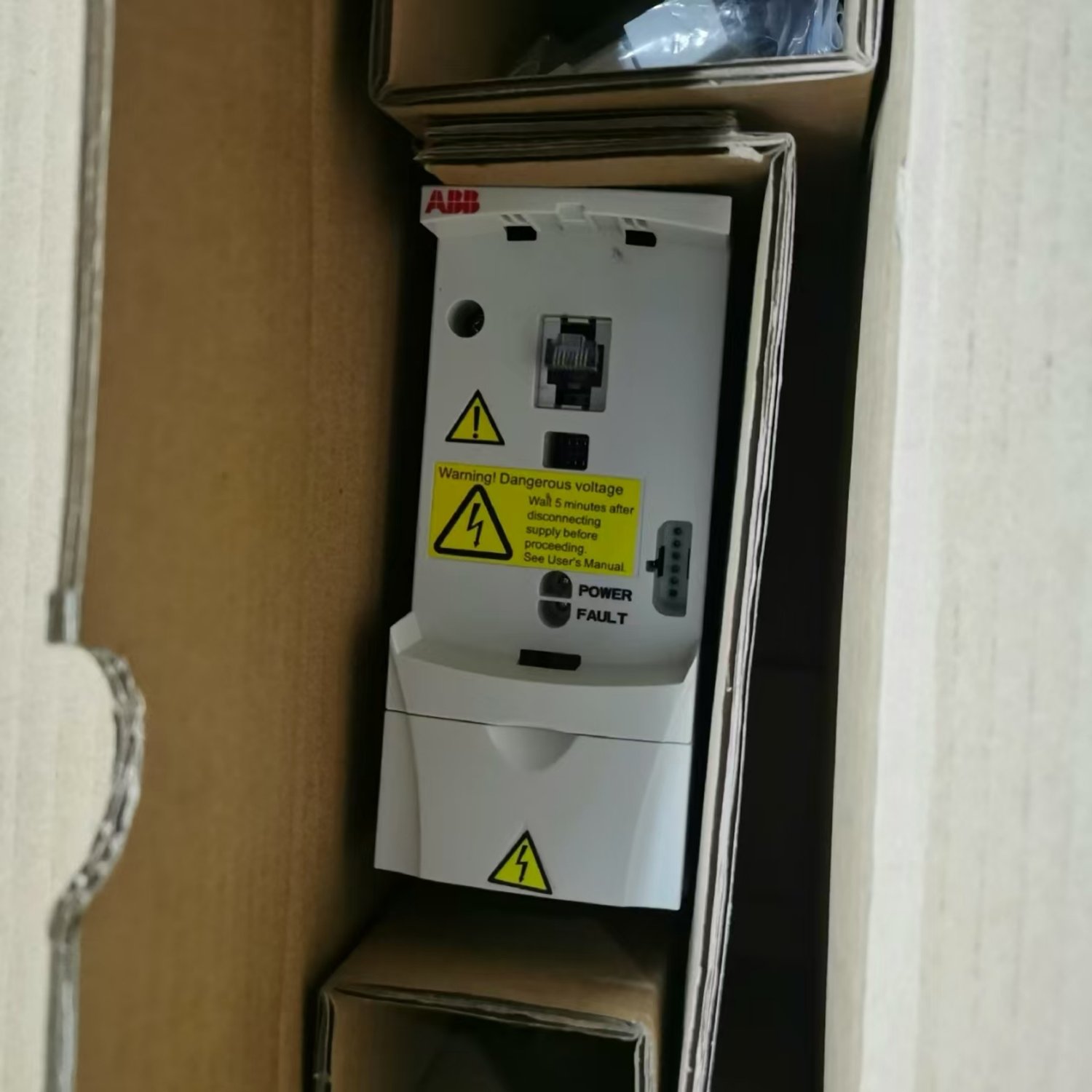

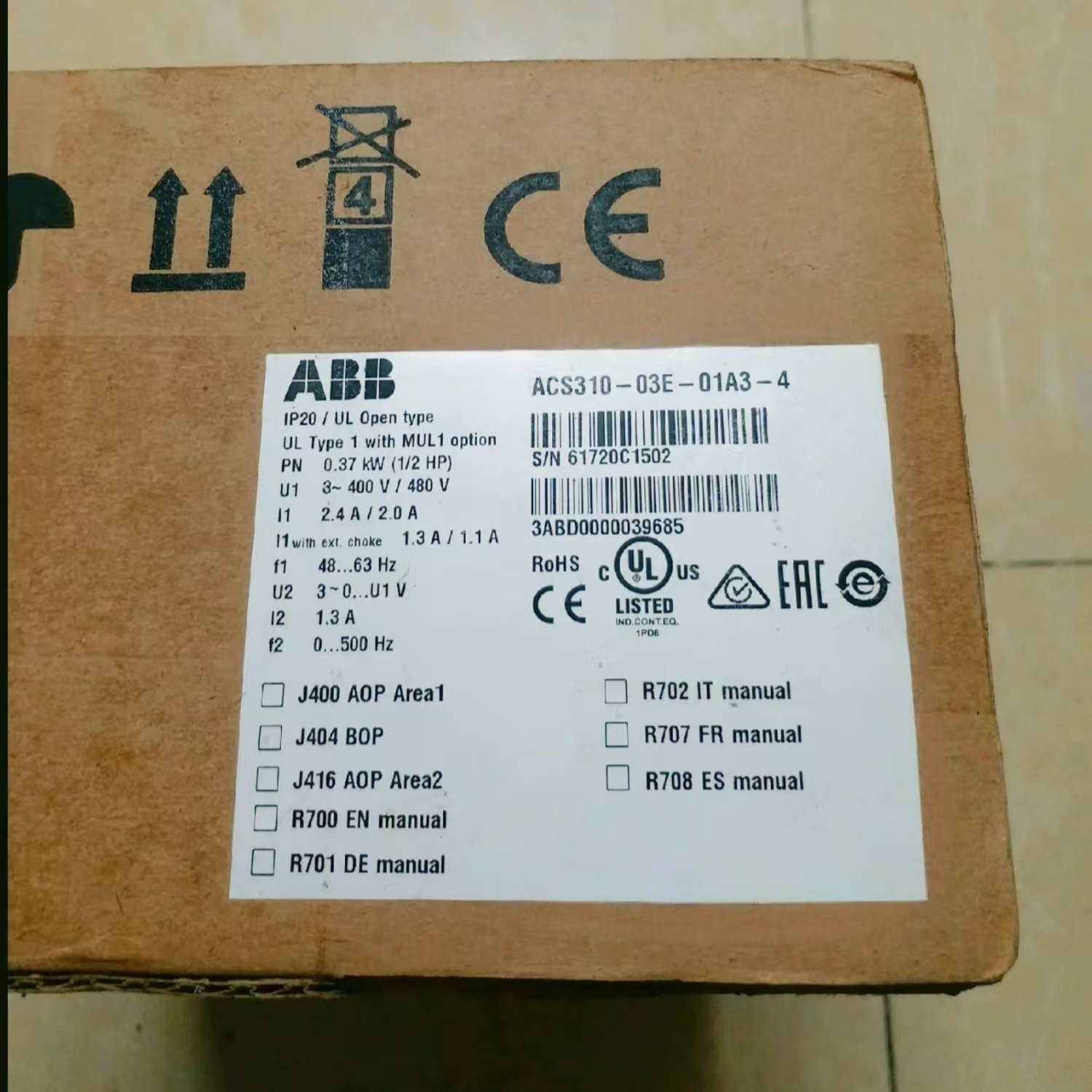

ACS310-03E-01A3-4 ABB Variable Frequency Drive

Product ID / Type Designation: 3AUA0000039625 / ACS310-03E-01A3-4
Rated Motor Power: 0.37 kW (0.5 HP)
Input Voltage: 380–480 V AC, 3-phase
Output Current: 1.3 A
Output Frequency: 0 to 500 Hz
Control Type: Scalar (V/f) control
Overload Capacity: 110% for 60 seconds
Enclosure Rating: IP20 (Must be wall-mounted in a clean environment or cubicle-mounted)
Frame Size: R0
Digital Inputs: 5
Analog Inputs: 2 (configurable)
Analog Outputs: 1
Relay Outputs: 1
Embedded Communication: Modbus RTU (via EIA-485 interface)
Pump & Fan Control (PFC): Built-in macros to alternate and control multiple pumps or fans based on system demand.
Application Functions: Integrated PID controllers, sleep mode, energy optimizer, and specialized pump cleaning/maintenance functions.
Integrated EMC Filter: Includes a built-in C2 EMC filter for the second environment.
Net Weight: 1.1 kg
Mounting Type: 35mm DIN rail or wall-mounted via rear screw holes

Brand New ABB ACS310-03E-01A3-4 Variable Frequency Drive (ACS310 Series). In stock — ships worldwide within 5-10 days.

1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
