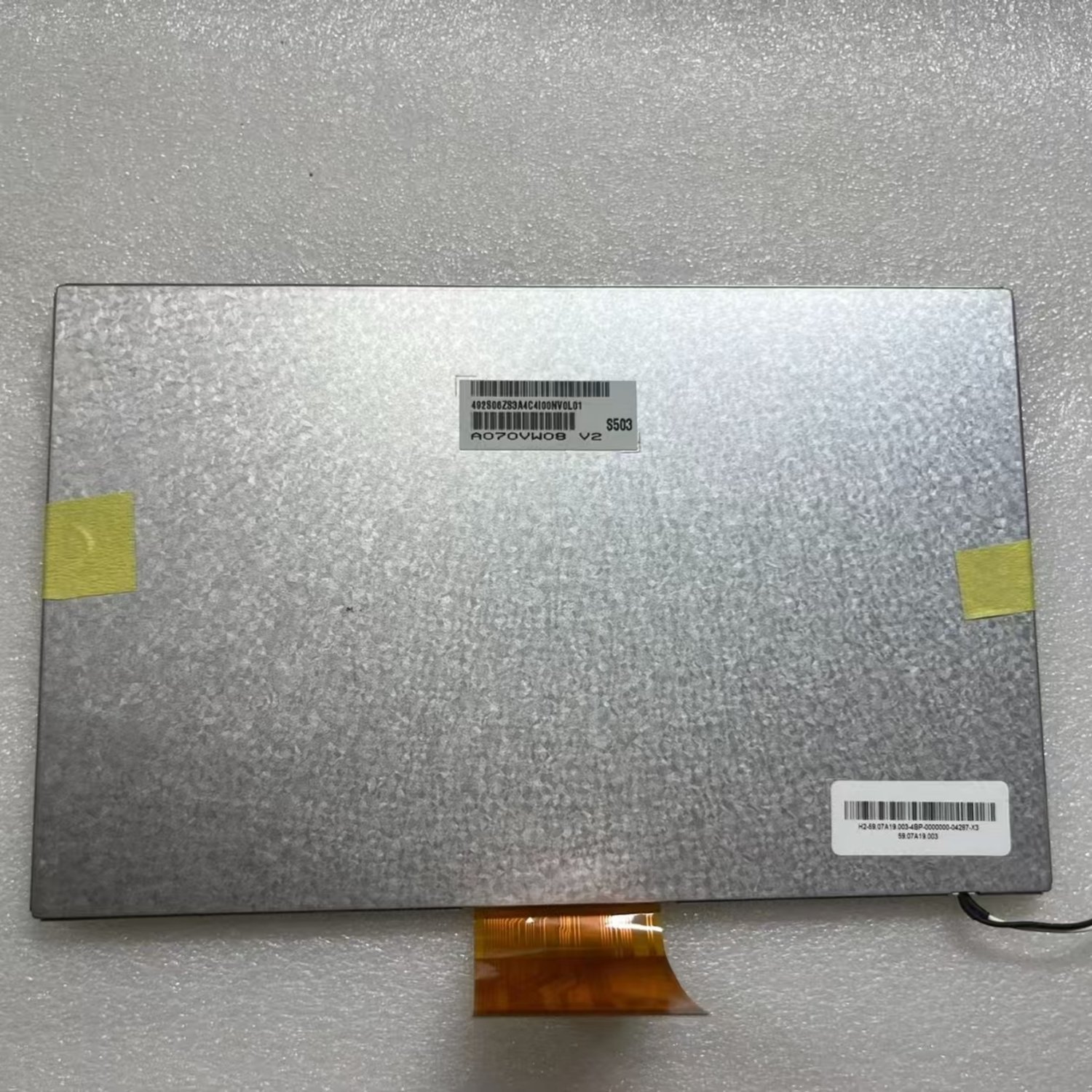

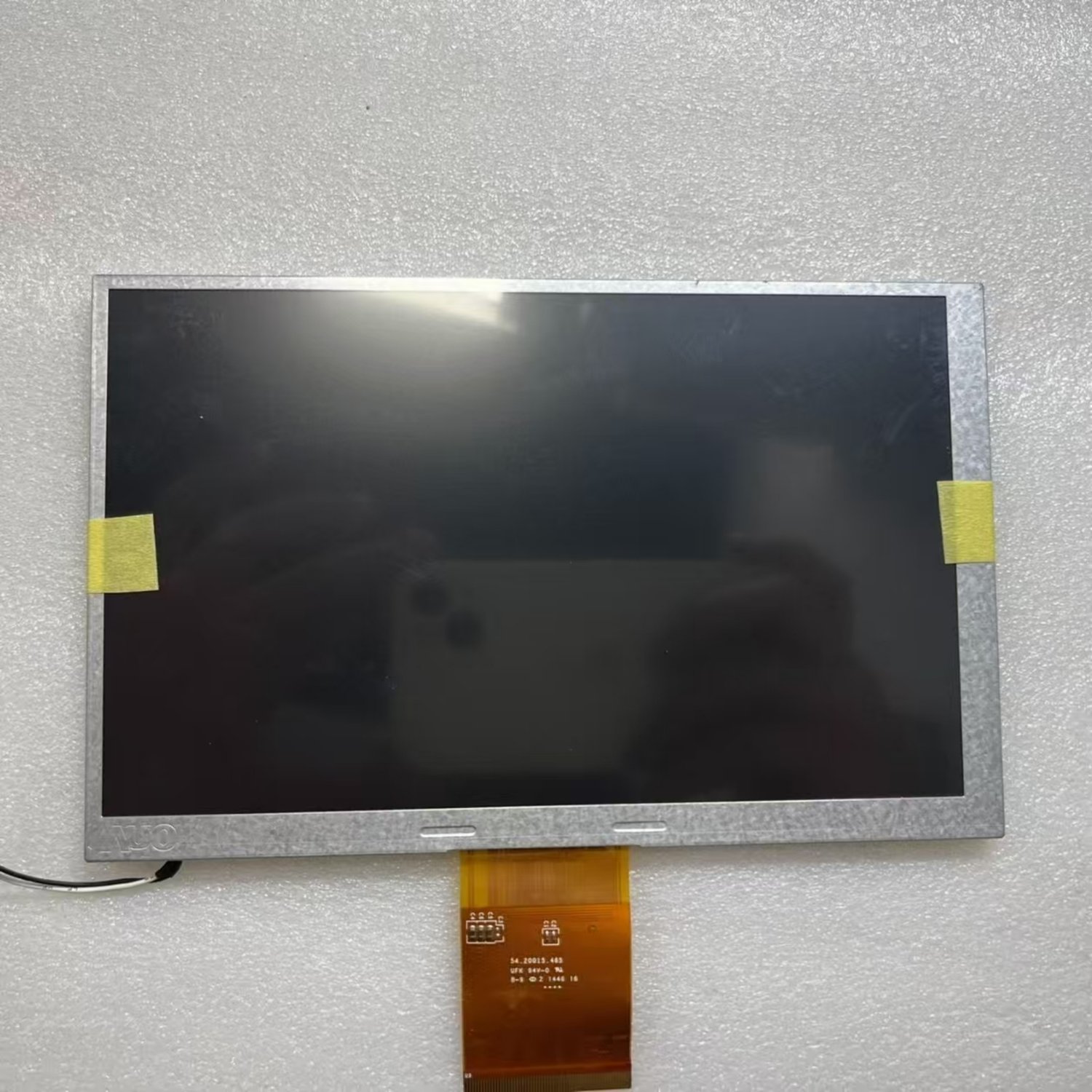

A070VW08 V2 AUO Rugged TFT-LCD Display Panel
- Screen Size: 7.0 inches diagonal
- Resolution: 800 × 480 pixels (WVGA) with a 15:9 widescreen aspect ratio
- Display Mode: TN, Normally White, Transmissive
- Brightness: 500 nits (cd/m²) typical
- Contrast Ratio: 500:1
- Signal Interface: TTL (1-channel, 8-bit) + SPI via a 60-pin FPC (Flexible Printed Circuit) connector
- Backlight System: WLED array (3S11P) with an approximate 10,000-hour operational lifespan
- Surface Treatment: Anti-glare matte finish with a 3H hard coating
- Operating Temperature: Range of -20°C to 70°C (Storage: -30°C to 80°C)
- Input Voltage requirements: 3.3V / 5V / -5V / 14V / -14V (VCC / VDPA / VDNA / VGH / VGL)
- Touchscreen: This module does not include an integrated touch panel.
Brand New AUO A070VW08 V2 Rugged TFT-LCD Display Panel (A070VW08 Series). In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
- SKU: A070VW08 V2
- New Original In Stock
- 6 Months Warranty
- shipping by DHL or UPS
