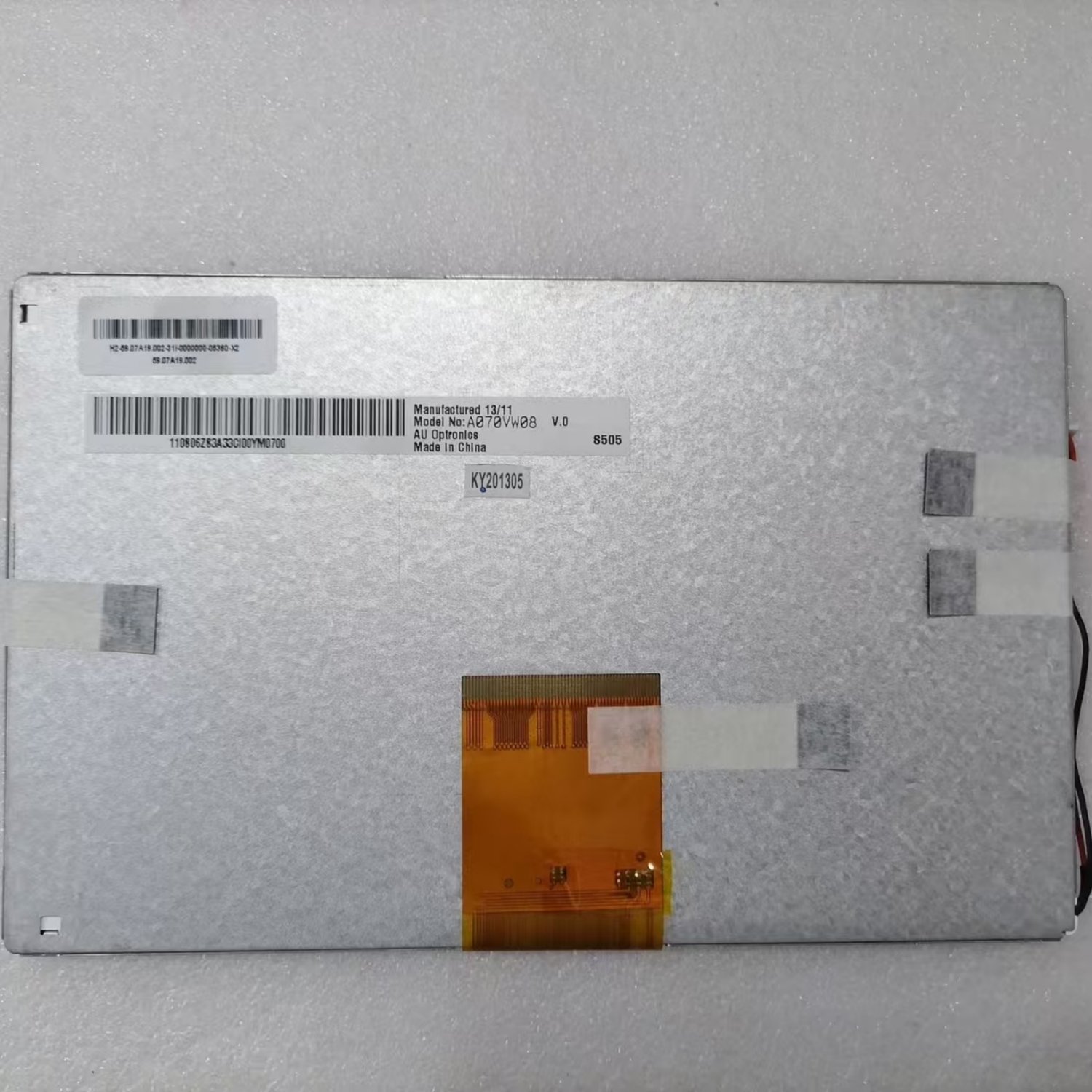

A070VW08 V0 AUO TFT-LCD Display Panel

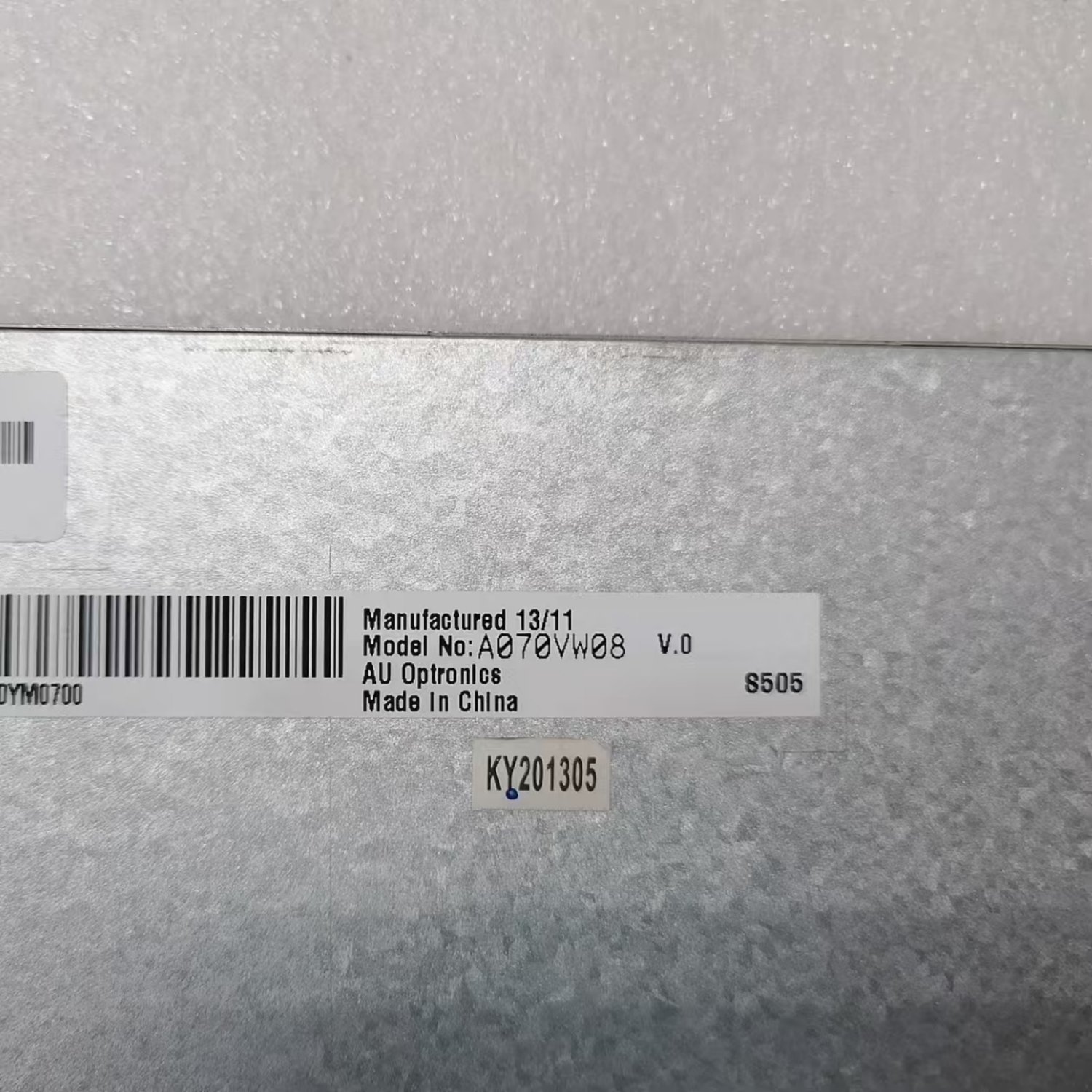

A070VW08 V0 AUO TFT-LCD Display Panel - Image 2

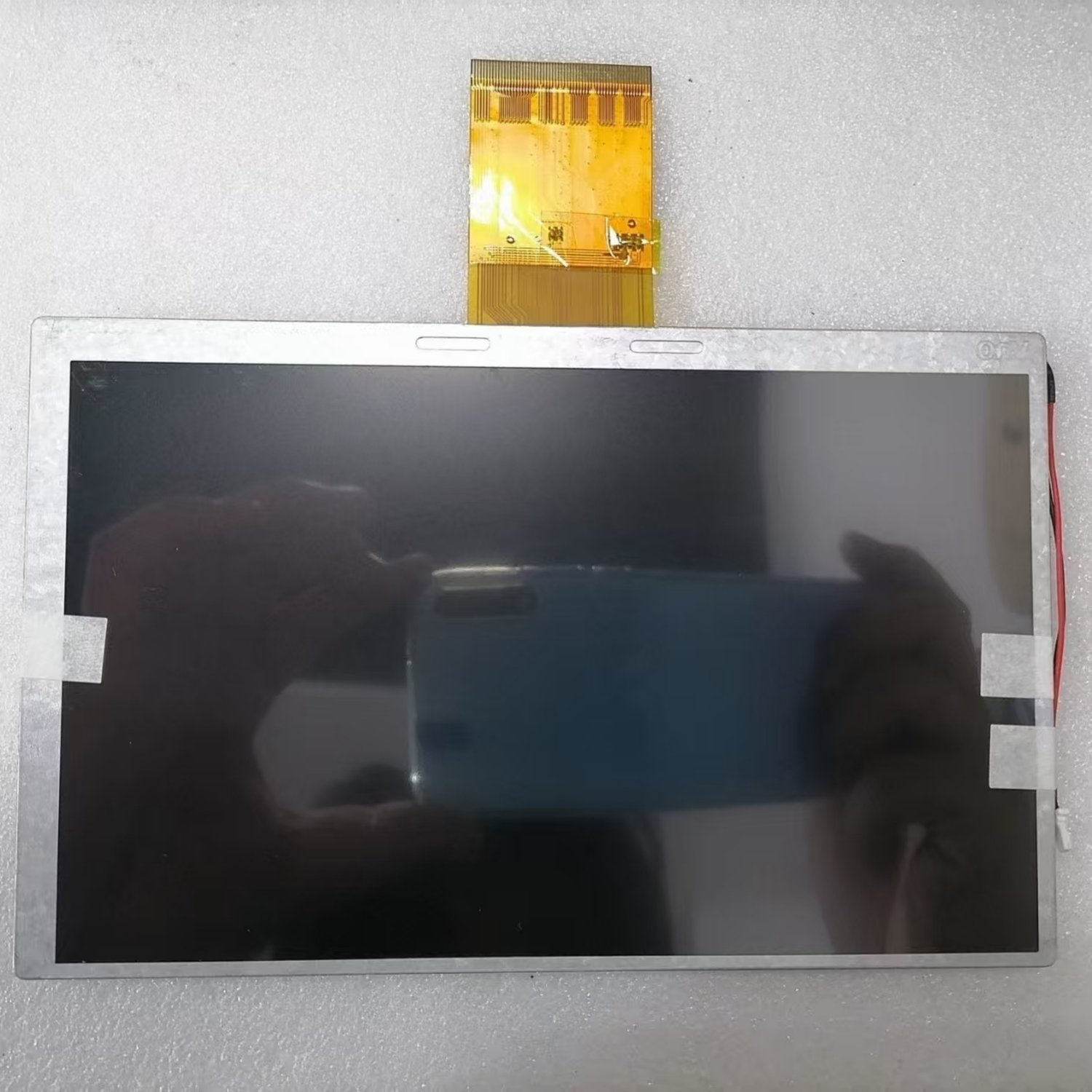

A070VW08 V0 AUO TFT-LCD Display Panel - Image 3

A070VW08 V0 AUO TFT-LCD Display Panel

REQUEST A QUOTE

  • Resolution: 800 × 480 pixels (WVGA) with an aspect ratio of 15:9.
  • Interface: TTL (1-ch, 8-bit) + SPI via a 60-pin FPC connection.
  • Display Technology: TN mode, normally white, transmissive.
  • Brightness: 250 cd/m² typical (Note: The V2 variant increases this to 500 cd/m² for sunlight readability).
  • Contrast Ratio: 500:1 (Typical).
  • Surface Treatment: Anti-glare coating with a hard coating (3H) rating.
  • Physical Outline Dimensions: 164.0 (W) × 103.0 (H) × 5.3 (D) mm.
  • Operating Temperature: -10°C to 60°C (Storage: -20°C to 70°C).
  • Datasheet Reference: Detailed physical line drawings and individual pin assignments can be reviewed via the Beyondinfinite LCD Database.

A070VW08 V0 AUO TFT-LCD Display Panel.

  • SKU: A070VW08 V0
  • New Original In Stock
  • 6 Months Warranty
  • shipping by DHL or UPS
  • Availability shown is for reference only and will be confirmed at the time the order is processed.
  • Published quantities may change without prior notice.
  • The customer is responsible for verifying part number and specifications before confirming the purchase.
  • Certain products may be considered special order items depending on availability.
  • Extensive experience in industrial automation.
  • We source hard-to-find or discontinued parts.
  • Network of international manufacturers and distributors.
  • Personalized support for urgent requirements.
