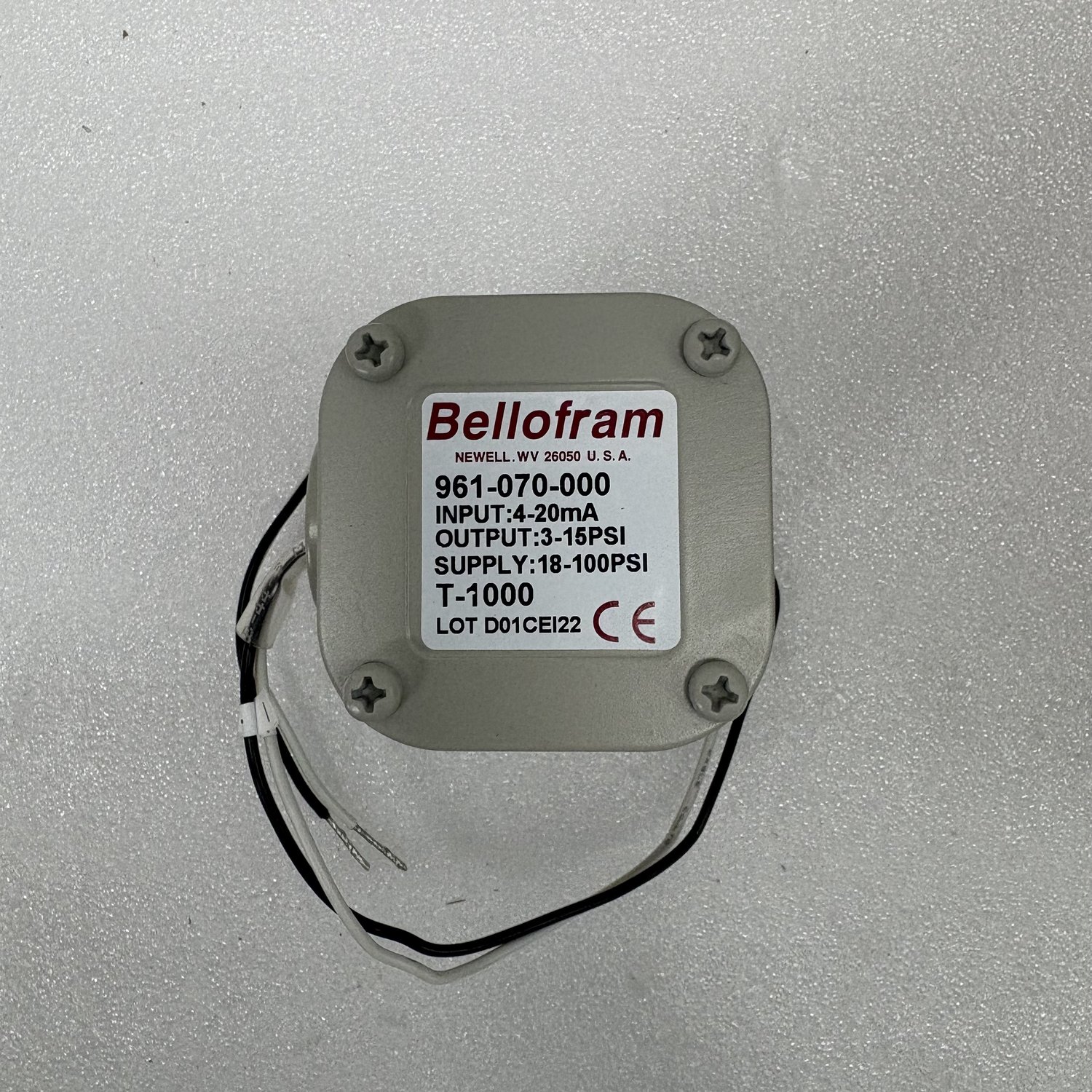

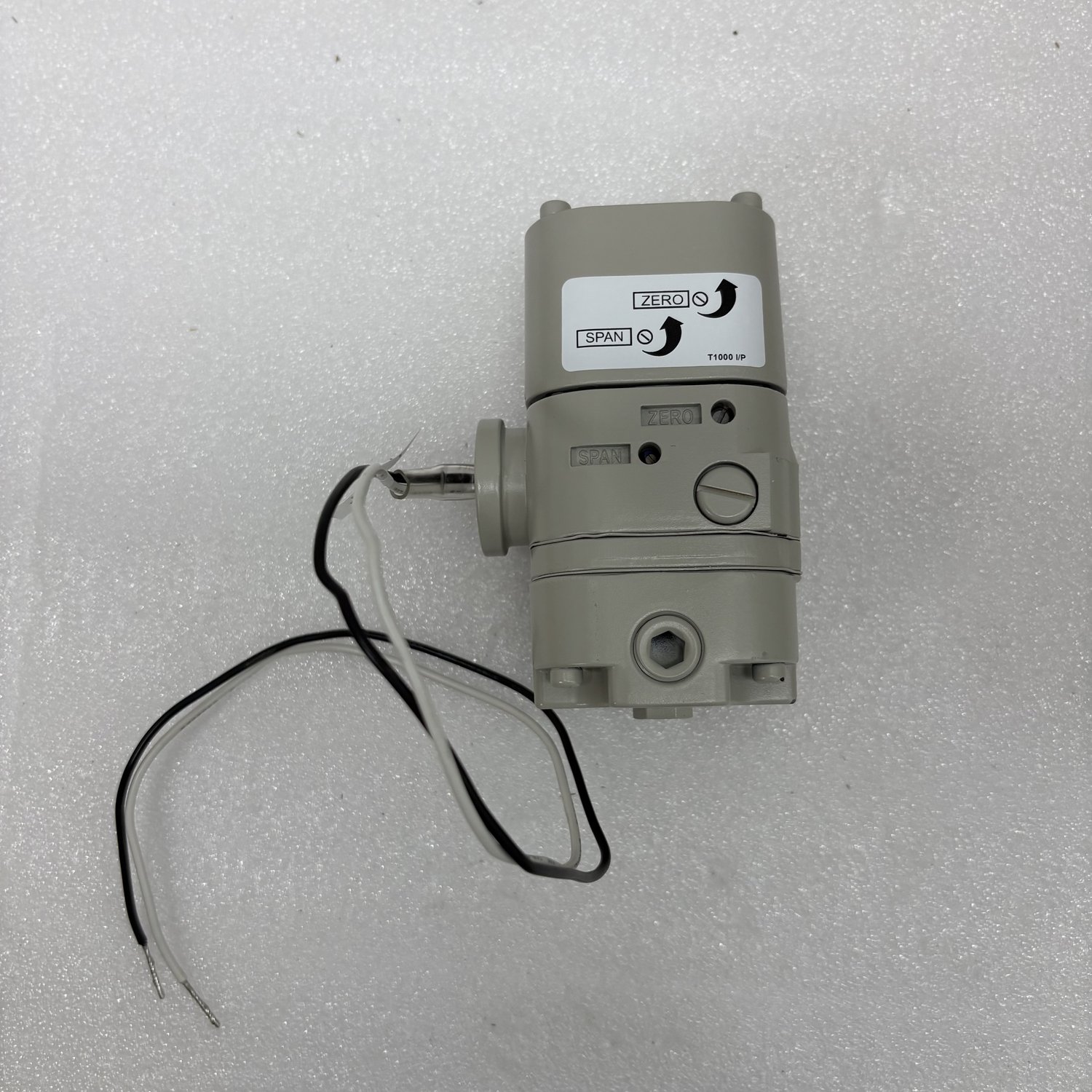

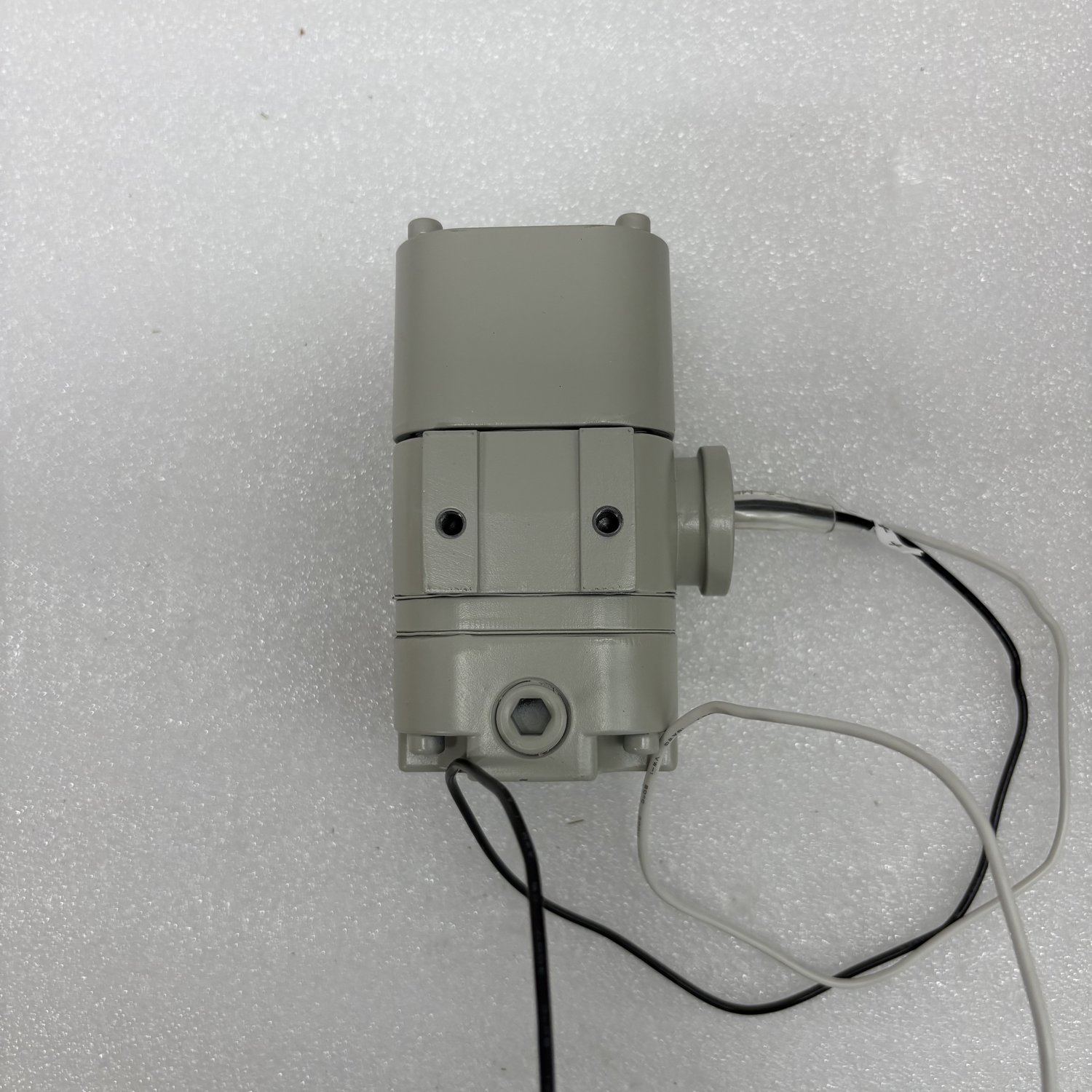

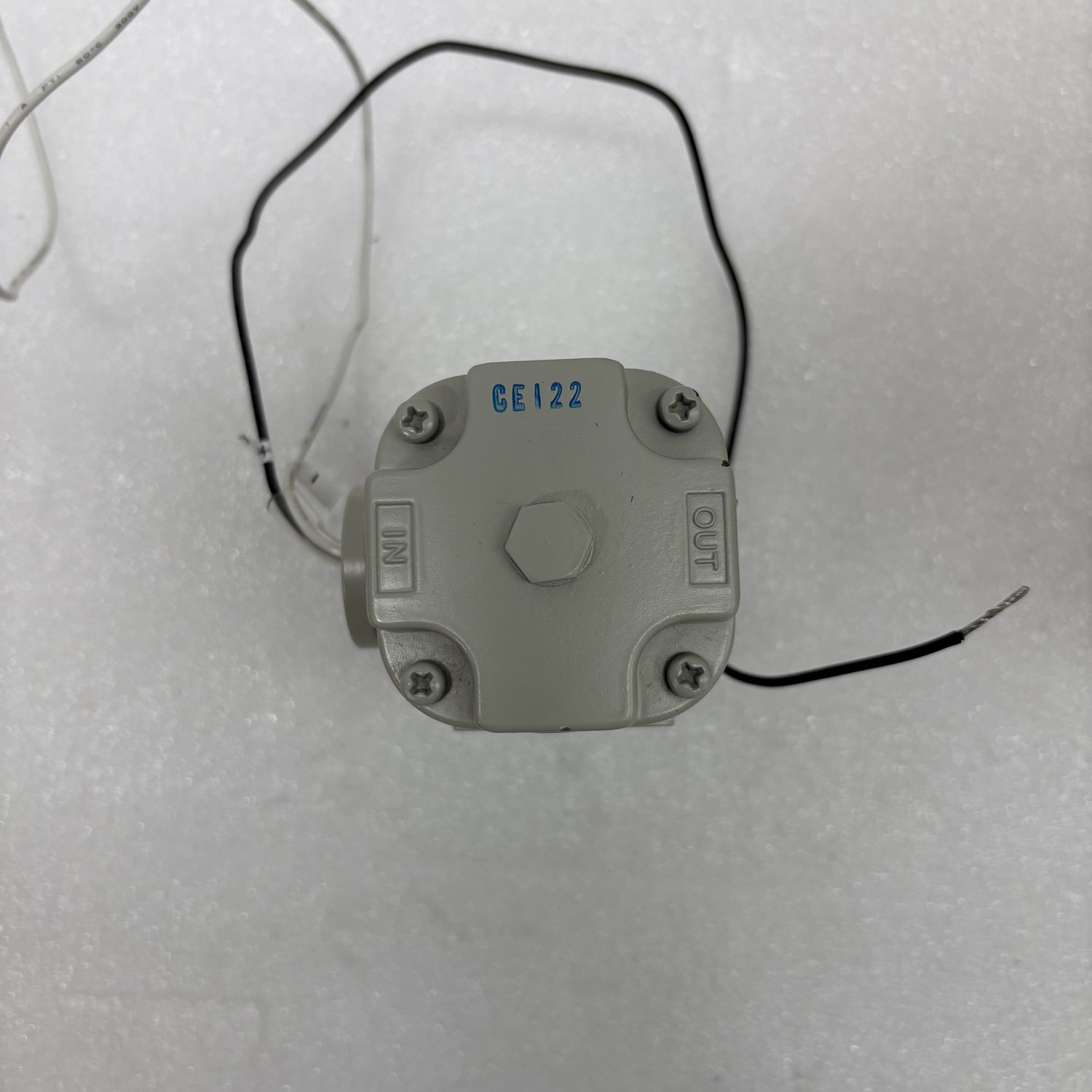

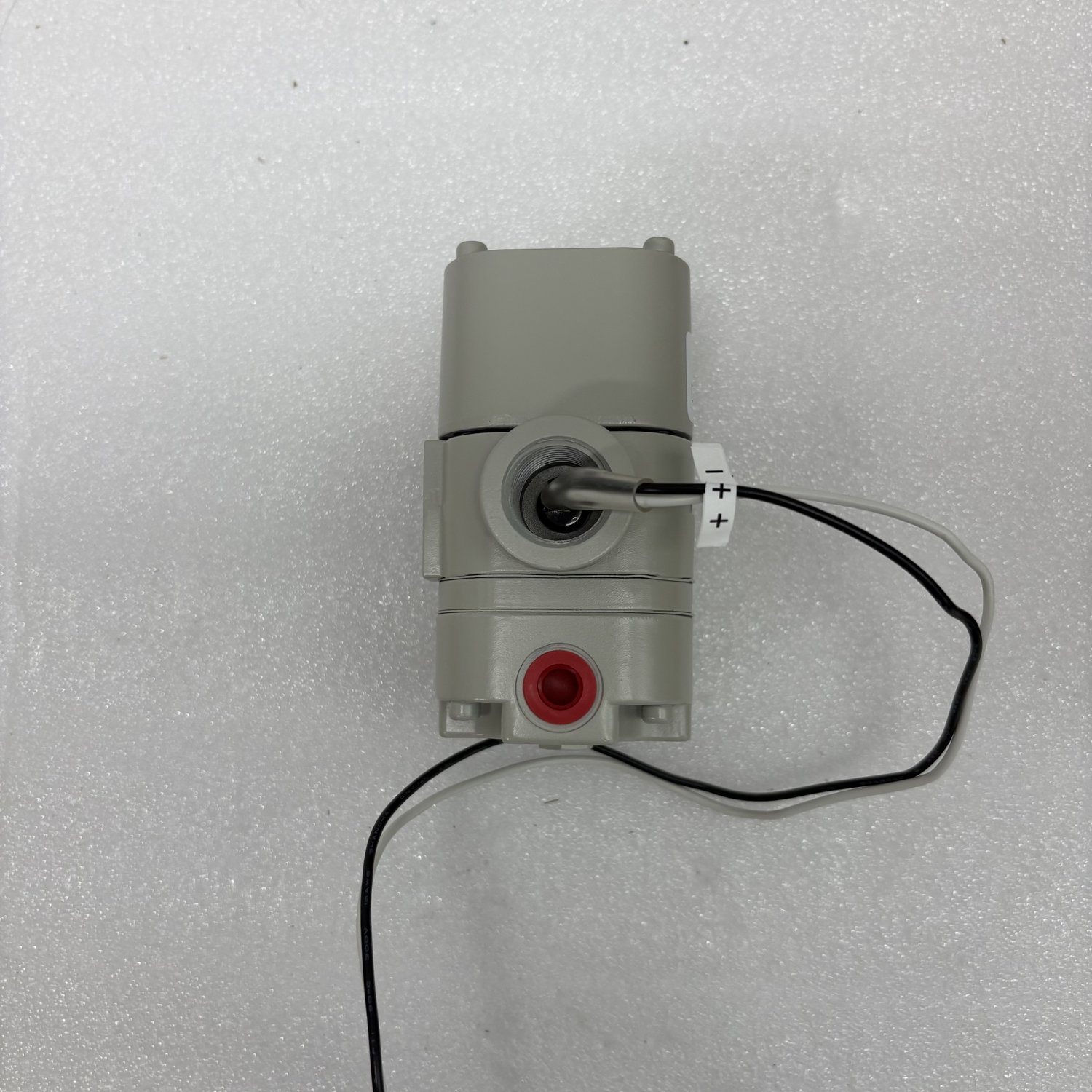

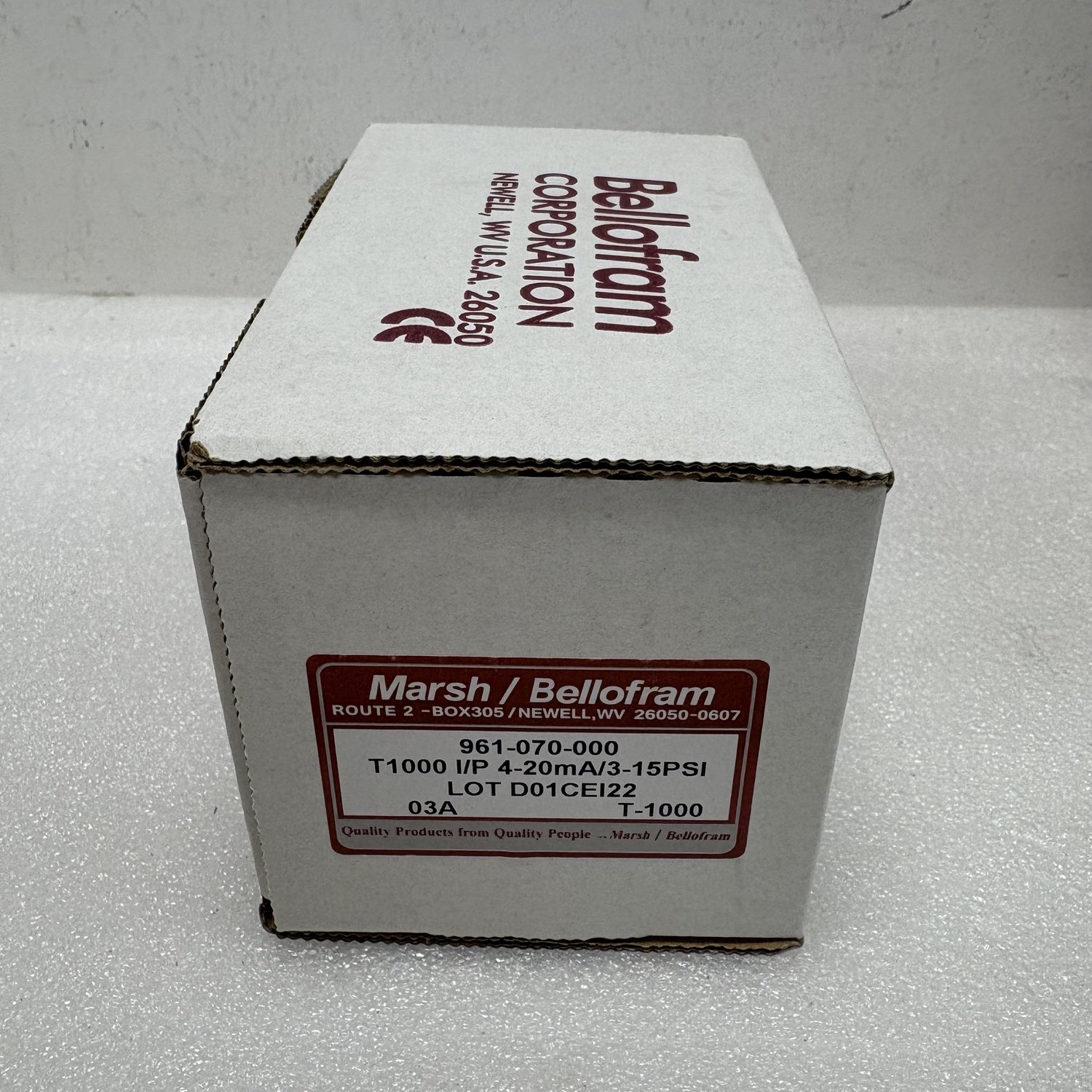

Bellofram 961-070-000 T1000 Electro-Pneumatic I/P Transducer (Type 1000 Series)
Bellofram 961-070-000 T1000 Electro-Pneumatic I/P Transducer (Type 1000 Series) - Image 2
Bellofram 961-070-000 T1000 Electro-Pneumatic I/P Transducer (Type 1000 Series) - Image 3
Bellofram 961-070-000 T1000 Electro-Pneumatic I/P Transducer (Type 1000 Series) - Image 4
Bellofram 961-070-000 T1000 Electro-Pneumatic I/P Transducer (Type 1000 Series) - Image 5
Bellofram 961-070-000 T1000 Electro-Pneumatic I/P Transducer (Type 1000 Series) - Image 6

Bellofram 961-070-000 T1000 Electro-Pneumatic I/P Transducer (Type 1000 Series)

REQUEST A QUOTE

  • Input Signal: 4–20 mA
  • Output Range: 3–15 PSIG (20–100 kPa)
  • Supply Pressure: 18–100 PSIG (6.9 BAR max, requires min 3 psig above max output)
  • Flow Capacity: Up to 12 SCFM (339 SLPM) via integrated pneumatic volume booster
  • Enclosure Rating: General Purpose (panel or surface bracket mounting)
  • Pneumatic Port: 1/4" NPT
  • Electrical Port: 1/2" NPT with 18" wire leads
  • Field Reversible: Reverse-acting operation by swapping signal lead polarity
  • Calibration: External zero and span adjustments
  • Split Ranging: Field-recalibratable to 3–9 PSIG or 9–15 PSIG

Brand New Bellofram 961-070-000 T1000 Electro-Pneumatic I/P Transducer (Type 1000 Series). In stock — ships worldwide within 5-10 days.

1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.

  • SKU: 961-070-000 T1000
  • New Original In Stock
  • 6 Months Warranty
  • shipping by DHL or UPS
  • Availability shown is for reference only and will be confirmed at the time the order is processed.
  • Published quantities may change without prior notice.
  • The customer is responsible for verifying part number and specifications before confirming the purchase.
  • Certain products may be considered special order items depending on availability.
