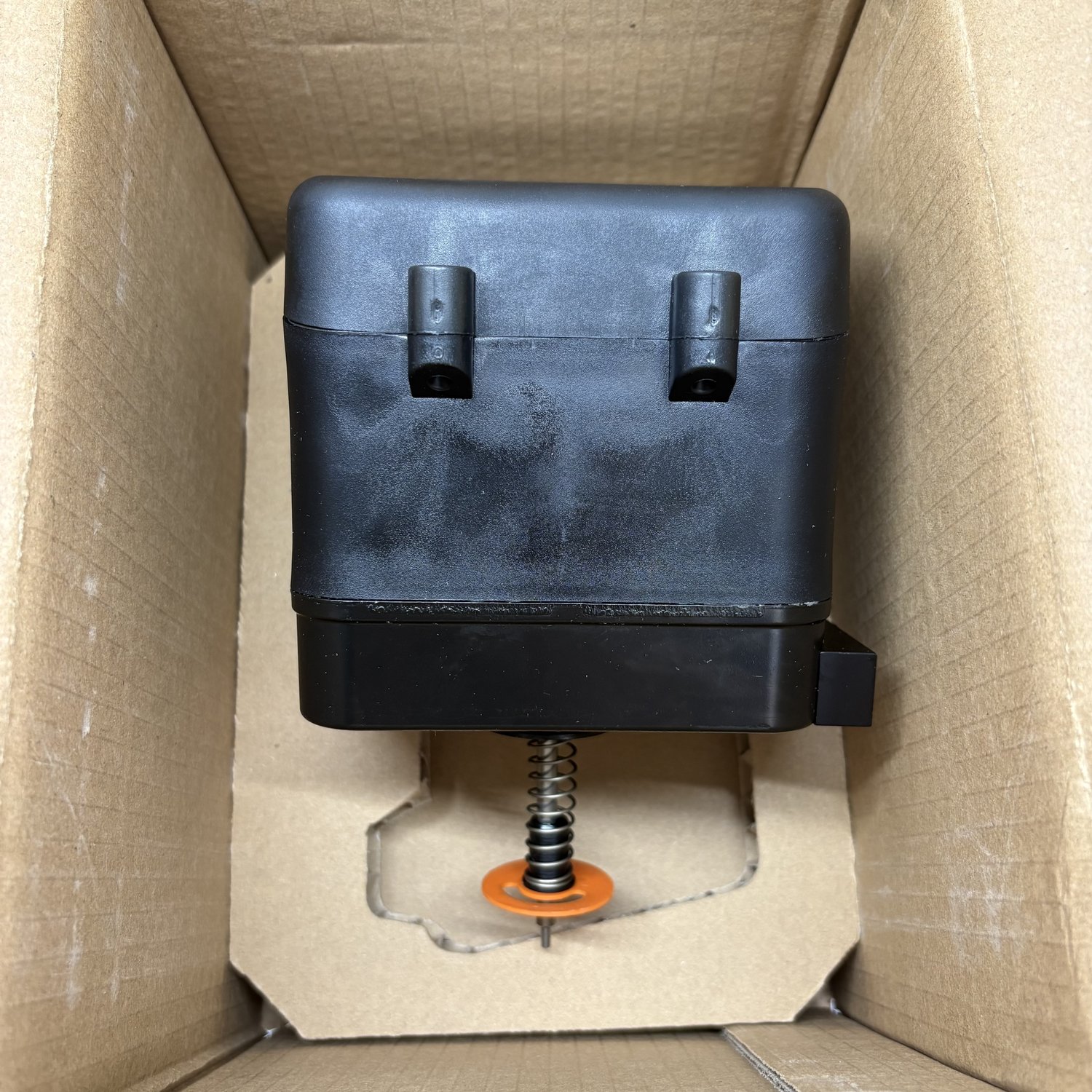

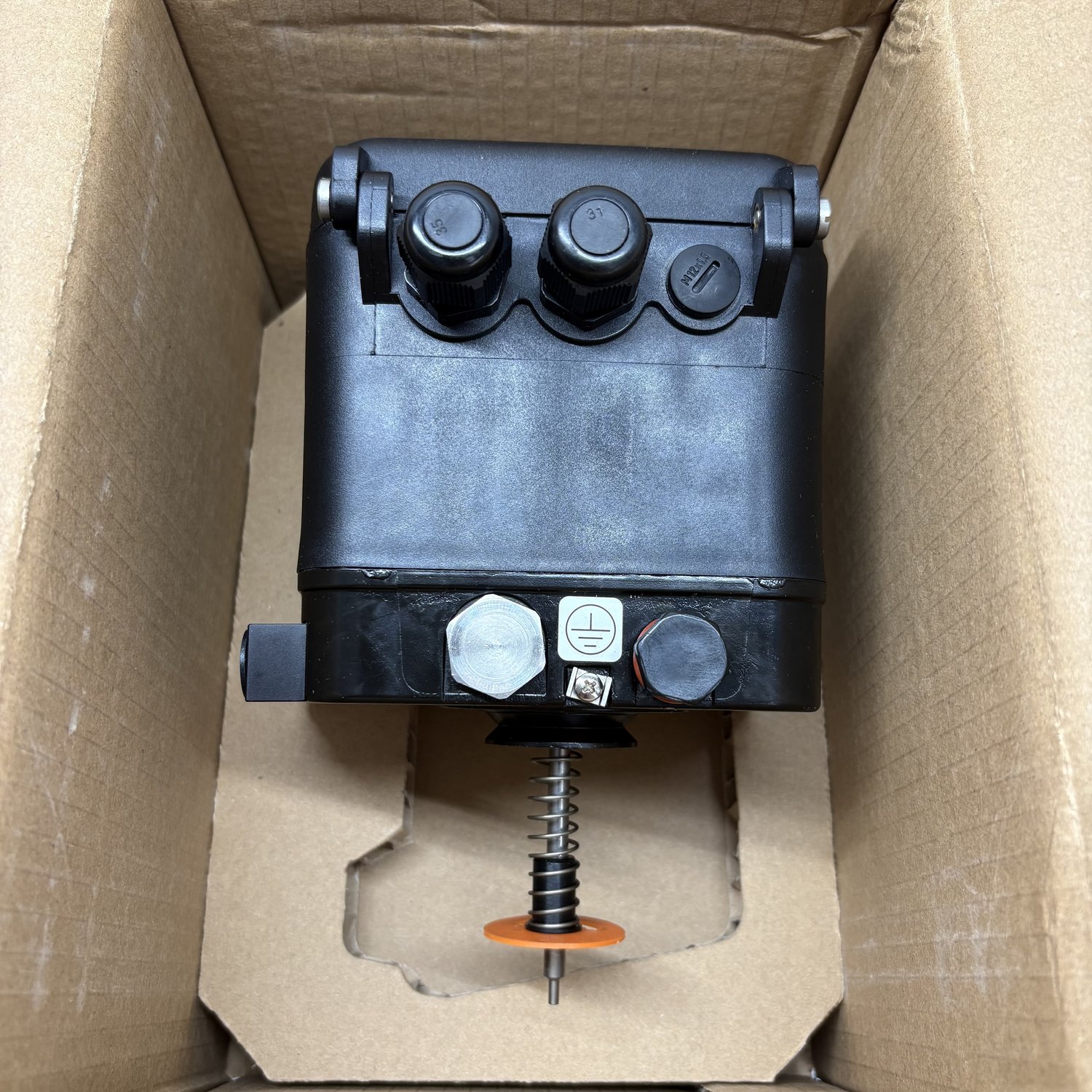

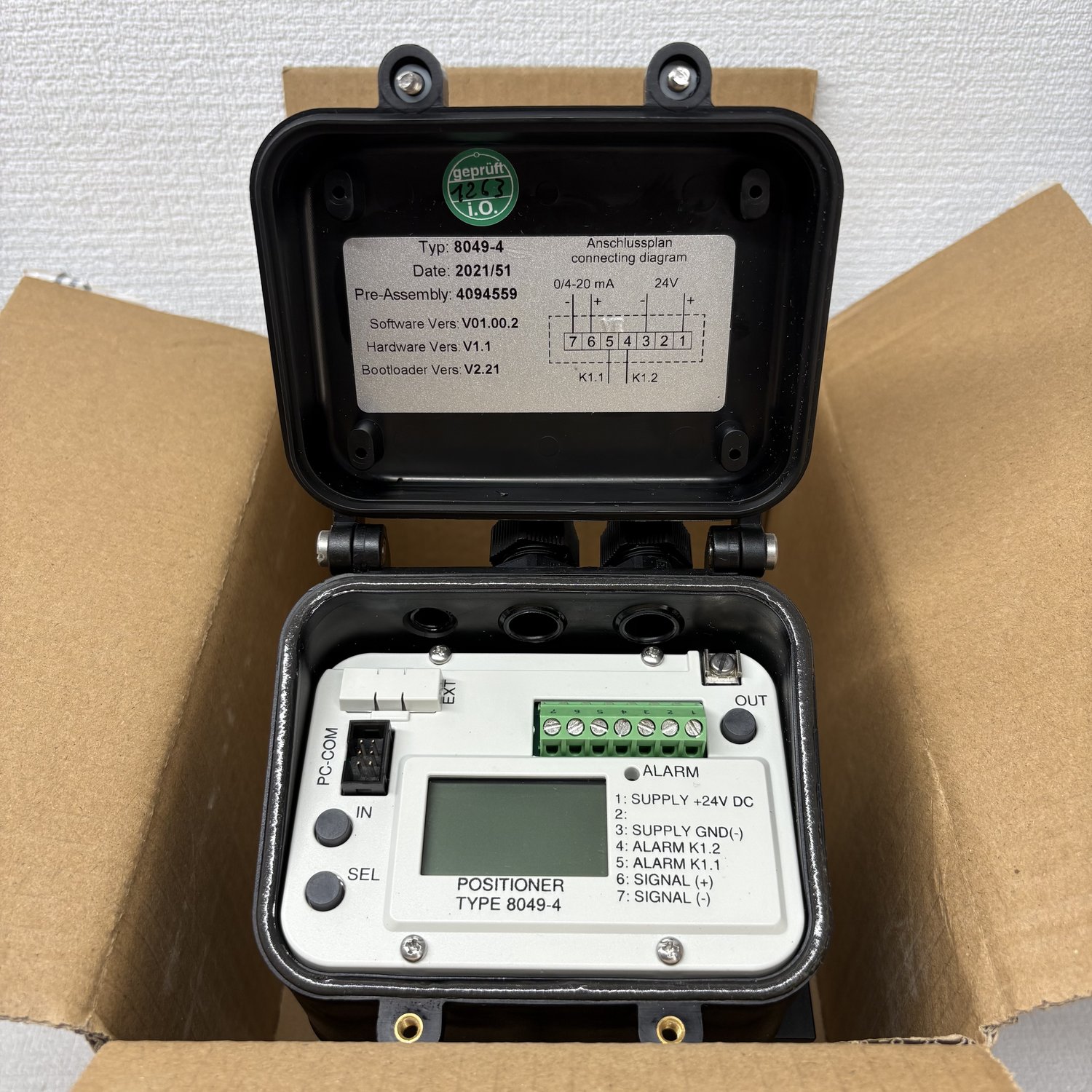

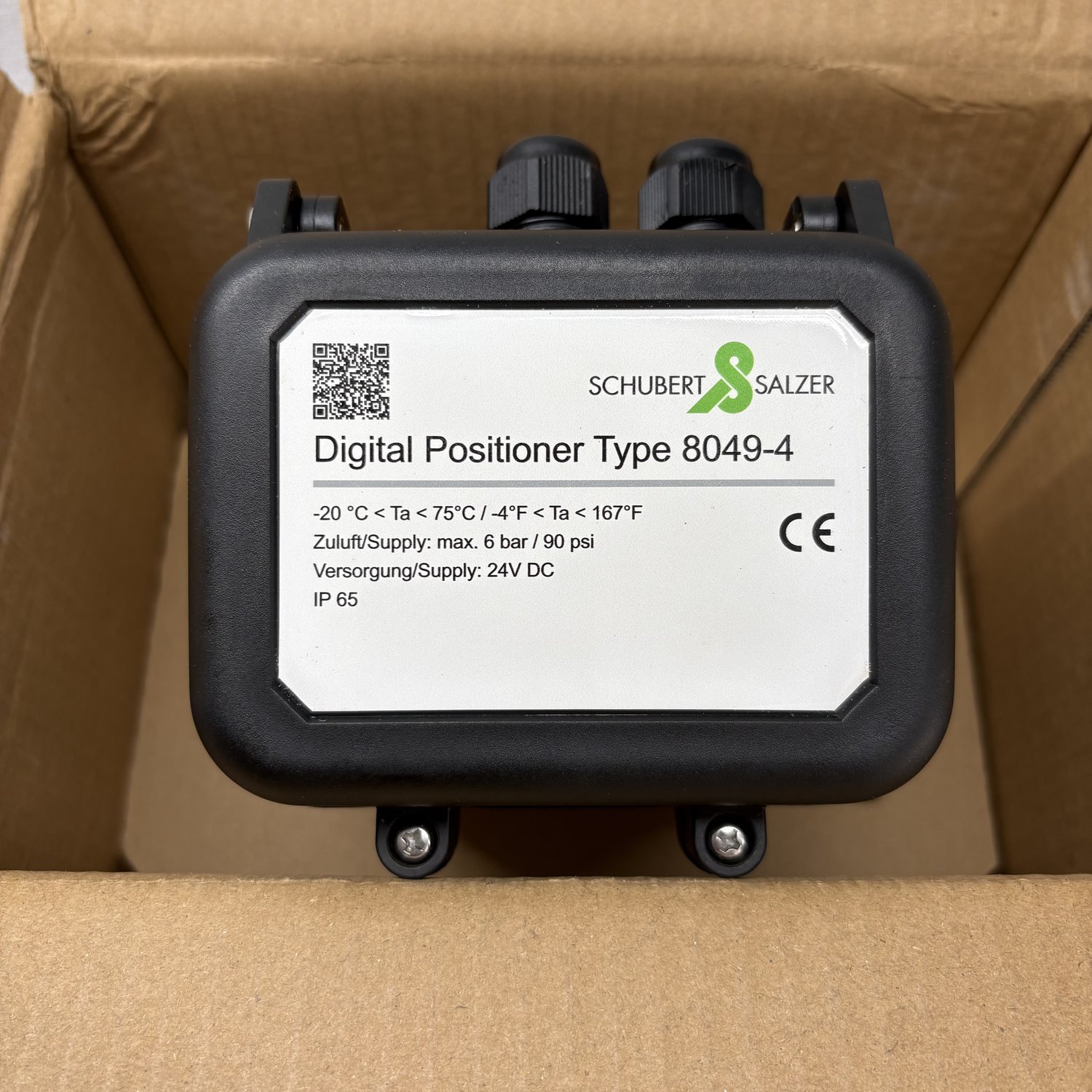

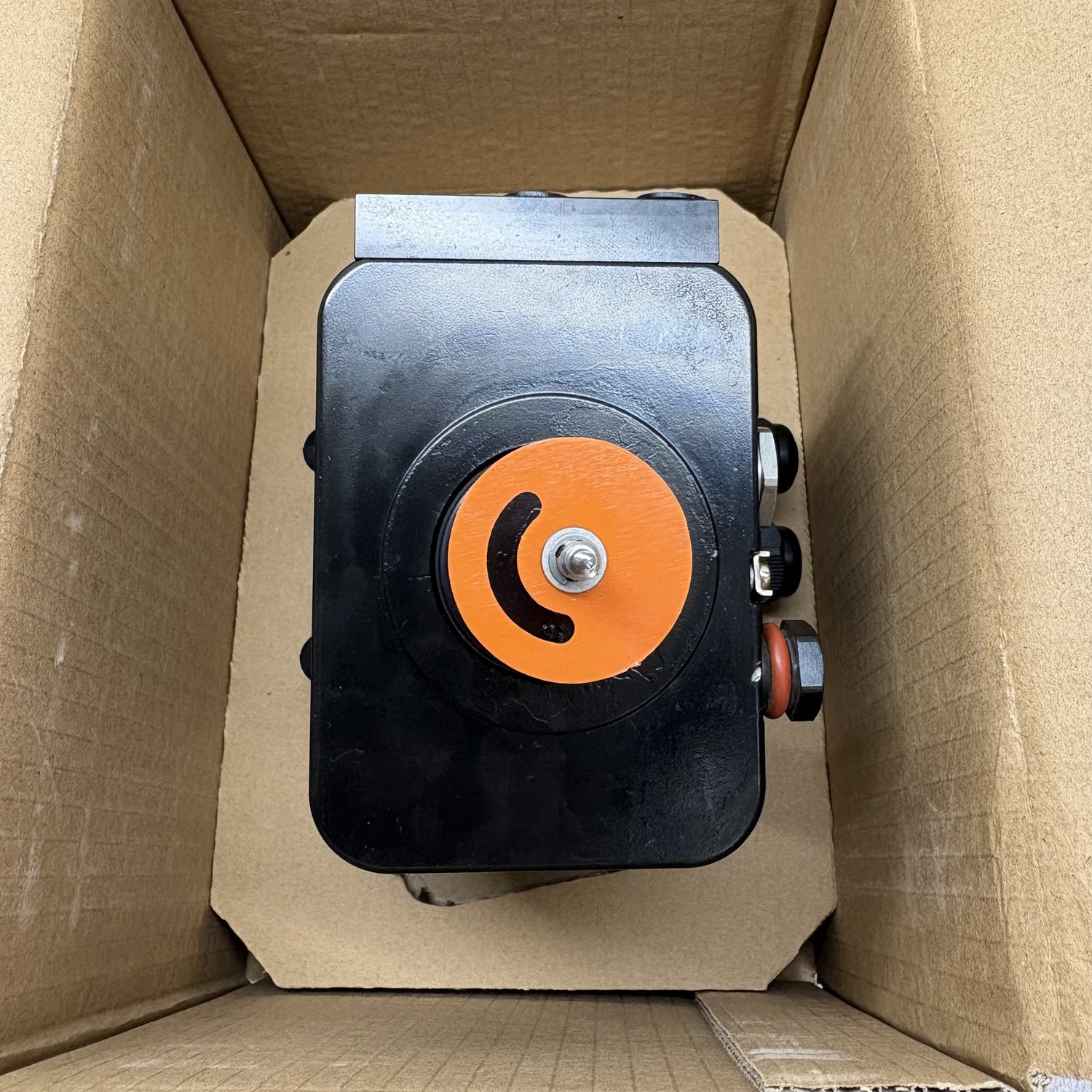

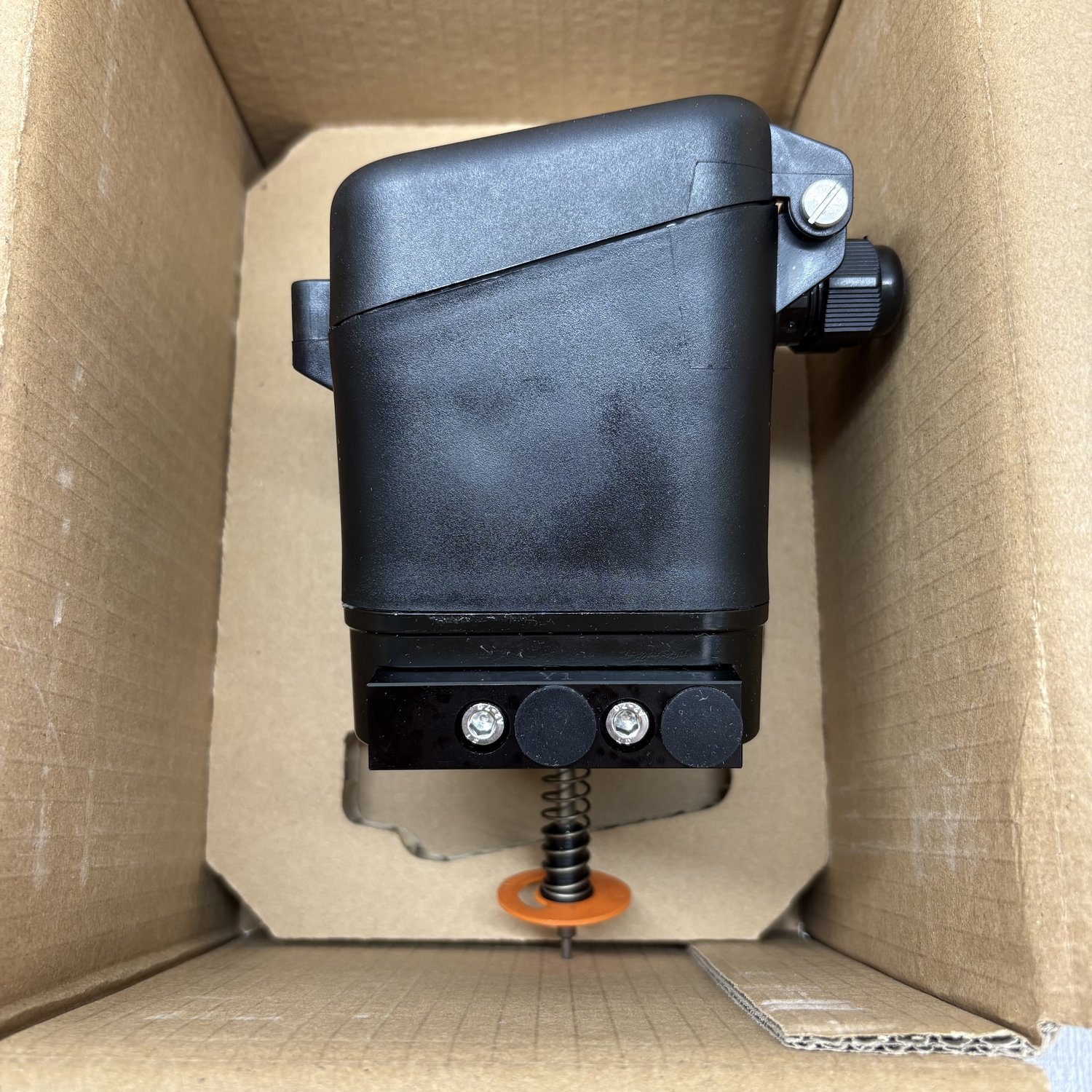

8049-4 （24VDC） Schubert & Salzer Electropneumatic Valve Positioner
- Supply Voltage: 24VDC (4-wire connection)
- Control Input Signal: Standard analog 4–20 mA or 0/2–10V
- Max Supply Pressure: 6 Bar (90 PSI)
- Pneumatic Connection: G 1/8" or NPT 1/8"
- Protection Class: IP65 dust and water resistance
- Stroke Range: Fits linear actuators with travel from 3 mm to 28 mm
- Zero Steady-State Air Consumption: Minimized bleed air saves energy when the valve is in a fixed position.
- Self-Adaptation: The unit automatically calibrates its zero point and full stroke without needing external tools.
- DeviceConfig Software: Enables quick parameterization, custom control profiles, and diagnostic tracking through a computer interface.
- Integrated Safety: Can be ordered with mechanical feedback, position feedback signals, or specialized explosion-proof (Ex/FM) approvals.
Brand New Schubert & Salzer 8049-4 （24VDC） Electropneumatic Valve Positioner (8049 Series). In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
- SKU: 8049-4 （24VDC）
- New Original In Stock
- 6 Months Warranty
- shipping by DHL or UPS
